5400 Series Paving Mold

-- Select Any Photo Or Graphic For A Close-Up --
The new 5400 series paving mold is designed with a structural integrity that is unmatched in the industry. It can be equipped with the 5400 series bar inserter.

  • New box design with durable 0.5 inch (13 mm) paving skin
  • Vertically-adjusting mold mount for precise leveling of mold to machine
  • Telescoping end sections with 12 inches (305 mm) of width variation on each side are available
  • Standard paving depth is zero to 24 inches (610 mm)
  • Edge slump adjustment
  • Hydraulic Vertical Hinged Sideplates, self-contained inside the mold for track clearance
  • Split, pressure-compensated sideplates
  • Folding sideplate wings for transporting without removing
  • Pivoting mold mounting beam to eliminate stress points
  • Self-supported TA is hydraulically driven with 3.5 inch (89 mm) ACME screws for up to a six inch (152 mm) crown
  • Front and rear top T-bar on mold for attaching accessories and structural integrity
  • Inserts are bolted together with front and rear alignment pins for easy mold assembly
  • New vibrator mounting tube attaches to T-bar on mold
    – Vertical vibrator lift
    – Rear lubrication system with grease zerks accessible from the work bridge
  • New strike-off
    – Mounted on paver frame T-rail, independent of the mold
    – New modular design with wedge lock system for ease in changing widths
    – 10 inches (254 mm) of hydraulic height adjustment
    – Hydraulic crown adjustment
  • Spreader plow mounted to paver frame T-rail, optional auger available
  • Tamper bar optional







5400 Series Paving Mold Photos

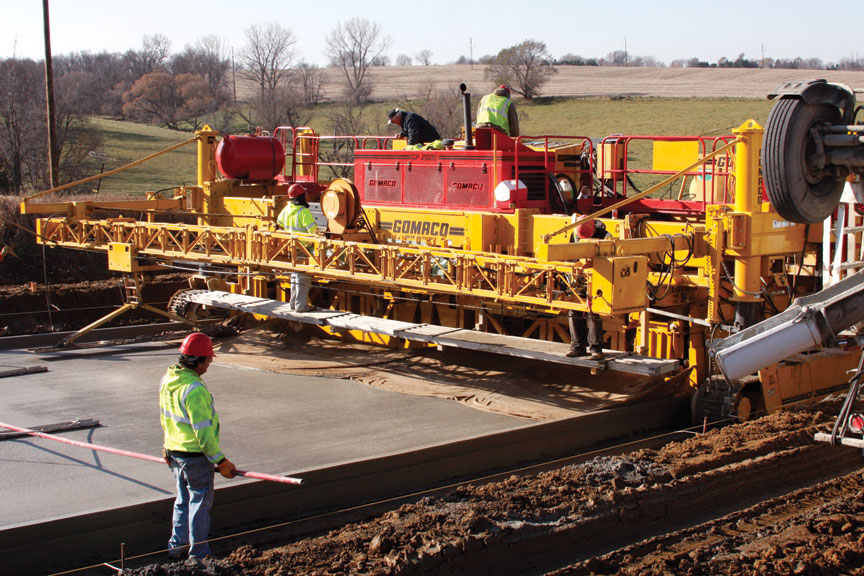

Telescoping end sections with 12 inches (305 mm) of width variation on each side are available. The 5400 series mold is designed with a structural integrity that is unmatched in the industry.

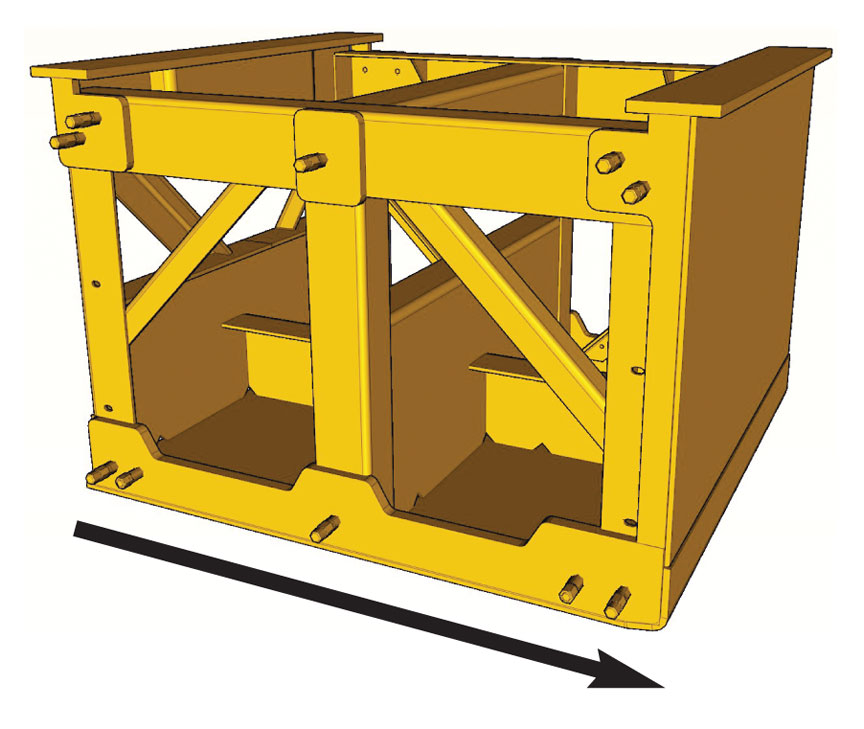

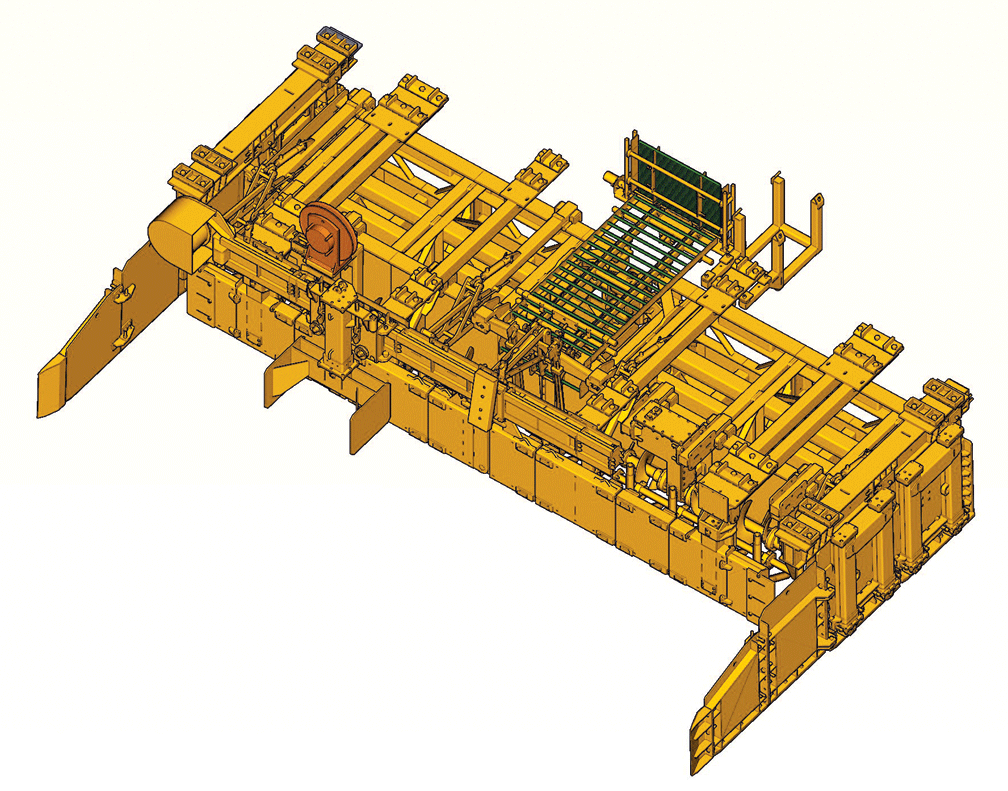

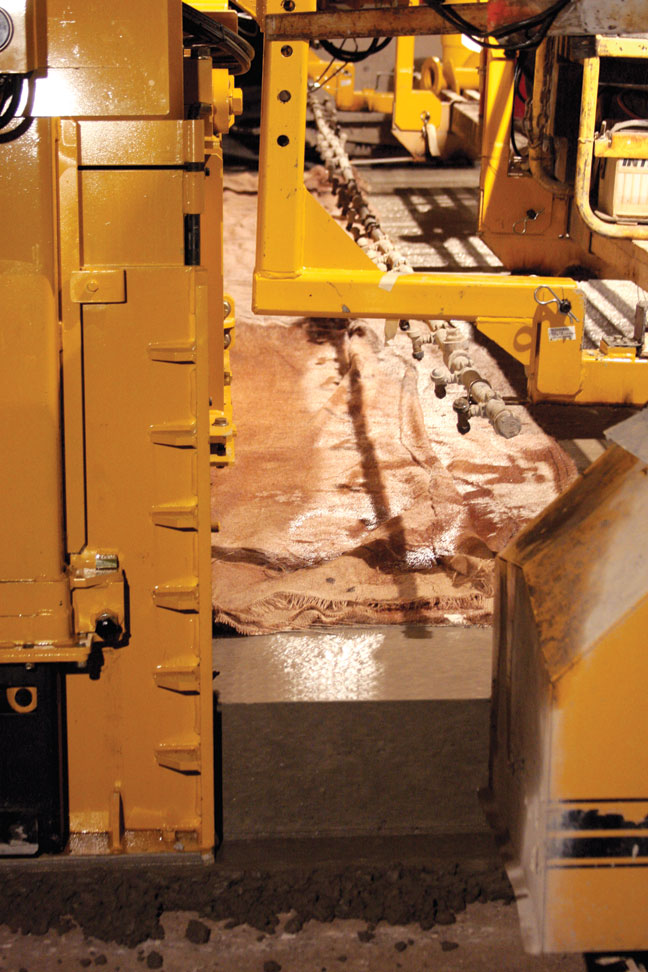

The new box design of the 5400 series mold with durable 0.5 inch (13 mm) paving skin. A top view of the 5400 series mold with bar inserter.

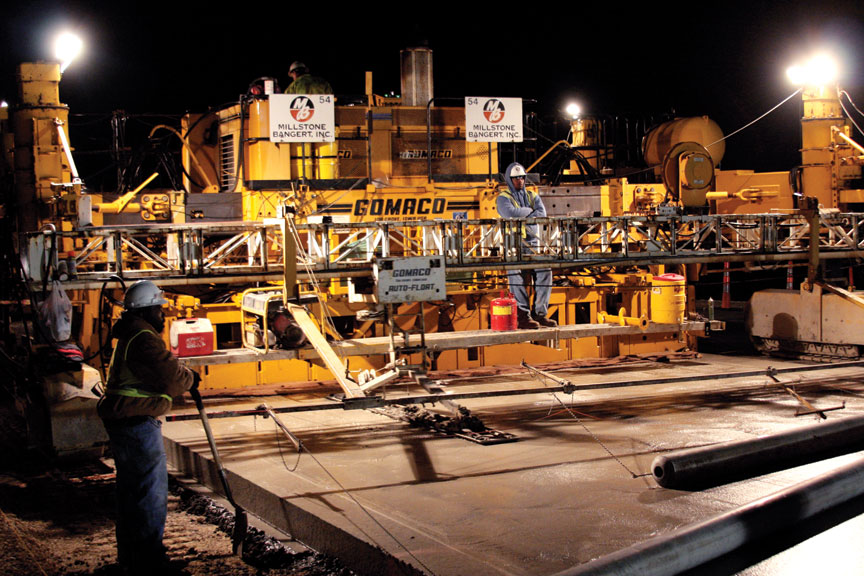

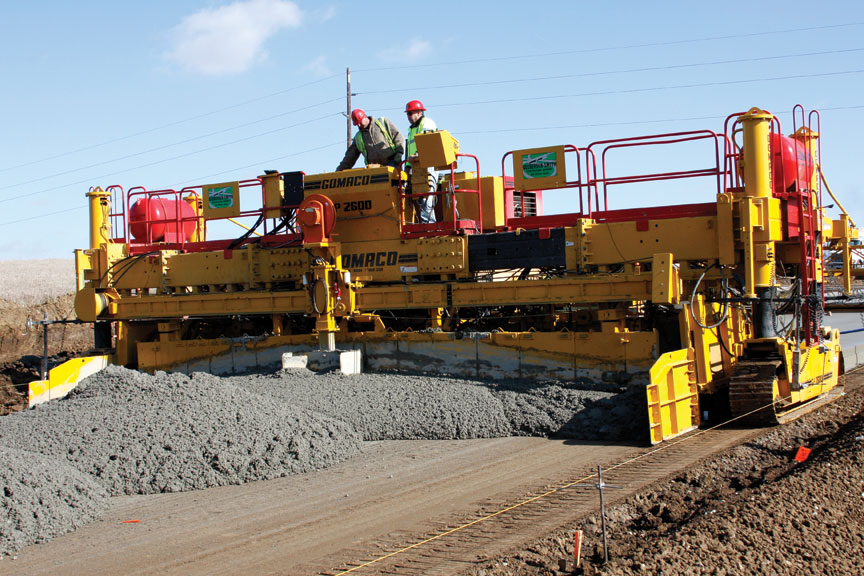

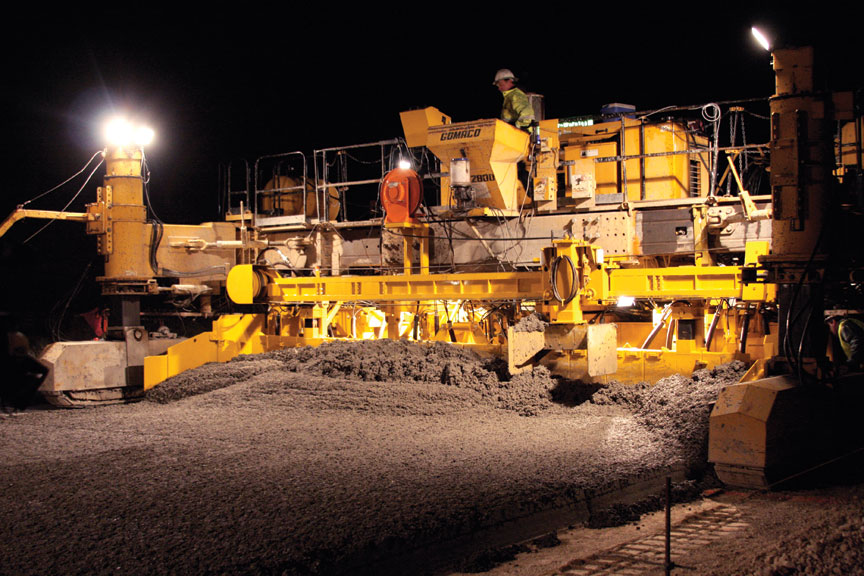

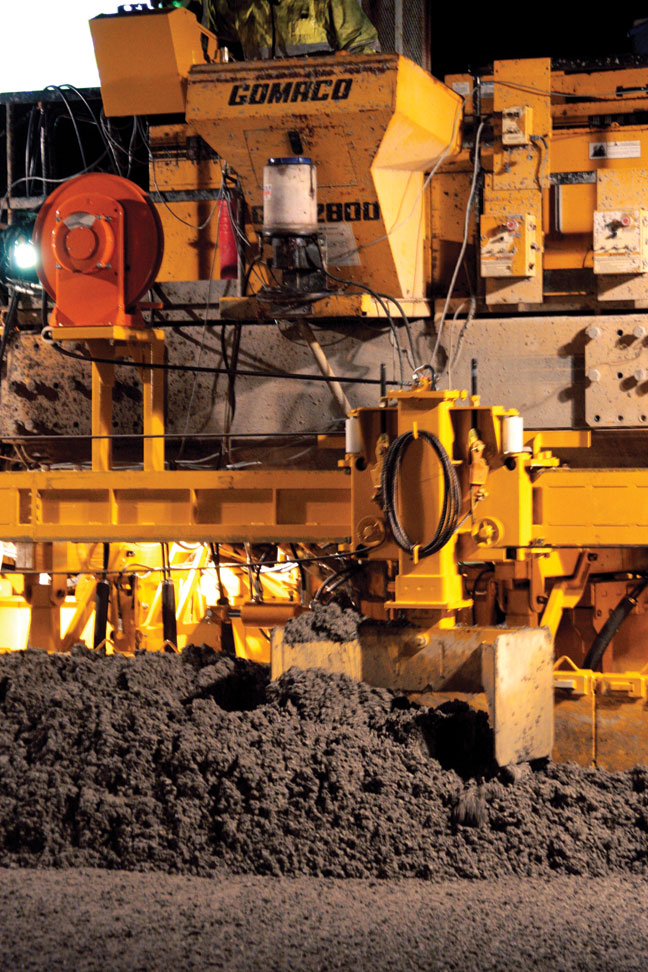

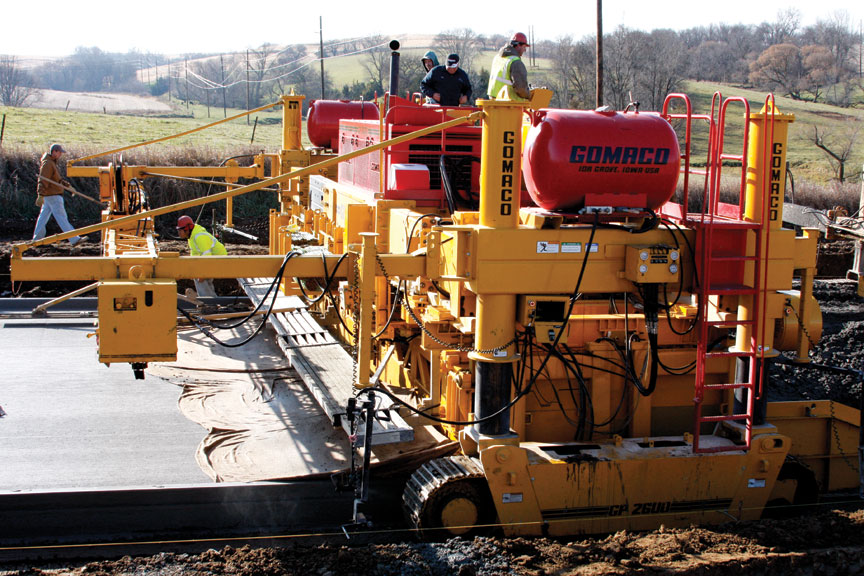

The spreader plow is mounted to the paver's frame T-rail on this GOMACO GHP-2800. A burlap drag mounted to the back of the paver provides the final finish to the concrete slab.

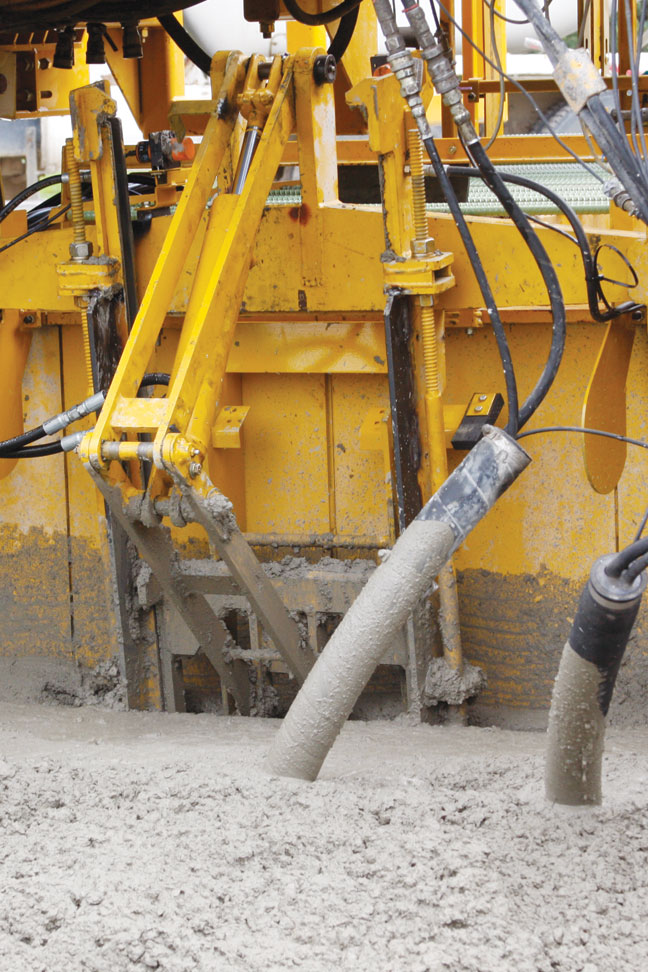

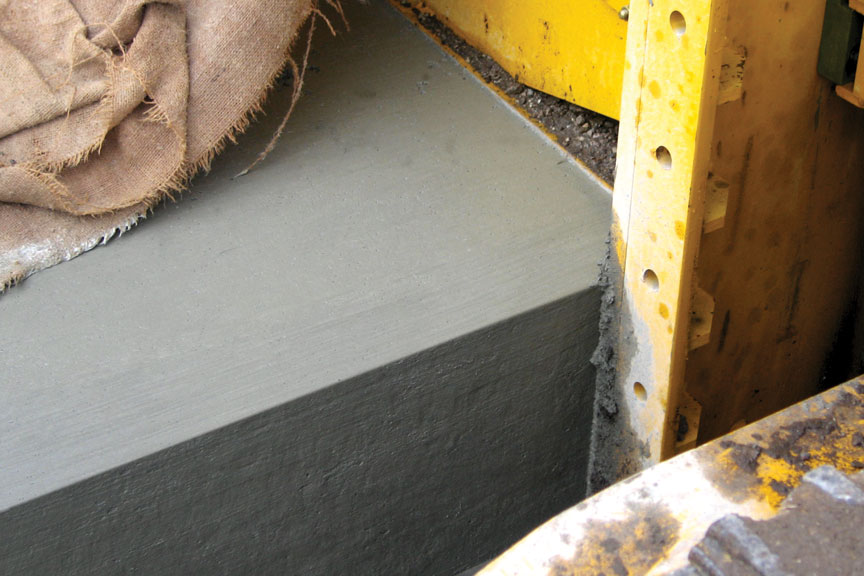

The standard paving depth for the 5400 series mold is zero to 24 inches (610 mm). A vertical adjusting mold mount is for the precise leveling of the mold to the machine.

5400 Series Bar Inserter

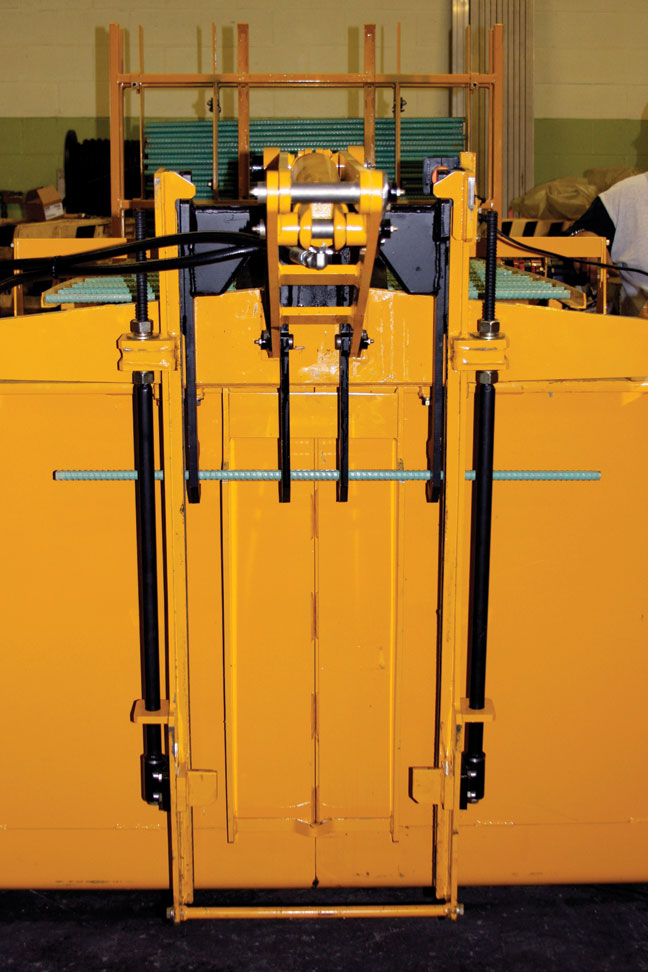

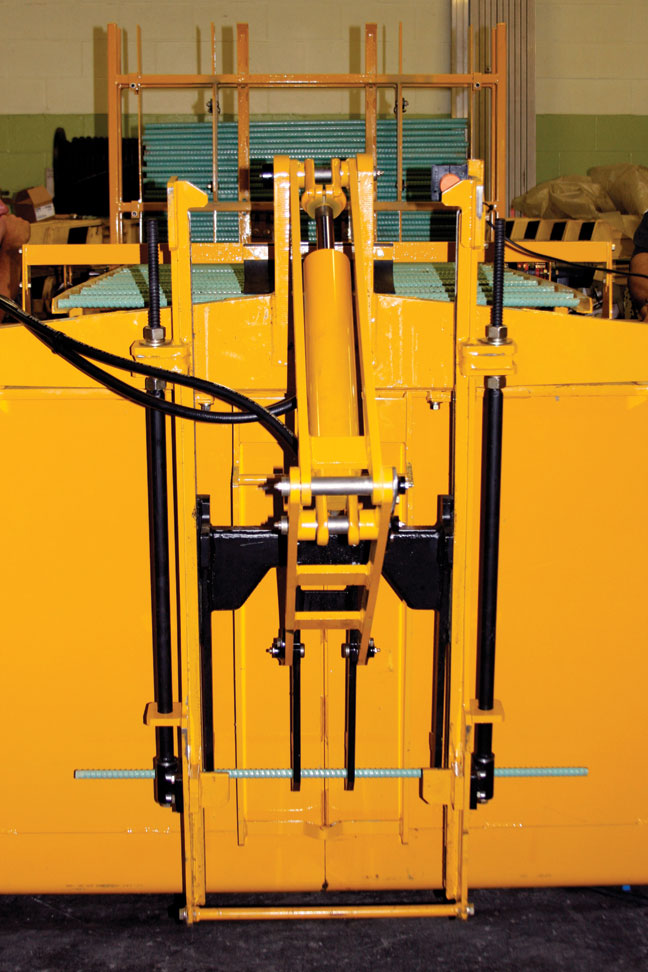

Bars are rear loading with insertion in front of the mold.

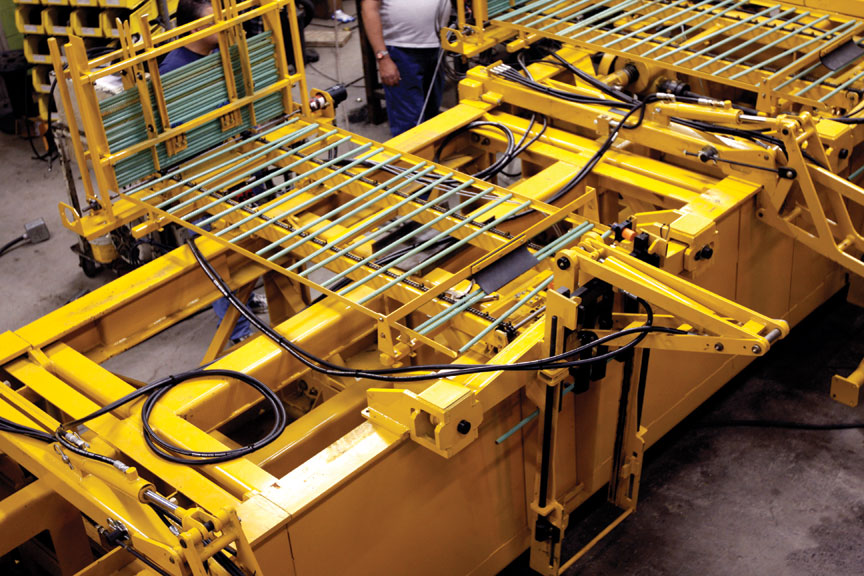

The GOMACO Paver Accessory Display is managing two 5400 series bar inserters and two PTAs on this GOMACO GP-4000 two-track paver.
  • Bar inserter is rear loading and front inserting for ease of use
  • Mounts to the 5400 series mold's T-beam and allows crown changes, on-the-go, while maintaining a constant bar depth
  • Individual depth guides on right and left side of bar inserter keep bars parallel to top of slab
  • Bar magazine and bar loading chain system
  • Bar box is mounted to paver's rear T-rail for easy access and loading of bar magazine
  • Reliable bar loading chain system with bars traveling in a flat, straight path for maximum efficiency
  • Inserts bars up to 7.5 inches (191 mm) deep into concrete slab
  • Accommodates #3 (0.375 inch (10 mm)) to #8 bars (one inch (25 mm)) in diameter and 20 to 40 inches (508 to 1016 mm) in length
  • Proximity switch control for automated bar loading system
  • Rear lubrication system with grease zerks accessible from work bridge
  • Controlled with GOMACO's new, exclusive G+ system
  • Available for other GOMACO molds with self-supporting transition adjusters







5400 Series Bar Inserter Photos

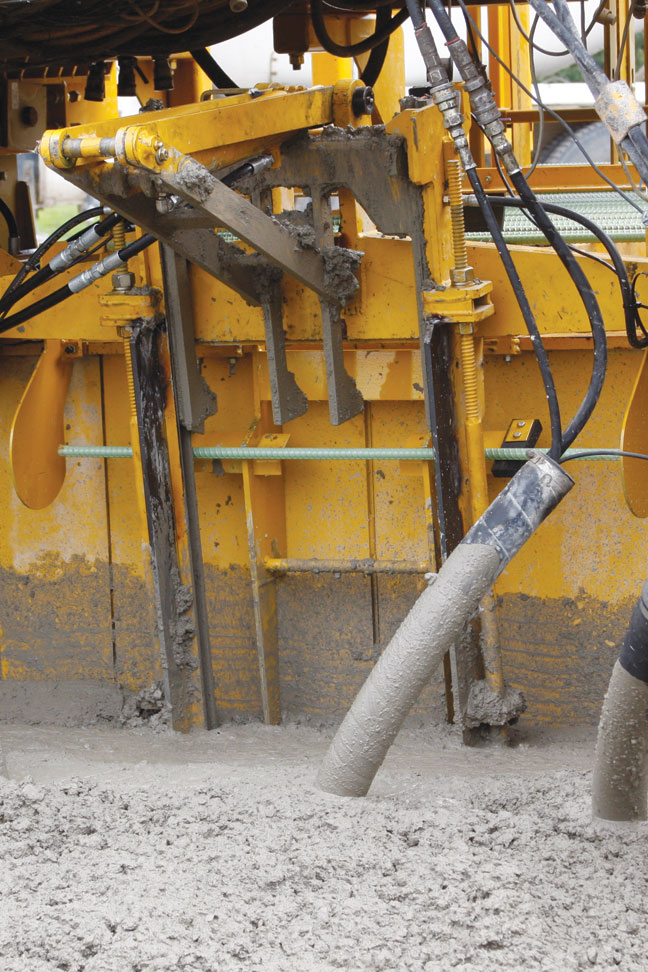

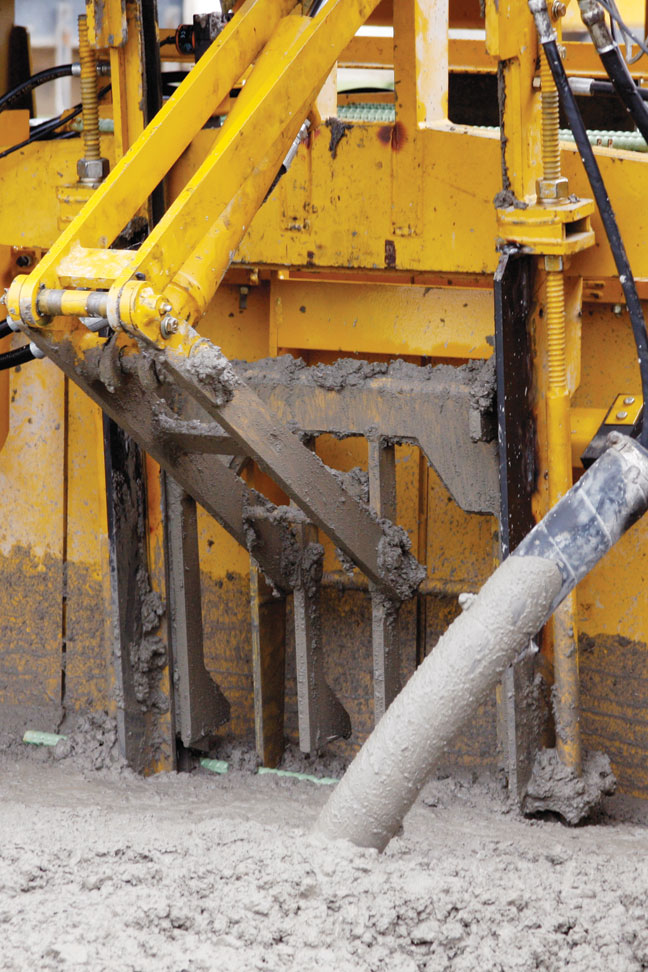

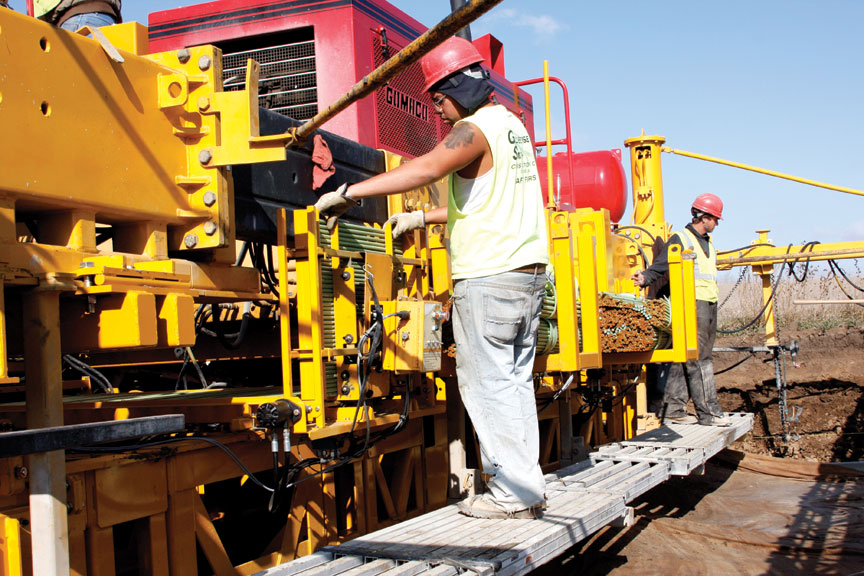

A single bar is loaded and waits as the paver travels to the next insertion point. The inserter is activated at a specific location and releases the bar into the concrete The bar inserter accurately pushes the bar into proper position and alignment.

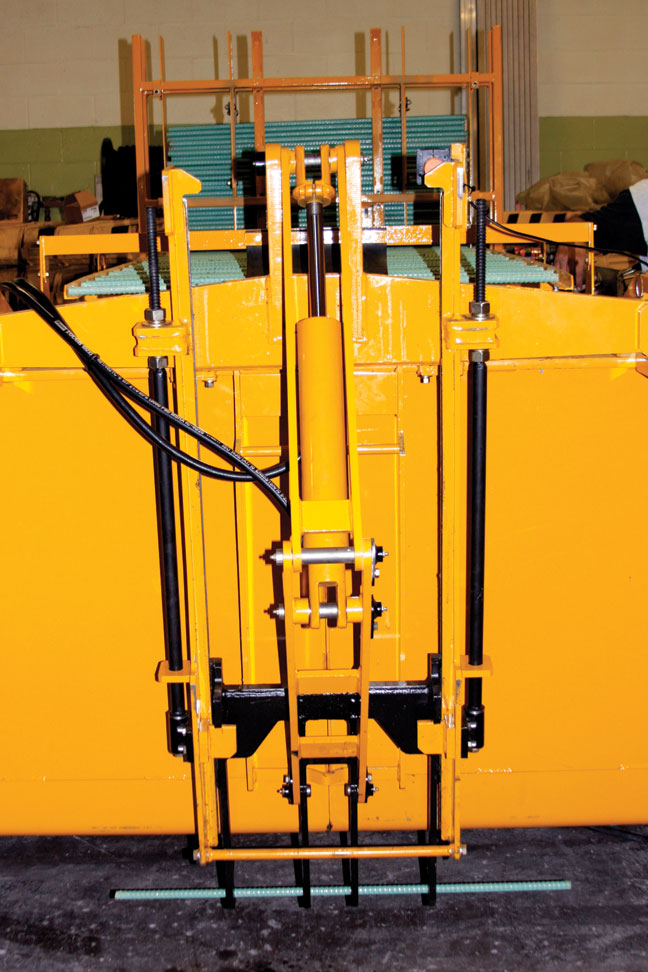

The rear-loading,
front-inserting,

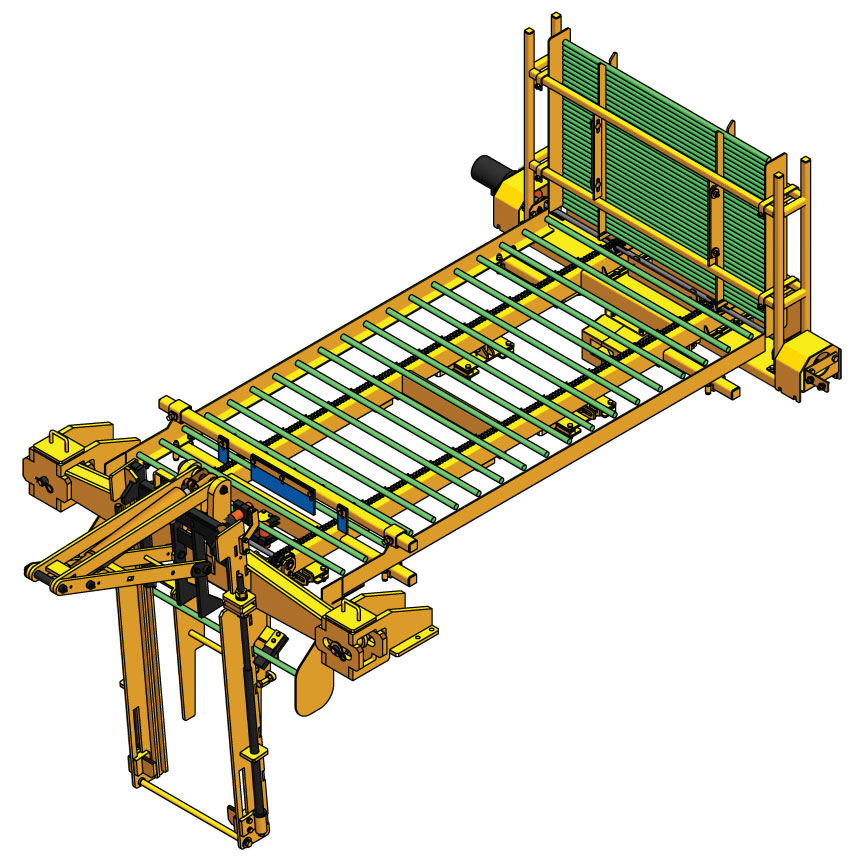

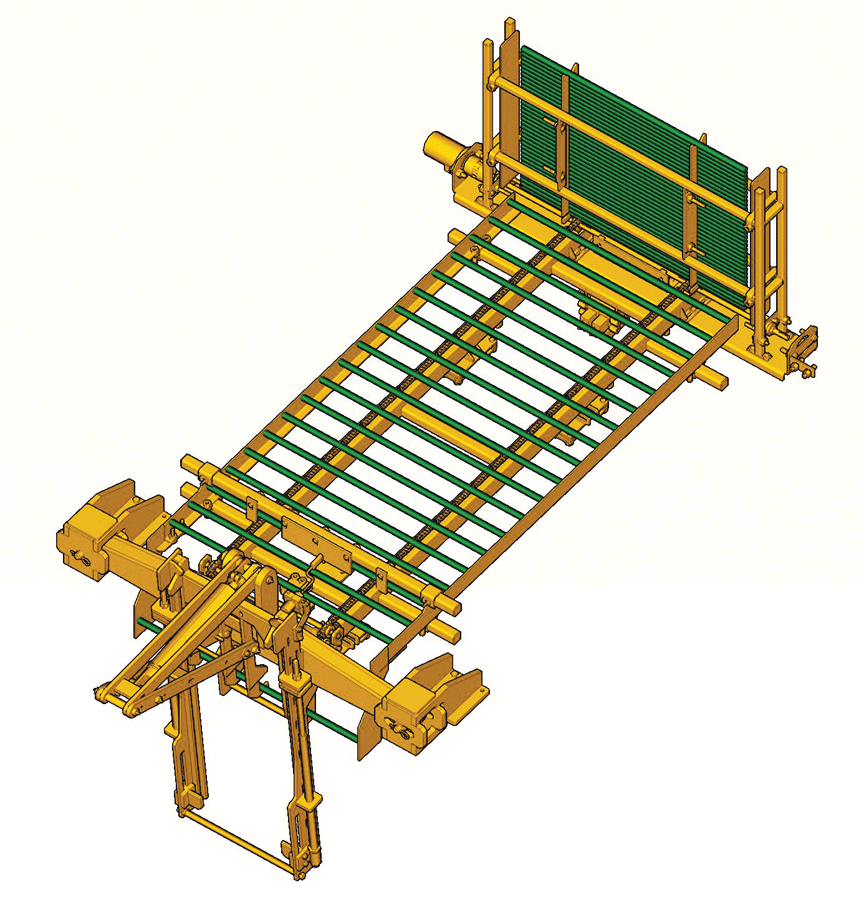

5400 series bar inserter.

Download The 5400 Series Mold Brochure (PDF Format) Download The 5400 Series Bar Inserter Brochure (PDF Format)
