9000 Trimmer/Placer Specifications

ENGINE (emission-controlled)
Type:
Turbocharged CAT® C11 diesel. (air-to-air after-cooled, four stroke)
Power: 385 hp (287.2 kW) @ 1850 rpm.



SERVICE CAPACITIES
Fuel reservoir:
138 gal. (522.4 L).
Hydraulic oil reservoir: 163 gal. (617 L).



HYDRAULIC SYSTEM
Pumps:
Two single-stage hydrostatic pumps provide 82 gpm (310 Lpm) @ 2200 rpm for travel. One single-stage hydrostatic pump provides
100 gpm (378.5 Lpm) @ 2200 rpm for trimmer. Two single-stage hydrostatic pumps provide 50 gpm (189.3 Lpm) for conveyors. One pressure-compensated control circuit pump provides 25 gpm (94.6 Lpm) @ 2200 rpm.
Hydraulic oil cooling: One cooler to cool track and trimmer circuit oil.
Filtration: One 7 micron main return filter, six 7 micron charge pressure filters for each track pump and auger/trimmer pump, one 7 micron control circuit filter and two 100 mesh magnetic sump strainers. Filter restriction is monitored electronically through the exclusive operating system.



AUTOMATIC CONTROL SYSTEM
Type:
Electronic-over-hydraulic.
Controls: GOMACO's exclusive operating system.
Remote control: Remote control handset included for operator convenience.

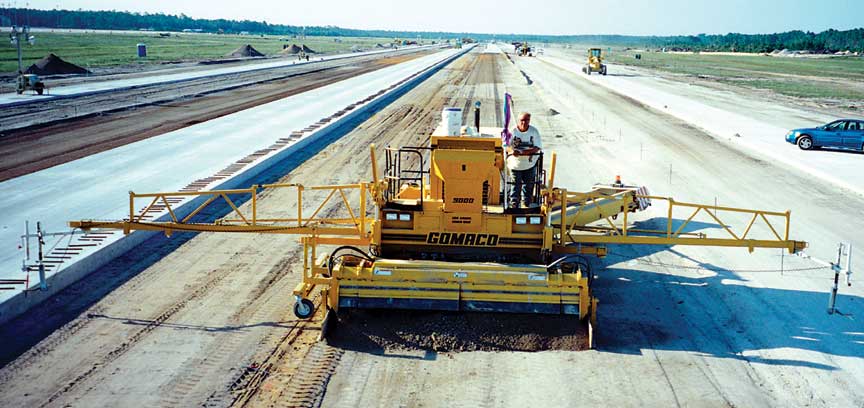

Dual grade control: Dual grade control for sensoring stringline on both sides of machine simultaneously.
Trimmer control: Controls direction and speed for trimming accuracy and safety.
Transfer and rear conveyor control: Controls direction and speed for placement of material.
Slope transition system: Software for slope transition is available and features automatic correction for grade elevation, automatic correction for steering, and eliminates the need for stringline adjustment.
Lighting: Light system for night operation.



TRACK SYSTEM
Type:
Two hydrostatic powered, enclosed, planetary gear-driven crawler tracks.
Track length: 11 ft. 11 in. (3.63 m). Length from center-to-center of sprockets, 9 ft. 6 in. (2.9 m).
Track pad width: 13.78 in. (350 mm).
Gearbox reduction: 125.66:1.
Track speed: Variable up to 115 fpm (35 mpm).
Ground pressure: 16 psi, based on 53,000 lb. (24,040.8 kg) machine with weight evenly distributed.



GRADE SKI
Rolling grade ski for matching previously trimmed grade.

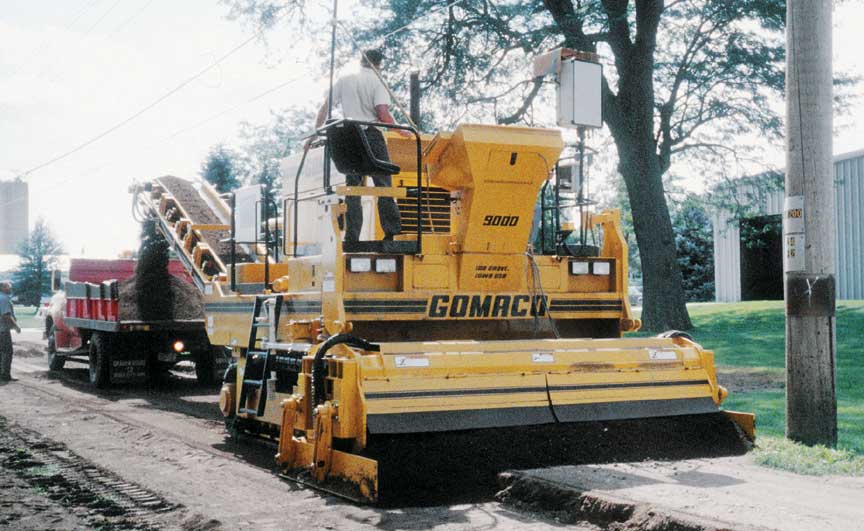

TRIMMERHEADS (for trimmer only)
Widths: 10 ft. 8 in. (3.25 m); 12 ft. 8 in. (3.86 m); and 14 ft. 8 in. (4.47 m).
Sectional trimmer shroud: Standard.
Trimmer wheel diameter: 32 in. (813 mm). All trimmerheads include material loading deflectors, replaceable carbide-tip cutter teeth and single internally mounted hydraulic motor.
Number of teeth on standard trimmerheads:
10 ft. 8 in. - 95 teeth;
12 ft. 8 in. - 107 teeth;
14 ft. 8 in. - 119 teeth.

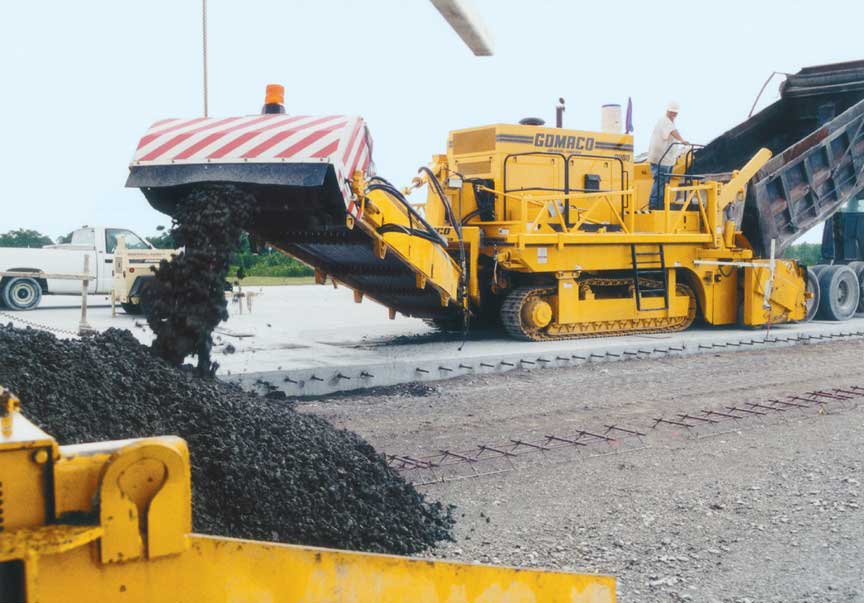

RECEIVING HOPPER (for placer only)
Overall width: 11 ft. 11.25 in. (3.64 m).
Receiving width: 10 ft. 6.5 in. (3.21 m).
Capacity: 1.47 cu. yd. (1.1 cu. m).
Truck latching system: Quick hitch.
Auger diameter: 12 in. (305 mm).



RECLAIMING SYSTEM
Front Transfer Conveyor
Length with trimmer:
12 ft. (3.66 m).
Length with placer: 16 ft. (4.88 m).
Width: 30 in. (762 mm).
Type: Hydrostatic.
Belt speed: 512 fpm (156.1 mpm).
Rear Conveyor
Length:
25 ft. (7.62 m).
Width: 30 in. (762 mm).
Type: Hydrostatic.
Belt speed: 560 fpm (170.7 mpm).
Hydraulic swing: 120 degrees.
Hydraulic elevation: 13 ft. 4.81 in. (4.08 m).
Conveyor lift winches: Two 1500 lb. (680.4 kg) removable conveyor lift winches mounted at the rear of the machine frame.



PICK-UP ARMS (optional)
Hydraulic pick-up arms located at the front of the 9000. Maximum lift of 4 ft. 10.5 in. (1.49 m).



DIMENSIONS
Shipping
Width:
9 ft. 7 in. (2.92 m).
Height: 10 ft. 1.75 in. (3.09 m), with stack removed.
Length: 18 ft. 5.17 in. (5.62 m).
Operational
Width: Variable, 12 ft. 7.38 in. (3.85 m), 14 ft. 7.38 in. (4.45 m), and 16 ft. 7.38 in. (5.06 m), depending on size of trimmerhead.
Height: 13 ft. 4.81 in. (4.08 m).
Length: 44 ft. 11.66 in. (13.71 m) with rear conveyor in lowered position.



WEIGHTS
Prime mover with transfer conveyor:
38,000 lbs. (17,236.8 kg).
Rear conveyor assembly: 3870 lbs. (1755.4 kg).
Standard trimmerheads:
10 ft. 8 in. (3.25 m), 11,895 lbs. (5395.6 kg).
12 ft. 8 in. (3.86 m), 12,403 lbs. (5626 kg).
14 ft. 8 in. (4.47 m), 12,278 lbs. (5569.3 kg).
Receiving hopper: 7288 lbs. (3305.8 kg)



OPTIONS

  • Additional trimmerheads and conversion kits.
  • Extended sensor boom assembly for reaching stringlines 40 ft. (12.19 m) apart.
  • High-pressure water system includes trigger gun control and adjustable pressure loader for up to 2000 psi.
  • Pressure-compensated sideplates for variable trimming depths.
  • Transfer conveyor conversion to convert transfer conveyor from placer to trimmer system.
  • Concrete placer system, includes receiving hopper, 3 ft. (.91 m) transfer conveyor extension and vulcanized belt.
  • Complete transfer conveyor for concrete placer system.
  • Sonar sensing system eliminates stringline setup.
  • Hydraulic pick-up arms.
  • Pick-up head attachment is ideal for use in asphalt reclaiming operations by picking up milled asphalt and conveying the material into trucks.
  • Placing hopper designed for placement of aggregate and other materials.
  • Asphalt placing hopper with heat-resistant belts.
  • 3D package for stringless control.
  • Other options are available to customize machine to accommodate applications and customer needs.



MANUFACTURED UNDER ONE OR MORE OF THE FOLLOWING U.S. OR FOREIGN PATENTS: 5,190,397; 5,209,602; 5,924,817; 5,941,659; 6,099,204; 6,450,048; 2,211,331; 2,069,516; 7,044,680; 7,284,472; 7,517,171; 7,845,878; 7,850,395; AND PATENTS PENDING.

GOMACO Corporation reserves the right to make improvements in design, material, and/or changes in specifications at any time without notice and without incurring any obligation related to such changes.

Performance data is based on averages and may vary from machine to machine.
