Commander III Barrier/Parapet Applications |
||||||||
  Junctions 3 to 4 of the M2 expressway in Belfast, Northern Ireland, involved the engineering of a new concrete barrier system capable of accommodating up to 3.9 ft. (1.2 m) of roadway level differences. The wide step barrier required 0.9 cubic yards (0.7 m3) of concrete to slipform just 3.3 ft. (1 m), and it was slipformed by a three-track Commander III. Read more about this project in GOMACO World 37.2. |
 This contractor in St. Louis, Missouri, is slipforming variable barrier wall up to 7 ft. (2.1 m) tall. |
|||||||
 |
||||||||
 |
 |
 |
||||||
| A GOMACO 9500 feeds concrete onto the belt of a four-track Commander III slipforming barrier wall on a project in St. Louis. The Commander III is equipped with a variable-height mold for slipforming both the variable and non-variable center median barrier.
Read more about this project in GOMACO World 37.1. |
This Commander III slipformed parapet on the Bill Emerson Memorial Bridge connecting Cape Girardeau, Missouri, to East Cape Girardeau, Illinois.
Read more about this project in GOMACO World 32.2. |
|||||||
|
||||||||
Steel reinforcing is fed into the front of the mold as this 5 ft. 7 in. (1.7 m) tall European-style step barrier is slipformed with a four-track Commander III on a project in London, England. |
 |

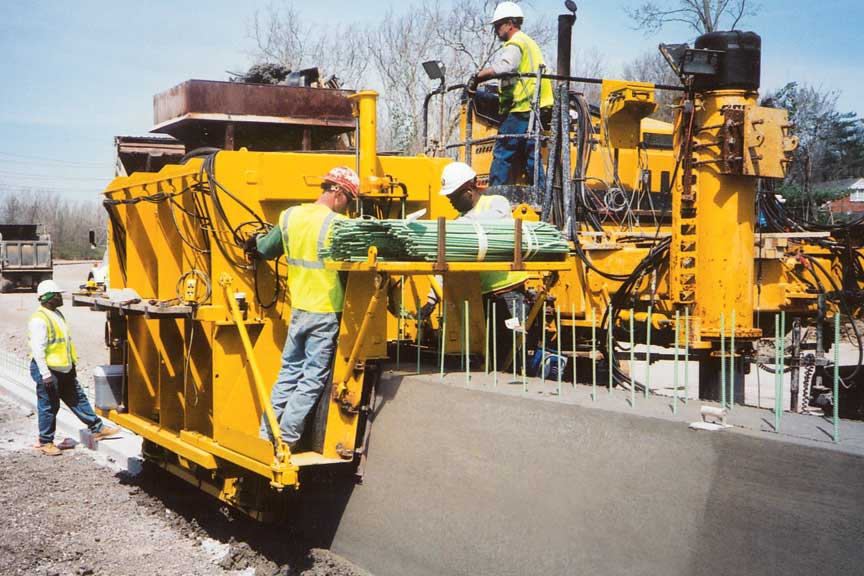

 Rebars are hydraulically inserted into the 24 inch (610 mm) wide top of this barrier wall being slipformed by a four-track Commander III on a project in St. Louis, Missouri. Read more about this project in GOMACO World 37.1. |
||||||
|
||||||||
 |
 |
 |
||||||
| The mold on this Commander III can be hydraulically telescoped up to 11.8 in. (300 mm) for easy positioning and setup.
Read more about this project in GOMACO World 36.3. |
This Commander III is equipped with the four-track barrier package and has a hydraulically extendible rear frame to extend the right rear leg. The wall on this project has a 19 inch (483 mm) wide top, is 39.25 inches (997 mm) wide at the base and its sidewalls vary in height from 3.5 to 6.5 feet (1.1 to 2 m). Read more about this project in GOMACO World 37.1. |
|||||||
|
||||||||
 |
 |
 |
||||||

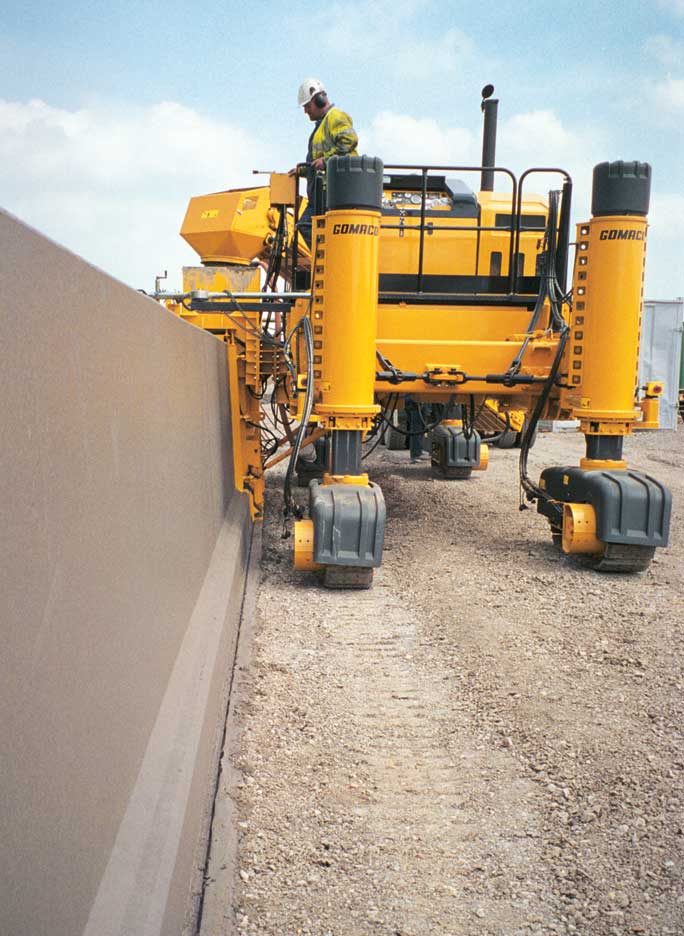

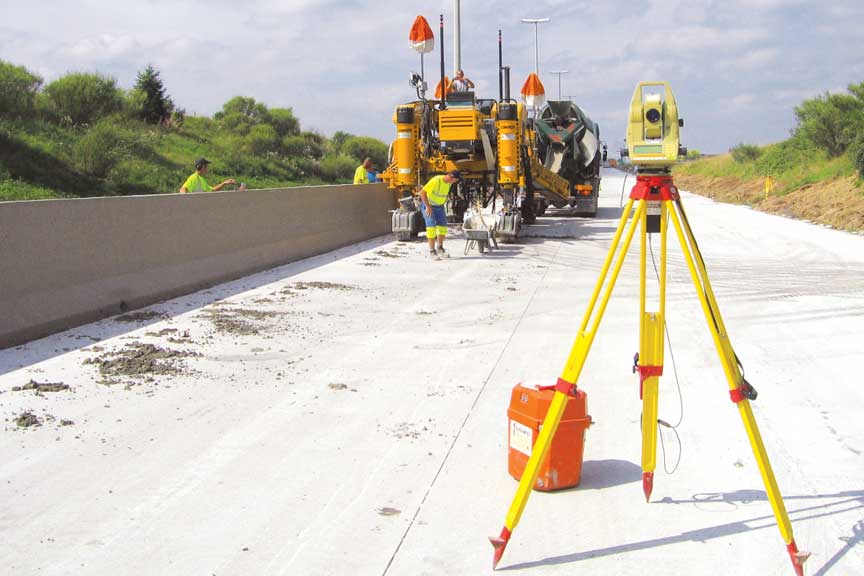

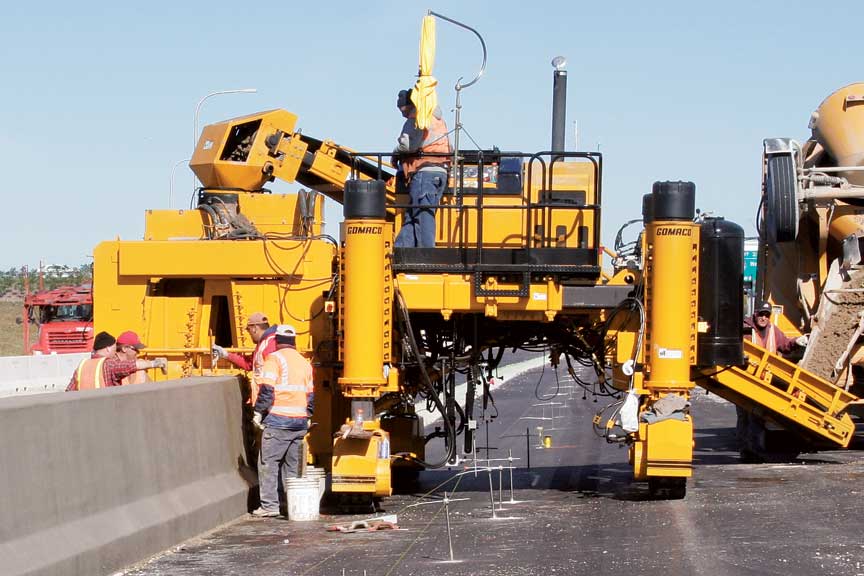

| A contractor in England slipforms right-side step barrier. The G21/G22 control system allows for multiple applications and configurations, which gives the Commander III its exceptional versatility. | A total station tracks the progress of a Commander III on a barrier wall project in Belgium. The project was slipformed with the Leica 3-D stringless guidance system. | Barrier wall is being slipformed on the M7 Motorway near Sydney, New South Wales, Australia, by this four-track Commander III. | ||||||
|
||||||||

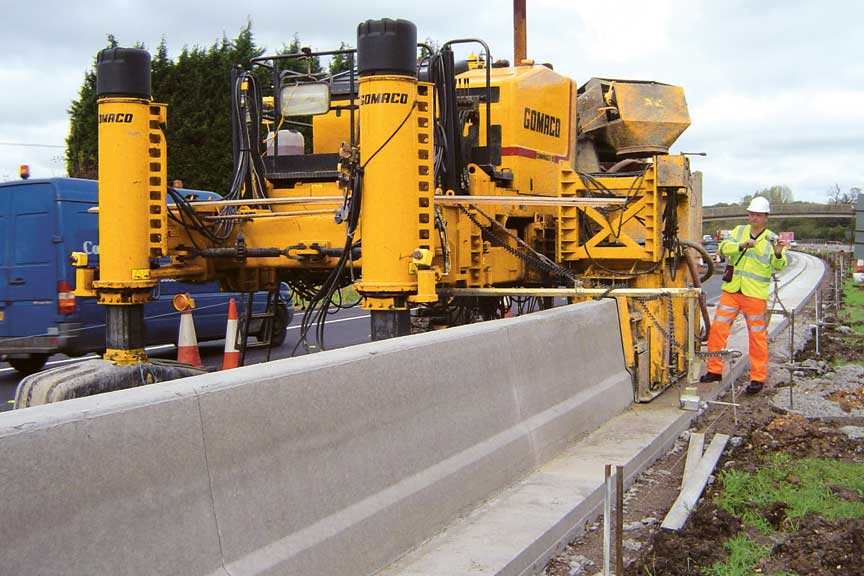

 This Commander III is slipforming 35.4 in. (900 mm) tall European step barrier on the N11 Highway project, just outside of Kilpedder, Ireland. |
|
|||||||
|
||||||||
|
||||||||
|
||||||||
 |
 |
 |
||||||
| A four-track Commander III slipformed variable barrier as tall as six feet (1.8 m) high on this project in Ontario, Canada.
Read more about this project in GOMACO World 33.1. |
This four-track Commander III is equipped with a side-mounted barrier package. All-Track Positioning (ATP) allows the four legs to be put in various positions to permit the sidemounting of the variable barrier mold. | A Commander III slipformed parapet on this bridge on the Minneapolis-St. Paul International Airport. The parapet was slipformed 34 inches (864 mm) tall and the back wall had a seven inch (178 mm) overhang.
Read more about this project in GOMACO World 29.2. |
||||||
|
||||||||
 |
 |
 |
||||||

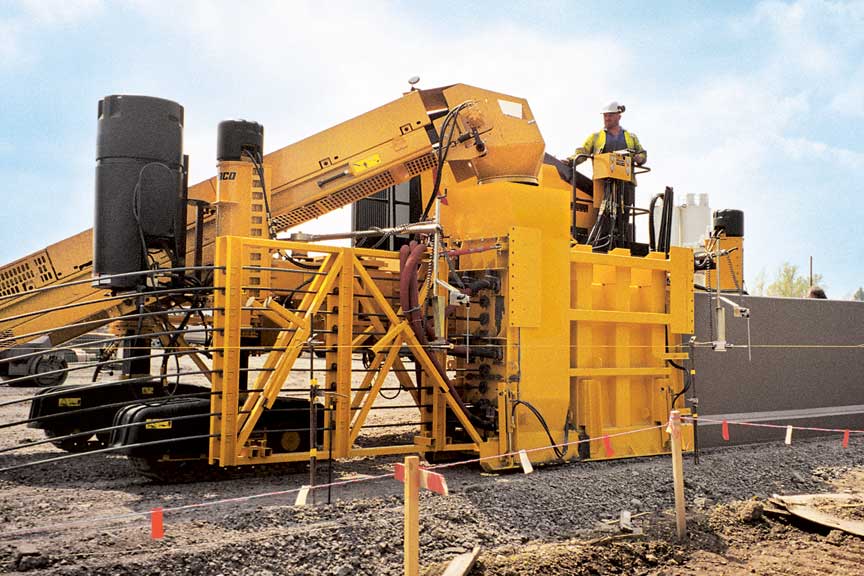

| This variable barrier ranged in height from 42 inches (1067 mm) all the way up to 84 inches (2134 mm) on this project in Grand Rapids, Michigan.
Read more about this project in GOMACO World 29.1. |
Dumping two ready-mix trucks at a time provided a consistent flow of concrete to the Commander III on this barrier wall in Ontario, Canada.
Read more about this project in GOMACO World 29.1. |
More than 41,000 feet (12.497 m) of variable barrier was slipformed by this Commander III through the mountains near Asheville, North Carolina.
Read more about this project in GOMACO World 31.1. |
||||||
|
||||||||
 |
||||||||
 |
||||||||
 |
||||||||
|
||||||||
|
|
||||||||
|
||||||||
