Commander III Unique Applications |
|||||||||||||||||
 |
 |
 |
|||||||||||||||
| Slotted Drain & V-Channel In Ireland: The first slipforming steps on this project involved the drainage system. The contractor slipformed either a v-channel (left) or a 11.8 in. (300 mm) diameter slot drain (right) with their Commander III. Approximately 14,764 ft. (4500 m) of concrete drainage system was slipformed.
Read more about this project in GOMACO World 37.2. |
Rice Fields Irrigation In Turkey: This contractor slipforms a new water canal, with their four-track Commander III, to irrigate rice fields in Kesan, Turkey. | ||||||||||||||||
 |
|||||||||||||||||
|
|||||||||||||||||
|
|||||||||||||||||
 |
 |
 |
|||||||||||||||

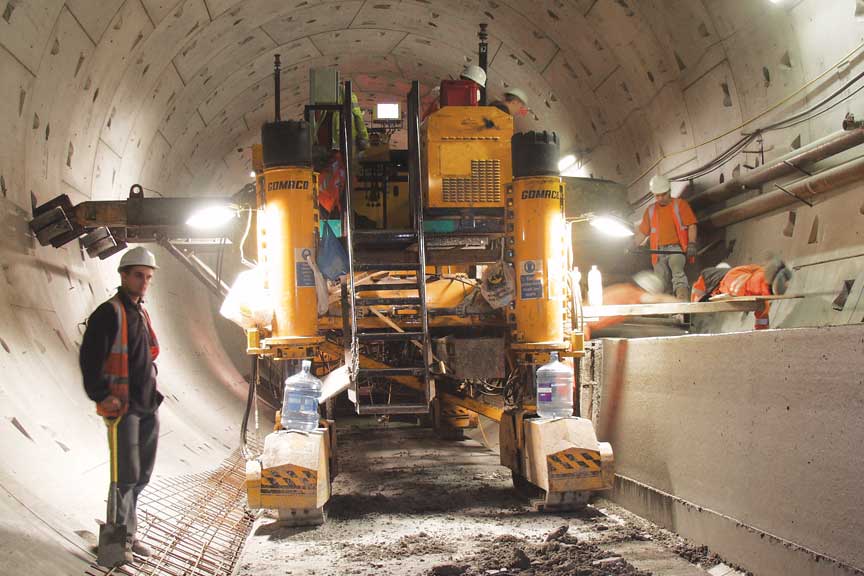

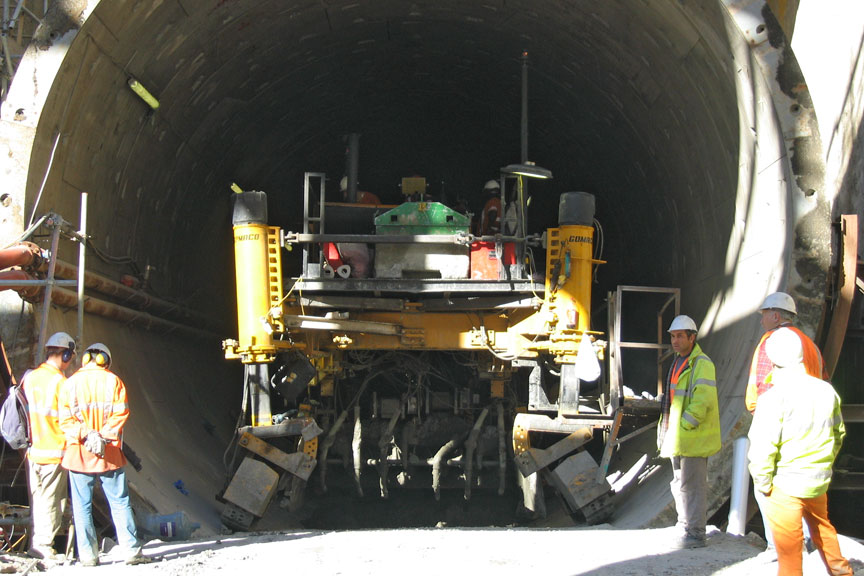

| Five Different Profiles In France/Spain Tunnel: “Le Perthus” tunnel is the link between Perpignan in France and Figueras in Spain in the French/Spanish border town of Perthus. Two 28.5 ft. (8.7 m) diameter tunnels, each 5.2 miles (8.4 km) long, is part of the overall link connecting the two countries.
The floor had an average thickness of 23.6 in. (600 mm) and was 18.4 ft. (5.6 m) wide. Cross slope of the floor varied between zero and 7.67 percent. Three different drainage pipes were incorporated into the floor during slipforming. The Commander III four-track had its tracks turned at 35 degree angles to run along the slope of the tunnel walls. The inner leg tubes were turned 45 degrees from their normal position. Read more about this project in GOMACO World 37.1. |
1:2.4 Slope Project In Japan: This contractor in Japan has completed a slope project with their four-track Commander III. The project required them to slipform a 9.8 ft. (3 m) wide slab at a 1:2.4 slope. The project was part of building a slope on the inside of a breakwater.
Read more about this project in GOMACO World 34.1. |
||||||||||||||||
|
|||||||||||||||||
 |
 |
 |
|||||||||||||||

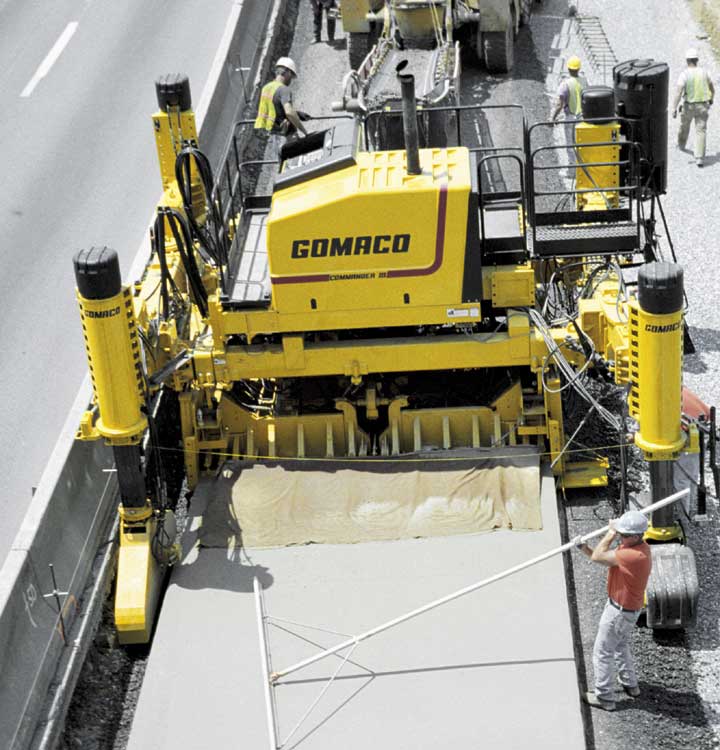

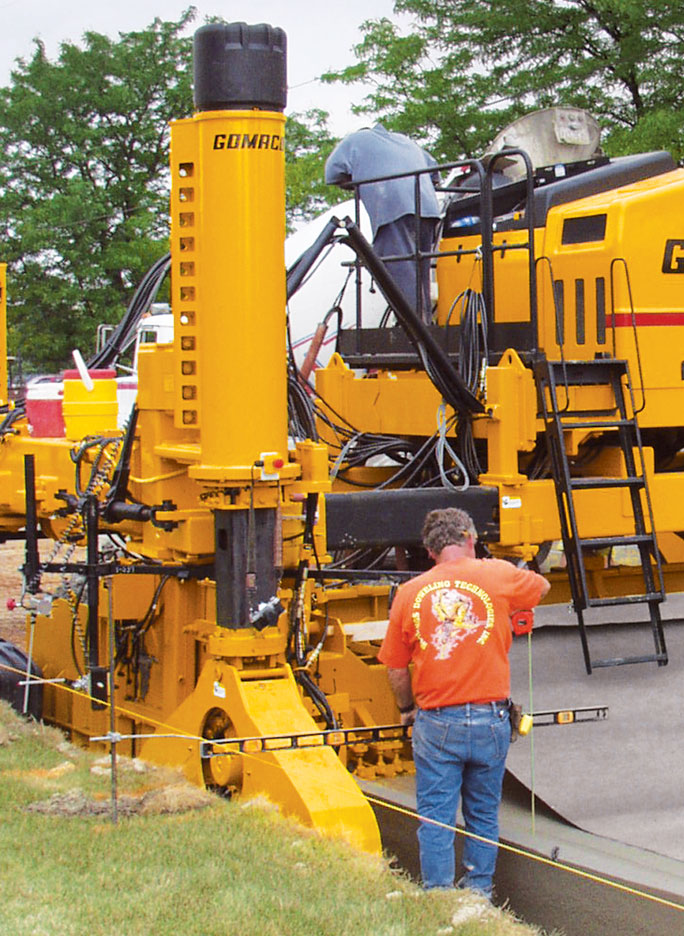

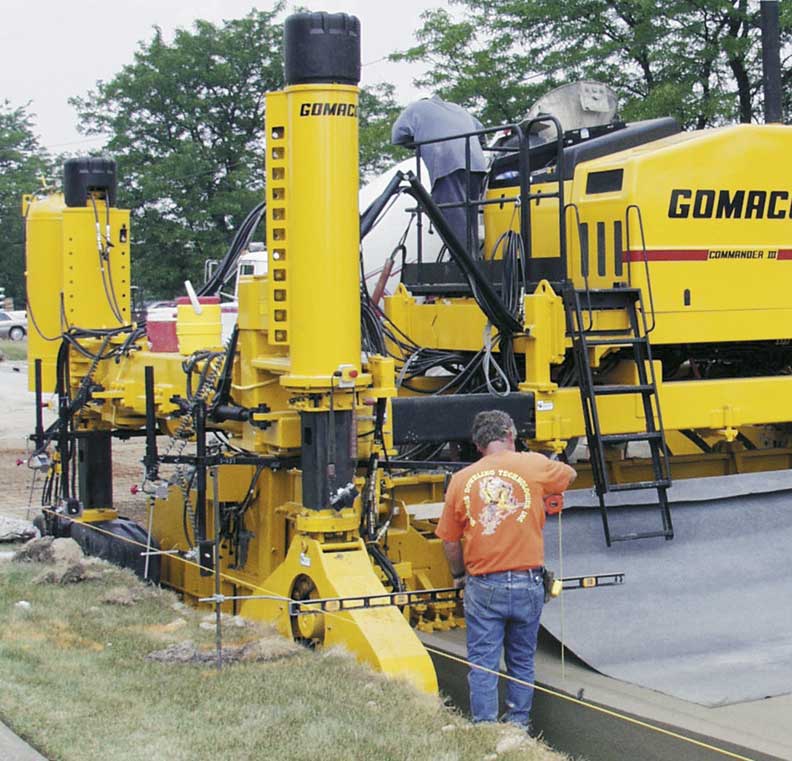

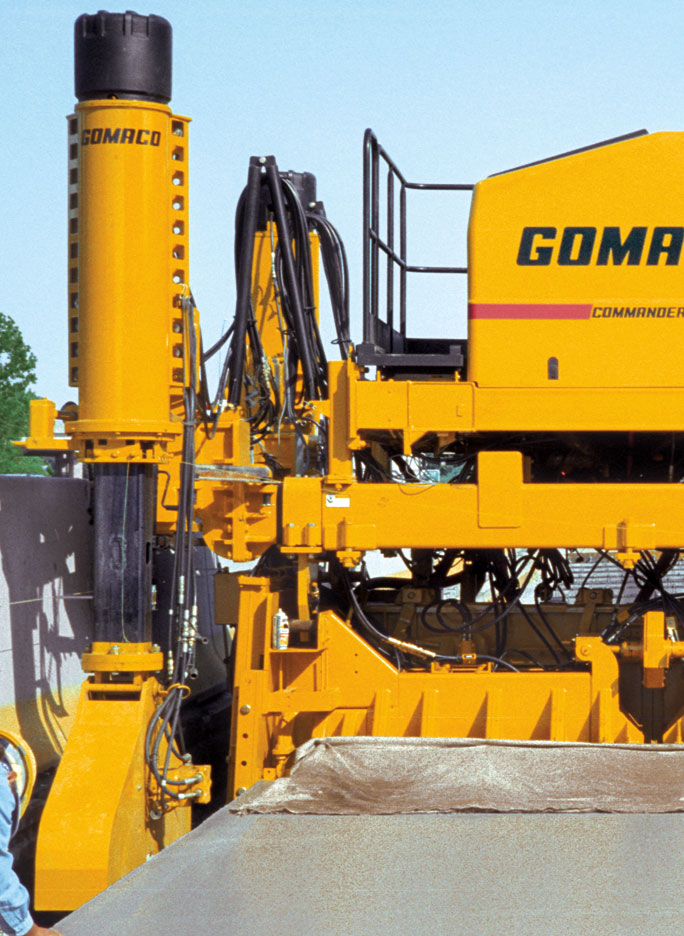

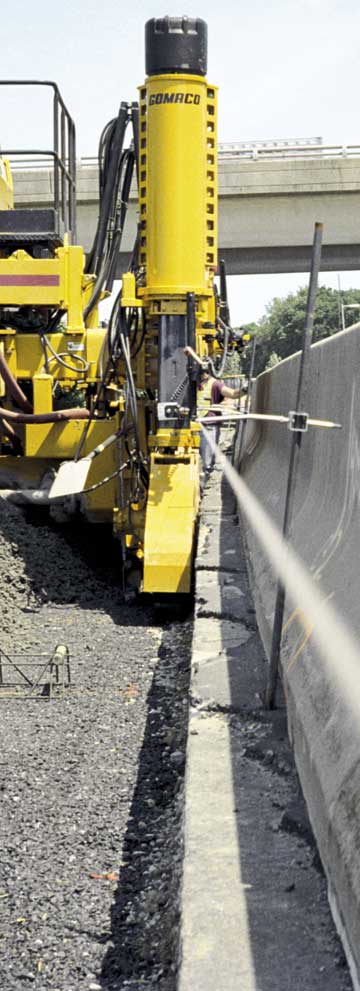

| High-Drive Tracks For Tight-Clearance Paving In The United States: GOMACO’s optional high-drive tracks are ideal for minimum-clearance situations that sometimes exist when adding lanes to ramps and highways or replacing streets in residential areas. The 11 in. (279 mm) wide track has a clearance height of 21.85 in. (555 mm) to the bottom of the track motor. The height of the motor allows clearance on the slab side of the track. | |||||||||||||||||
|
|||||||||||||||||
 |
 |
 |
|||||||||||||||

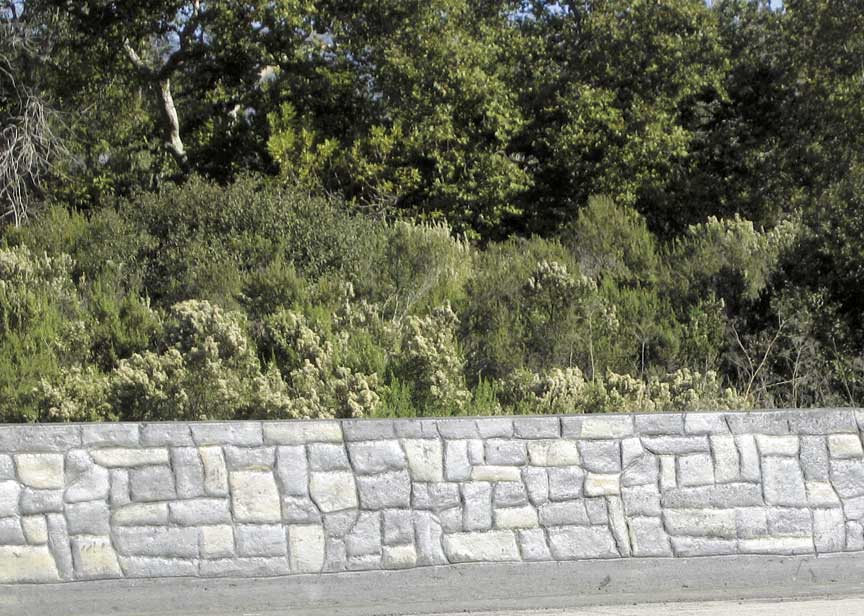

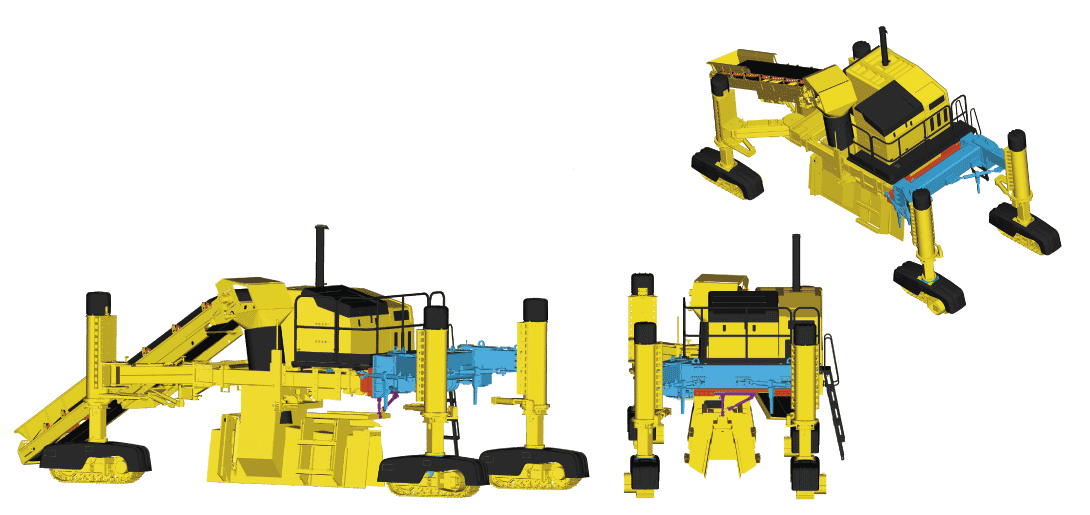

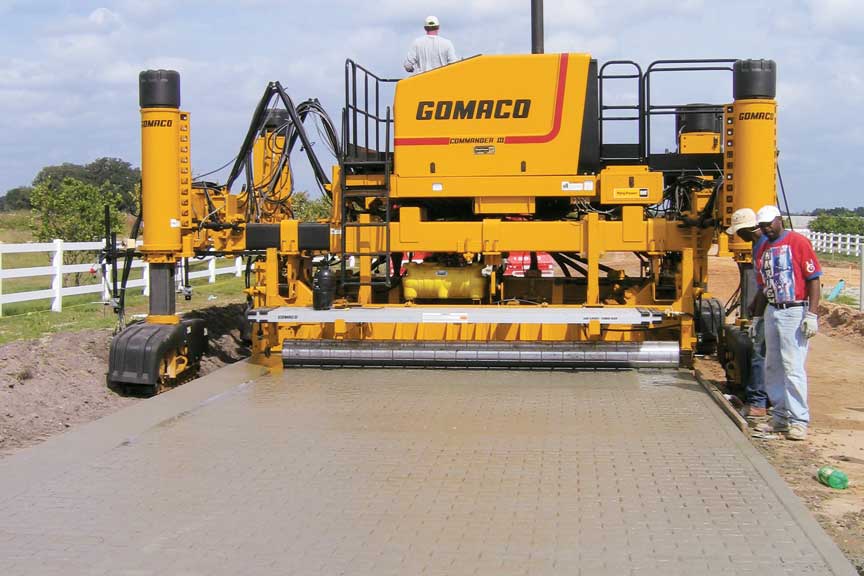

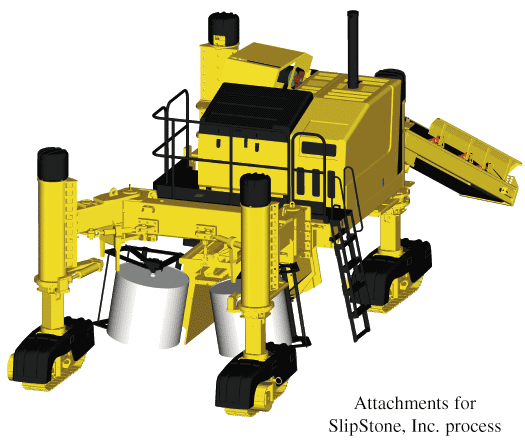

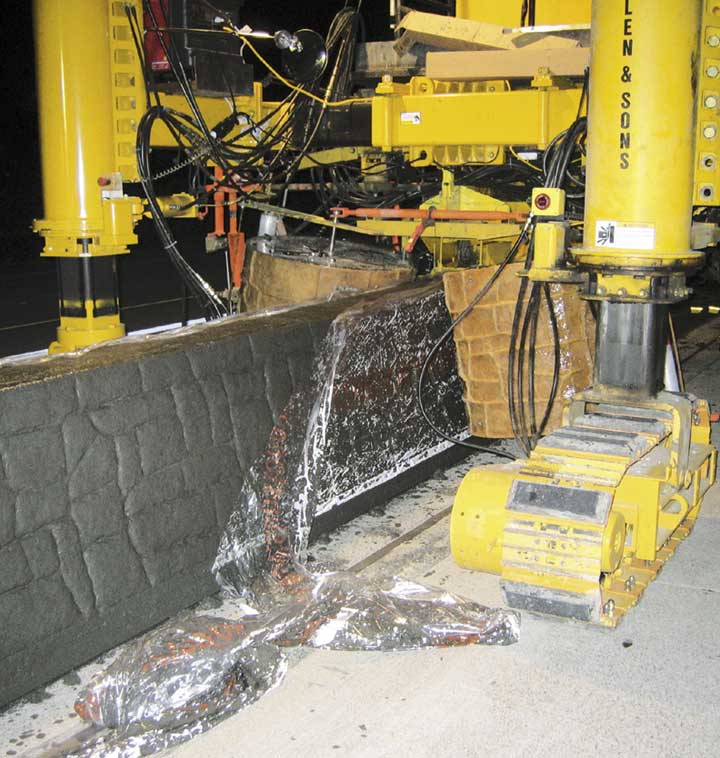

| Imprinted Barrier In The United States: A unique, four-track, under-mounted barrier package is available for most types of barrier applications. The Commander III four-track with the under-mounted barrier is imprinting a stone pattern on the extruded wall. | V-Ditch In Australia: This contractor is slipforming V-ditch for drainage with a Commander III in Australia. | Imprinted Flat Surface: A roller mounted to the back of the four-track Commander III imprints a cobblestone pattern on the flat surface of the concrete on this project in Florida. | |||||||||||||||
|
|||||||||||||||||
 |
 |
 |
|||||||||||||||

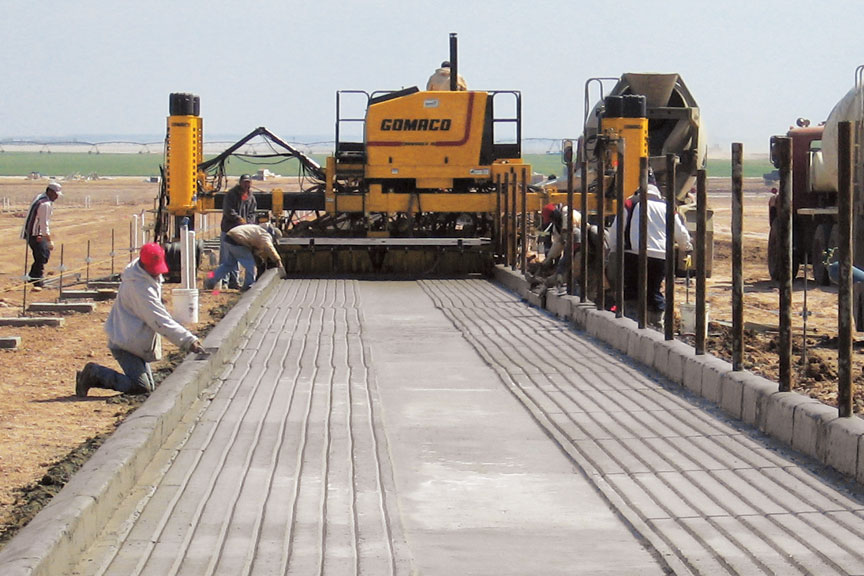

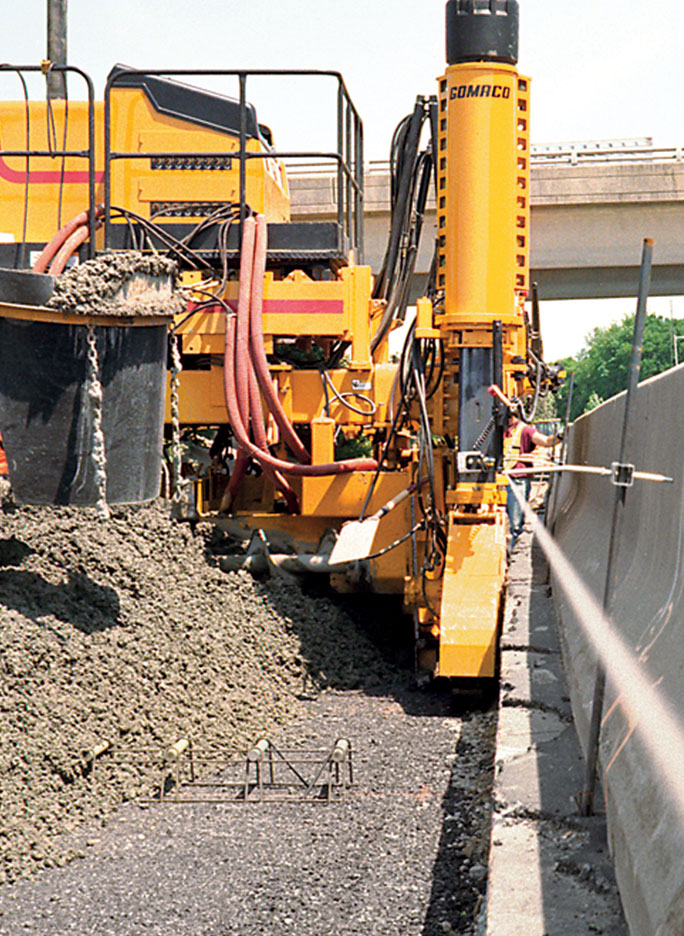

| Slotted Drain Near London: Slotted drain is slipformed by a three-track Commander III along the M25 Ring Road near London, England. | Longitudinal Groove In Cattle Barn Floor In The United States: The Commander III paves the floor for a new cattle barn while applying a longitudinal groove. It was also slipformed with integral curb on both sides. | Inverted Stairway In Canada: A Commander III with a rear-mounted auger finishes an inverted stairway test pour in Toulnoustouc, Quebec, Canada. The concrete sections will form the sides of a dam. | |||||||||||||||
|
|||||||||||||||||
 |
|||||||||||||||||
|
|||||||||||||||||
 |
|||||||||||||||||
 |
|||||||||||||||||
|
|||||||||||||||||
|
|
|||||||||||||||||
|
|||||||||||||||||
