Curb Cadet Applications

PHOTO: CURB CADET
PHOTO: CURB CADET

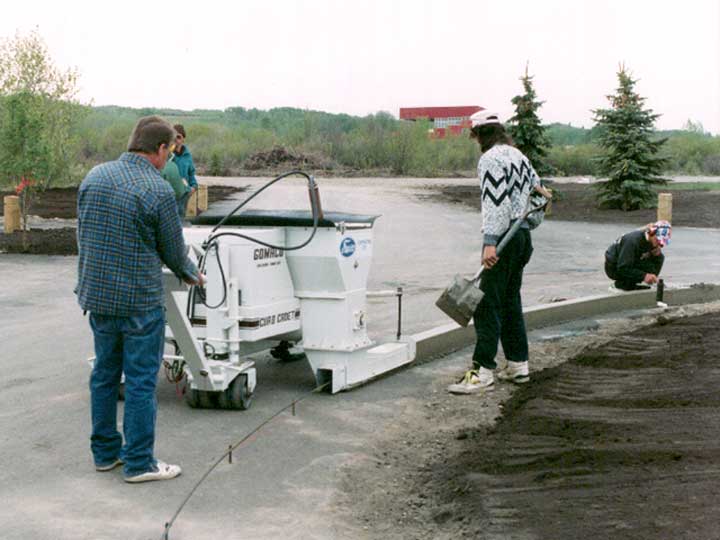

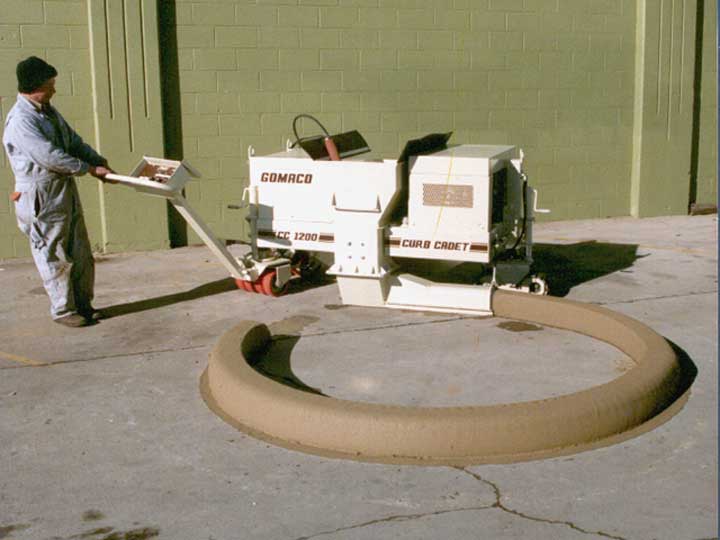

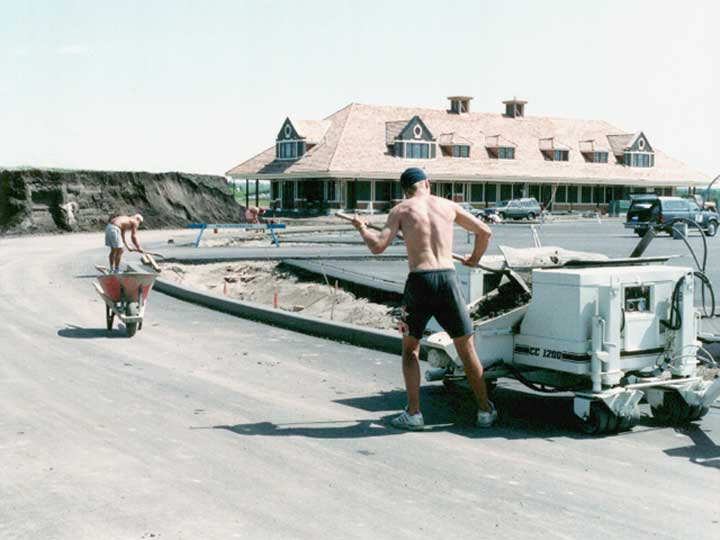

With a slipform mold, the Curb Cadet can place concrete over dowels or continuous reinforcing bar. This Curb Cadet is pouring curb over continuous steel in Norway. Curb may be poured on either side of the machine. The hopper and mold is adjustable up to 12 inches (305 mm) by sliding to the right or left of center for side or center pours. A Curb Cadet extrudes curb around a radii in Bergen, Norway.

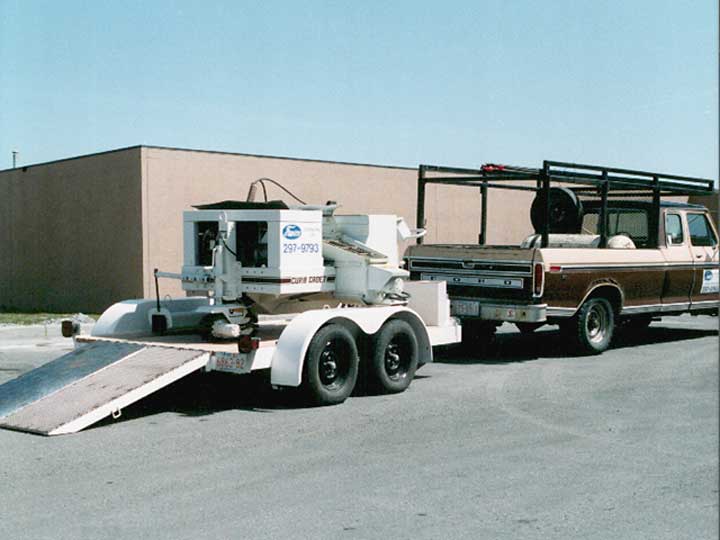

The Curb Cadet will slipform concrete curb or extrude asphalt or concrete curb. The extruder is capable of handling zero-slump concrete. The Curb Cadet is self-propelled and compact in size for easy loading and transporting from job-to-job. Elevation of the machine is controlled by three hydraulic cylinders with 10 in. (254 mm) stroke and an additional 5 in. (127 mm) manual adjustment.

The manual travel control valve and knob, grade controls, engine controls and warning light are in the handle. Mobility is achieved with a hydraulically driven, rear-mounted track. Molds are quickly interchangeable on the Curb Cadet and can accommodate concrete mold configurations that will fit within a 12 in. (305 mm) wide by 14 in. (356 mm) high section. The manual steering assembly with control panel provides the operator with front wheel steering.
