G+® Remote Control

-- Select Any Photo For A Close-Up --

The GOMACO G+ Remote Is Available For Use with Any GOMACO Three-Track Curb and Gutter Machine Currently Equipped with the G+ Operating System.



• Provides Safety and Freedom to Move Around the Machine.

• Hands-On Control at All Times.

• Emergency Stop is Always Within Reach.

• Operator can Work from the Operator’s Platform or from the Ground.

• Lightweight for Operator Comfort.

• Features a 4.3 Inch (109 mm) Graphic Display Screen.

• Display Screen Features Run Functions of the Machine.

• Operator has Individual Control Over Each Leg with the Automatic/Manual Adjustments for Elevation and Steering.

• Two Lithium-Ion Batteries and a 12-Volt Charger are Included with Purchase of the Remote. An optional AC Adapter is Available.


Exclusive G+ Remote Control For Hands-On Safety

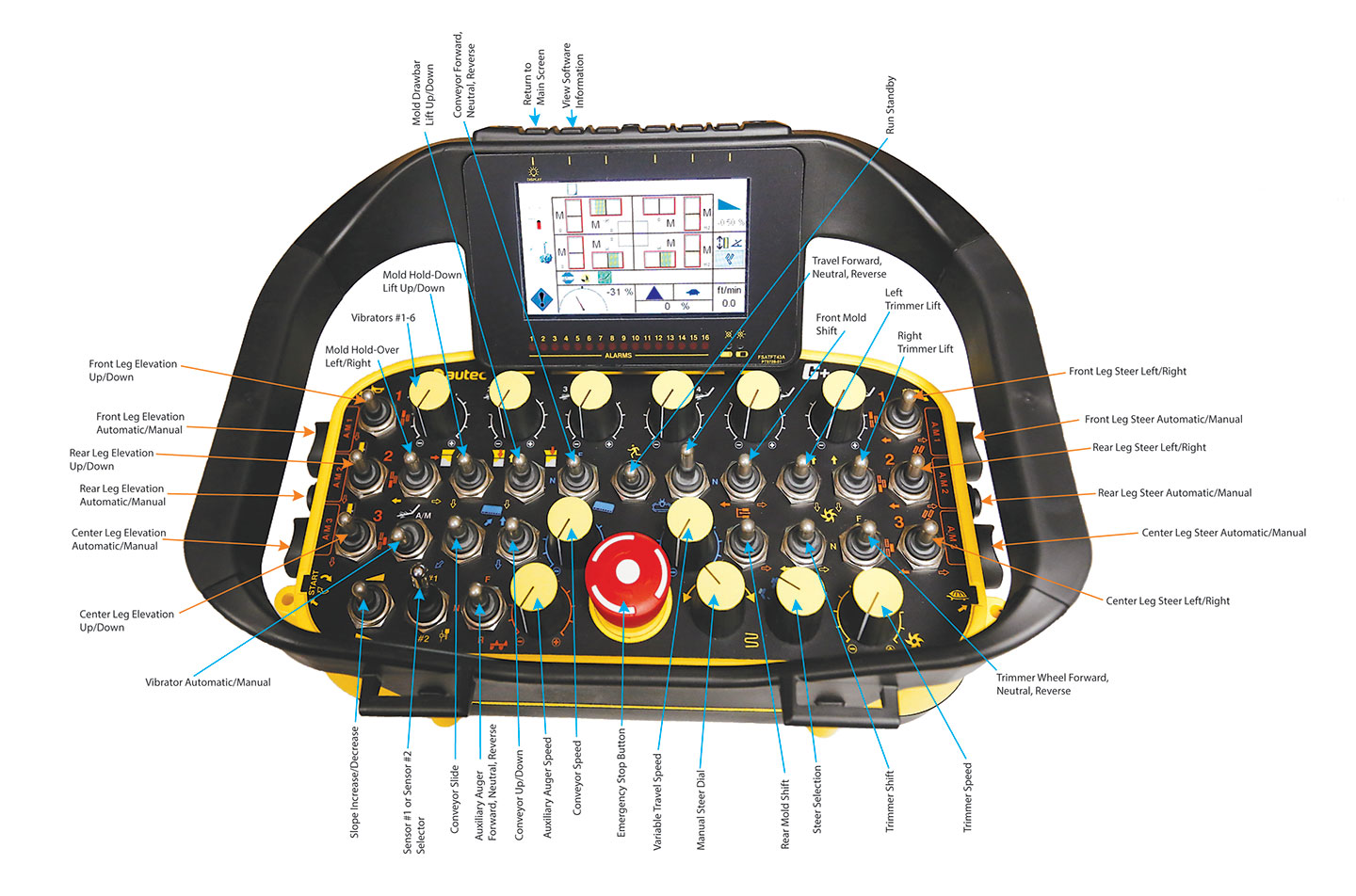

Move Your Mouse Over the Buttons and Switches in the Photo Below
To Learn More About the Features of the New G+ Remote Control.

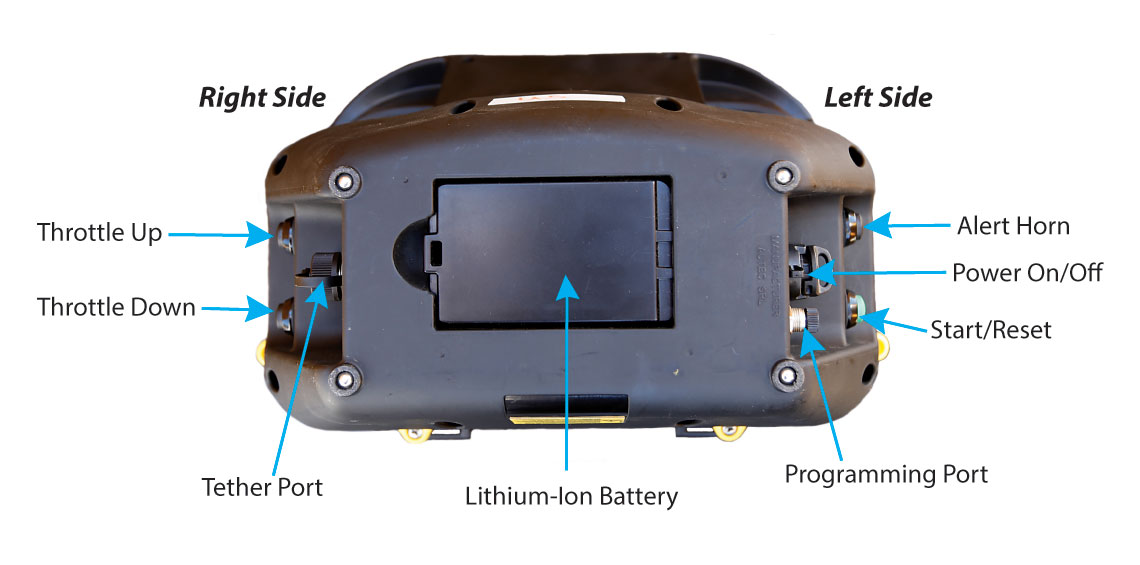

Underside of the Controller

Move Mouse over Points for a Description.

Right Side
Left Side

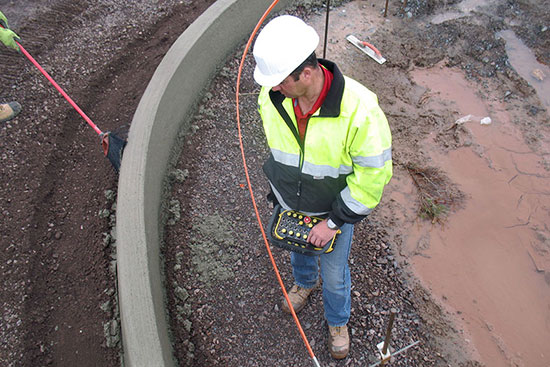

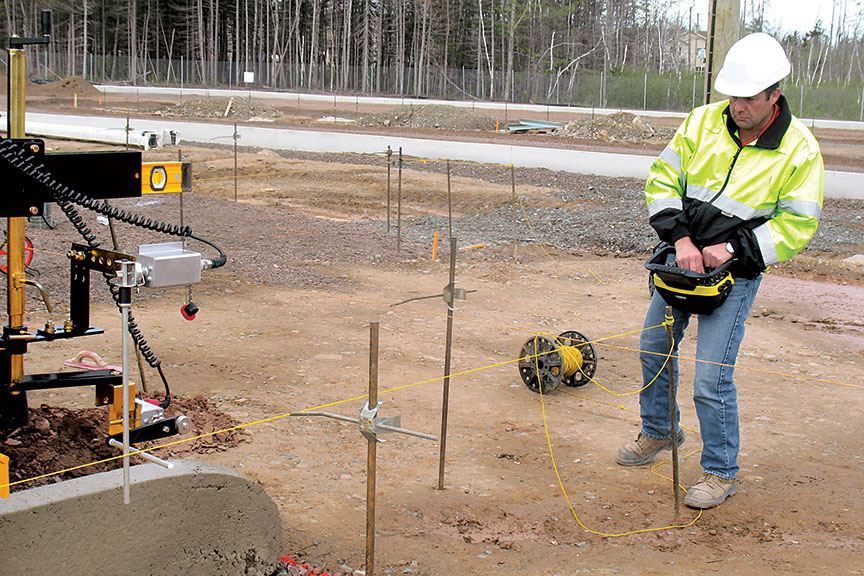

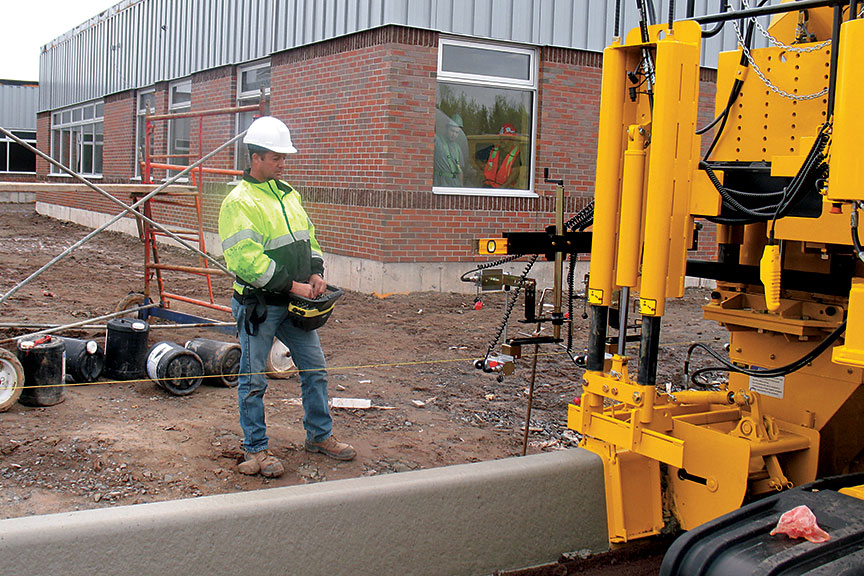

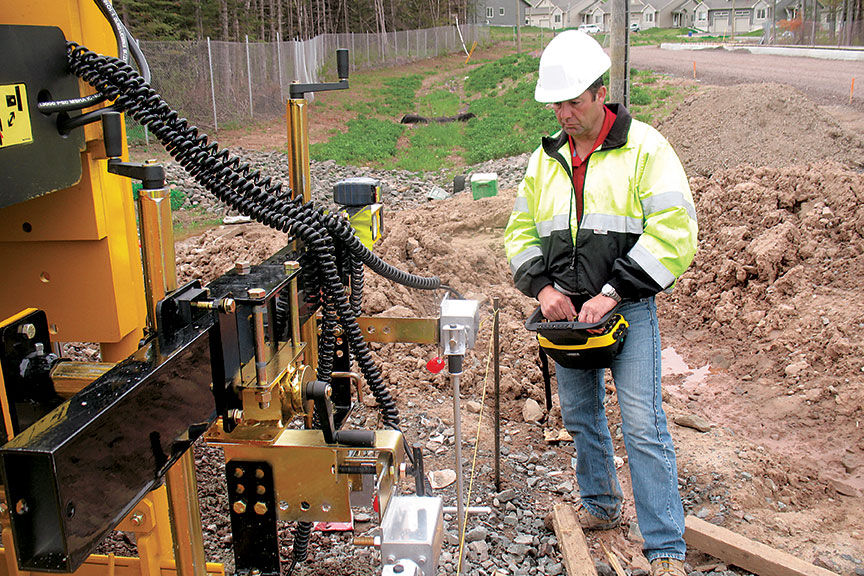

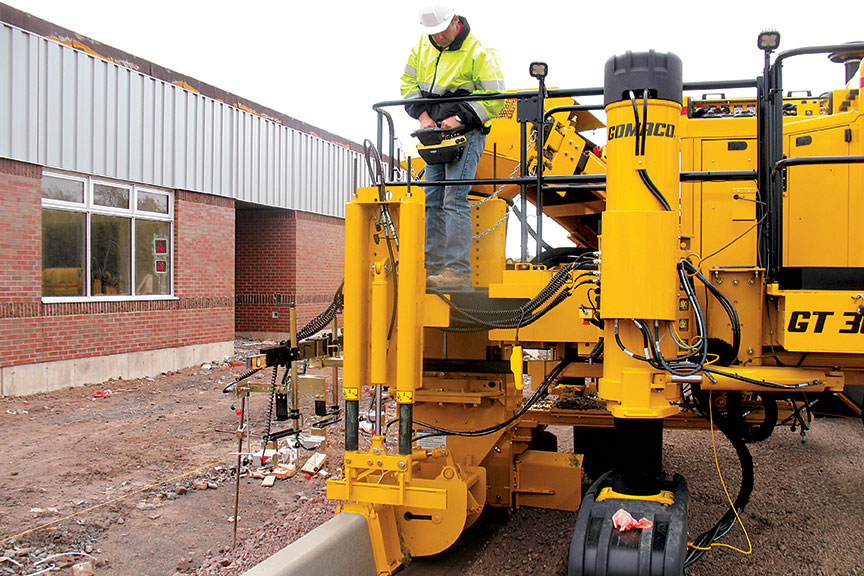

The operator can work from the operator’s platform or on the ground with the G+ remote in order to get the best view of the paving operation. This operator in Canada told GOMACO’s service representative, “This is exactly what I have been wanting.”
The GOMACO service representative asked the operator about the weight of the new G+ remote. He said that after wearing the remote for two hours of paving, he forgot it was even around his waist because it was so light. The remote has safety features like the emergency stop button and the alert horn located in convenient locations for quick access. There are also tilt and impact sensors in the remote for an automatic safety stop.

Manufactured under one or more of the following U.S. or foreign patents: 5,924,817; 5,941,659; 6,099,204; 6,450,048; CA2,211,331; 7,044,680; 7,284,472; 7,517,171; 7,845,878; 7,850,395; CA2,864,902; CA2,591,177; 8,855,967; 8,682,622; 9,051,696; 9,180,909; 9,200,414; and patents pending.

GOMACO and G+ are registered trademarks of GOMACO Corporation.

GOMACO Corporation reserves the right to make improvements in design, material, and/or changes in specifications at any time without notice and without incurring any obligation related to such changes. Performance data is based on averages and may vary from machine to machine.

For More Information
Download The G+ Remote Control Brochure (PDF Format)


GOMACO Home / Curb & Gutter / Pavers / Placer/Spreaders / Trimmer/Placers / Texture/Cure Machines / Cylinder Finishers / Canal/Slope / Airports / Support Equipment / Contact Us! / Sitemap / GOMACO University / Gomaco Trolley Company / Godbersen Equipment Company

Copyright © 1998-2017
GOMACO Corporation Inc.
All Rights Reserved
web@gomaco.com or visit our feedback page



Throttle Up Throttle Down Tether Port Lithium-Ion Battery Programming Port Power On/Off Alert Horn Start/Reset Return to Main Screen View Software Information Front Leg Elevation Automatic/Manual Rear Leg Elevation Automatic/Manual Center Leg Elevation Automatic/Manual Front Leg Steer Automatic/Manual Rear Leg Steer Automatic/Manual Center Leg Steer Automatic/Manual Vibrator 1 Front Leg Elevation Up/Down Rear Leg Elevation Up/Down Center Leg Elevation Up/Down Slope Increase/Decrease Mold Hold-Over Left/Right Vibrator Automatic/Manual Sensor #1 or Sensor #2 Selector Mold Hold-Down Lift Up/Down Conveyor Slide Auxiliary Auger Forward, Neutral, Reverse Mold Drawbar Lift Up/Down Conveyor Up/Down Auxiliary Auger Speed Conveyor Forward, Neutral, Reverse Conveyor Speed Run Standby Emergency Stop Button Travel Forward, Neutral, Reverse Variable Travel Speed Manual Steer Dial Front Mold Shift Rear Mold Shift Left Trimmer Lift Trimmer Shift Steer Selection Right Trimmer Lift Trimmer Wheel Forward, Neutral, Reverse Trimmer Speed Front Leg Steer Left/Right Rear Leg Steer Left/Right Center Leg Steer Left/Right Vibrator 2 Vibrator 3 Vibrator 4 Vibrator 5 Vibrator 6 G+ Control Display
