GT-3400 Applications |
|||||
 |
 |
 |
|||
| The GT-3400 is remote controlled, and allows the operator total freedom to move around the entire operation. | The new three-track footprint has two close tracks on one side and a single track on the other. | The GT-3400s can be ordered either right-side or left-side pour capable. | |||
 |
|||||
 |
 |
 |
|||
The GT-3400's operator stands inside the stringline with the remote control to watch the machine turn a radius on a parking lot project. Read more about this project in GOMACO World 38.1. |

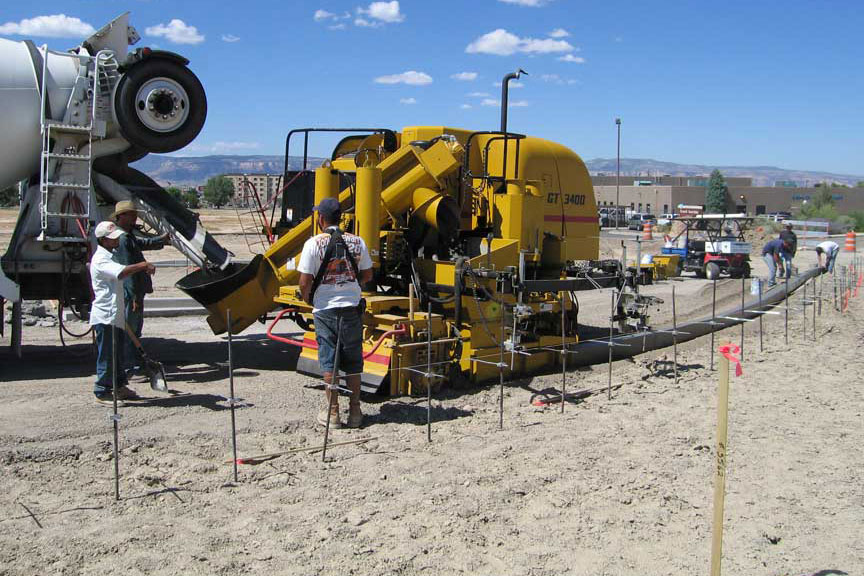

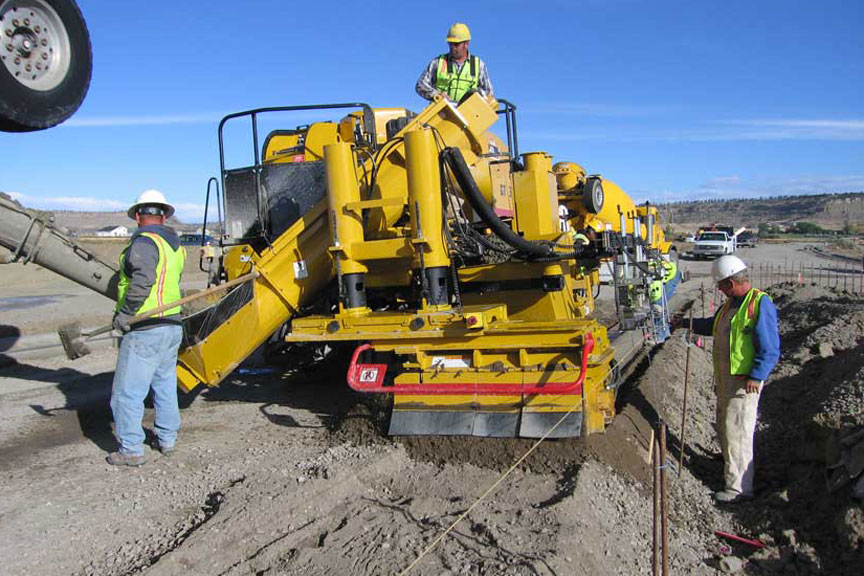

This GT-3400 is simultaneously trimming and slipforming curb and gutter in Grand Juction, Colorado. | ||||
|
|||||
 |
 |
 |
|||

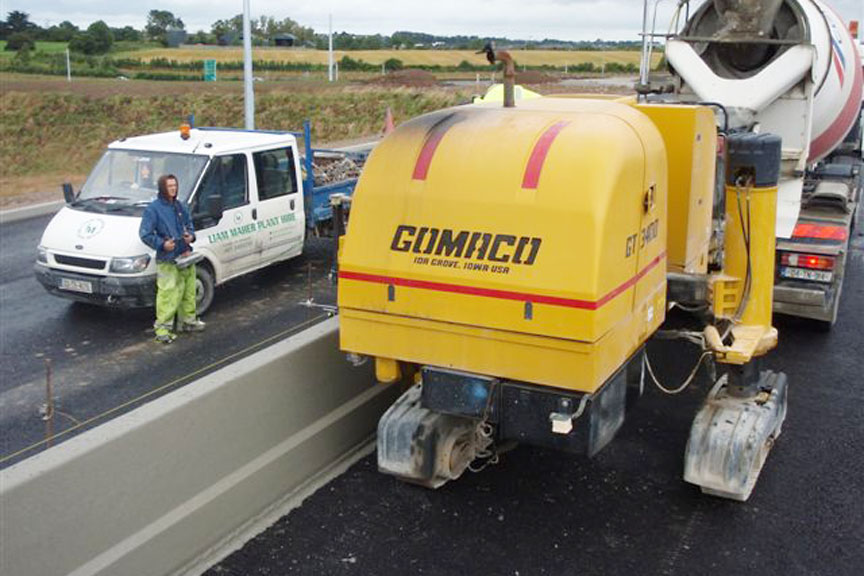

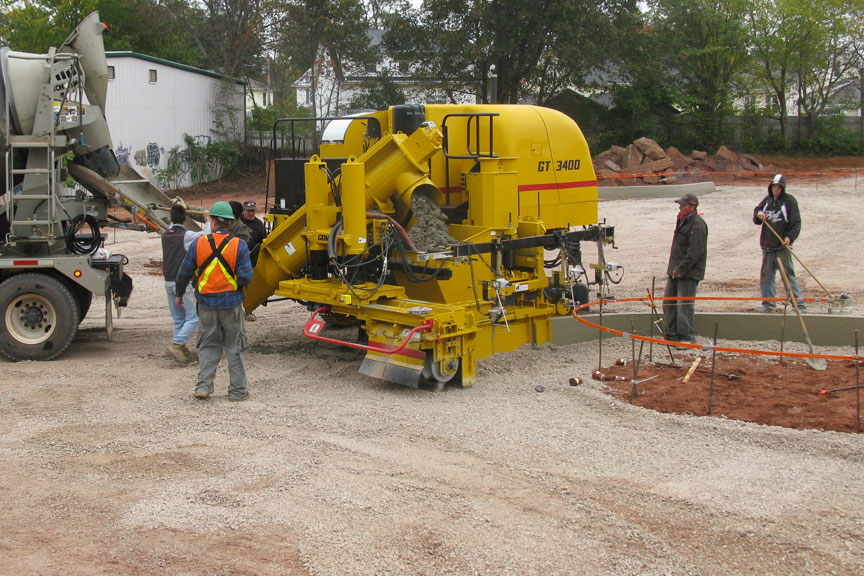

| This GT-3400, operated through a wireless remote control, is slipforming European step barrier on the approach of the Limerick Tunnel project in Ireland. The barrier is 35 inches (900 mm) tall, 21 inches (542 mm) wide at the base, and eight inches (200 mm) wide at the top. | This GT-3400 is simultaneously trimming and slipforming stand-up curb in Fredericton, New Brunswick, Canada. | ||||
|
|||||
 |
 |
 |
|||

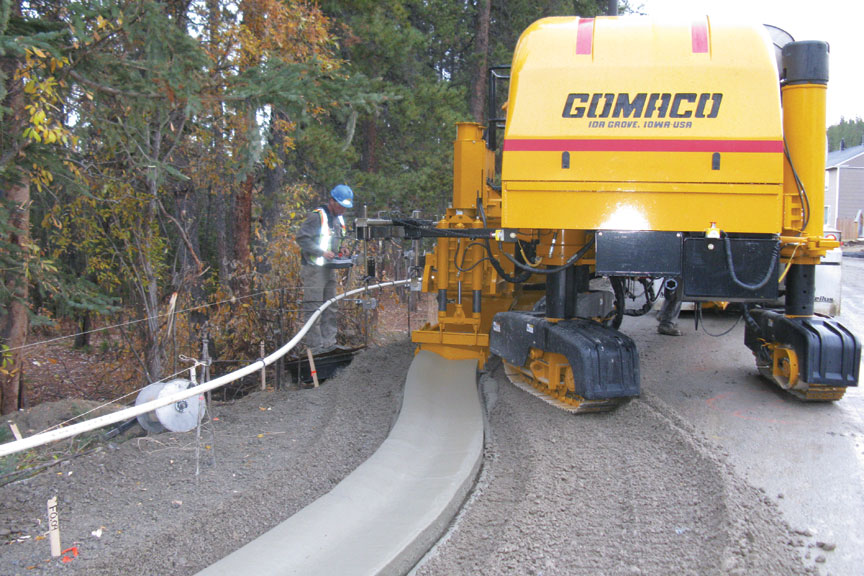

| This contractor is using their GOMACO GT-3400 to slipform curb and gutter on a project in Whitehorse, Yukon, Canada. The operator controls the machine with a lightweight, wireless remote. This curb and gutter machine features All-Track Steering (ATS). | The auger, featuring a 16 in. (406 mm) hydraulic slide adjustment, is lowered to receive the concrete. | ||||
|
|||||
 |
 |
 |
|||
| This GT-3400 was ordered as a left-side pour machine. It is producing channel curb and gutter in France, and is equipped with the new optional G22 controller. The G22 has a feature that provides the operators with machine controls displayed in French. | The charging auger and large capacity hopper helped slipform through several radii on a parking lot in Murray, Kentucky. | The GOMACO three-track GT-3400 is a multi-application machine, including curb and gutter, tight radii, safety barrier, bridge parapet, sidewalk, monolithic sidewalk and curb and gutter, recreational path and flat slabs up to 6 ft. (1.83 m) wide. | |||
|
|||||
 |
 |
 |
|||

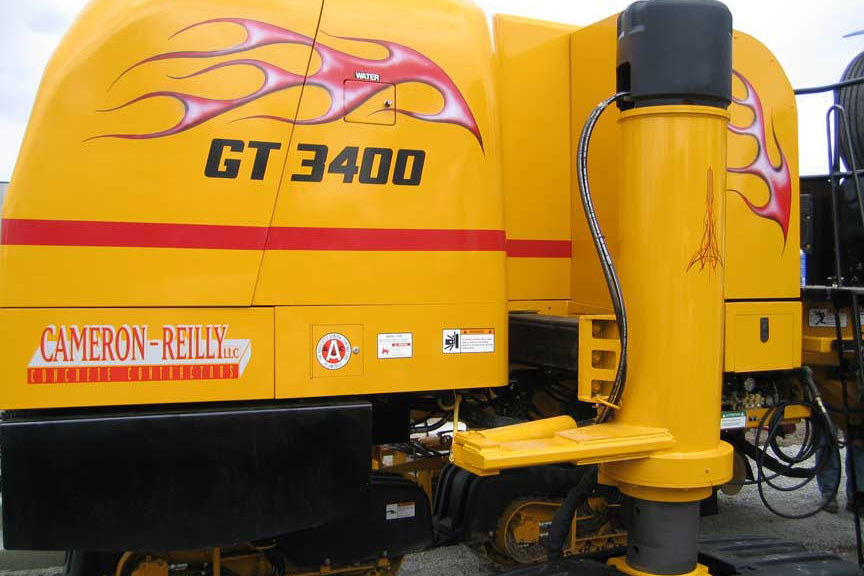

| This GT-3400, all decked-out in flames, is slipforming curb and gutter in Spokane, Washington. | This left-side pour, remote controlled GT-3400 is slipforming 24 in. (610 mm) curb and gutter in Macon, Georgia. | ||||
|
|||||
 |
 |
 |
|||
| This contractor is taking advantage of the GT-3400's right-side slipforming capabilities in Savenay, France. The machine's G22 dual language capabilities allow the operator to control the machine in his own language. | The GT-3400 turned several tight radii on a curb and gutter parking lot project in Faribault, Minnesota. | This GT-3400 is equipped with the Hook-and-Go mold mount system, which makes the changing of molds quick and easy.
This left-side pour machine is triming and slipforming curb and gutter in Billings, Montana. |
|||
|
|||||
 |
 |
 |
|||

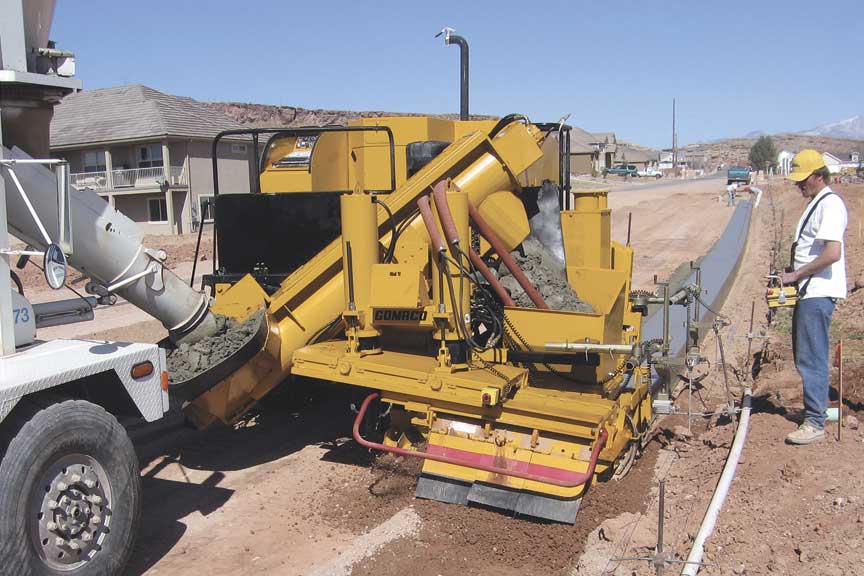

| The operator alternated between standing on the platform and walking beside the machine in St. George, Utah. | |||||
|
|||||
 This GT-3400, ordered as a right-side pour machine, is slipforming stand-up curb in France. It is equipped with the optional new G22 controller.
|
 The GT-3400 includes the new piston style legs and the two-speed motor that provides a fast tracking speed of 125 fpm (38 mpm) for job-site mobility. |
||||
|
|||||
| Many parking lot designs for curb and gutter have sharp angles, short runs, tight radii, and do not always take slipforming into consideration. The new GOMACO GT-3400 makes these kinds of jobs possible. Its compact size from front to back, allow the machine to get into the small areas where one island ends and another begins. And with its extra-large capacity hopper, it’s easier to complete a tight radii, with minimal hand work. The photos below are from projects that illustrate job conditions with a multiple number of curb and gutter islands, short runs, tight radii, and minimum room for maneuvering the paving machine. | |||||
 |
 |
 |
|||
 |
 |
 |
|||
 |
 |
 |
|||
 |
 |
||||
|
|||||
 |
|||||
 |
|||||
 |
|||||
|
|||||
|
|||||
|
|
|||||
|
|||||
