GT-6300 Sidewalks/Trails

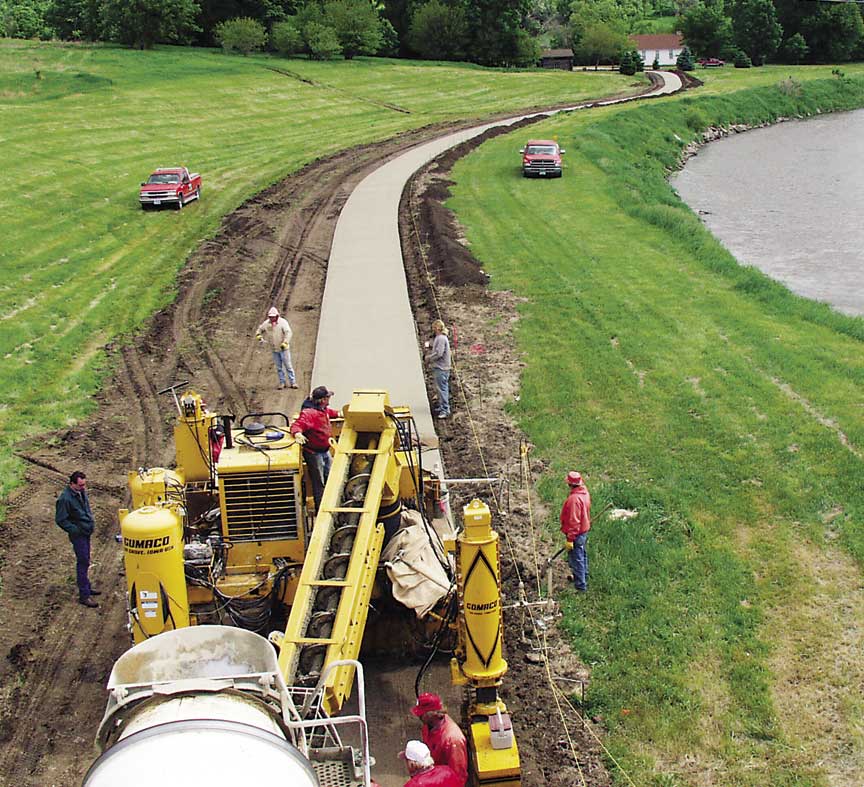

The telescoping legs on the GT-6300 made it easier for this contractor to slipform a golf cart path through the hills of Burlington, Iowa. The hills had grades up to 36 to 40 percent.

Read more about this project in GOMACO World 28.1.

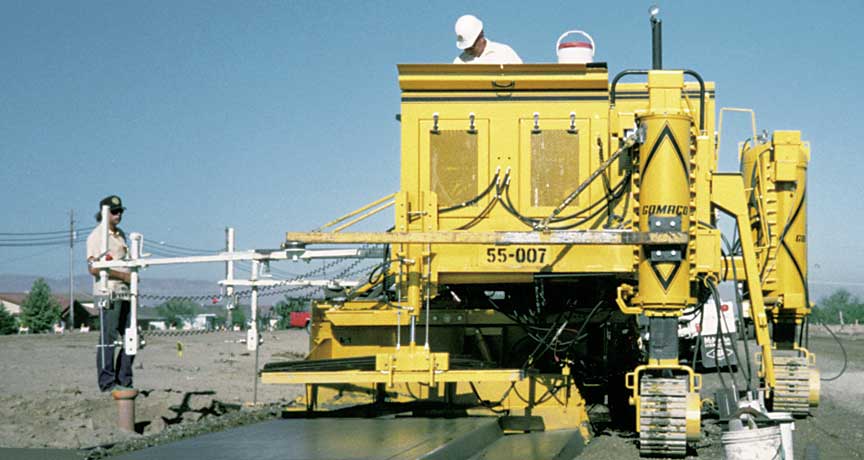

The GT-6300 does it all, monolithic sidewalk curb and gutter in a single pass, sidewalk, bicycle or golf cart paths. The simultaneous trim and slipform system cuts production costs and lets you take on more jobs. The trimmerhead is designed to match the profile to provide accurate grade, resulting in high yield. The GT-6300 trims and slipforms monolithic sidewalk curb and gutter in a single pass operation. The three-track suspension allows the GT-6300 to pave within 2 in. (51 mm) of obstacles for minimum- clearance requirements.

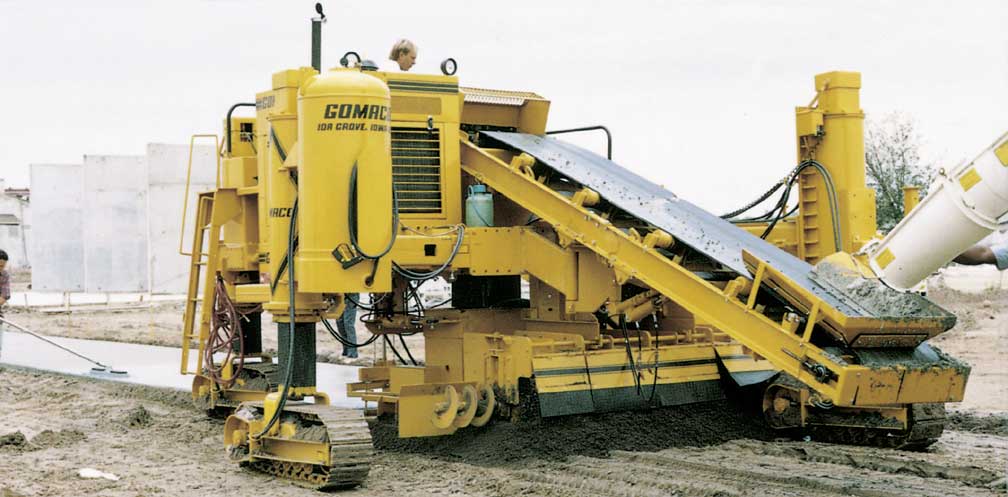

A 16 ft. (4.88 m) long concrete supply auger is available for the GT-6300. The 14 in. (356 mm) diameter auger carbide auger shoes on the flighting provide durability and longer wear time.

The trough fits tighter to the flighting for better concrete flow. The flighting spacing has been increased with a 15 in. (381 mm) pitch for better handling of the concrete. The auger speed is variable up to 90 rpm.

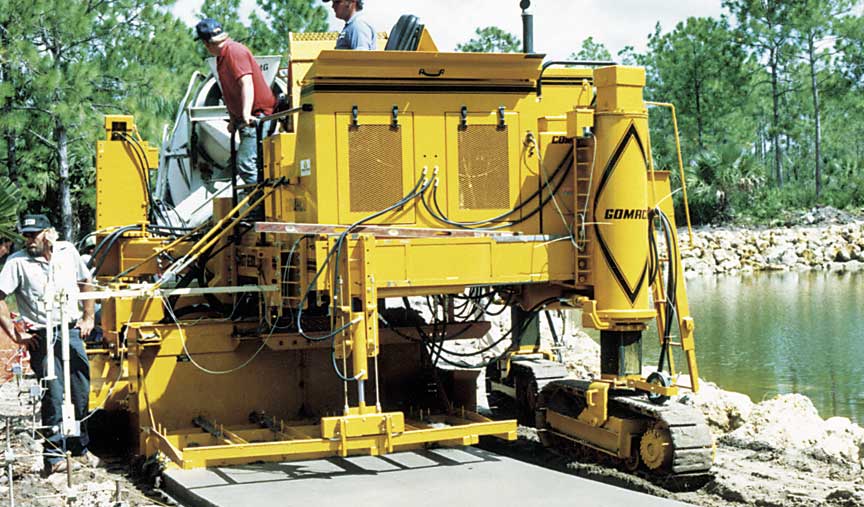

Simultaneous fine grade trimming and slipforming a 10 ft. (3.05 m) wide sidewalk, 4 in. (102 mm) thick, is an application for the GT-6300. This contractor utilizes the versatility of the GT-6300 by switching from sidewalk to curb and gutter and also pre-trimming projects.

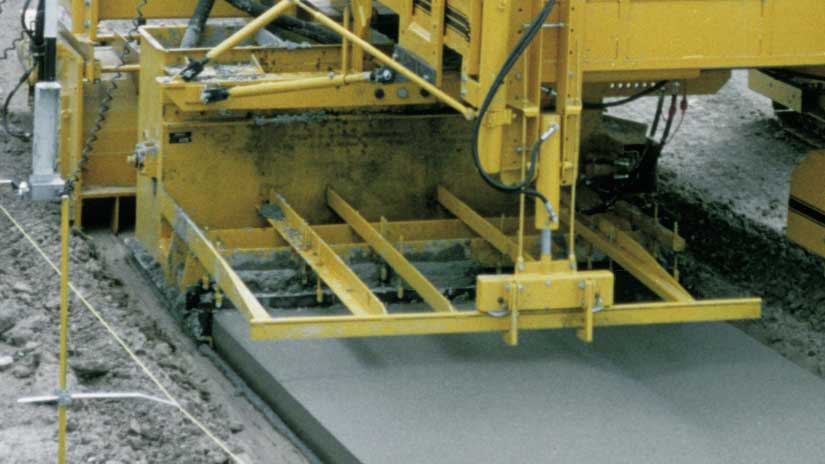

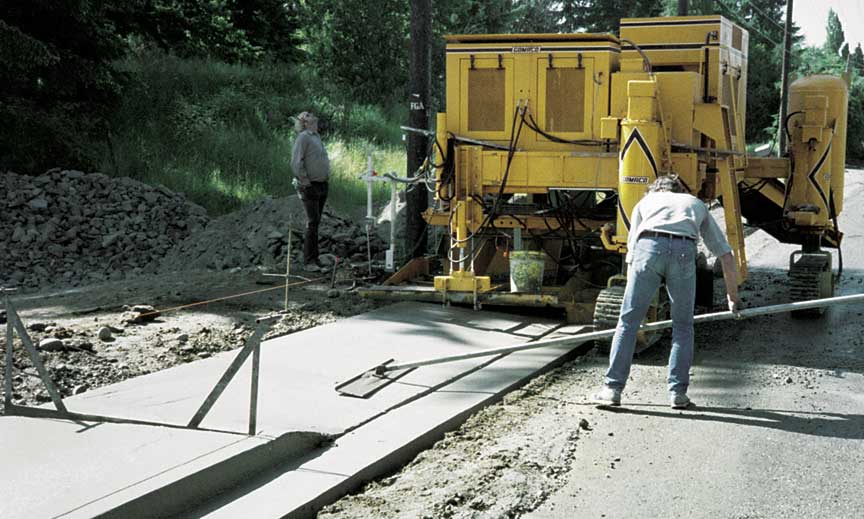

Monolithic sidewalk curb and gutter with simultaneous trimming and slipforming reduces production costs. The sectionalized monolithic trimmerhead is designed to match the profile to provide accurate grade, resulting in high concrete yield. A driveway depressor for the monolithic mold depresses sidewalk and curb to increase concrete yield while slipforming on-the-go.

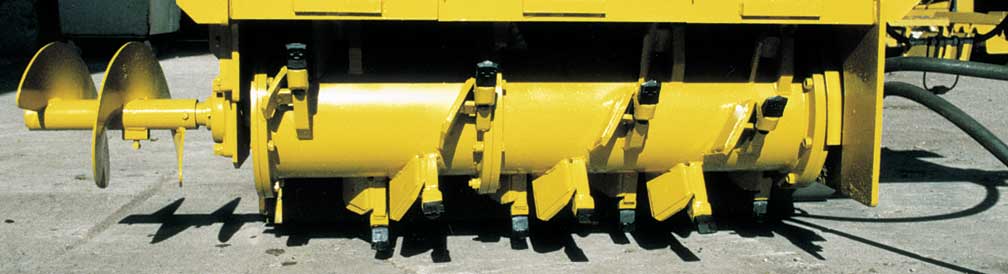

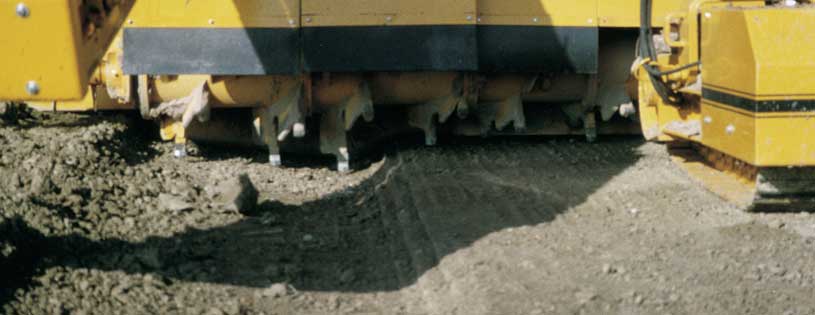

The GOMACO GT-6300 is equipped with the standard 42 in. (1,067 mm) wide sectionalized trimmerhead with includes one 24 in. (610 mm) drive section with hydraulic internal drive and 18 in. (457 mm) extension. Optional extensions are available for trimming up to 10 ft. (3.05 m) wide with right-hand or left-hand discharge available. The unique sectionalized trimmerhead features easy width adjustment. This means more production because the trimmer cuts only as wide as necessary and eliminates unnecessary backfill behind the pour.
