GOMACOís 9500 Trimmer with Exclusive G+ģ Introduced at
CONEXPO-CON/AGG 2014

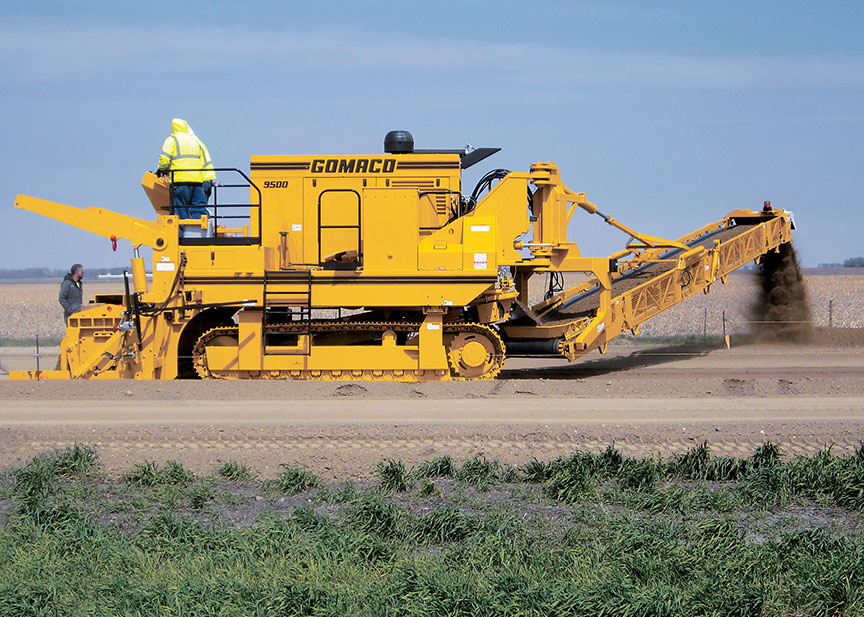

A GOMACO 9500 trims grade on the new four-lane Highway 20 project in Iowa.

Ida Grove, Iowa Ė The 9500 trimmer is the latest machine in GOMACOís full line of concrete paving equipment to receive their proprietary and exclusive G+ģ control system and G+ ConnectTM. G+ on the 9500 also brought about other updates on the machine. The wiring in the 9500 operatorís console has been redesigned and reorganized, rear steer control is now offered for the first time, trimmer load control can now be monitored on a digital readout, and several other features have been added with G+ for the ultimate operating experience. The 9500 trimmerís applications include trimming, concrete and asphalt placing, and shoulder trimming.

G+ on the 9500 allows an updated CAN-based operatorís remote control with a digital machine control display. The new remote features soft push pads for selection buttons for conveyor control and travel and steering. A joystick on the remote allows for new proportional control and movement of the 9500ís discharge conveyor. Connections for the operatorís remote control are located at the front and rear of the operatorís platform. The 9500 now features two ground level remotes. The G+ MiniMote assists in connecting the trimmerhead or hopper, and loading the machine. The second new remote is for the 9500ís hopper when the machine is being used as a concrete placer. The operator can use it to control the hitch when locking onto dump trucks, vibration in the hopper, and raising and lowering the machine to adjust the height of the hopper. Both of the ground remotes can be operated from either side of the 9500.

The 9500 now has rear steer control allowing it to easily and accurately back up on stringline. It also has a digital readout for trimmerhead load control. The readout shows pressure and flow during the trimming process and will automatically slow the machine down during a heavy trim. The 9500 will operate on stringline, 3D stringless controls and G+ features an entire library of sensor capabilities for controlling slope, grade and steer with set-up configurations for any project requirement. This includes 3D stringless systems, laser controls, sonic sensors, rotary sensors, slope sensors, and all of their set-up requirements. Just connect to G+ Connect and the G+ controller automatically recognizes the control system and allows two-way communication.

Within the console of the 9500 youíll see the results of GOMACOís new wiring management initiative. The goal of the initiative is cleanliness, easy to follow labeling, reorganization, and the redistribution of wiring. The goal was accomplished. The 9500ís G+ console features a master controller assembly and power distribution center for fast and precise control with clean and orderly wiring and labeling for easy troubleshooting. The design layout of the console has also been reorganized with the hydraulics separated from the electronics. Two sliding and locking covers protect the panels.

The two-track 9500 with front-mounted trimmer allows trimming to the end of each pass or within inches of obstacles. The powerful single-drive, hydrostatic motor offers ultimate production. The steady, easily controlled travel speed guarantees accurate trimming and job-site mobility. The 9500 can make a 360 degree turn within its own length for maximum maneuverability around a job-site that has challenging conditions. The 9500ís rear conveyor has a 36 inch (914 mm) wide belt and a 34.7 feet (10.6 m) long reach during machine operation, and a conveyor belt speed of 504 feet per minute (153.6 mpm) allows fast placing of concrete or removal of trimmed material. The rear conveyor has a 160 degree swing with hydraulic height adjustment up to 12 feet (3.7 m). The optional hydraulically folding rear conveyor allows job-site mobility, safe operation, and transportability.

The 9500 is user-friendly and operator safe with an operatorís station that is efficient and allows visibility over the entire operation. All GOMACO machines featuring the G+ control system have an operatorís horn and a back-up alarm. The operatorís remote control has an emergency stop button on the side and there are several emergency stops located around the 9500.

GOMACO showcased a full paving train in their booth, including a PS-2600 placer/spreader, next generation four-track GHP-2800 slipform paver, and the new four-track T/C-5600 texture/cure machine. G+ technology was also featured in GOMACOís largest CONEXPO-CON/AGG display ever. The G+ advantage for high-production curb and gutter, sidewalk, safety barrier, half-width and full-width paving, variable width paving, and paving with automatic dowel bar insertion was on display. The newest updates for the GSIģ, the GOMACO Smoothness Indicator tool for reading and achieving optimum rideability results, were showcased. The job-proven C-450 bridge deck finisher rounded out GOMACOís display in Booth 51059 in the Central Hall of the Las Vegas Convention Center in Las Vegas, Nevada.

GOMACO Corporation (www.gomaco.com) is the worldwide leader in concrete construction equipment with headquarters in Ida Grove, Iowa, USA. GOMACO equipment will slipform concrete streets and highways, airport runways, curb and gutter, sidewalks and recreational trails, safety barrier, bridge parapet, and irrigation canals. Support equipment includes grade trimmers, concrete placers, concrete placer/spreaders, and texturing and curing machines. The company also offers equipment to finish flat slabs, bridges, and slopes. GOMACO will consult on unique concrete paving applications and equipment needs. Products are offered through a worldwide distributor network for local sales, parts and service expertise.
