T/C-400B Applications

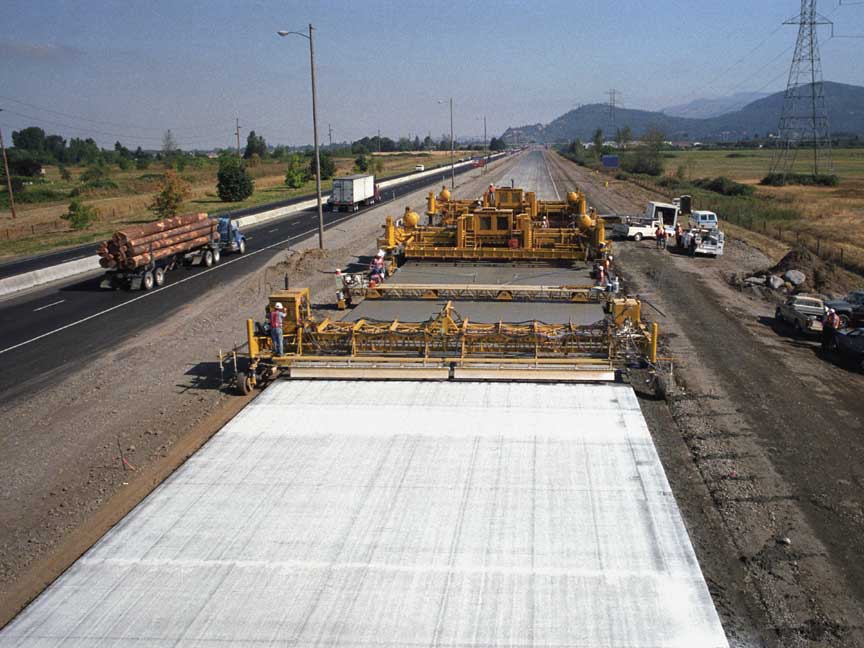

This T/C-400B rounds out a GOMACO paving train including a placer/spreader, paver and one Spanit® on a job in Eugene, Oregon.

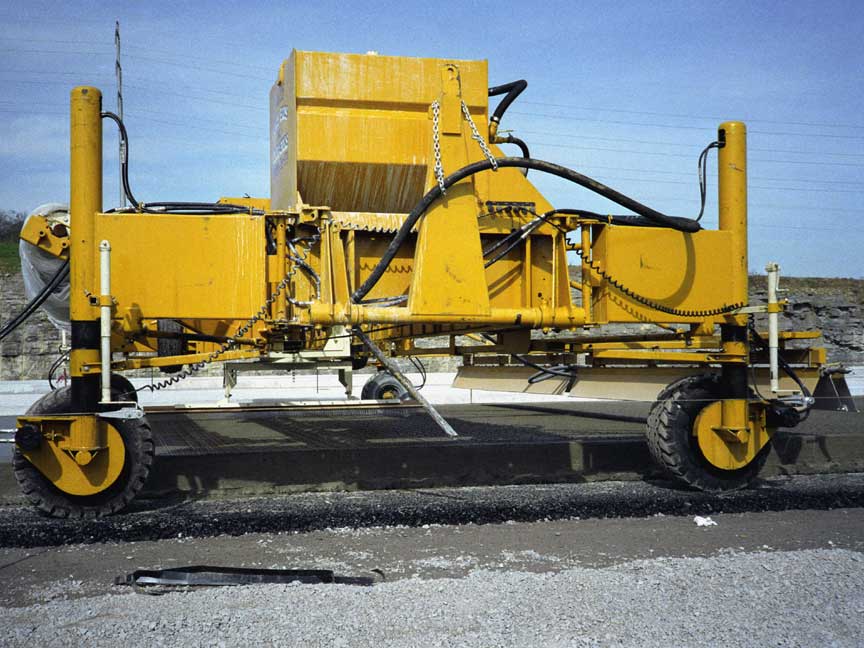

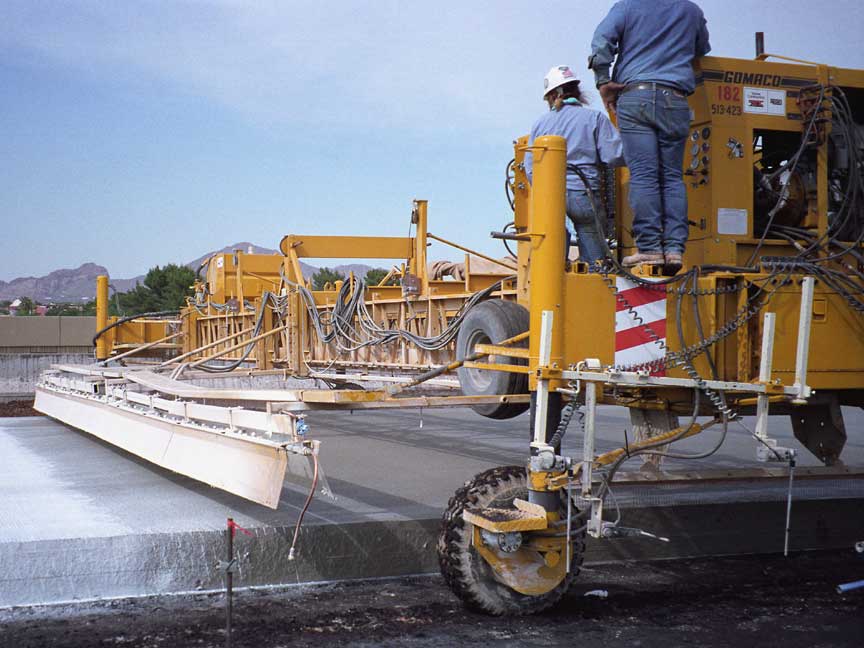

GOMACO's T/C-400B spray bar has nozzles spaced 12 in. (305 mm) apart and 18 in. (457 mm) above the surface of the concrete.

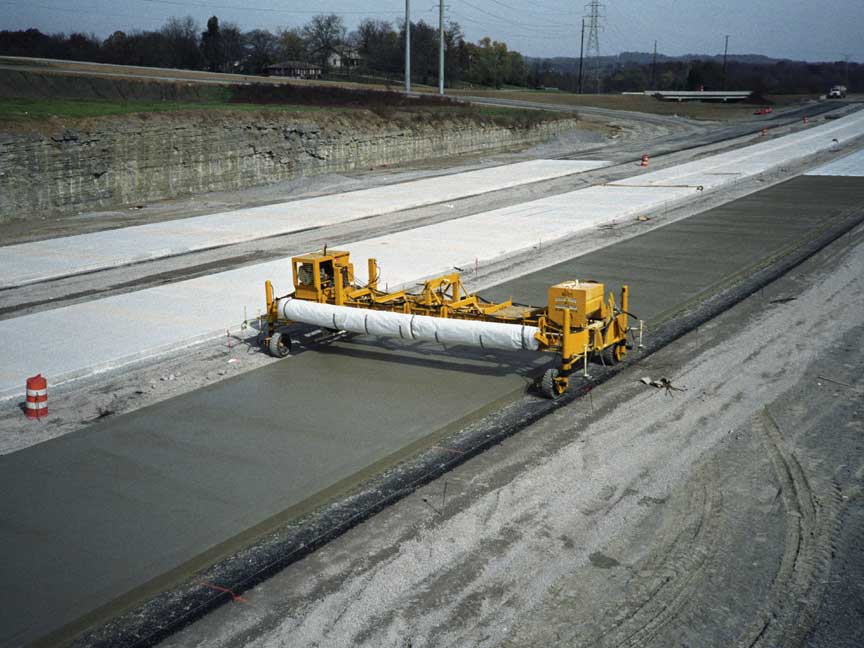

The texturing assembly travels transversely across the concrete slab. There is an adjustable pressure on surface contact between the texturing member and the concrete controls depth and angle of wire tines.

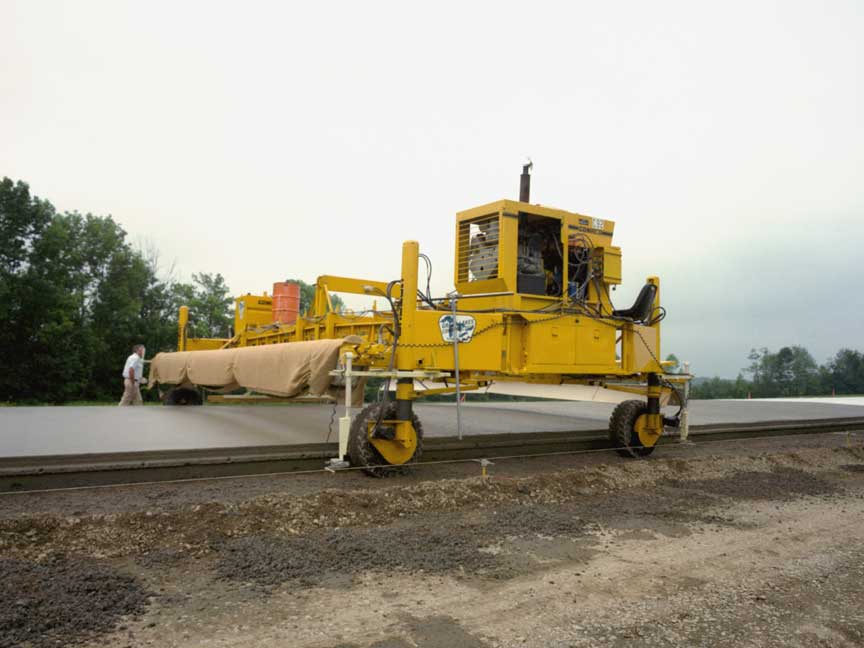

	The T/C-400B features electronic over hydraulic forward and reverse steering and grade control is sensored off the same stringline as the paver. This provides ease in operation and accuracy in texturing and curing the slab.			GOMACO's T/C-400B is equipped with flotation tires that are individually steered and hydraulically driven.

T/C-400B Texture/Cure Machine		Download The Texture/Cure Brochure (PDF Format)
T/C-400B Specifications

Been There, Built That... Stringless - A.S. Horner, Inc.
