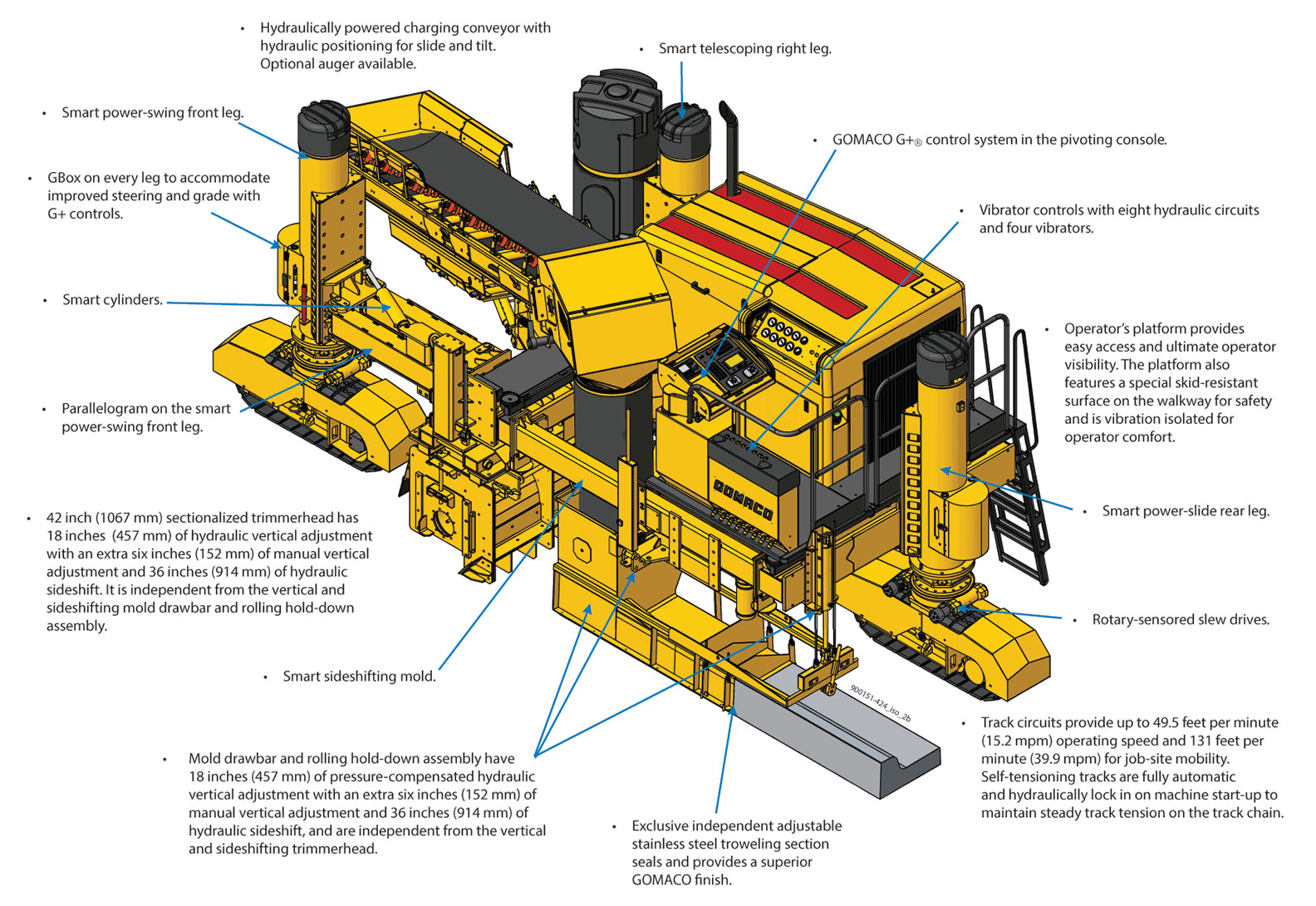

• Achieve Xtreme Steering with the rotary-sensored slew drives, on each of the three tracks for extreme steering.
- The extreme steering capabilities, combined with the Commander IIIx’s sensored All-Track Steering (ATS) and sensored All-Track Positioning (ATP), make it the ultimate, intelligent slipform paver.
- The intelligent ATP on the Commander IIIx includes a smart hydraulic cylinder on all three legs. The smart cylinders allow G+® to know the position of all three tracks and can make steering adjustments as needed.

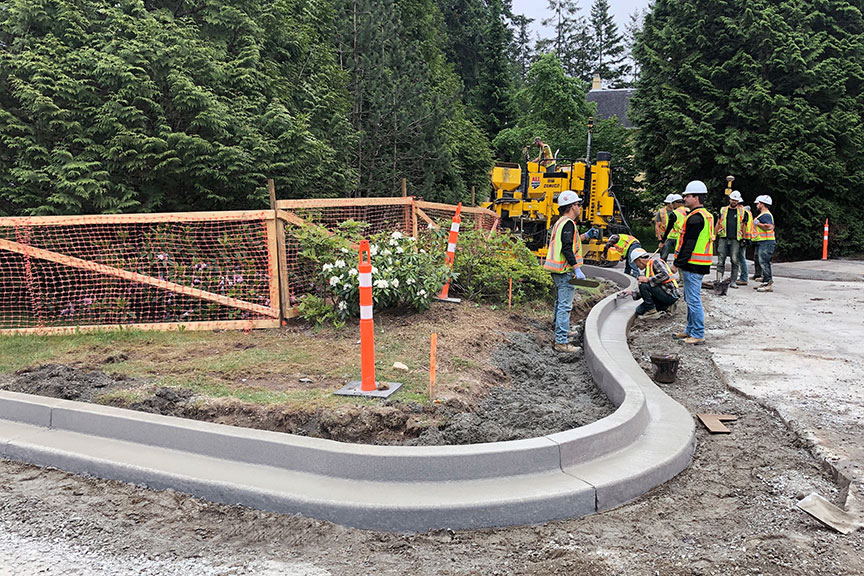

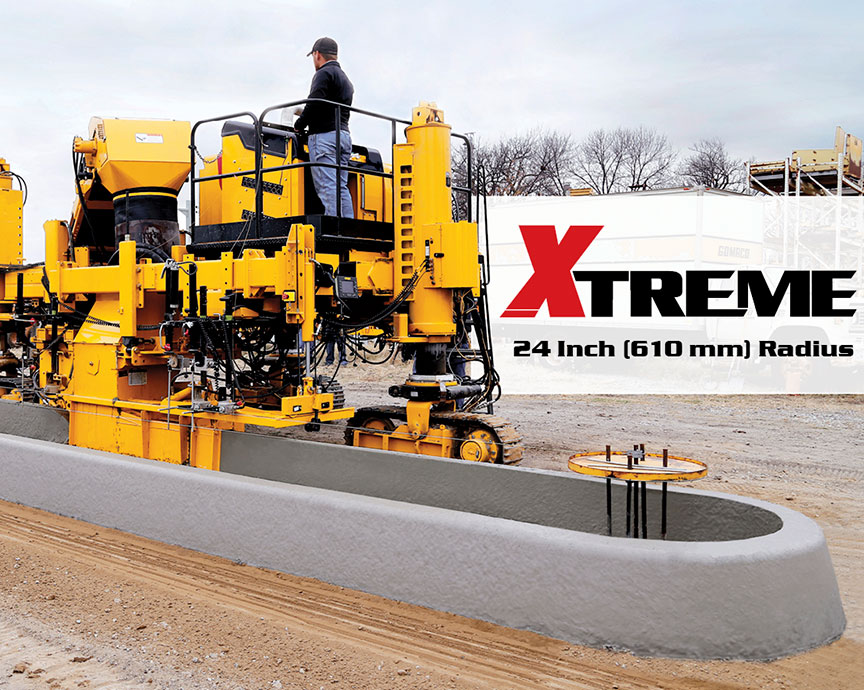

• The Commander IIIx can now pour Xtreme radii with ease.
- G+ individual track speed control provides smooth machine travel around a radius.
- The G+ control system easily operates on stringline or interfaces with the 3D guidance system for curb and gutter and tight radius applications.
- The Commander IIIx features the GOMACO three-sensor radius system for stringline. When paving with stringline, the lead steering wand is allowed to leave the stringline and reference is switched to sensor number two for traveling around the extreme radius.
• Xtreme Intelligence
- Intelligent offset is accomplished with smart hydraulic cylinders for telescoping the mold mounting system. This provides G+ the ability for repeatable mold offset. The trimmerhead and mold have independent vertical adjustments for raising and lowering.
• G+ Radius Software for stringline allows you to select the size of your radius and G+ calibrates and manages all aspects of traveling around the radius, including track angles and individual track speeds.
- G+ Radius Software for the control system allows the operator to select the size of the radius and input it into the controller. As the Commander IIIx approaches the radius, with the values programmed in, the operator activates the radius feature, and the curb and gutter machine slipforms around the radius. An operator can now pour a radius with ease using the G+ Radius Software.
• GOMACO Remote Diagnostics (GRD) is so much more than telematics, and is available for machine troubleshooting, diagnostic reviews, software updates, and more. GRD provides you with live information of how, where, and when your equipment is being used.
GOMACO Xtreme Commander IIIx Three-Track Product Presentation
3 minutes 35 seconds
GOMACO Xtreme Commander IIIx Sidewalk Trimming/Pouring
Brighton, Colorado
2 minutes 31 seconds
GOMACO & Topcon Concrete Solutions
Simultaneous Paving With An Xtreme Commander IIIx
& GT-3600
Oregon, Wisconsin
41 seconds
The GOMACO Commander IIIx, three-track, uses rotary-sensored slew drives on each track to slipform this curved curb and gutter on a residential street in Canada. This Commander IIIx is equipped with GOMACO Remote Diagnostics (GRD) to assist in fleet management through your cell phone or laptop computer.
Using 3D machine guidance, the Commander IIIx slipforms monolithic sidewalk and curb and gutter within a new subdivision.

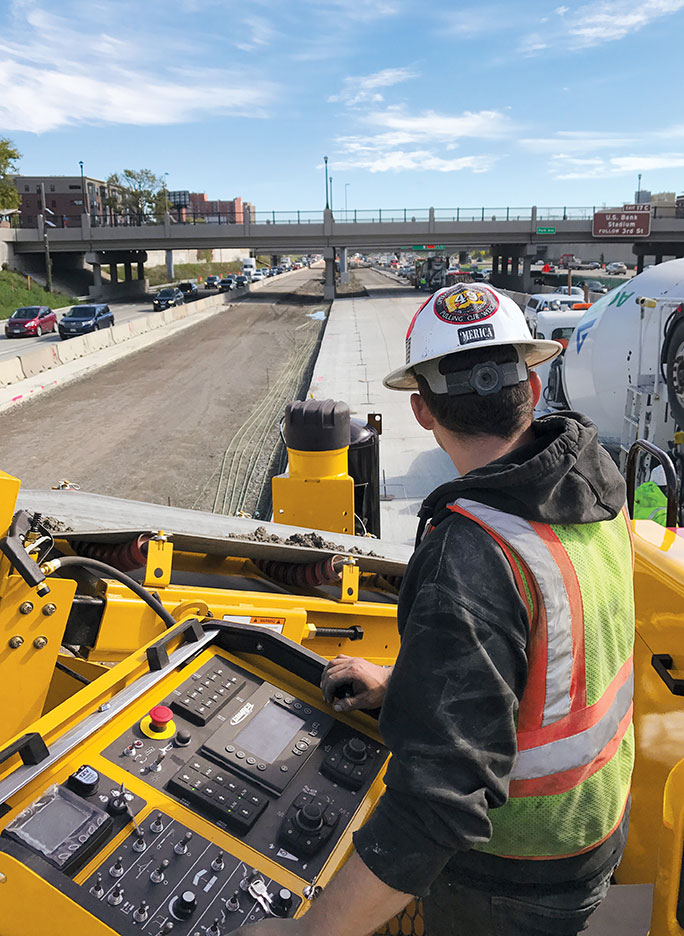

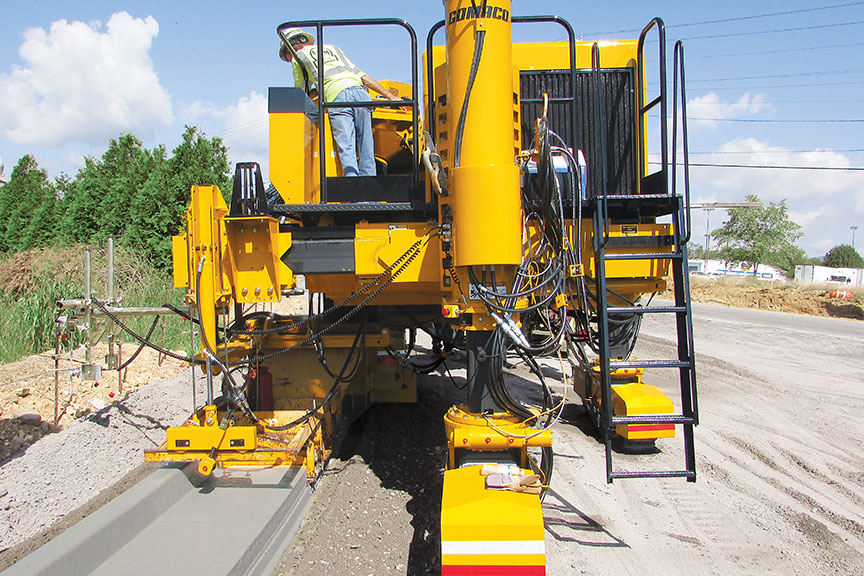

The operator has a complete view of the paving operation, from the delivery of concrete to the finished product, while always maintaining full control with the pivoting operator’s panel.

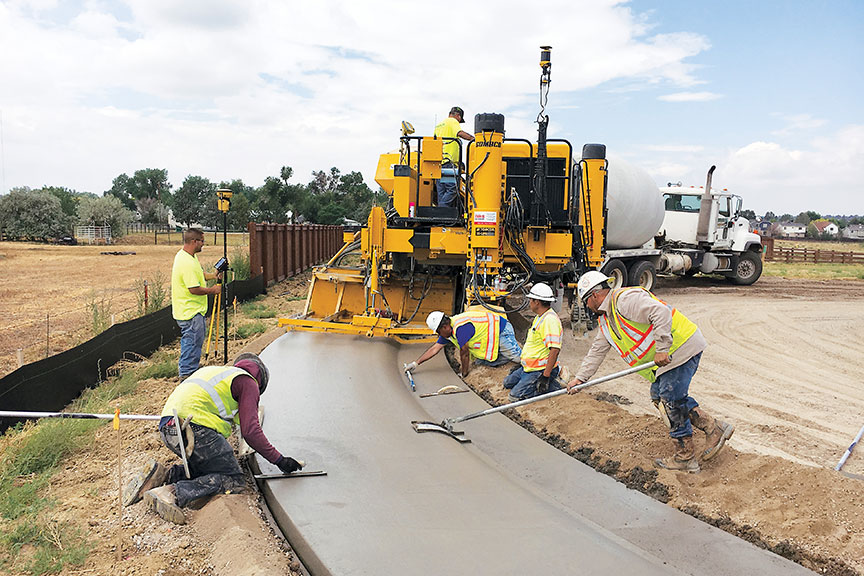

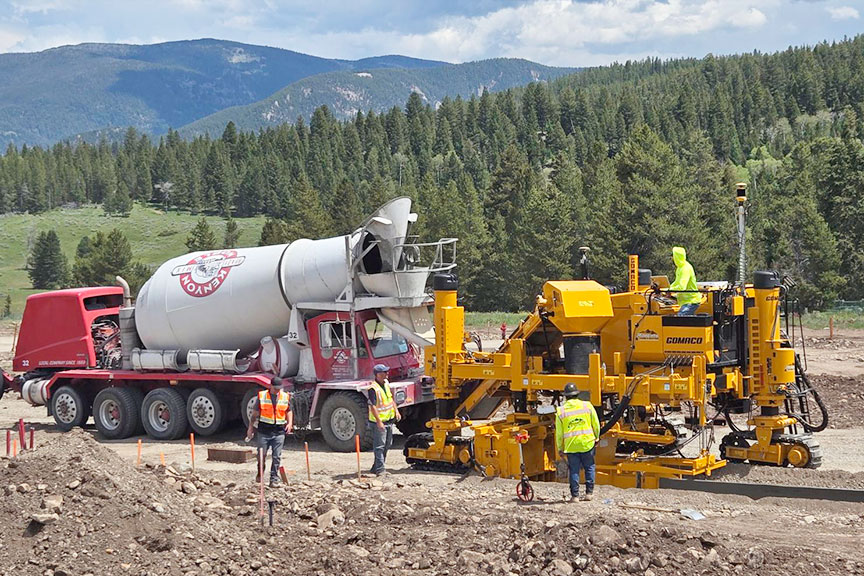

The Commander IIIx three-track slipforms curb and gutter using 3D machine guidance in a new residential development.

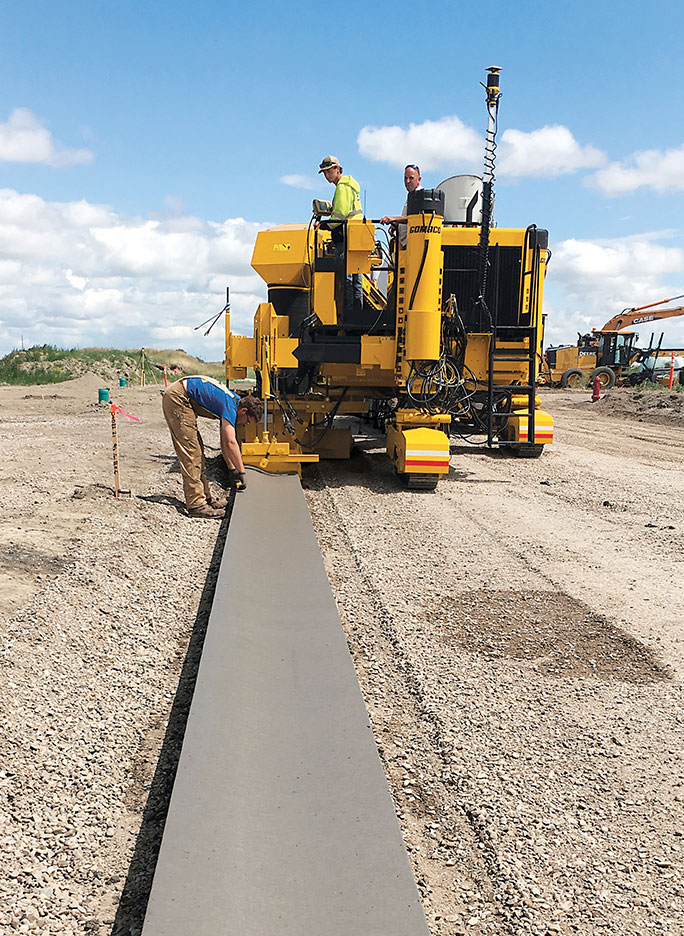

A ten foot (3.05 m) wide bike path is slipformed by the three-track Commander IIIx.
The Commander IIIx features a platform that has a skid-resistant surface on the walkway for safety and is vibration isolated for operator comfort during a full day of slipform paving.

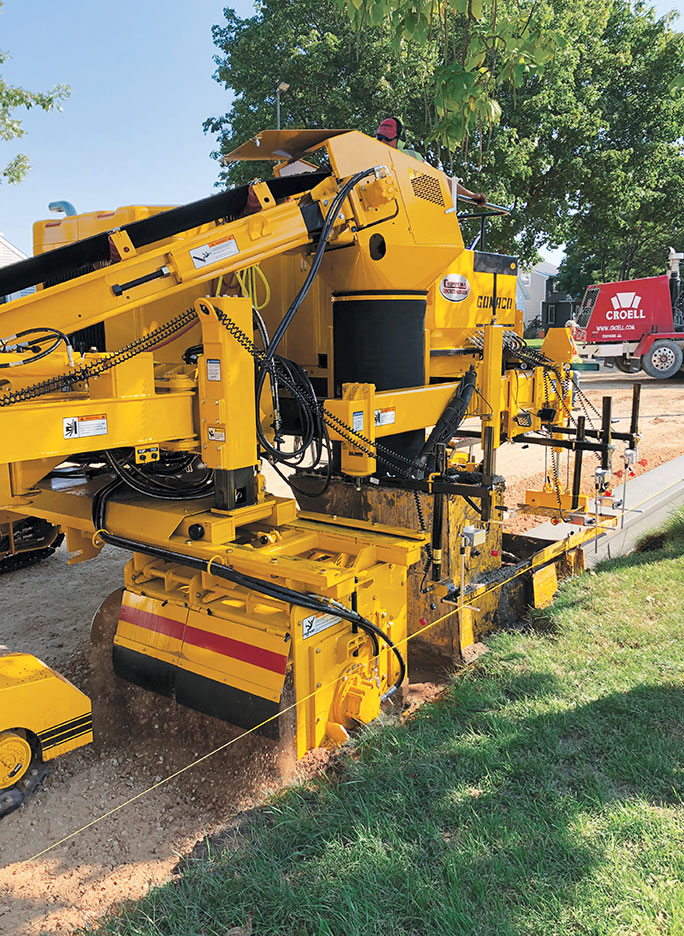

The three-track Commander IIIx has the ability to simultaneously trim the grade and slipform curb and gutter with ease.

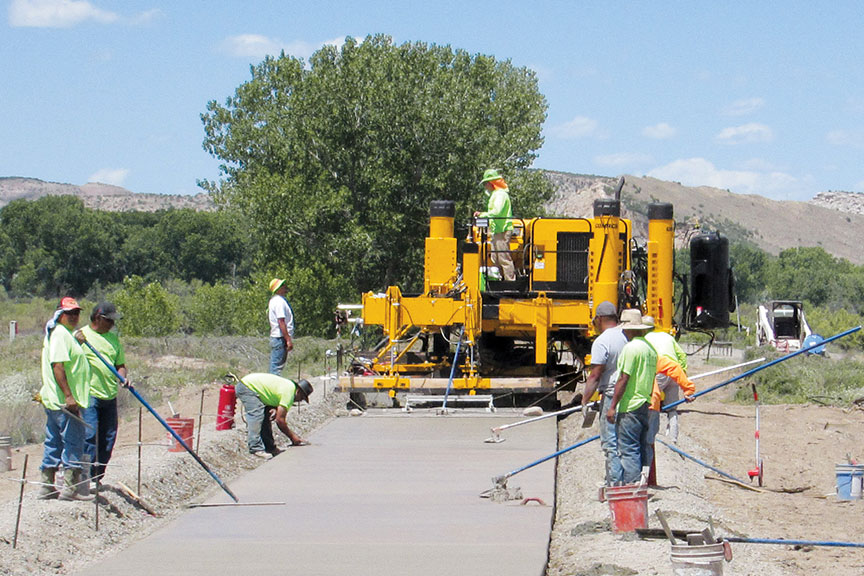

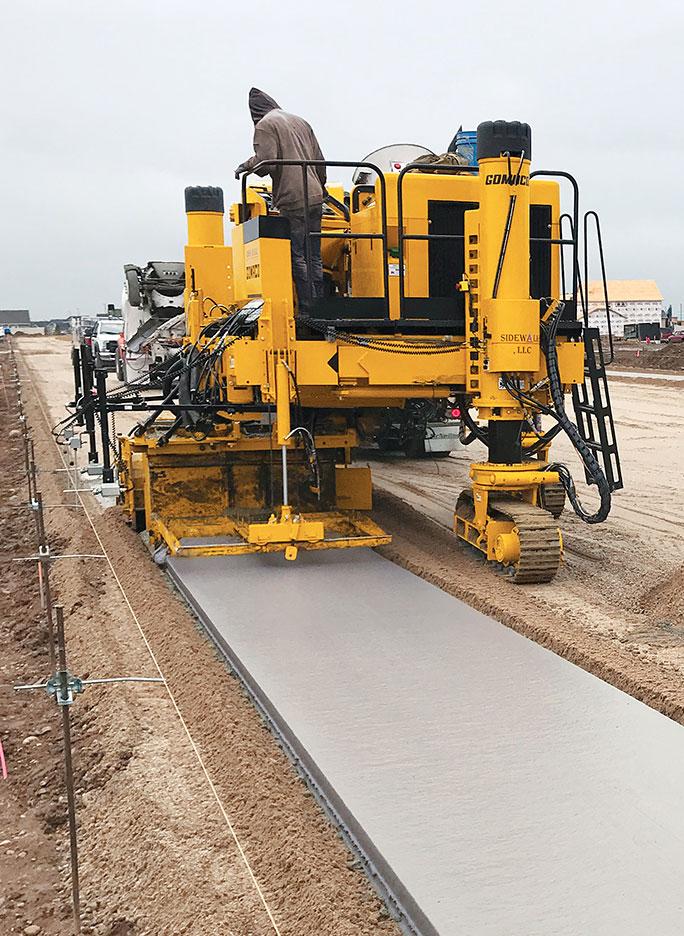

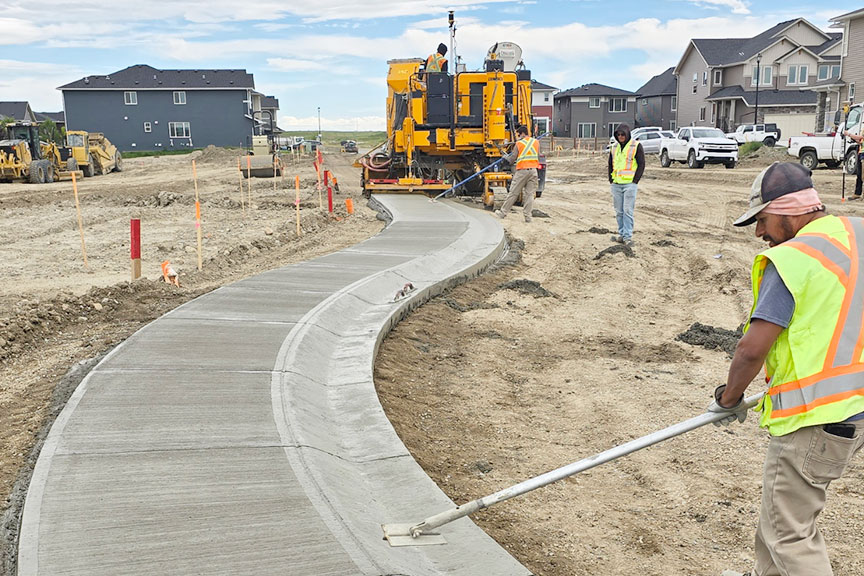

A five foot (1.52 m) wide sidewalk in a new housing development area is being slipformed by the Commander IIIx three-track using trim and pour for maximum material utilization.

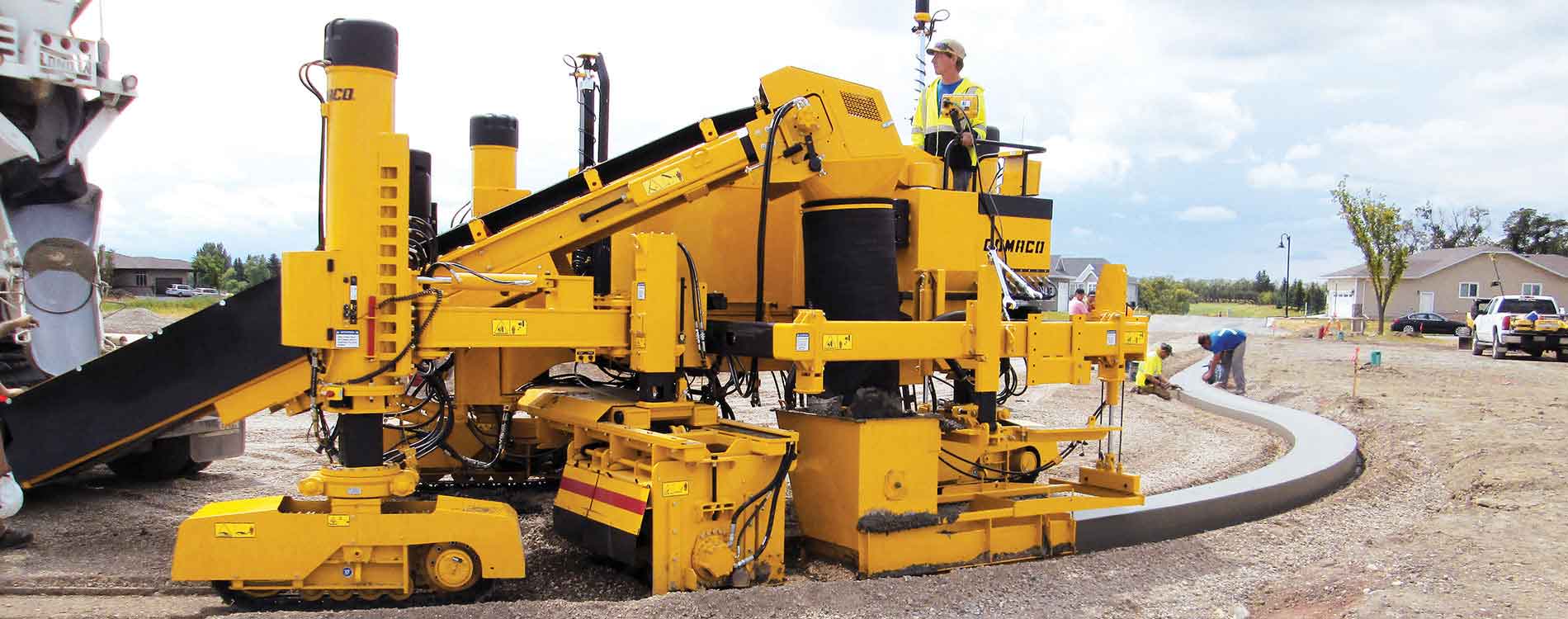

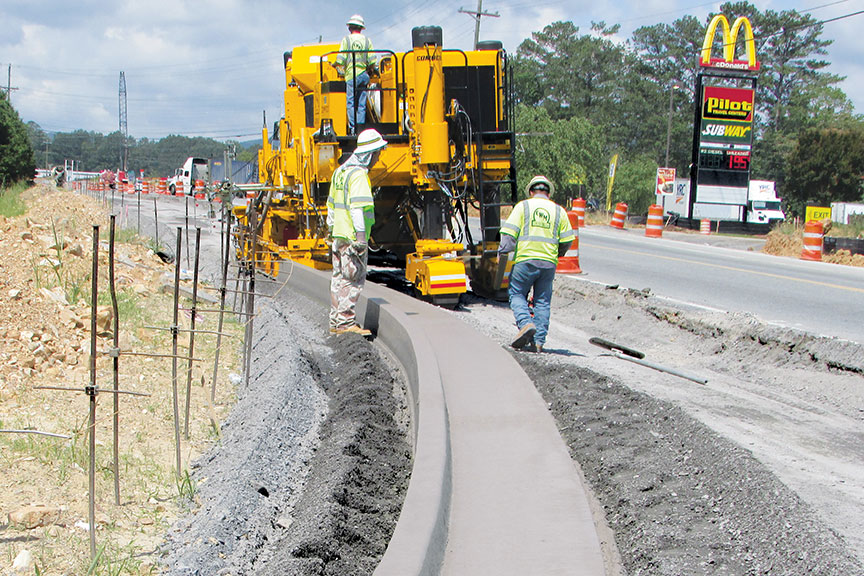

The three-track Commander IIIx slipforms curb and gutter in a residential area.

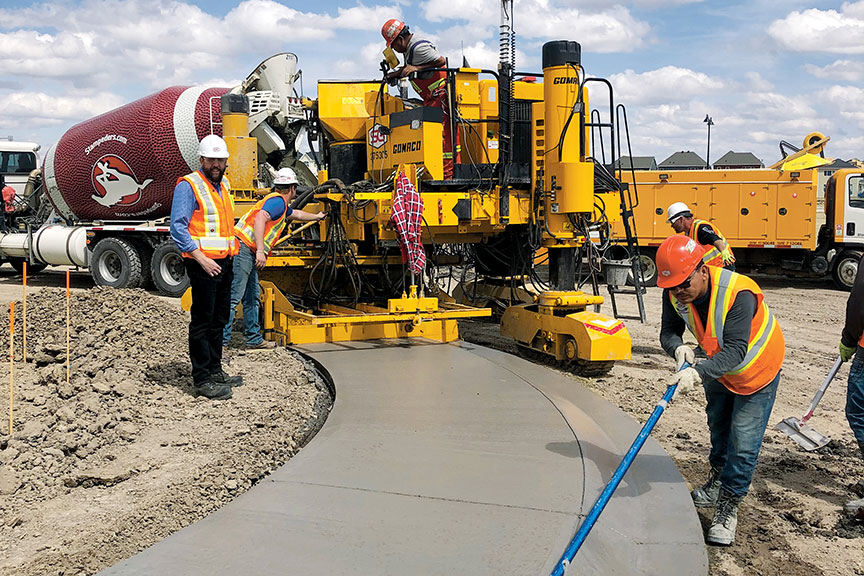

The three-track Commander IIIx slipforms monolithic sidewalk and curb and gutter.
Intelligent All-Track Positioning (ATP) on the GOMACO Commander IIIx includes a smart hydraulic cylinder on each of the three legs. The smart cylinders allow G+ to know the position of all three tracks and make steering adjustments as needed.

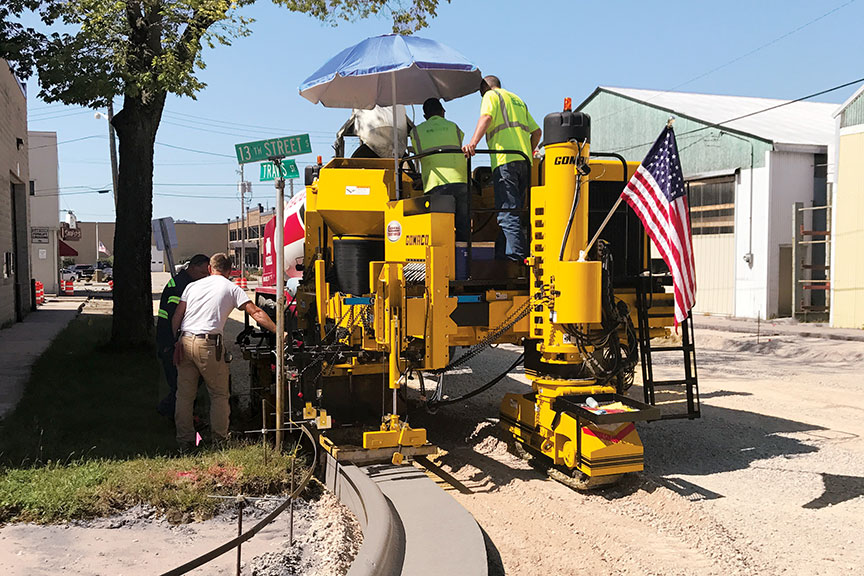

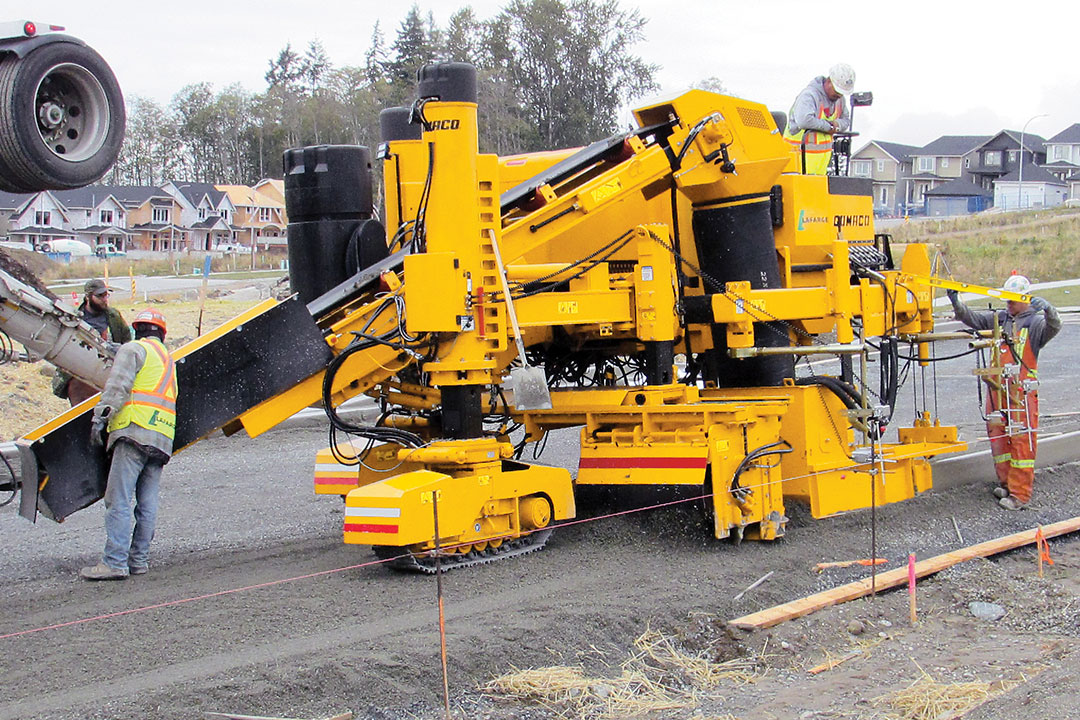

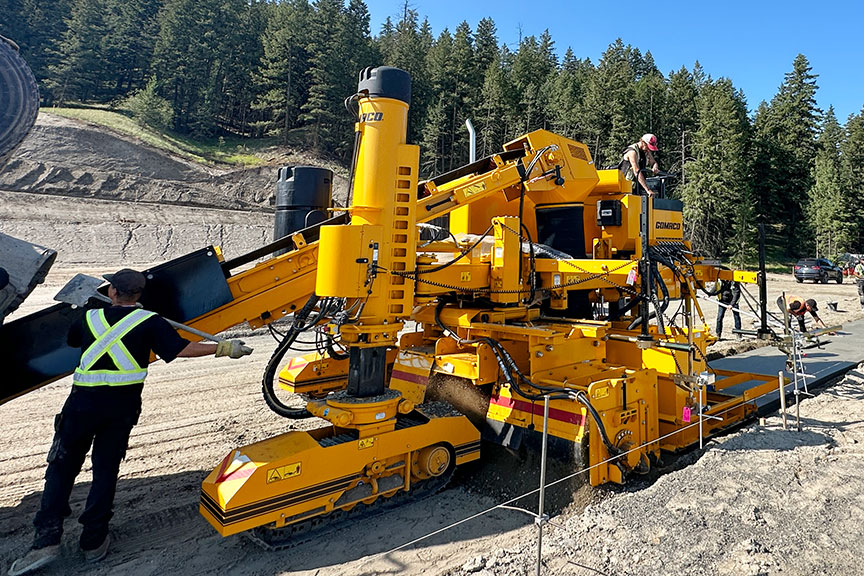

The Xtreme Commander IIIx was put to work slipforming curb and gutter in a new housing development in Surrey, British Columbia, Canada.

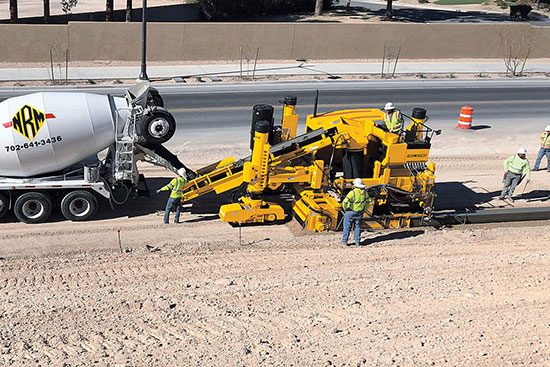

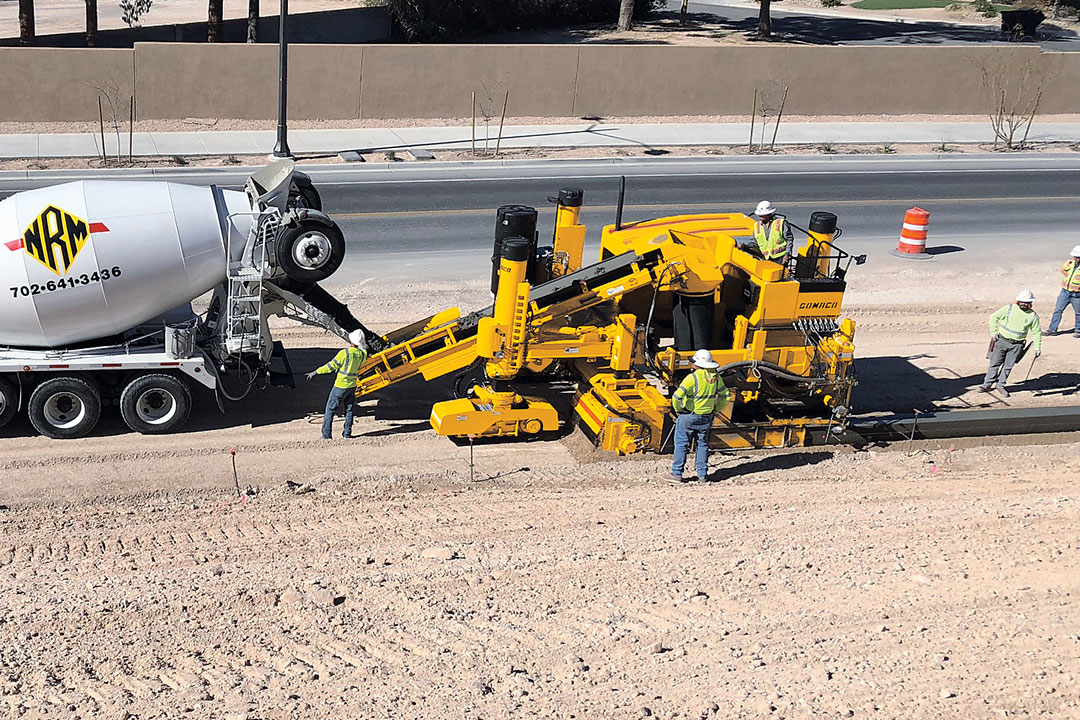

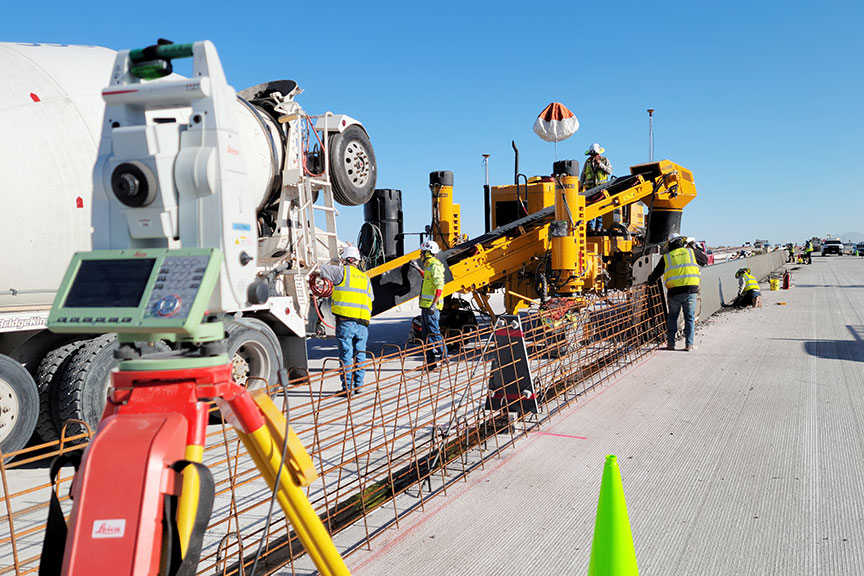

This contractor slipforms curb and gutter on a project in Las Vegas, Nevada, with their new Xtreme Commander IIIx.

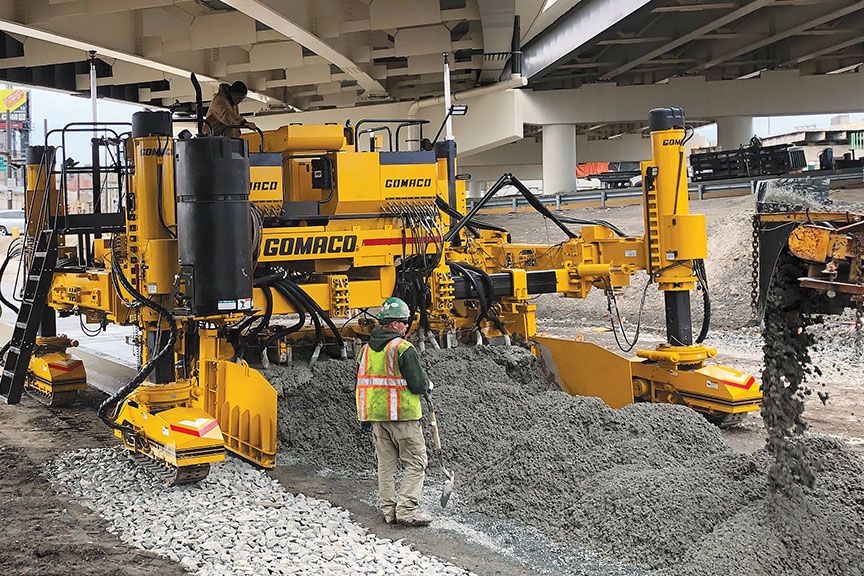

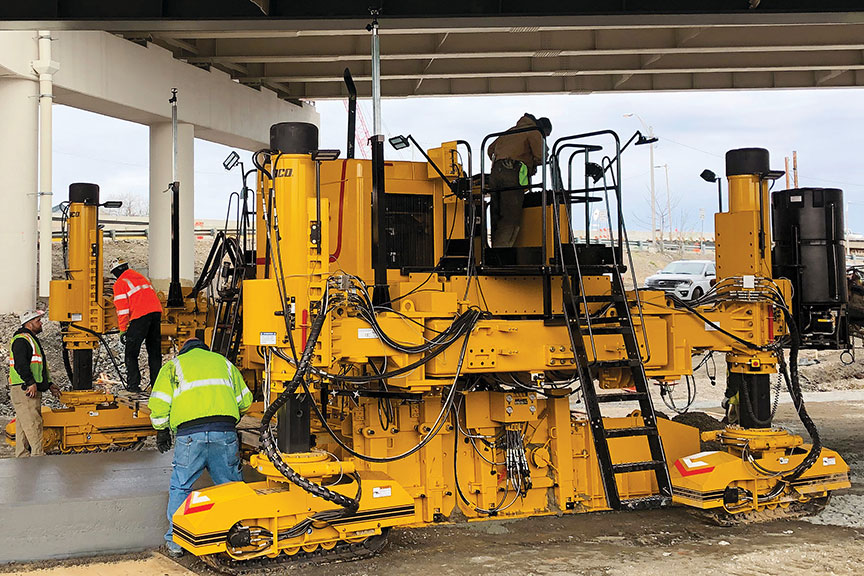

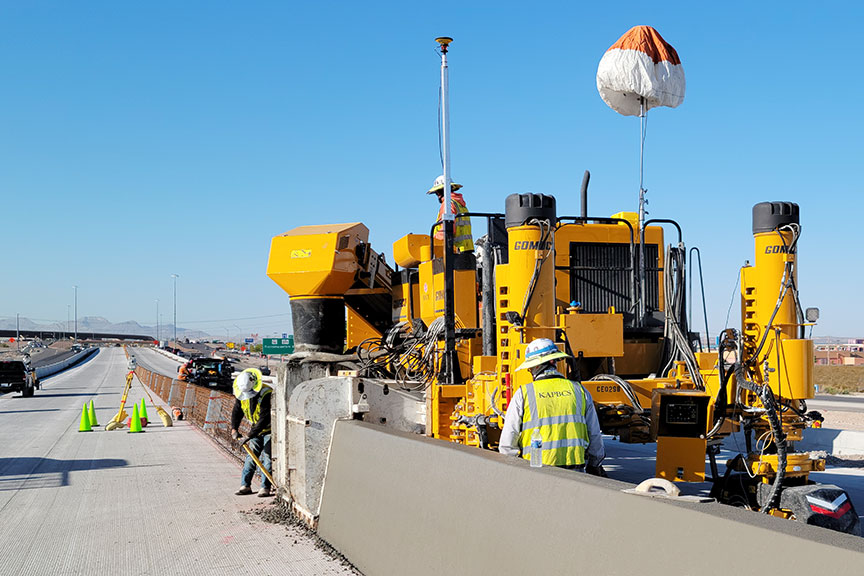

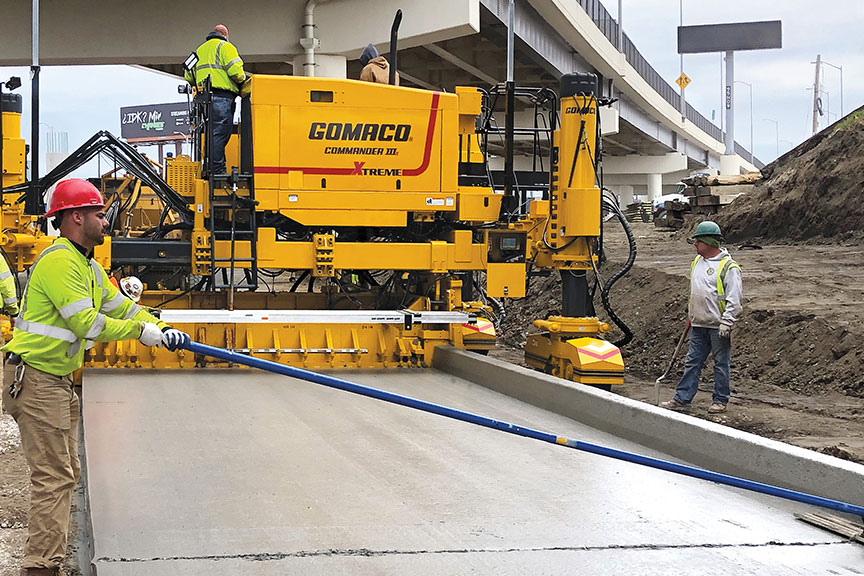

The four-track Commander IIIx slipforms the subbase for a highway at 13 feet (3.96 m) wide and eight inches (203 mm) thick with an integral curb on the right side using 3D machine guidance.
The roller frame is an essential part of the Commander IIIx and provides easy and accurate width changes. The frame hydraulically telescopes on the left side up to six feet (1.83 m).
It is now the technology that pulls everything together… G+ is the center that Connects all of the resources.
Once you experience G+ controls, you won’t be satisfied with anything else. It’s a control system that is both easy to learn and easy to operate. G+ expresses itself in easy to understand international icons and full script explanations. It operates in all the major languages of the world and in imperial or the metric system. It has a lightning-fast processing speed and features two-way communications between the accessories and G+. Its instant digital feedback combined with the tight closed-loop electronic and hydraulic control creates a G+ experience that is smooth, efficient, and accurate. There is nothing on the market that can compare, because G+ is a proprietary system that was designed by our in-house control experts incorporating what we have learned from decades of experience in the field, and from what we have learned from you, our customer.
- Machine operation is simple.
- Machine response is fast.
- Troubleshooting is pinpointed, quick, and easy.
- Fault history available.
- Control from stringline, 2D, or 3D guidance.
A flat-panel 6.5 inch (165 mm) anti-glare display screen is provided with sensor-controlled backlight levels for superior visibility in all operating conditions. The screen is rugged and shock resistant in its construction to protect against dust, moisture, and rain. G+ provides a full color display on the control panel to illustrate the various aspects of the paver for set up and operation. A “run” screen on the control panel illustrates the various aspects of the paver. It includes leg position, paving speed and percentage of drive, steering, travel information, grade information, deviation meters, and more. Newly designed icons and color graphics make it easy to understand and easy to identify the targeted functions. G+ receives a track speed reading from pulse pickups in the track motors to give you real time feet (meters) per minute and total linear footage (meters). G+ controls feature a detailed fault history with the time stamp, date, and information to track when each fault occurred. GOMACO’s G+ control system has been proven around the world.
GBox
The Commander III has a GBox on every leg to accommodate improved steering and grade with G+ controls. It’s part of GOMACO’s electronic and hydraulic initiative. GOMACO’s GBox features a new location for convenient access to the sensor bulkheads, valve overrides, and reduces hose and wiring needs. The GBox provides ease in serviceability, troubleshooting, and provides quick access with a horizontal swing door at ground level.
GOMACO Remote Diagnostics (GRD)
The Commander III can be equipped with GOMACO Remote Diagnostics (GRD). This software allows operators to see when, where, and how their machines are being used. Operators have the capability to request software updates from GOMACO in Ida Grove, Iowa, remotely without service personnel traveling to the job site. GRD allows for fleet management through GPS location and troubleshooting abilities.
Designed For Safety
The Commander IIIx is carefully designed to give years of dependable and safe service. The emergency stop buttons are on the operator’s console and on the corners of the machine, which are easily accessible from the ground level. The machine is equipped with a backup alarm, which is designed to alert personnel around the machine when the tracks are set to operate in reverse. Other safety features include track guards, warning decals, operator horn, an operator’s manual, and a safety manual. GOMACO machines are also designed to provide the operator with excellent visibility over the entire paving operation.
GOMACO CORPORATION RECOMMENDS THE IMPLEMENTATION OF ALL SAFETY PROCEDURES.
Intelligent All-Track Positioning (ATP)

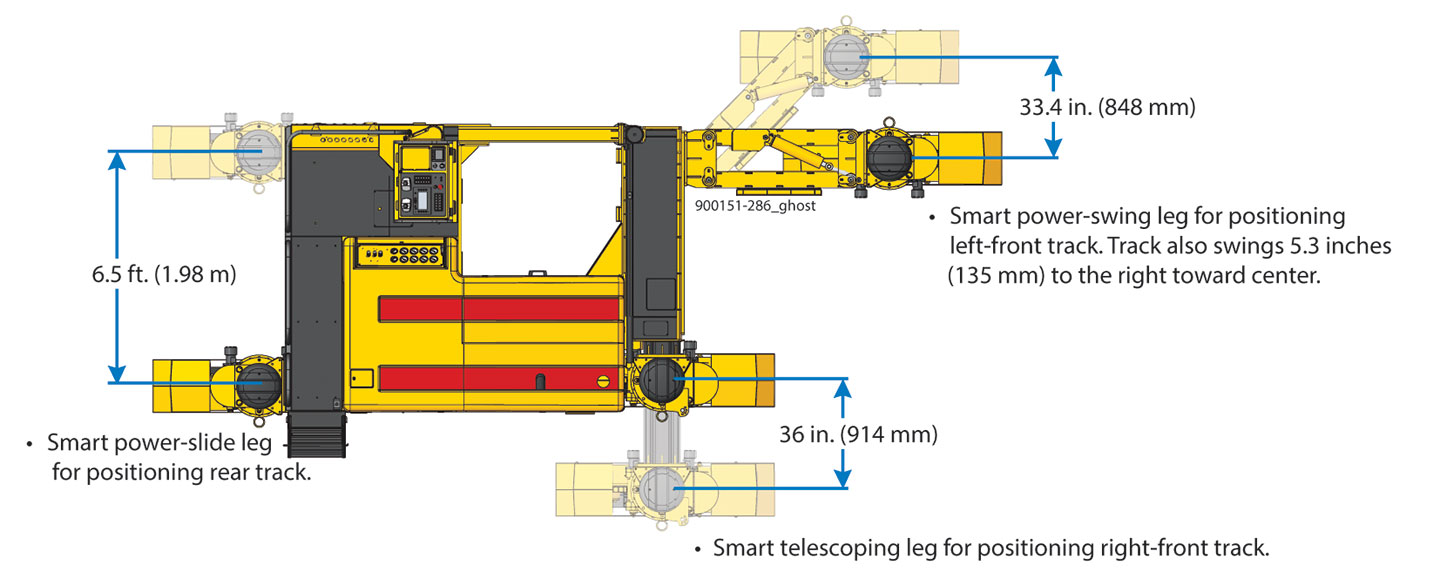

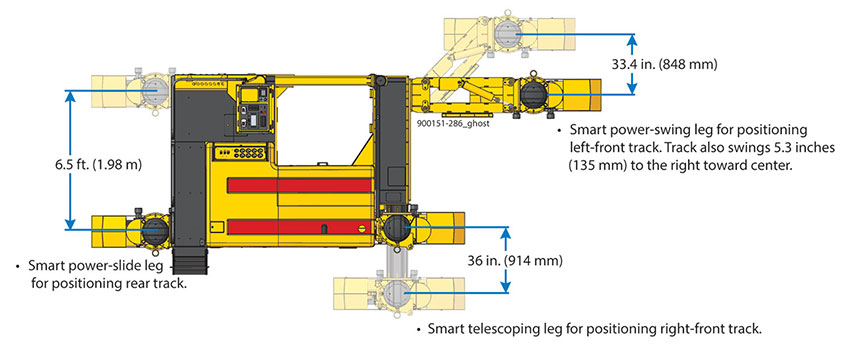

Intelligent ATP provides versatility in our slipform pavers. Each leg has a reinforced steel attachment plate that allows extra leg height adjustments. ATP provides the capability to perform various applications and work with differences in grade elevations and unique job-site logistics.

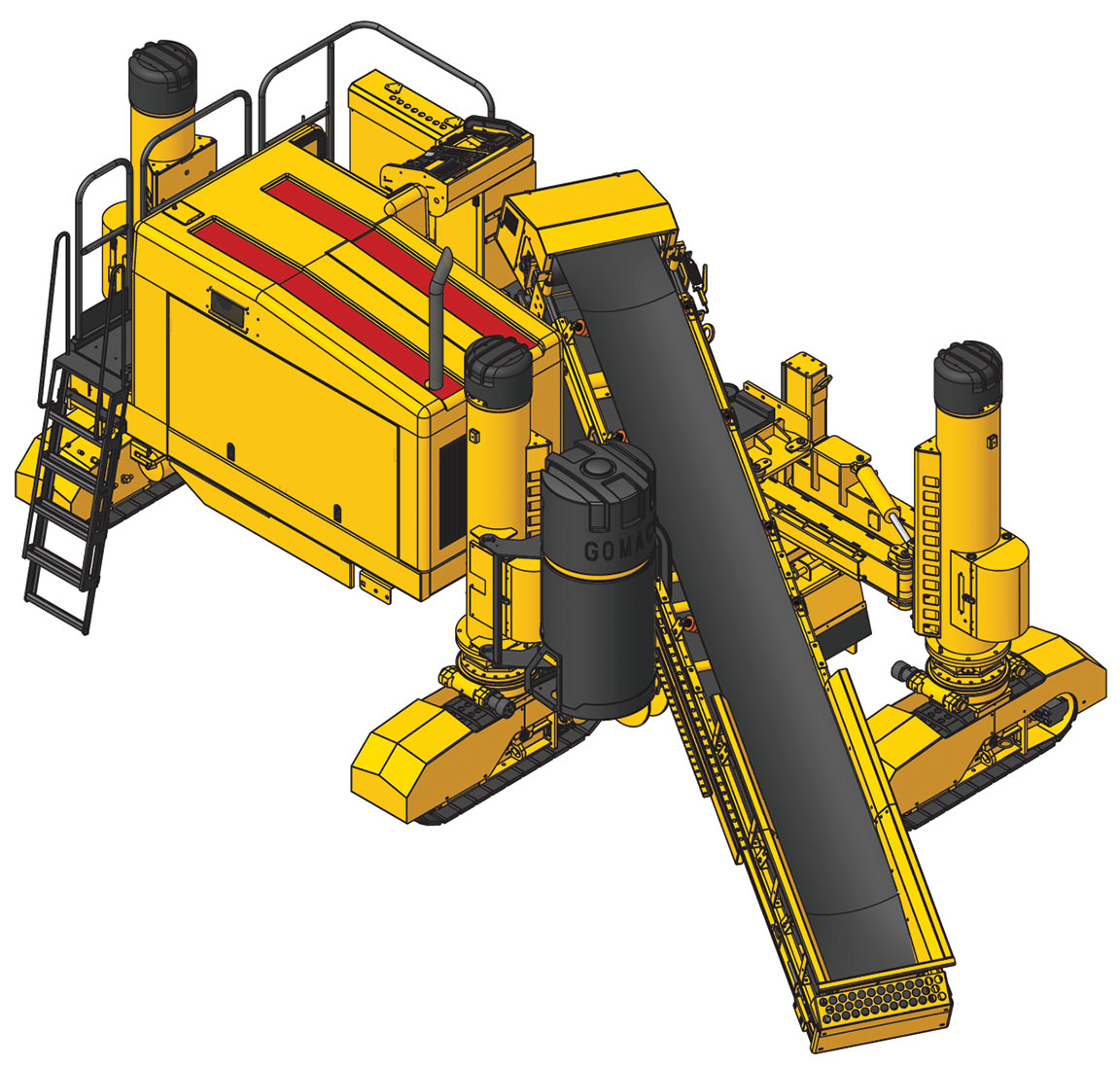

Extreme steering and G+ controls now allow the Commander IIIx to slipform tight radii. The tracks on the Commander IIIx can be turned to extreme angles, for getting on and off stringline and maneuvering around job-site obstacles.

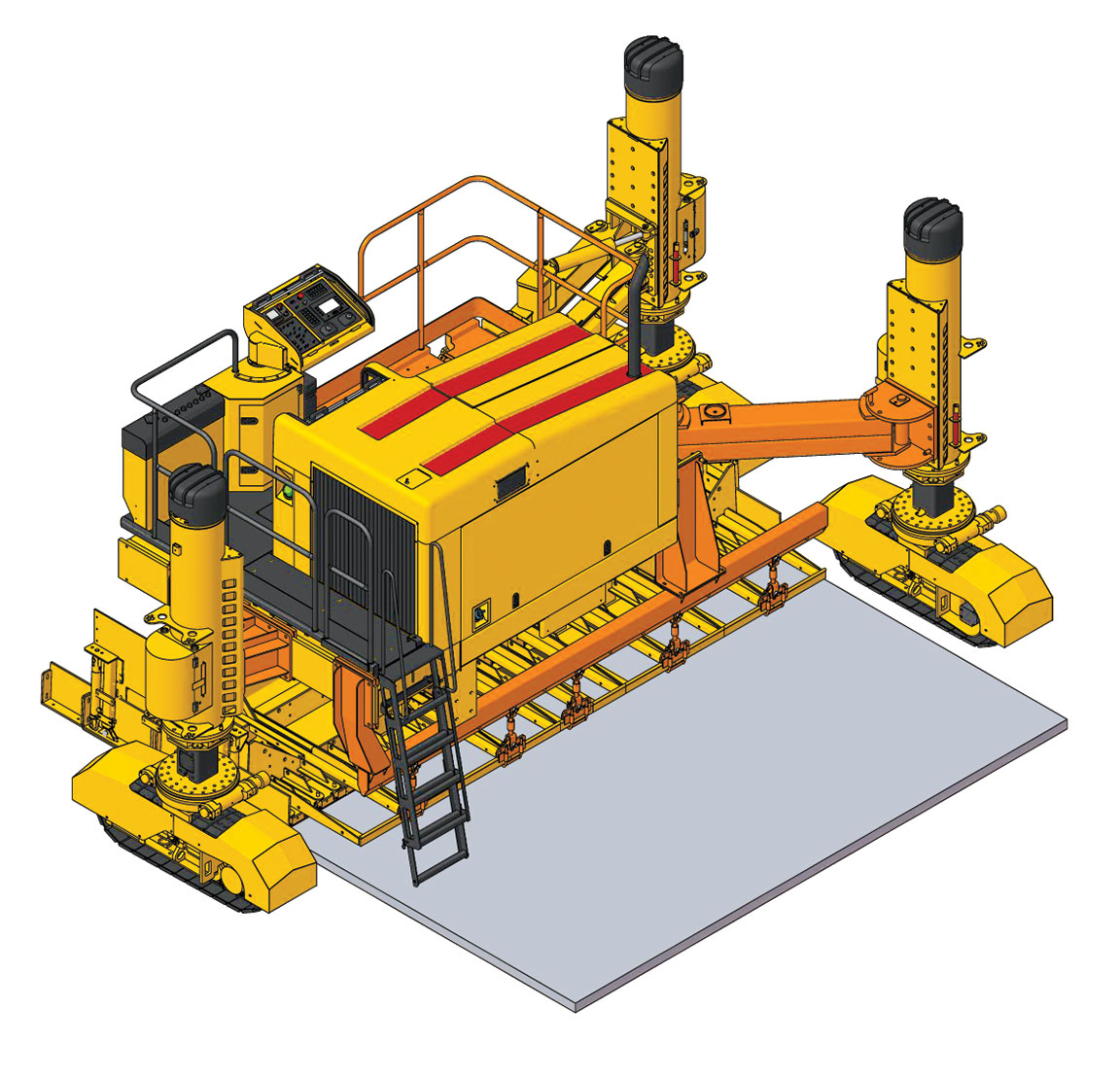

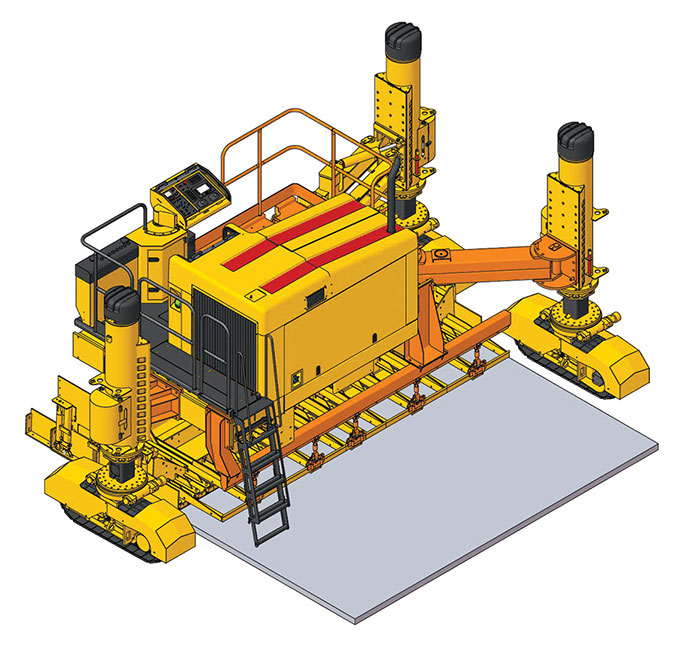

The GOMACO Commander IIIx can be transformed from a three-track curb and gutter machine to a three-track slipform paver with an undermounted mold at a maximum of 15 feet (4.57 m) wide, by adding the parts designated in orange on the drawing above.

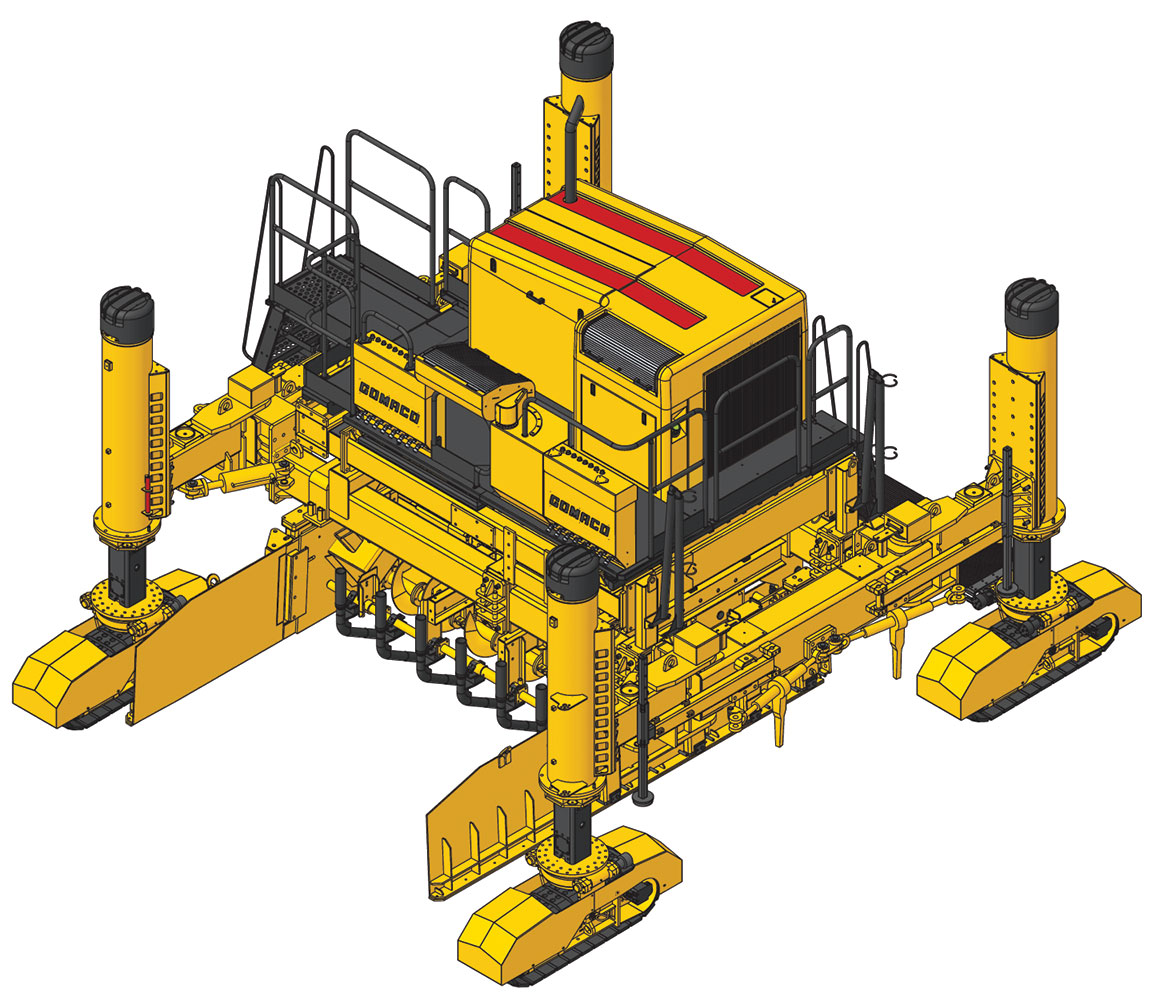

The four-track Commander IIIx is also available with rotory-sensored slew drives.
ENGINE
Consult for options available.
SERVICE CAPACITIES
Fuel reservoir: 88 gal. (333 L).
Hydraulic oil reservoir: 162 gal. (613 L).
AUTOMATIC CONTROL SYSTEM
Type: Electronic-over-hydraulic.
Controls: GOMACO’s exclusive G+® control system for paving accuracy and ease of operation. It features multi-language, metric or imperial settings, and a 6.5 in. (165 mm) anti-glare display screen.
Control indicators: Color graphical performance indicators allow operator to monitor control signals for machine guidance on stringline or 3D.
WATER SYSTEM
Type: High-pressure water system.
Capacity: 110 gal. (416 L) tank, hose, and nozzle.
SLIPFORM MOLD
Curb and gutter mold: One curb and gutter mold standard.
Optional molds available for curb and gutter, monolithic sidewalk and curb and gutter, barrier, parapet, irrigation canal, and more.
VIBRATORS
Type: Hydraulically powered, motor-in-head, variable speed, independently controlled.
Quantity Three-Track: Eight hydraulic circuits and four hydraulic vibrators with mounts included are standard.
Quantity Four-Track: Sixteen hydraulic circuits and four hydraulic vibrators with mounts included are standard.
MOLD DRAWBAR & HOLD-DOWN ASSEMBLY
Hydraulic lift: 18 in. (457 mm) pressure-compensated hydraulic vertical adjustment with 6 in. (152 mm) manual vertical adjustment, allowing up to 24 in. (610 mm) of vertical adjustment.
Sideshift distance: 36 in. (914 mm) hydraulic sideshift.
SUBGRADE TRIMMER (sectionalized)
Sectionalized trimmer: Internal hydraulic drive system and 24 in. (610 mm) diameter trimming wheel.
Trimmer wheel rotation: Upward cut.
Width: 42 in. (1067 mm) sectionalized trimmerhead includes one 24 in. (610 mm) drive section with hydraulic internal drive and 18 in. (457 mm) extension.
Sideshift and vertical adjustment: The trimmerhead mount for the three-track machine has 36 in. (914 mm) hydraulic sideshift, 18 in. (457 mm) of hydraulic vertical adjustment and 6 in. (152 mm) of manual vertical adjustment, allowing up to 24 in. (610 mm) of vertical adjustment.
CHARGING CONVEYOR
Type: Hydraulically powered, reversible with charging hopper.
Length: 17.1 ft. (5.21 m) between pulley centers.
Width: 24 in. (610 mm).
Belt speed: Variable to 362 fpm (110 mpm).
Conveyor mount: 36 in. (914 mm) hydraulic slide adjustment with 6 in. (152 mm) hydraulic tilt cylinder and manual pivoting mount (slide and tilt) for negotiating discharge from the ready-mix truck and negotiating grade variations. Allows truck positioning to front or side of machine. Hydraulically powered mount controls conveyor angle.
Belt wiper: Features special blades on adjustable spring steel rods for superior cleaning results. The unique, no-maintenance troughing rollers are greaseless and self-cleaning.
TELESCOPING FRAME (four-track)
Telescoping: Frame hydraulically telescopes on the left side up to 6 ft. (1.83 m).
TRACK SYSTEM
Type: Hydraulically powered gear-driven crawler tracks.
Track length: 5.1 ft. (1.55 m). Overall length with fenders 6 ft. (1.83 m).
Track pad width: 11.8 in. (300 mm).
Track speed: For the three-track machine, up to 49.5 fpm (15.2 mpm) paving, and auxiliary up to 131 fpm (39.9 mpm); for the four-track machine, up to 37.1 fpm (11.3 mpm) paving; and auxiliary, up to 98 fpm (29.9 mpm).
Track tension: Fully automatic, hydraulically locks in on machine start-up, maintaining a steady tension on the track chain.
Leg height adjustment: Each leg adjustable in 4 in. (102 mm) increments for 28 in. (711 mm) manual adjustment with 42 in. (1067 mm) hydraulic adjustment.
Telescoping leg for positioning right front track: Hydraulically controlled, allows 36 in. (914 mm) lateral track adjustment range.
Power-slide leg for positioning rear track: Hydraulically controlled, allows 6.5 ft. (1.98 m) lateral track movement.
Power-swing leg for positioning left front track on the Commander III: Hydraulically controlled, allows track positioning from straight ahead to 13.5, 26, and 36.8 in. (343, 660, and 935 mm) to left outside of main frame or 13.5 and 26 in. (343 and 660 mm) to right toward center of main frame.
Power-swing leg for positioning left front track on the Commander IIIx: Hydraulically controlled, electronically sensored allows track positioning from straight ahead to 33.4 in. (848 mm) to left outside of mainframe or 5.3 in. (135 mm) to right toward center of mainframe.
THREE-TRACK MACHINE DIMENSIONS
Overall length: 23.3 ft. (7.1 m) without the conveyor.
Overall width: 9.7 ft. (2.96 m).
Overall height: 9.3 ft. (2.83 m).
Transport height: 8.6 ft. (2.62 m) without the mold.
Transport width: 8.5 ft. (2.59 m) without ladder.
Transport length: 27.9 ft. (8.5 m) with conveyor (measurement varies with conveyor tilt, positioning and length) and 23.3 ft. (7.1 m) without conveyor.
FOUR-TRACK PAVER DIMENSIONS
Overall length: 21.3 ft. (6.49 m).
Overall width: 25.1 ft. (7.65 m) extended and 19.1 ft. (5.82 m) retracted with ladder mounted.
Operational height: 11.6 ft. (3.54 m) with 3100 series mold and 10 in. (254 mm) paving depth.
Transport height: 9.7 ft. (2.96 m) without mold and stack, and 10.75 ft. (3.28 m) with 3100 series mold and without stack.
Transport width: 9.5 ft. (2.9 m) without ladder.
Transport length: 29.1 ft. (8.87 m).
THREE-TRACK WEIGHT (approximate)
Standard curb and gutter machine weight: 29,500 lbs. (13,381 kg).
FOUR-TRACK WEIGHT (approximate)
Standard four-track paver with 12 ft. (3.66 m) 3100 series mold weight: 49,500 lbs. (22,453 kg).
Note: Transport and operational weights and dimensions are variable, depending on machine options.
OPTIONS

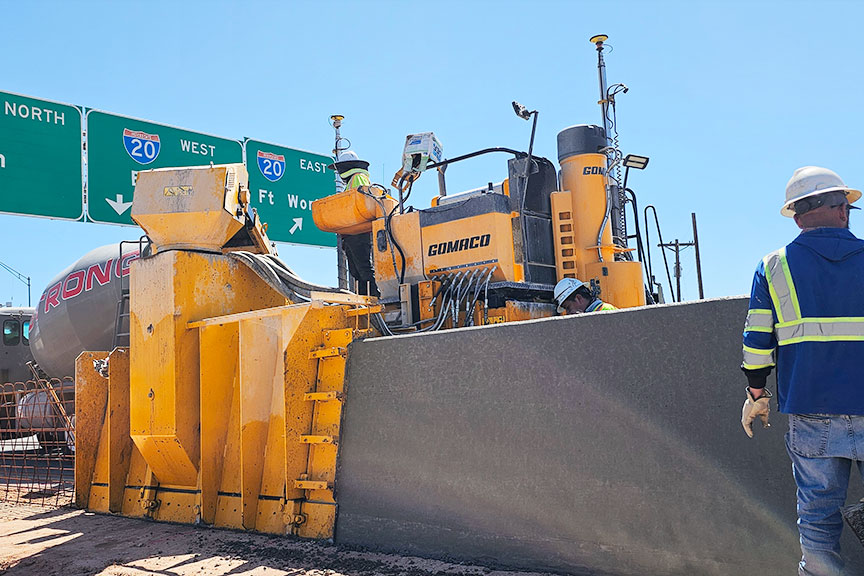

Barrier/parapet sidemount or centermount.
Monolithic sidewalk and curb and gutter package.
Trimmerhead extensions.
Left-hand discharge trimmerhead.
48 in. (1219 mm) charging conveyor extension to accommodate longer conveyor requirements.
Conveyor truss assembly required on 24 ft. (7.32 m) long conveyors.
Auger provides fast and efficient concrete delivery.
Additional vibrator circuits and controls.
Hold-over assembly, hydraulically powered, required when paving adjacent to existing concrete slab.
Swinging drawbar extension, for use with molds wider than 48 in. (1219 mm).
Slipform molds, consult factory.
V2 paving mold.
24 in. (610 mm) section with supported or self-supported power transition adjuster (PTA).
Auto-Float® attachment.
Polyurethane track pads.
Wireless remote for G+ curb and gutter machines.
3D package for stringless control.
GOMACO Remote Diagnostics (GRD).
On-Board Camera.
Other options are available to customize machine to accommodate applications and customer needs.
Download The Commander III Brochure (PDF)
