The symmetrical design of the versatile GT-3300 frame provides its unique ability to pour off the right or left side, depending on traffic flow.

GOMACO's Smart Steer with coordinated steer, crab steer, front steer only, and rear steer is featured on the GT-3300. This feature is ideal for maneuvering around job sites and easy alignment to the stringline.

Steering control has been simplified with the exclusive "smart" cylinders, eliminating the sprocket, chain, and potentiometer at the top of each leg. The "smart" cylinder reduces moving parts and eliminates the physical adjustments to the steering system. The exclusive G21 digital controller now makes it possible to have push-button steering setup. The new generation controller allows the operator to teach the "smart" cylinders to set a desired degree of leg rotation, so that the tracks do not strike any object in minimum or zero clearance requirements.

The GT-3300 is capable of slipforming tight radii. The design of the legs allow it to turn a tight radius on either side of the machine with the exclusive G21 digital controller.

This machine features power-swing front legs for hydraulic positioning of the tracks and easy setup. The power-slide rear leg on the GT-3300 has hydraulically controlled lateral adjustment with 36 in. (914 mm) of travel to either side of the centerline. All of the legs have 36 in. (914 mm) height adjustments.

A newly designed water tank now has the versatility of being mounted on any of the legs for left-hand or right-hand paving. The highly efficient, durable, high-pressure water system, with the exclusive 100 gal. (378.5 L) molded plastic tank, provides easy clean-up.

The trimmerhead, mold drawbar and hold-down have 12 in. (305 mm) hydraulic vertical adjustment and an extra 6 in. (152 mm) manual vertical adjustment to allow for the clearance of obstacles. The mold drawbar and hold-down have 36 in. (914 mm) of hydraulic sideshifting on either side of the machine and the sectionalized trimmerhead hydraulically sideshifts up to 48 in. (1219 mm).

A transport width of 8 ft. 2.5 in. (2.5 m) allows for quick job-to-job transportability.

The U-shaped operator's platform on the GT-3300 provides easy access and ultimate operator visibility of the entire operation. The operator is within arm's reach of all machine controls. All hydraulic systems have gauges on the console to allow the systems to be monitored at glance.

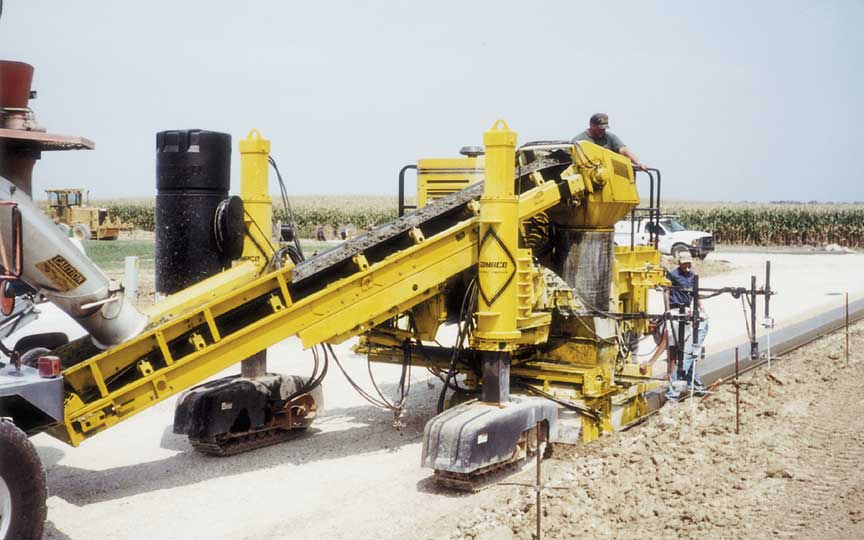

The GT-3300 is equipped with the same job-proven 24 in. (610 mm) wide conveyor as the GT-3600 and GT-6300 for ease in receiving concrete from ready-mix trucks. The 17 ft. (5.18 m) long charging conveyor can be positioned on either side of the paver without removal. The conveyor is hydraulically powered and reversible, with a charging hopper, and provides fast concrete loading for increased production.

Another feature on the GT-3300 is the industrial strength molded track guards that provide added safety and durability.

GT-3300 Specifications		Download The GT-3300 Brochure (PDF Format)
GT-3300 Photos
