Placing Concrete Across Flat Slabs Or On Slopes



GOMACO's RC Conveyor is designed to place concrete across flat slabs or on slopes up to 135 ft. (41.15 m) wide. It is also available for use as a half-width placer with a slipform paver.

It is designed with a lattice-type, structural angle-iron frame with pin-connected sections which are interchangeable in 12 ft. (3.66 m), 6 ft. (1.83 m) and 3 ft. (.91 m) increments for fast setup and easy assembly.

The RC Conveyor comes with a standard, double-flanged, steel trolley wheels that run on any type of rail system or paving forms. Traction speed is variable up to 38 fpm (11.58 mpm), forward and reverse.

The bogies are designed to allow the frame to be set at any skewed angle up to 55 degrees. The travel speed of each bogie is independently controlled to allow negotiation through radii.

The RC Conveyor includes self-widening capability for use on tapered decks and slabs.

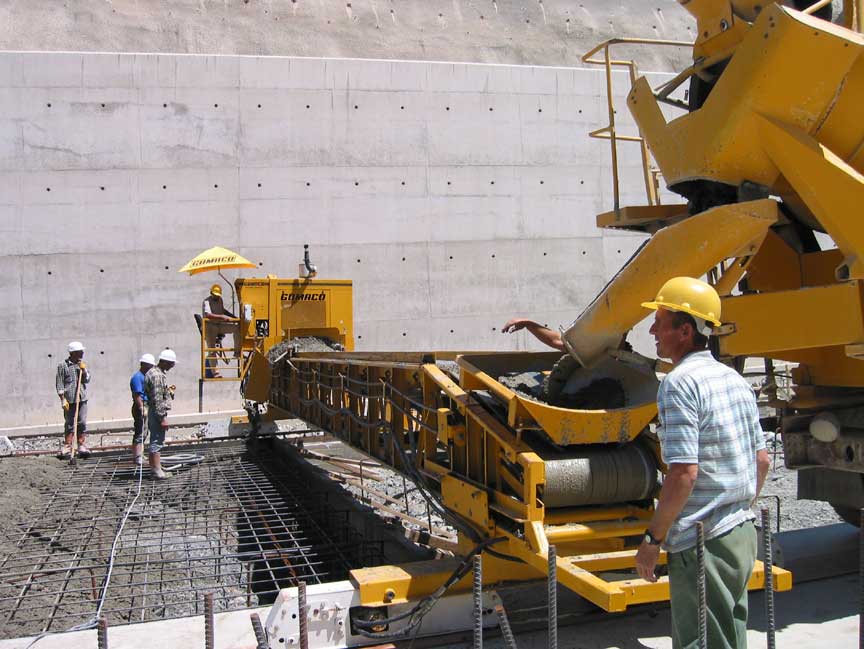

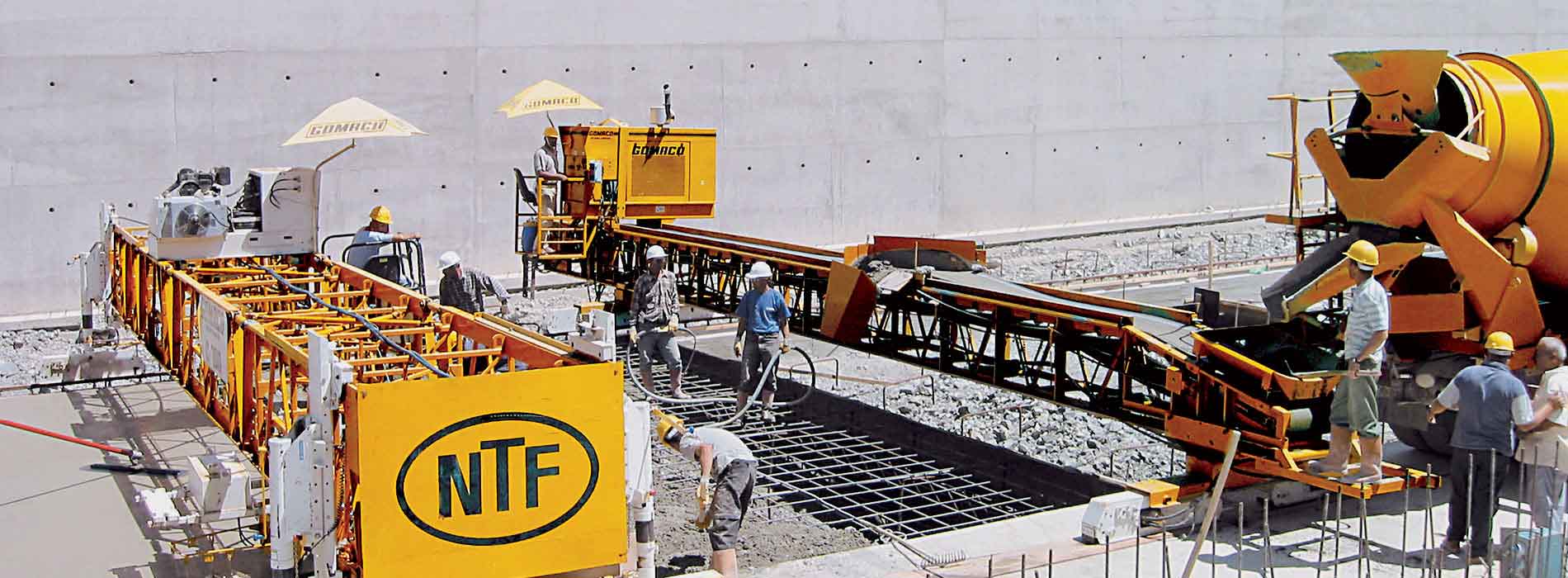

Concrete is discharged directly into receiving hopper from Ready Mix trucks.

The diverter car discharges to the front or rear and is operated by hydraulically powered, positive chain drive. The variable hydraulic control of the diverter car and the machine travel assures even and accurate placement of concrete.

The conveyor is counterbalanced with console and receiving hopper at opposite ends, removing the operator from congested areas of the receiving hopper.

The self-contained console has easy-to-operate controls. The RC Conveyor is powered by a 70 hp (52.2 kW) diesel engine.







RC Conveyor

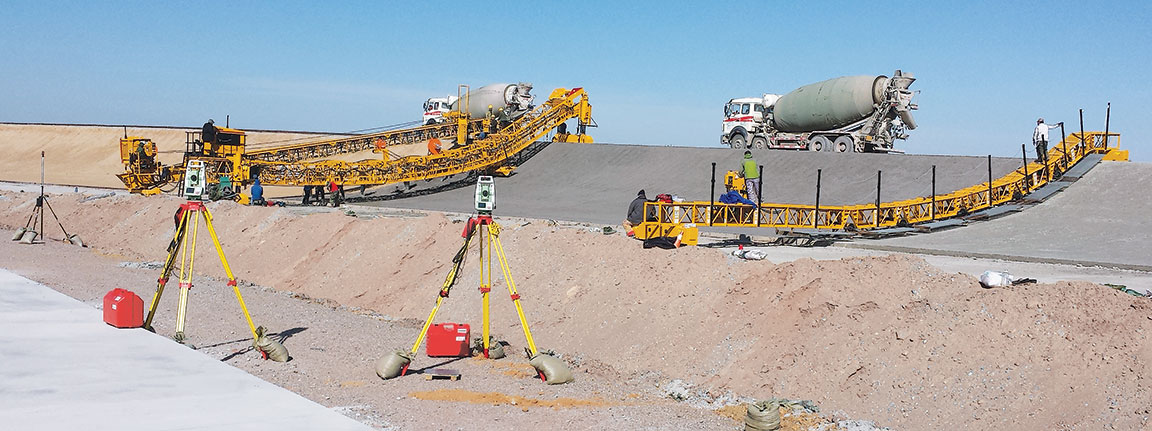

A GOMACO SL-750 cylinder finisher working on a Hyundai test track for their vehicles manufactured in China became the first finisher to be controlled with a 3D guidance system. The project also utilized a track-mounted RC Conveyor and a 4000 series Spanit® work bridge with rubber tires.

Read more about this project in GOMACO World 43.1.







RC Conveyor

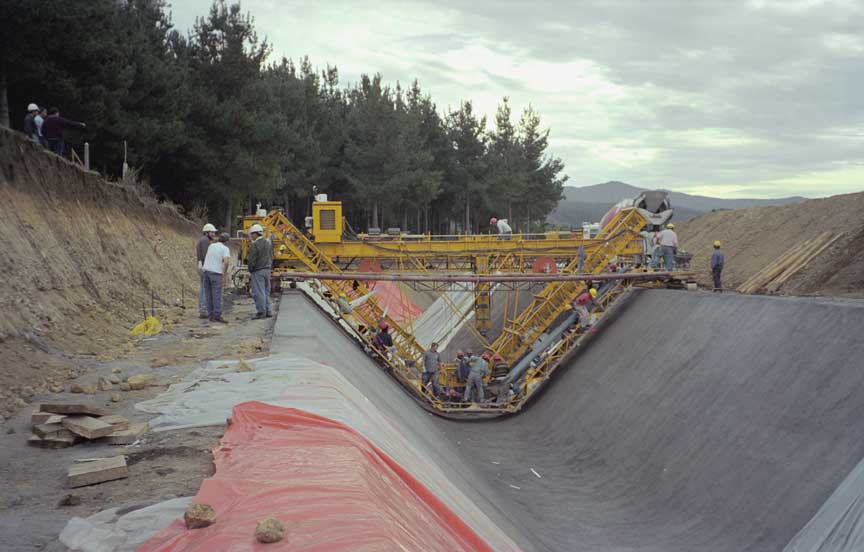

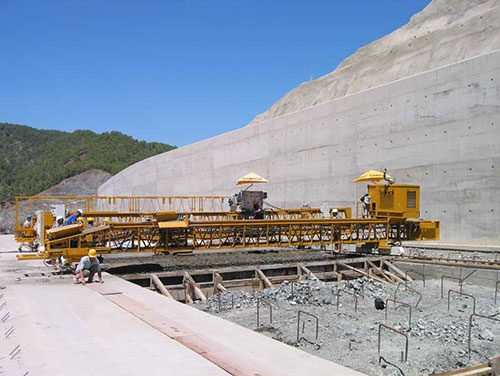

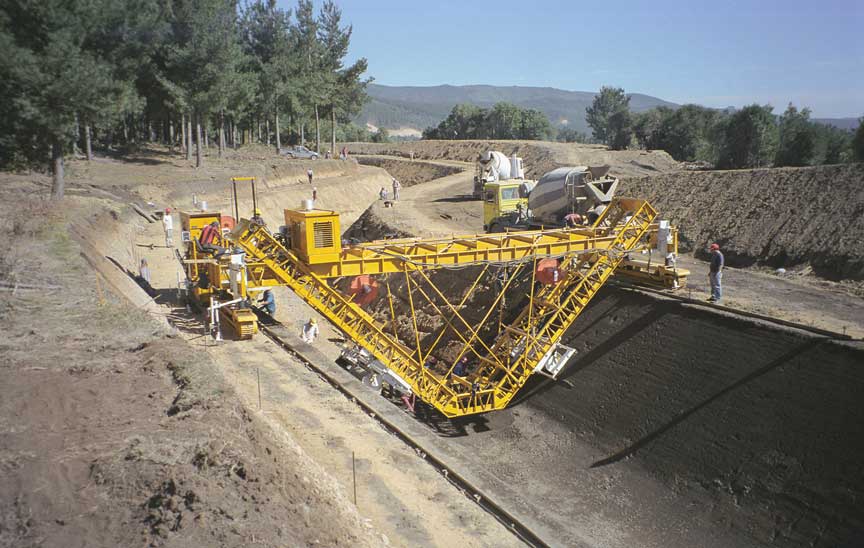

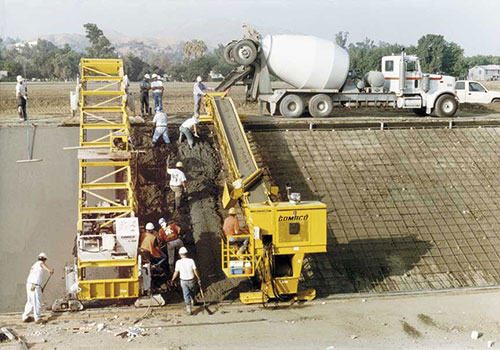

This contractor is at work on a large canal project in Rancaqua, Chile. They are using two GOMACO CP-650s, one for concrete finishing and one equipped with a compaction roller for the grade. The RC Conveyor on the project is used for placing both the rock for the grade and the concrete for the canal.







RC Conveyor

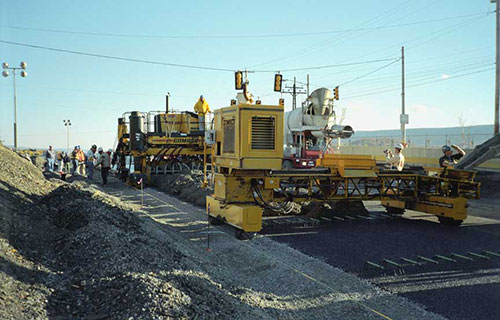

The RC Conveyor has standard, double-flanged, steel trolley wheels, which run on any type of rail system or paving forms. Traction speed is variable up to 38 fpm (11.58 mpm), forward and reverse.







RC Conveyor

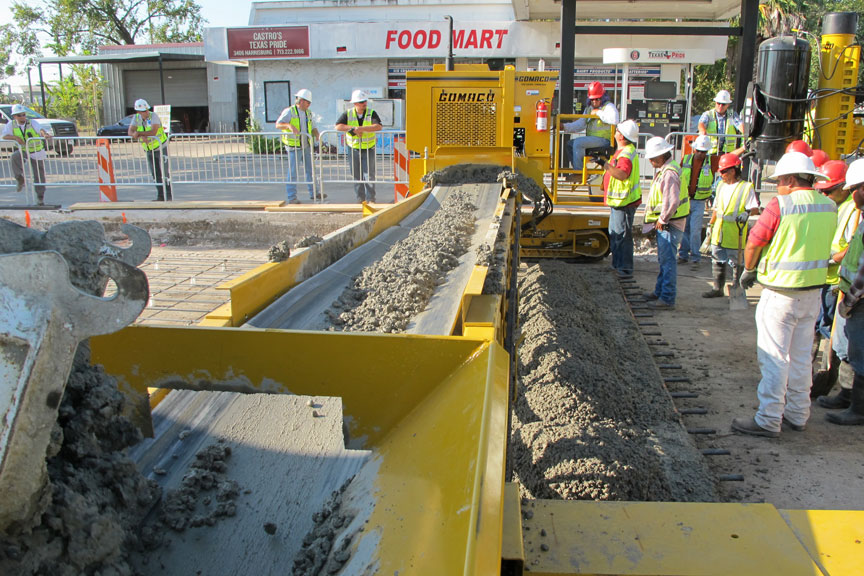

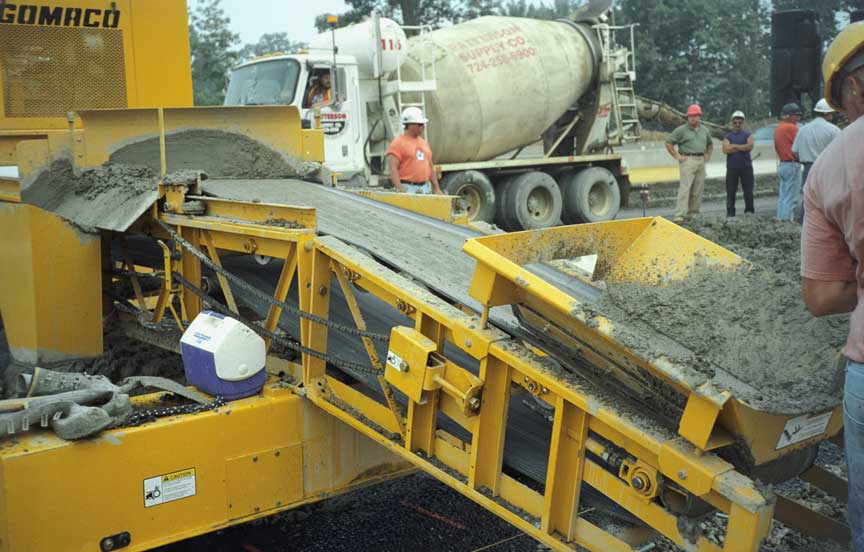

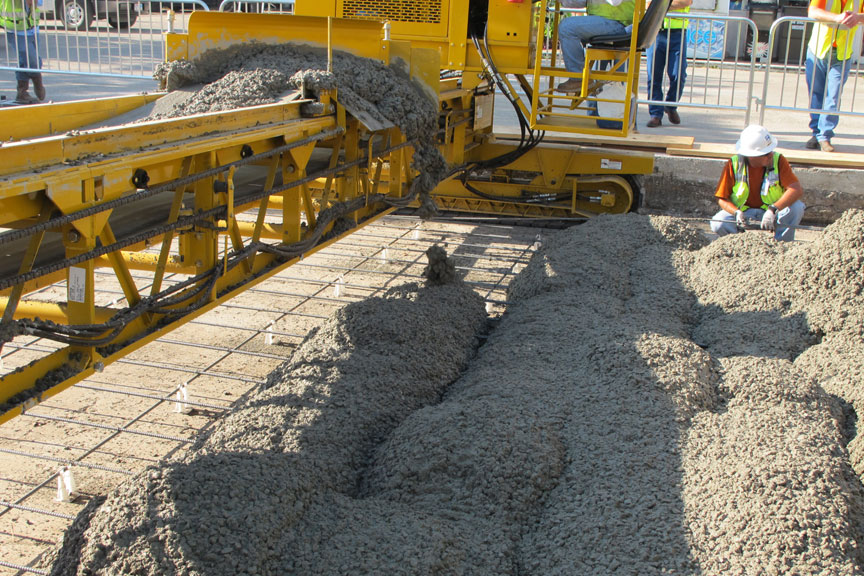

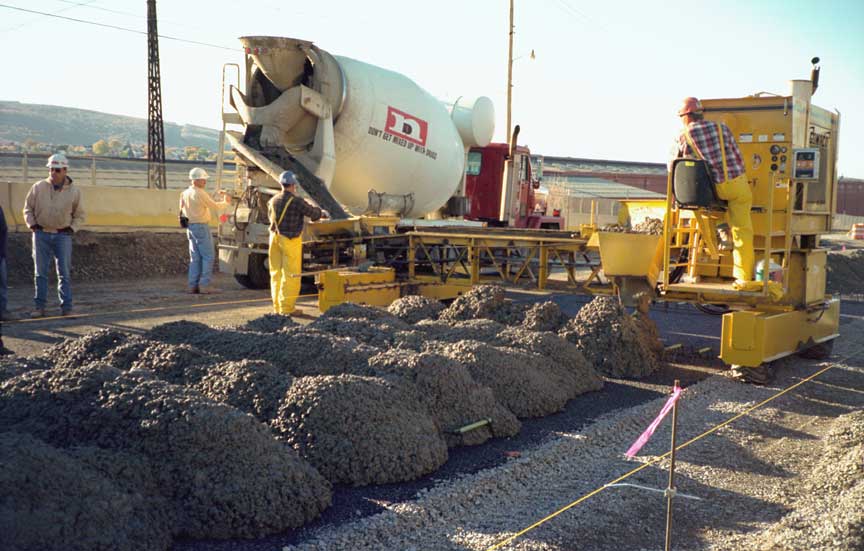

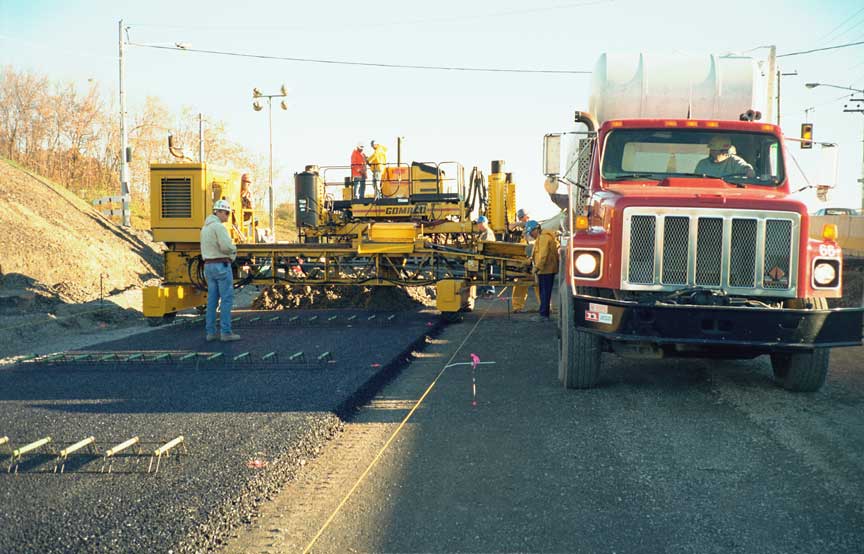

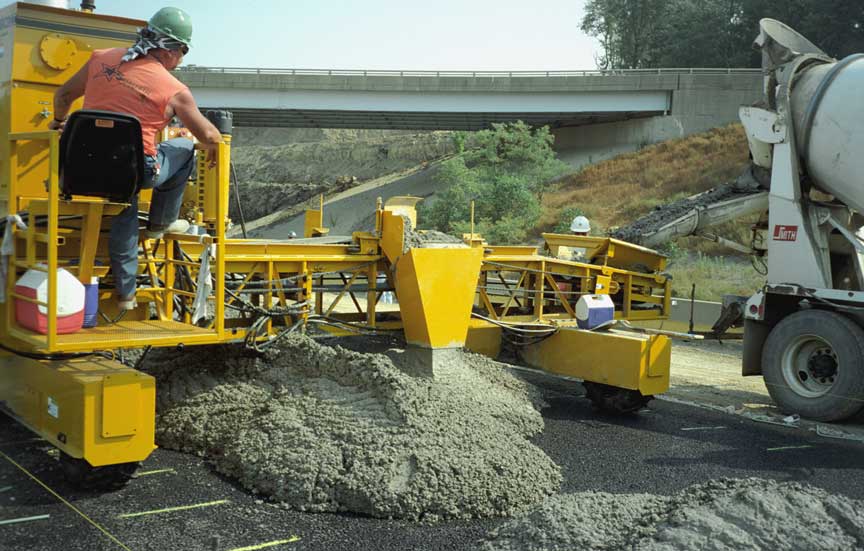

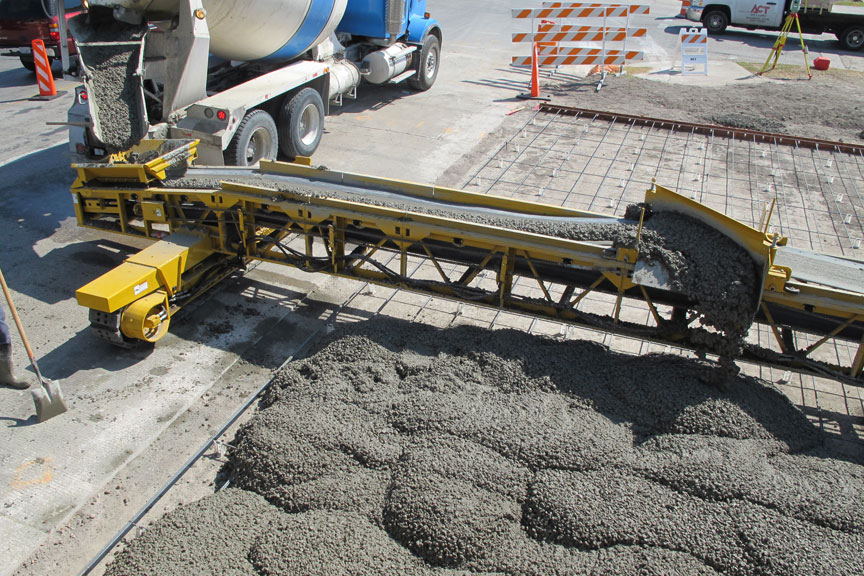

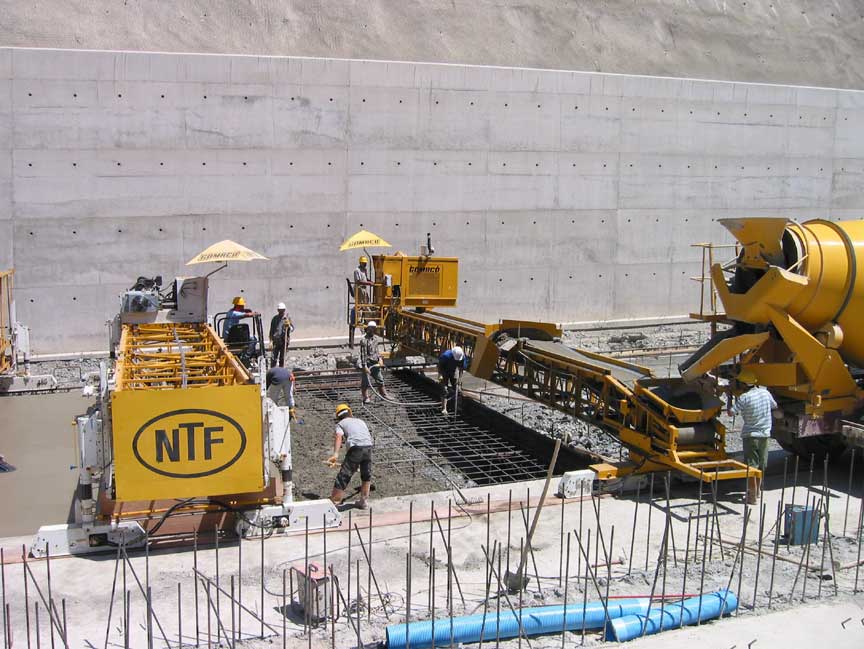

Concrete is discharged directly into the receiving hopper from ready-mix trucks. The diverter car discharges to the front or rear and is operated by hydraulically powered, positive chain drive. Variable hydraulic control of the diverter car and of machine travel assures even and accurate placement of concrete.







RC Conveyor

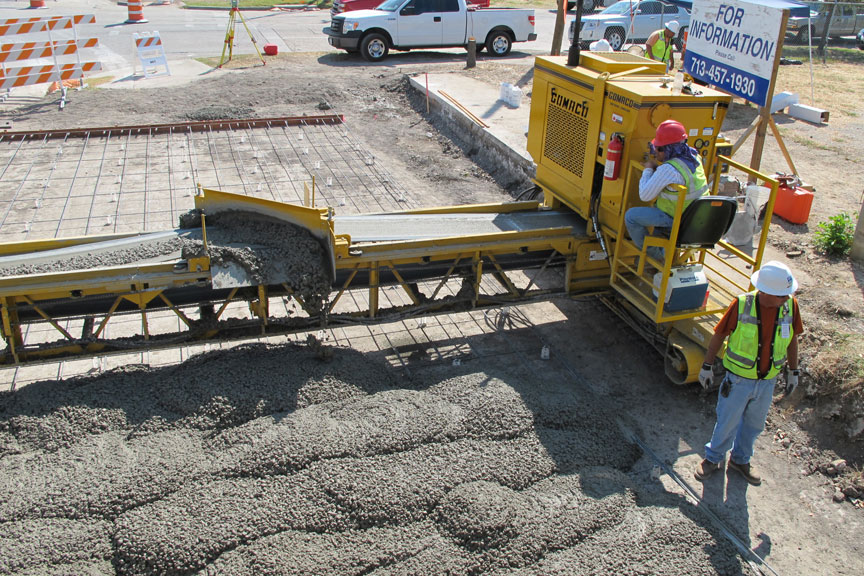

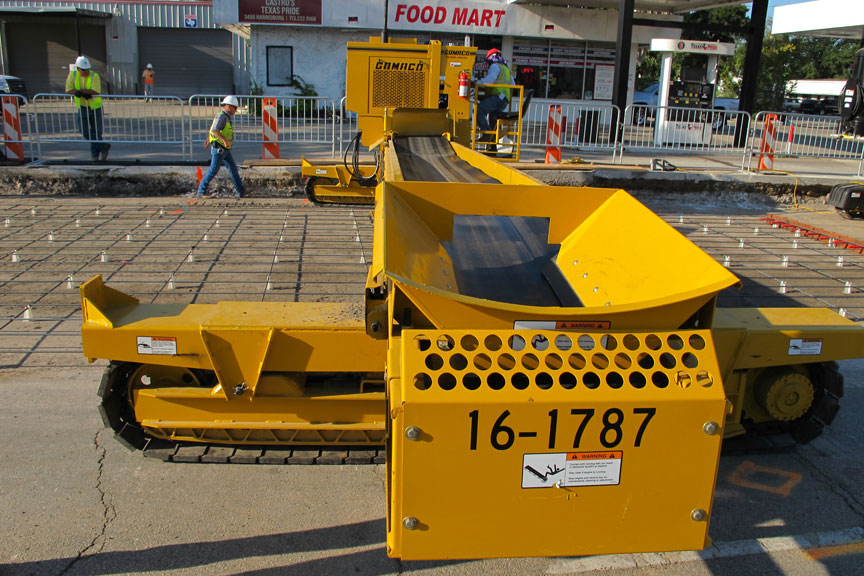

The RC Conveyor is counterbalanced with the console and receiving hopper at opposite ends, removing the operator from the congested area of the receiving hopper.







RC Conveyor

The self-contained console has easy-to-operate controls. The RC Conveyor is powered by a 70 hp (52.2 kW) diesel engine.







RC Conveyor

The RC Conveyor is designed with a lattice-type, structural angle-iron frame with pin-connected sections which are interchangeable in 12 ft. (3.66 m), 6 ft. (1.83 m) and 3 ft. (.91 m) increments for fast setup and easy assembly.







RC Conveyor

The RC Conveyor includes self-widening capability for use on tapered decks and slabs.







RC Conveyor

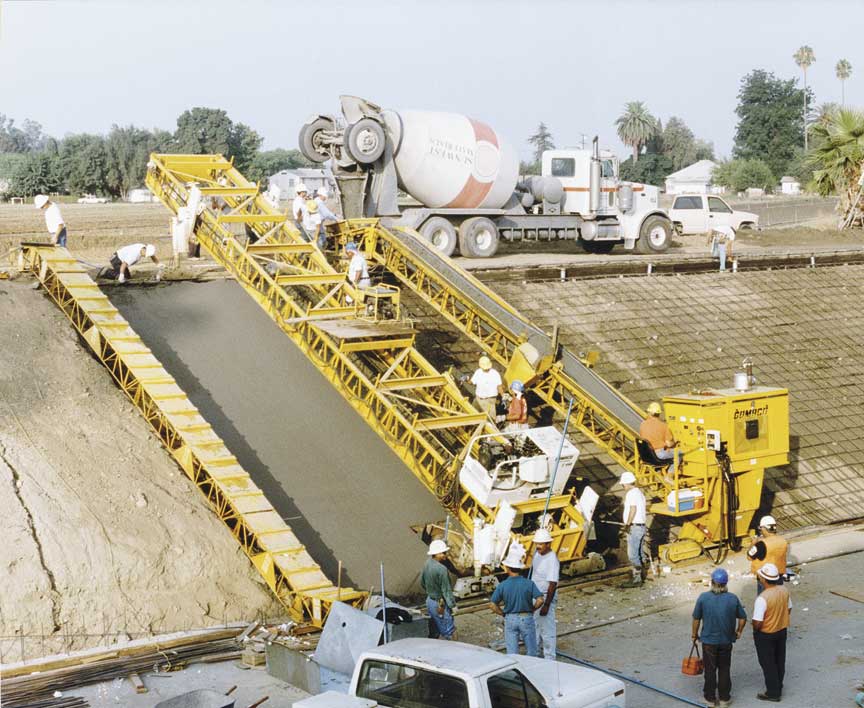

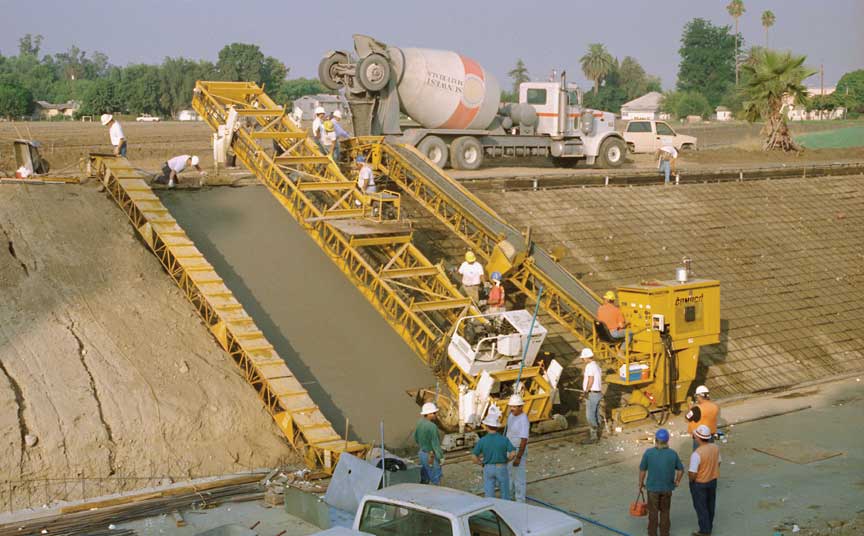

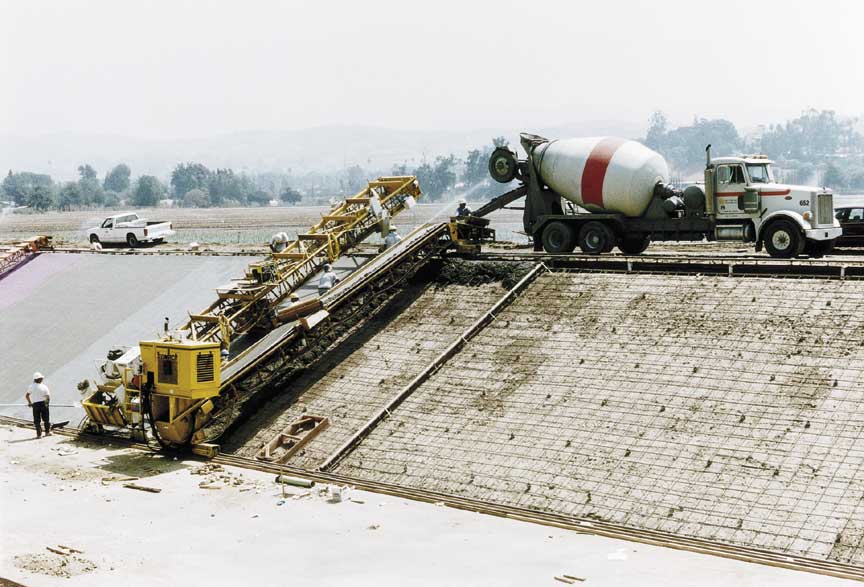

The RC Conveyor is designed to place concrete across flat slabs or on slopes up to 135 ft. (41.15 m) wide.





RC Conveyor

The bogies are designed to allow the frame to be set at any skewed angle up to 55 degrees. The travel speed of each bogie is independently controlled to allow negotiation through radii.

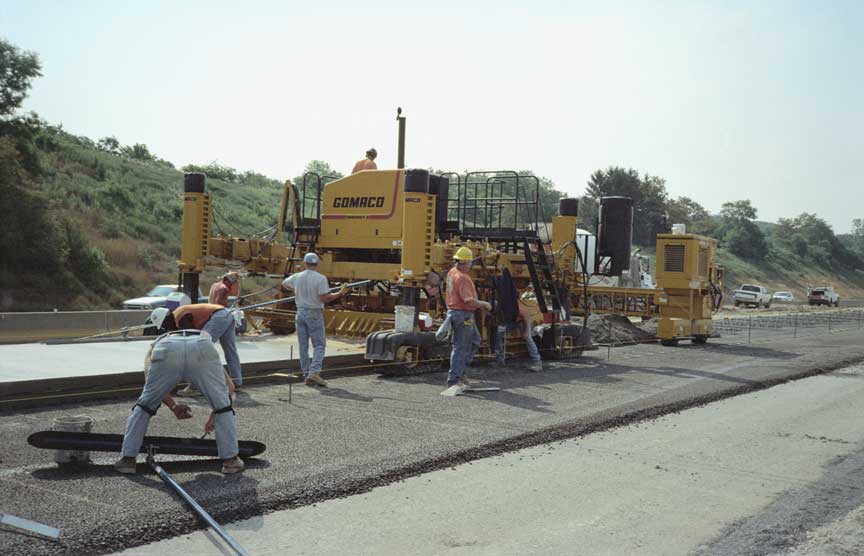

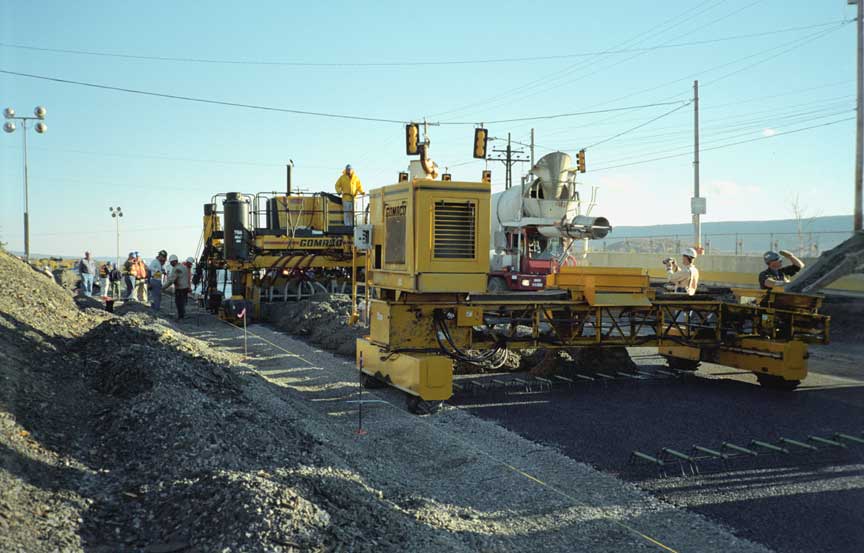

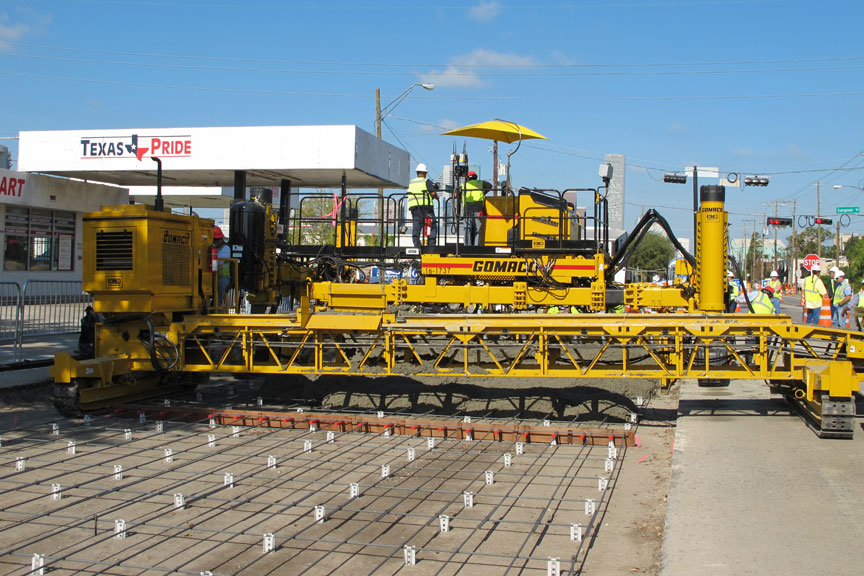

Half-Width Placing Application

Here’s an economical system for quick discharge from ready-mix trucks. The RC Conveyor is a powered system with a unique divert-a-car for placing the concrete across the width of the slab.

This has become a popular product with the need to get concrete trucks on and off the job site without piling the material. The RC Conveyor can reduce the number of trucks necessary, depending on job-site logistics.





RC Conveyor





RC Conveyor





RC Conveyor





RC Conveyor





RC Conveyor





RC Conveyor





RC Conveyor





RC Conveyor





RC Conveyor





RC Conveyor





RC Conveyor







RC Conveyor









RC Conveyor Specifications



ENGINE
Type:
Cummins diesel.
Horsepower:
70 hp (52.2 kW) @ 2100 rpm.



SERVICE CAPACITIES
Fuel reservoir:
33 gal. (124.9 L).
Hydraulic oil:
57 gal. (215.8 L).



HYDRAULIC SYSTEM
Pump:
One dual stage main pump provides 30 gpm (113.6 Lpm) @ 2100 rpm.
Hydraulic oil cooling:
One air-to-oil cooler.
Filtration:
One 10-micron, return line filter.



BELT SYSTEM
Width:
24 in. (610 mm) belt.
Belt speed:
528 fpm (160.93 mpm).
Belt rollers:
20 degree, tapered roller cones support upper belt.
Diverter car discharge:
Front or rear.
Diverter car speed:
Up to 131 fpm (39.93 mpm).



TRACTION SYSTEM
Traction speed:
Up to 38 fpm (11.58 m) forward or reverse with standard bogies.
Traction drive:
Hydraulically powered, two double-flanged, 8.6 in. (218 mm) diameter, steel trolley wheels, skewable.



CONSTRUCTION
Frame:
Lattice-type, structural angle-iron with pin-connected sections interchangeable in 12 ft. (3.66 m), 6 ft. (1.83 m) and 3 ft. (.91 m) sections.



FRAME DEPTH AND PLACING WIDTH
24 in. (610 mm) frame depth for spans up to 75 ft. (22.86 m).
32 in. (813 mm) frame depth for spans up to 135 ft. (41.15 m).



SLOPE ADAPTERS
Frame to bogie per customer specifications.



WEIGHTS for 24 in. (610 mm) frame depth.
27 ft. (8.23 m) unit:
7,318 lbs. (3,319 kg).
12 ft. (3.66 m) extension:
900 lbs. (408 kg).
6 ft. (1.83 m) extension:
465 lbs. (211 kg).
3 ft. (.91 m) extension:
260 lbs. (118 kg).



WEIGHTS for 32 in. (813 mm) frame depth.
27 ft. (8.23 m) unit:
7,638 lbs. (3,465 kg).
12 ft. (3.66 m) extension:
945 lbs. (429 kg).
6 ft. (1.83 m) extension:
488 lbs. (221 kg).
3 ft. (.91 m) extension:
273 lbs. (124 kg).



OPTIONS

70 hp (52.2 kW) CAT diesel engine.

Two 4-wheel end cars, flanged flat or cupped wheels.

6 in. (152 mm) and 12 in. (305 mm) frame elevators.

Transport assembly with transport axle, 6.7 in. (170 mm) by 15 in. (381 mm) 6-ply tires and towing tongue for job site use only.

Crawler tracks, 11 ft. 7 in. (3.53 m) long, hydraulically driven with 11.8 in. (300 mm) wide pads with street grousers. 36:1 gear reduction.

Rubber tired bogies, hydraulically driven, foam-filled flotation tires, 26 in. (660 mm) diameter by 12 in. (305 mm) wide.

Telescoping tremie.

Slope wedges.

Other options are available to customize machine to accommodate applications and customer needs.
