Highly Mobile Compact Curb Machine



• The Curb Cadet will slipform concrete curb with an option to extrude asphalt. It is self-propelled and compact in size for easy loading and transporting from job-to-job.

• The manual travel control, manual three-point grade control, cross auger directional controls, engine controls, vibrator control dial, cross-auger speed control dial, and warning light are all located on the control panel for easy access.

• A manual steering assembly with control panel provides the operator with front wheel steering. Mobility is achieved with a hydraulically driven, rear-mounted track. An optional three-track machine is also available.

• The coordinated stop switch provides automatic on/off control of vibrator synchronized with forward travel.

• The Curb Cadet has a paving speed of up to 40 feet per minute (12.2 mpm) and an auxiliary speed of 93 feet per minute (28.3 mpm) for fast job-site mobility.

• Elevation of the Curb Cadet is controlled by three hydraulic cylinders with ten inch (254 mm) stroke and an additional five inch (127 mm) manual adjustment.

• Molds are easily interchangeable on the Curb Cadet and can accommodate concrete mold configurations that will fit within a 12 inch (305 mm) wide by 14 inch (356 mm) high section. For other slipform mold configurations, please consult the factory.

• Curb may be poured on either side of the machine. The hopper and mold are adjustable up to 15 inches (381 mm). With the slipform mold, the Curb Cadet can place concrete over dowels or continuous reinforcing bar.

• The Curb Cadet has the capability of pouring a 24 inch (610 mm) radius, depending on the mold profile.

• Safety by Design - The Curb Cadet is equipped with an E-stop (emergency stop) on every corner of the machine and on the handle. The Curb Cadet is also equipped with an operator’s horn and back-up alarm to keep all personnel safe during the paving operation.









GOMACO Curb Cadet Concrete Curb & Gutter Machine
2 minutes 40 seconds







Curb Cadet

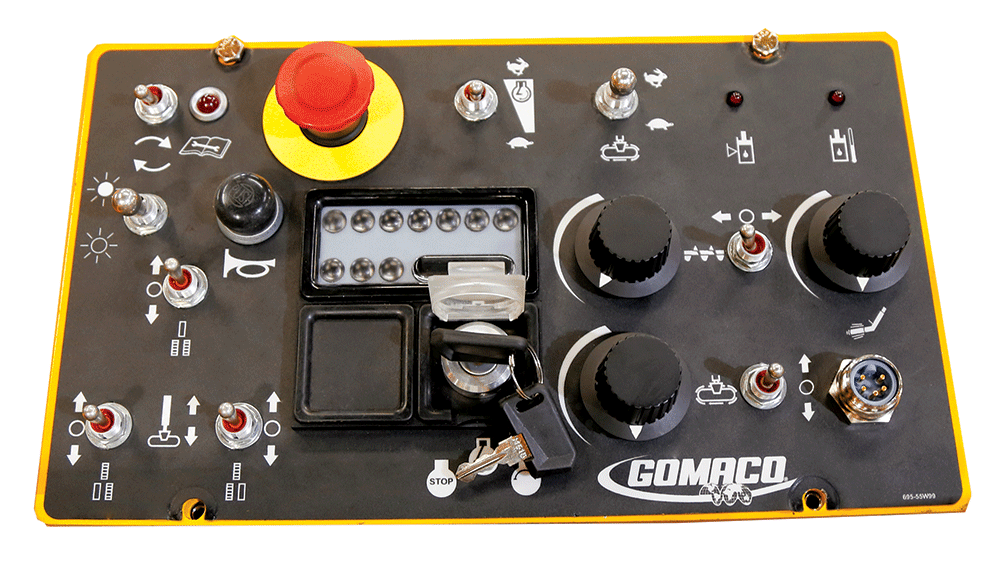

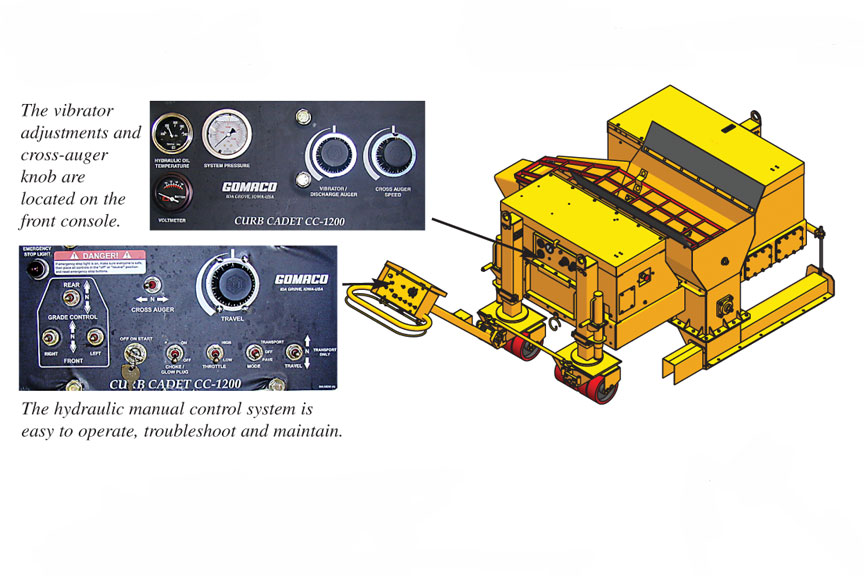

Travel, grade, vibrators, and auger controls are located on the handle for easy reach.







Curb Cadet

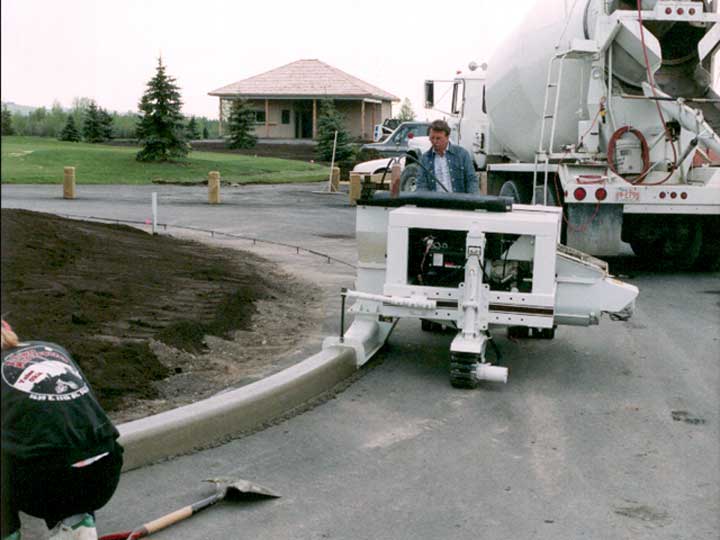

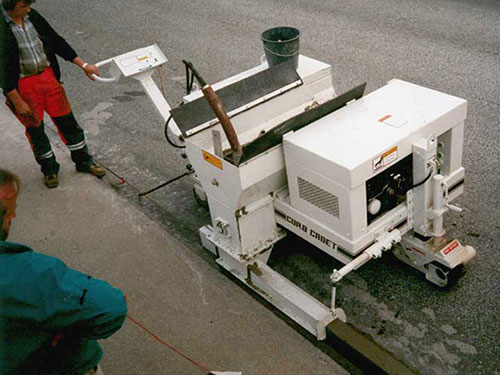

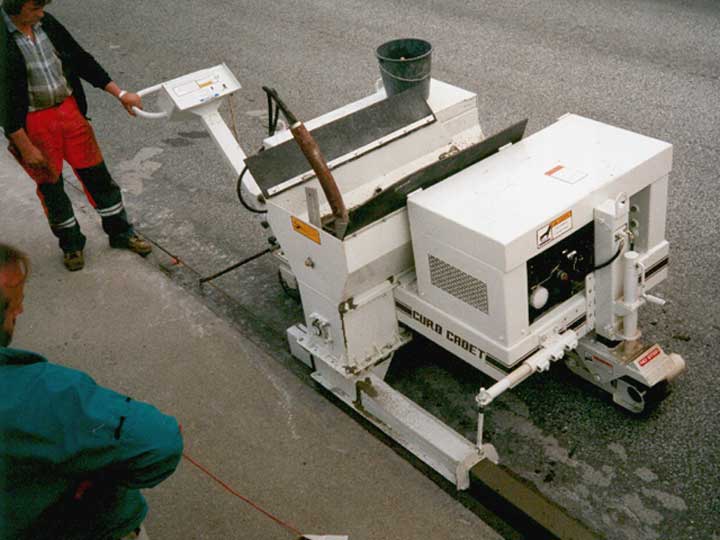

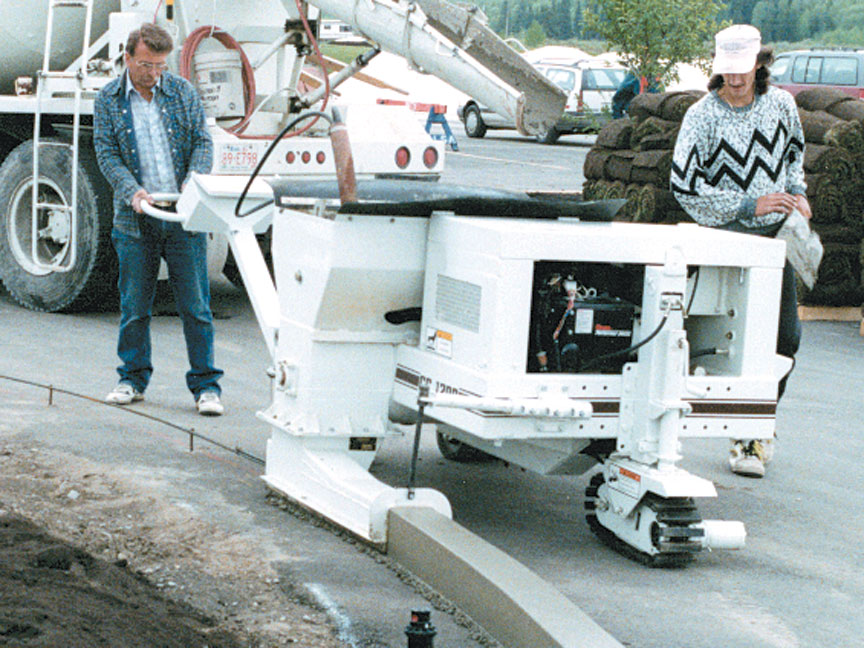

Curb may be poured on either side of the machine. The hopper and mold are adjustable up to 15 inches (381 mm).







Curb Cadet

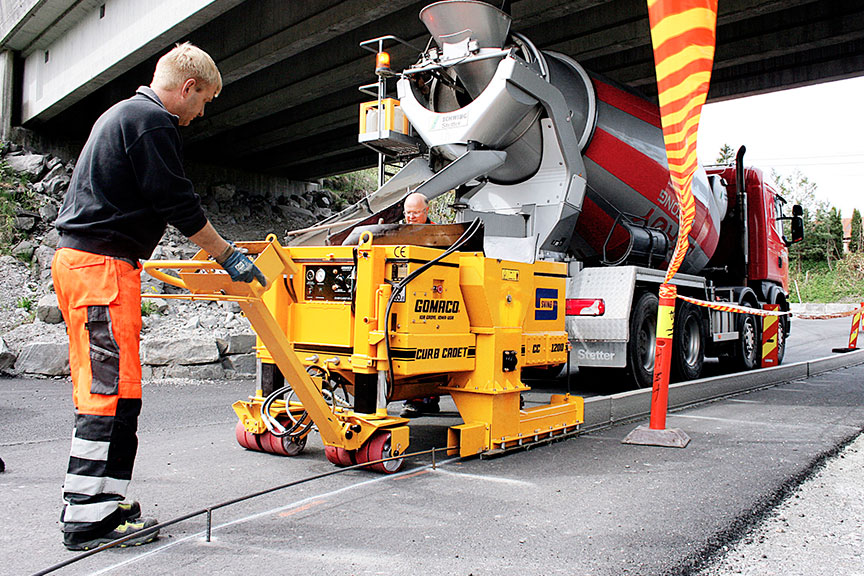

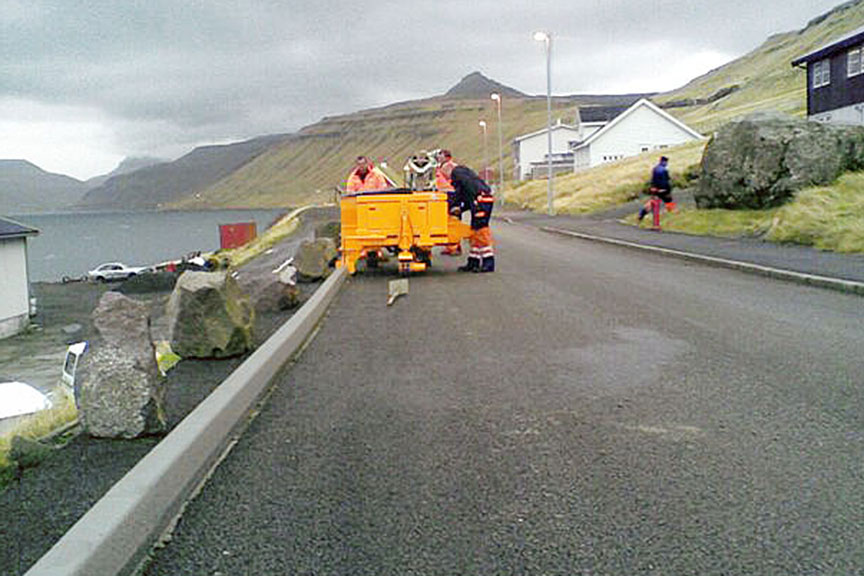

With a slipform mold, the Curb Cadet can place concrete over dowels or continuous reinforcing bar. This Curb Cadet is pouring curb over continuous steel in Norway.







Curb Cadet

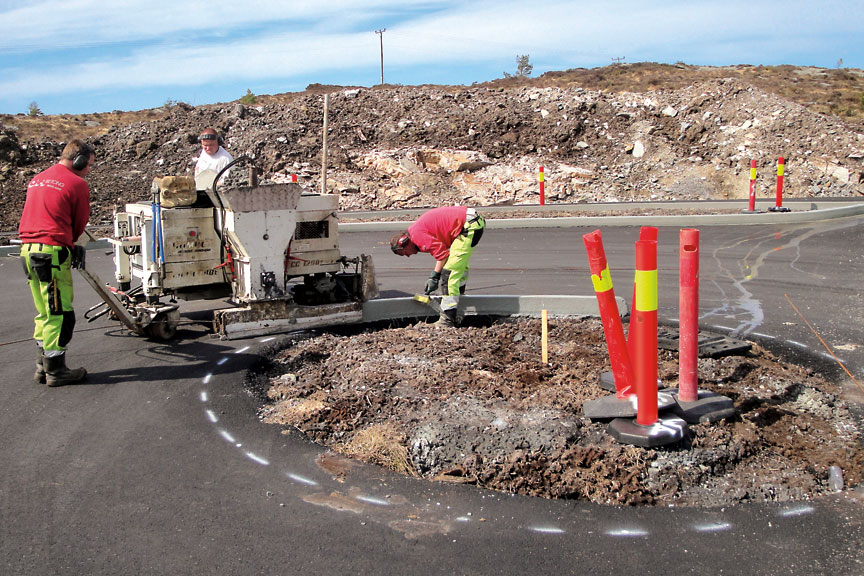

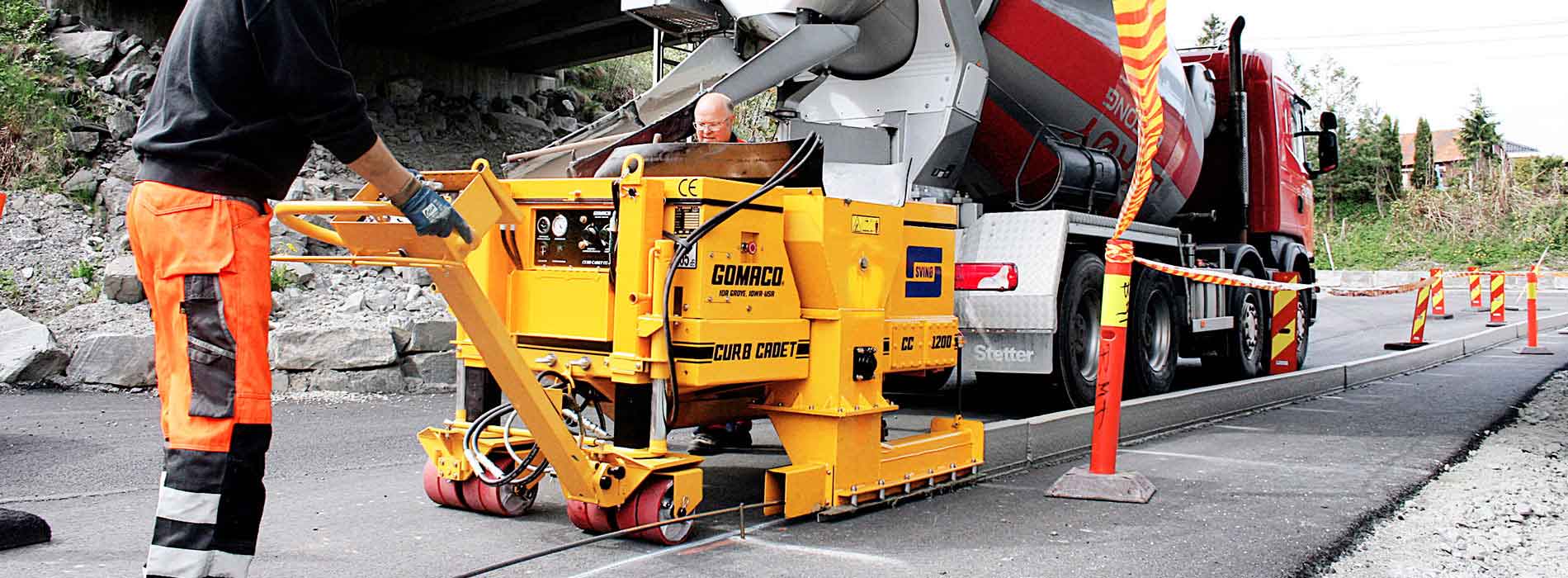

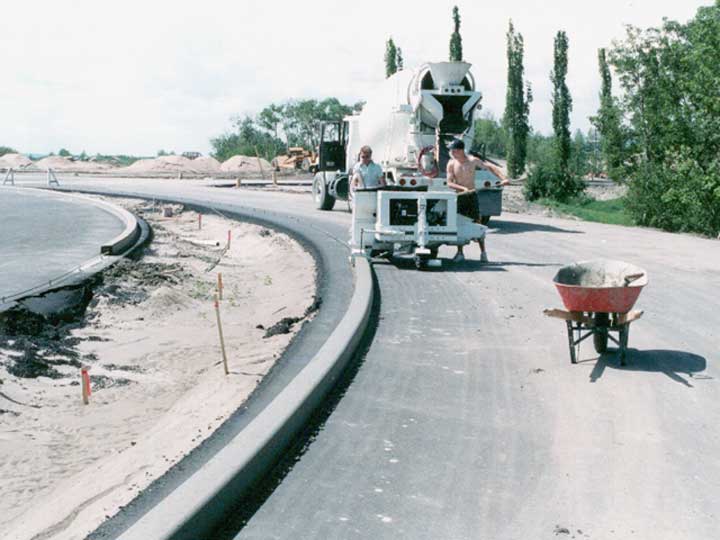

A Curb Cadet extrudes curb around a radii in Bergen, Norway.







Curb Cadet

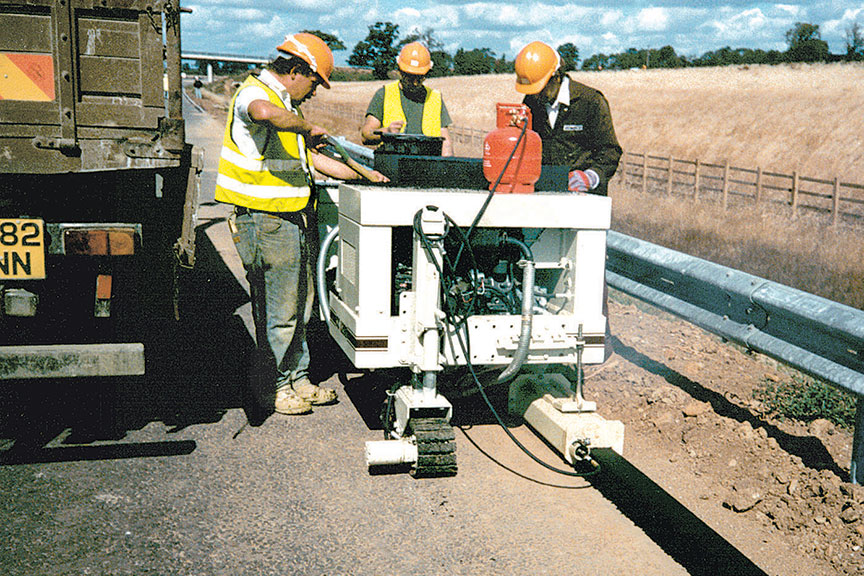

The Curb Cadet will slipform concrete curb or extrude asphalt or concrete curb. The extruder is capable of handling zero-slump concrete.







Curb Cadet

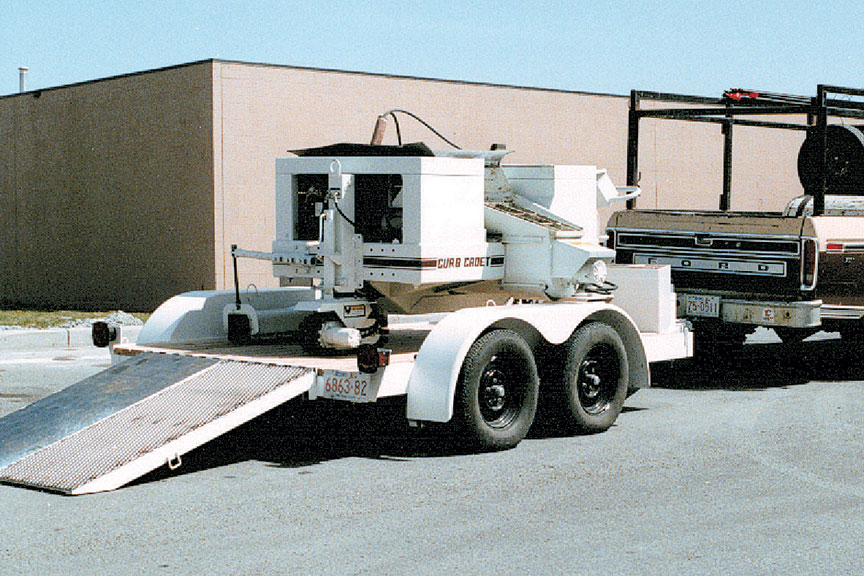

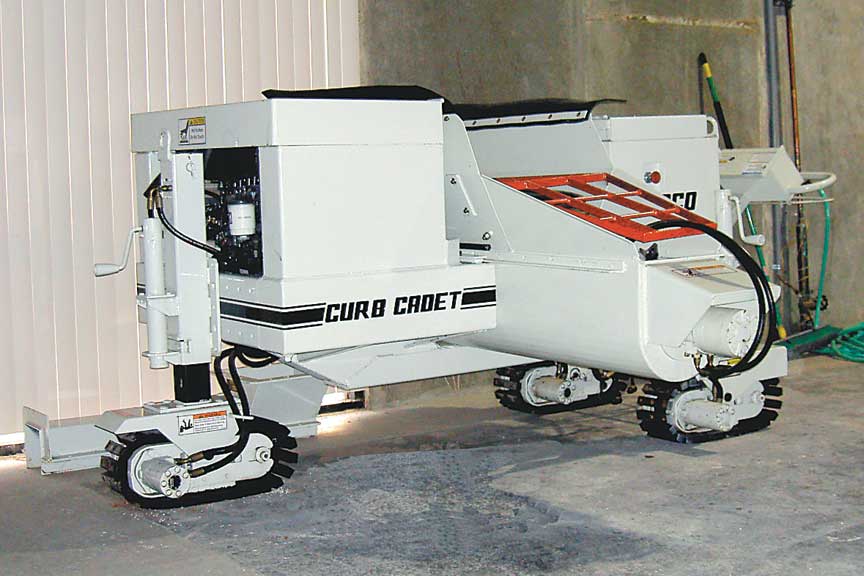

The Curb Cadet is self-propelled and compact in size for easy loading and transporting from job-to-job.







Curb Cadet

Elevation of the machine is controlled by three hydraulic cylinders with 10 in. (254 mm) stroke and an additional 5 in. (127 mm) manual adjustment.







Curb Cadet

Travel, grade, vibrators, and auger controls are located on the handle for easy reach. Mobility is achieved with a hydraulically driven, rear-mounted track.







Curb Cadet

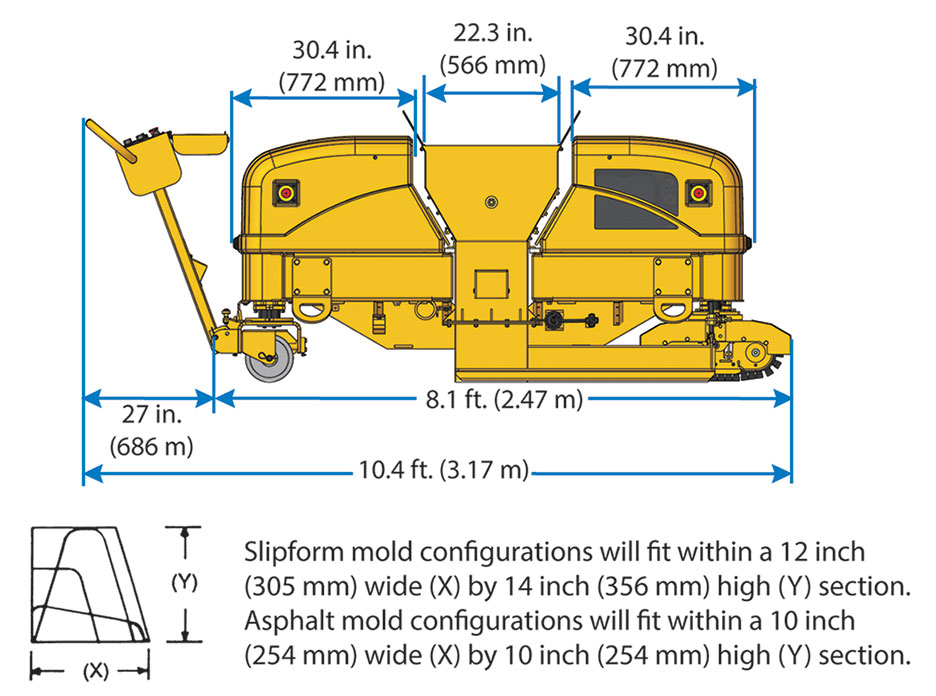

Molds are quickly interchangeable on the Curb Cadet and can accommodate concrete mold configurations that will fit within a 12 in. (305 mm) wide by 14 in. (356 mm) high section.













Curb Cadet graphic









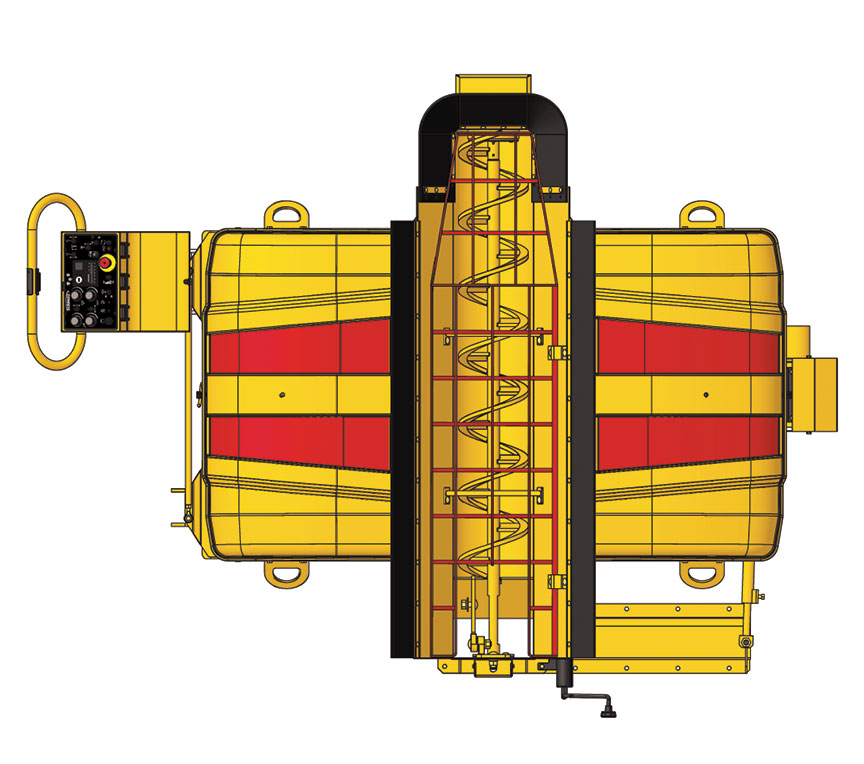

Curb Cadet graphic









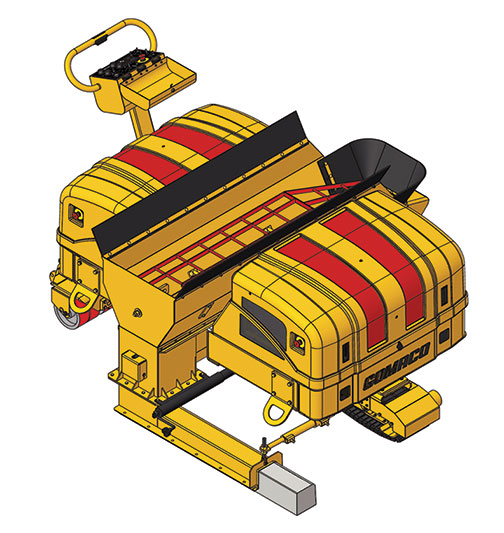

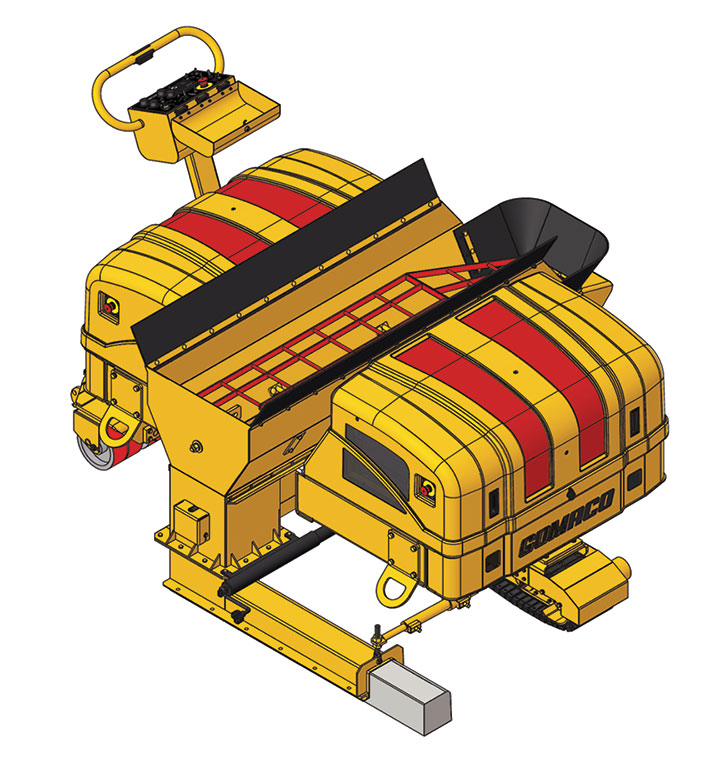

Curb Cadet graphic









Curb Cadet Specifications



ENGINE
Type: KDW 1404 Kohler Diesel engine, water cooled.
Emission Level: Tier 4 Final.
Power: 24 hp (17.9 kW) continuous @ 2700 rpm.



SERVICE CAPACITIES
Fuel reservoir: 11 gal. (41.64 L).
Hydraulic oil reservoir: 13.5 gal. (51.1L).



CONTROL SYSTEM
Type: Hydraulic with controls located on the handle. The manual travel control valve, manual three-point grade control, cross auger directional controls, engine controls, vibrator control knob, cross-auger speed control knob, and E-stop warning light are located on the handle.



VIBRATOR With Slipform Mold (Option)
Type: Hydraulically powered, motor-in-head, variable speed, independently controlled. Recommended when slipforming over vertical dowels or inserting longitudinal steel.



HOPPER CAPACITY
Concrete: 13 cu. ft. (0.37 cu. m).
Asphalt: 7.1 cu. ft. (0.2 cu. m).



CROSS-AUGER AND HOPPER
Adjustable: 12 in. (305 mm) sliding hopper.
Auger dimensions: 12 in. (305 mm) diameter by 4.7 ft. (1.43 m) long for concrete.
Auger drive: Hydraulic motor direct coupled to auger shaft.
Auger speed: Up to 43 rpm.



ASPHALT EXTRUSION ASSEMBLY With Mold (Option)
Asphalt extrusion kit includes a double skin hopper and auger, heavy duty extruding auger and drive, propane burner and propane tank.



TRACK AND WHEEL ASSEMBLIES
Track dimensions: One track, 23 in. (584 mm) long, 8 in. (203 mm) wide, by 9 in. (229 mm) high.
Track motor: 22.6 cid roller vane motor. Equipped with a track brake system.
Wheel assemblies: Eight - 9 in. (229 mm) diameter by 3 in. (76 mm) wide wheels.
Travel speed: Up to 40 fpm (12.2 mpm) paving, 93 fpm (28.3 mpm) auxiliary.
Track load: 1225 lbs. (555.7 kg). Ground Pressure at 22 psi.
Wheel load: 1275 lbs. (578.3 kg) with weight equally distributed on eight wheels.



RADIUS
24 inches (610 mm) depending on mold profile.



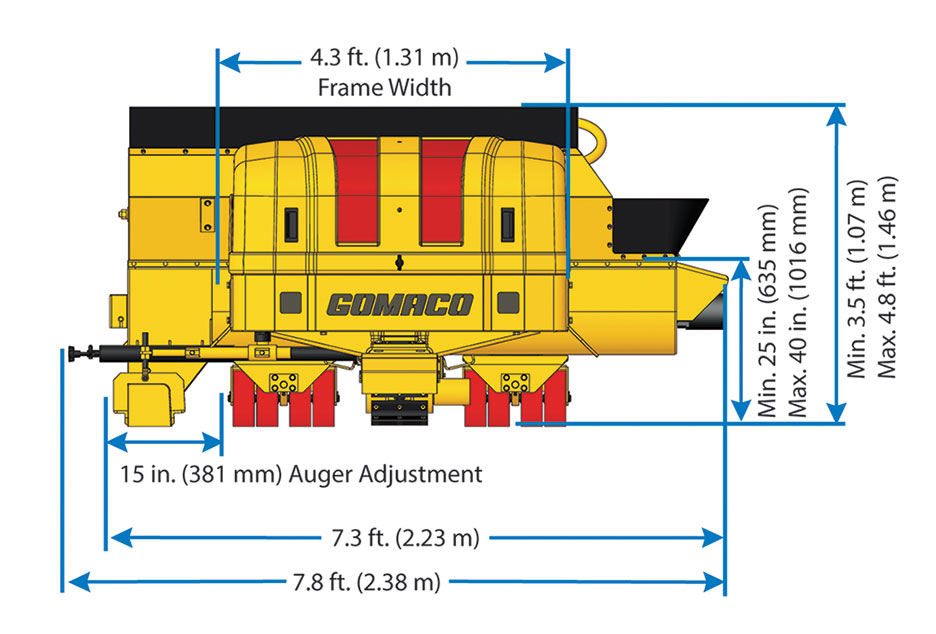

DIMENSIONS

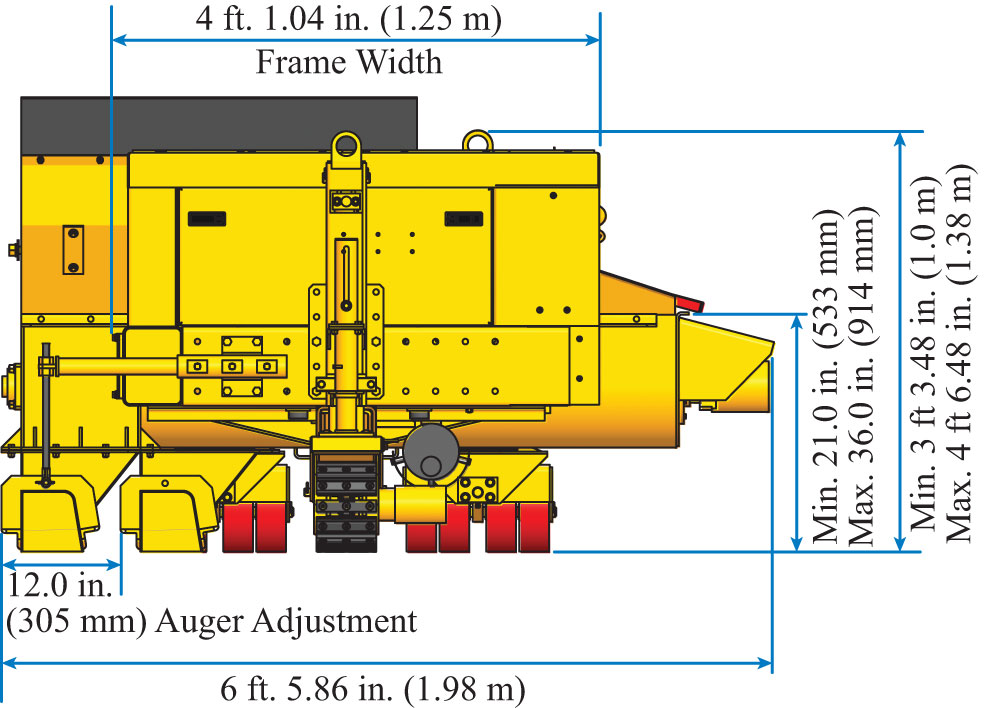

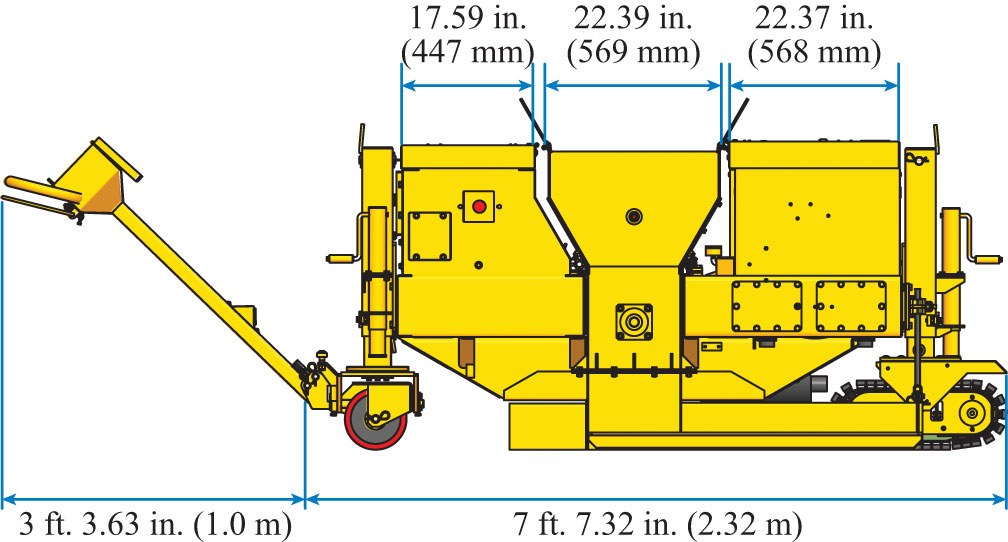

Overall transport dimensions: 9.1 ft. (2.77 m) long with the handle in vertical position, 6.5 ft. (1.98 m) wide, and 3.5 ft. (1.07 m) high to the top of the shroud.



WEIGHT
3145 lbs. (1427 kg).



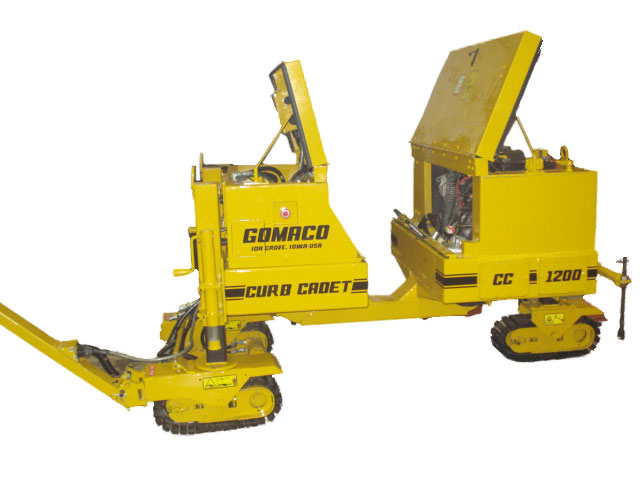

OPTIONAL THREE-TRACK MACHINE
Track dimensions: 23 in. (584 mm) long, 8 in. (203 mm) wide, by 9 in. (229 mm) high.
Track motor: 22.6 cid roller vane motor.
Travel speed: Up to 20 fpm (6.1 mpm) paving, 93 fpm (28.3 mpm) auxiliary.
Track load (rear): 1225 lbs. (555.7 kg). Ground pressure at 22 psi.
Track load (front): 1275 lbs. (578.3 kg.), with weight evenly distributed on both tracks, ground pressure at 12 psi.
Optional three-track overall dimensions: 9.5 ft. (2.9 m) long, 6.6 ft. (2.01 m) wide, and 3.5 ft. (1.07 m) high.
