GOMACO sensor line is designed specifically for electronically controlled equipment. Paving projects start with accurate grade and steering setup, and GOMACO sensor line and accessories are preferred by contractors worldwide
GOMACO's diamond-braided, polyethylene rope construction and continuous fiber core resist rot, mildew, oil and weather. One-eighth inch (3 mm) diameter line fits a standard line rod. Sensor line is available in 1,000 ft. (304.8 m) spools
Line rods are 3/8 in. (10 mm) diameter plated-steel. The 18 in. (457 mm) length of the GOMACO line rods allow an adjustment range of 12 in. (305 mm) for sensoring accuracy
Line rod clamps are rustproof and durable and made of solid aluminum. The clamps fit the standard .75 in. (10 mm) diameter line rods. GOMACO's exclusive end screws have full circle adjustment
The 48 in. (1219 mm) long stakes allow fast setup and are machine tapered for easy driving. The 3/4 in. (19 mm) bar resists bending and battering
The GOMACO line tension winch has a 3-to-1 gear radio which keeps the line tight
The line storage reel and stand provide an easy way to store sensor line. The lightweight reel has a 6,000 ft. (1,828.8 m) capacity

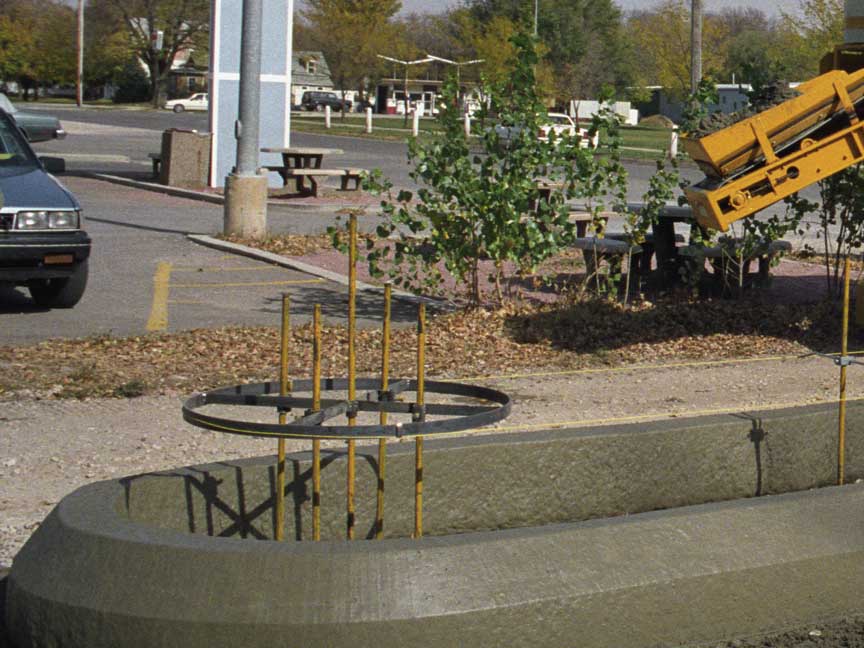

GOMACO's steel radius wheel provides guidance for accurate radius slipforming. The wheel is easily placed with five stakes. The radius wheels are available in four standard sizes of 48 in. (1219 mm), 36 in. (914 mm), 24 in. (610 mm) and 18 in. (457 mm). These measurements are the actual radii of the wheels
This plus the stringline offset equals the radius of the curb being slipformed. Different stringline offsets and sensor placements will provide varying sizes of radii. Example: with a 24 in. (610 mm) radius wheel and 24 in. (610 mm) stringline offset, the result should be a 48 in. (1219 mm) radius. Consult factory for different wheel sizes. A PVC pipe holder that accommodates 3/4 in. (19 mm) PVC pipe is also available for radius work.
The line tension winch has a 3-to-1 gear radio which keeps the line tight. The winch has a 1,000 lb. (453.6 kg) pull capacity and mounts on two 48 in. (1219 mm) by 3/4 in. (19 mm) stakes. The winch reel holds 370 ft. (112.8 m) of 1/8 in. (3 mm) line.

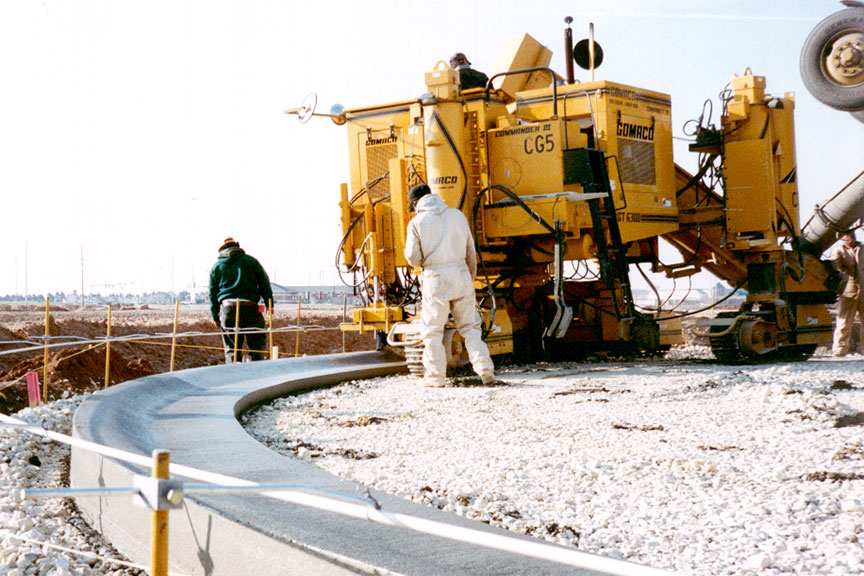

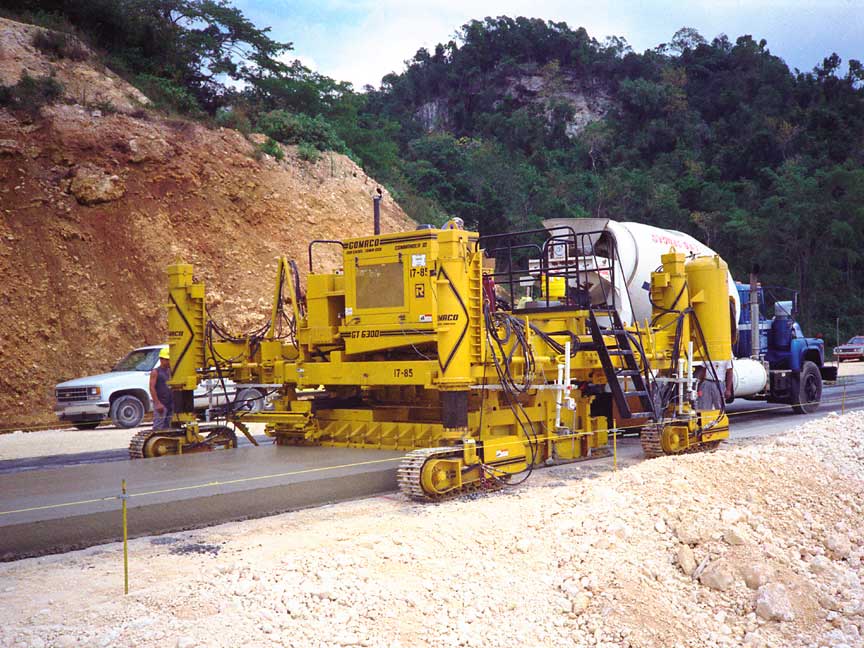

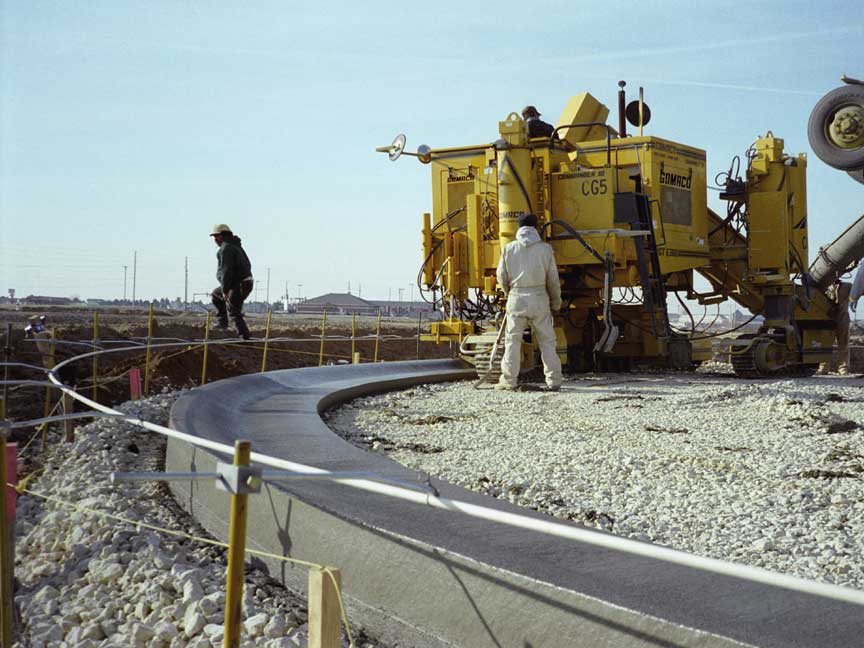

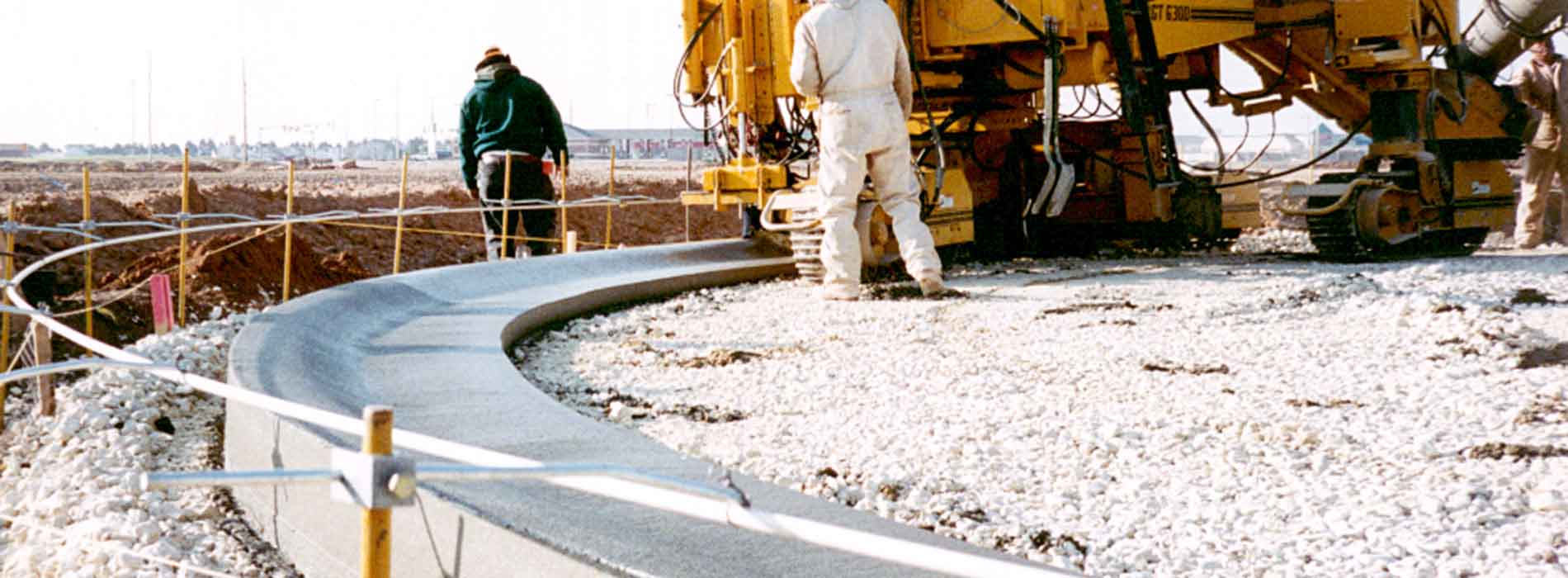

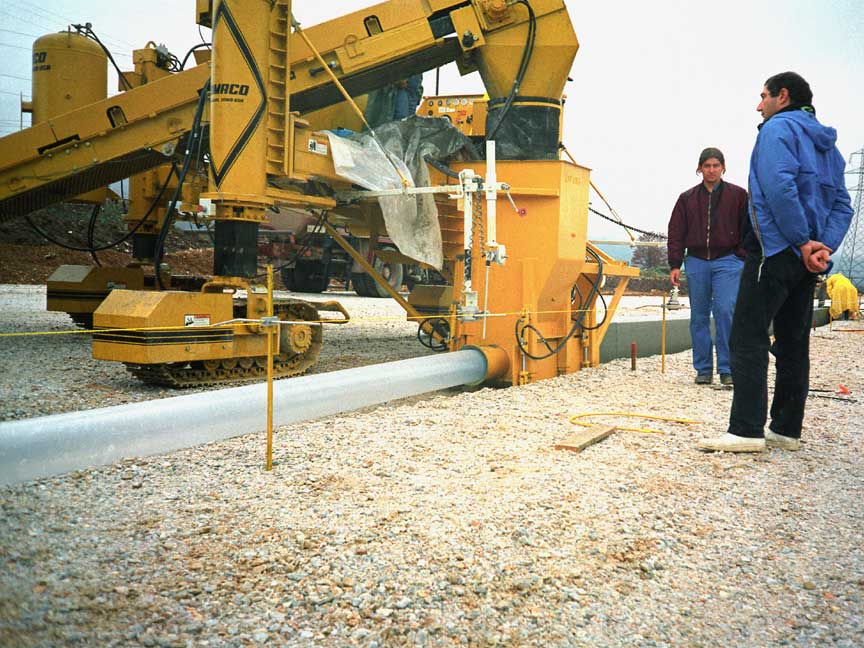

From highway paving, radii, cul-de-sacs and trimming to special projects and so much more, GOMACO's sensor line and accessories keep machines on line.
Mile Package - Kit No. GT10-129:
6 rolls of 1000 ft. (304.8 m) sensor line
212 line rods
212 aluminum cast clamps with set screws
224 line and winch support stakes
6 tension winches
Mile Package - Kit No. GT11-114:
6 rolls of 1000 ft. (304.8 m) sensor line
200 line rods
200 aluminum cast clamps with set screws
200 line and winch support stakes
Component Parts Shipping Weight
Sensor line, 1000 ft. (304.8 m) spool: 6 lbs. (2.72 kg) per spool
Line rods: 15 lbs. (6.8 kg) per 25
Line rod clamps: 6 lbs. (2.72 kg) per 25
Sensor stakes: 6 lbs. (2.72 kg) each
Line tension winch, requires two stakes, not included: 15 lbs. (6.8 kg) each
Line storage reel - 6000 ft. (1828.8 m) capacity: 11 lbs. (4.99 kg) each
Line storage reel stand: 22 lbs. (9.98 kg) each
