Concrete Pavement Returns to the State of Alabama

Interstate 59 through the state of Alabama was originally paved with concrete in the mid 1960s. Nearly 50 years later, the original concrete has far surpassed its life expectancy and is in need of replacement. The Alabama Department of Transportation (ALDOT) looked at different alternatives to replace an 11 mile (17.7 km), four-lane section of the interstate through Etowah County. They developed the alternative of an unbonded, 11 inch (279 mm) thick concrete overlay that would be slipformed over the existing roadway.

Concrete contractors from across the United States bid on the project, which would be the first concrete overlay in Alabama. Hinkle Contracting Corporation, based out of Paris, Kentucky, specializes in heavy civil construction and concrete paving projects, won the bid and began work in the summer of 2010. It's the first concrete project to be let in Alabama since the early 1980s and Hinkle Contracting had officials from across the state and the country watching the success of the project. Smoothness, edge and thickness specifications with large disincentive penalties added to the project's challenge.

"This job has the most stringent ride specifications we've found anywhere in the country," Jim Peace, Operation's Manager for Hinkle's Concrete Paving Division, said. "This project uses the zero-blanking band and anything measuring over a 20 per tenth of a mile segment is penalty. To earn bonus, we have to get 10 and below, with about $400,000 worth of bonus to be earned. There are $3.5 million worth of penalties available on the project if we hit between 20 and 50. If grinding is needed, it's only allowed from 25 feet (7.6 m) on either side of the header. If we wouldn't be able to correct the smoothness to under 50 with 25 feet (7.6 m) of grinding, we'd be required to remove the entire 528 foot (161 m) long segment.

"So far we've paved 10.5 miles (16.9 km) of the project's northbound lanes and our overall average is under a 20 on the zero-blanking band."

From the first days of paving on the project, Hinkle Contracting and their paving crew worked and experimented with different elements to create the smoothest ride possible. Different variables they looked at included types of stringline, distance between stringline rods and holders, draft of the paving mold, concrete slump, size of the concrete head in front of the paver, and all processes that can influence pavement smoothness on a concrete paving project. They equipped their two-track GP-2600 paver with two paver-mounted GSI® (GOMACO Smoothness Indicator) units. The GSI units provided on-the-go instant feedback as Hinkle personnel worked to fine-tune their paving operation.

"We spent three days tweaking... tweaking the draft, the feed, the slump and more," Peace explained. "We would make notes as we made changes and just kept tweaking until we reached where we needed to be. The instant feedback from the GSI was a good thing. It gave us the knowledge of what the concrete was doing in regards to the changes we were making. We could see right on the GSI screen mounted on the back of the paver what was happening with our concrete."

The concrete mix design specified for the project is a very porous, very coarse mix that proved challenging to slipform. Slump averages 1.5 inches (38 mm).

"We have to run the concrete at a 1.5 inch (38 mm) slump because of the tolerances on the project," Peace said. "We have a one eighth of an inch (3 mm) edge form tolerance. If we don't comply, we have to do removal."

Concrete is produced on site by a mobile batch plant set up in the center of the project. The farthest haul the trucks have to make is only six miles (9.6 km). Federal highway regulations limit the weight of the loads the tri-axle trucks are allowed to carry. Up to 18 trucks haul 6.75 cubic yard (5.2 m3) loads of concrete to the paving site.

The existing roadway underwent some full-depth patch repairs in areas where the concrete was in poor condition. Then, an overlay bond breaker was applied to correct cross slopes so the new concrete overlay could be applied.

The project allows no room for haul roads, so the trucks have to back up to the GOMACO PS-2600 placer/spreader and dump their load directly on the road. The PS-2600, working without the conveyor belt, spreads the concrete in front of the GP-2600 slipform paver. Baskets are placed on grade by hand every 15 feet (4.6 m).

The GP-2600 is paving 26 feet (7.9 m) wide and 11 inches (279 mm) thick. Hand-finishing work behind the paver is kept to a minimum.

"We're running straight edges across it, but we're not rubbing on it," Peace said. "If you have to rub on it, you've got problems that a finisher can't fix in the slab. My philosophy is if things aren't going right in front of the paver, there won't be anything right behind it. You have to do your work up front correctly to guarantee a good end product."

Concrete paving production averages 2000 feet (610 m) per paving shift. Production is limited because of the small loads the trucks are allowed to haul and the Hinkle crew always strives to keep their paver moving at a slow, steady crawl. Also, hand setting both the longitudinal and transverse baskets on grade while paving takes additional time and labor for the paving crew.

Quality of the concrete is constantly being tested and measured, both with the ride requirement and with core testing. Each 528 foot (161 m) segment is cored in six different places, with six inch (152 mm) diameter cores. Cores are used to test the concrete strength and depth of the concrete, with anything over a 0.25 inch (6 mm) deviation in depth requiring removal and replacement.

A GOMACO T/C-600 texture/cure machine follows the paver. The new roadway is transverse tined and sprayed with a white curing compound.

"This has been both an interesting and a challenging project for us," Peace said. "We've paved 528 foot (161 m) segments with numbers down in the fours and fives on the zero-blanking band. Everybody is liking the ride we're producing."

A Commander III is slipforming the new concrete shoulders on I-59. One will be eight feet (2.4 m) wide and eight inches (203 mm) thick. A second shoulder will be four feet (1.2 m) wide and six inches (152 mm) thick. Once shoulders are completed, the new 11 mile (17.7 km) northbound stretch of interstate will be opened up to traffic. Then, the southbound lanes of the interstate will be closed so reconstruction can be completed.





Rideability from a Mechanic's Point of View–

David Ford has been a mechanic working with GOMACO equipment for Hinkle Contracting for the past six years. All total, he has over 40 years of experience in the construction industry and with concrete paving equipment. He offers the following insights, from a mechanic's point of view, for achieving excellent ride on a zero-blanking band project.



Stringline–
The equipment is designed for pins every 25 feet (7.6 m) and will take care of any little swag between those pins. We tried moving the pins closer and it didn't work. We also switched to a different cable, one that doesn't stretch so badly and isn't affected by daytime to nighttime temperatures. We keep a person out in front of the machine and it's his job to constantly check the string.

Keeping guys out of the stringline was a problem, too. We had training for our finishers and laborers and stressed the importance of staying away from the stringline.



Machine Setup–
It takes a lot of work, a lot of planning, and a lot of good people, because setup is the most important thing to get the quality of concrete that we're getting.



Vibration–
We use a vibrator monitoring system on our paver and it helps us. Over vibration hurts you just as bad as not enough consolidation. Usually, we try to run our vibrators around 8500 VPMs, and that gets a good ride and good consolidation.



Incorporating the GSI into the Paving Process–
The GSI units mounted to the back of the paver helped us 100 percent, as far as the setup and the ability to get the rides we need. It helps you to get the fine points out of the machine and takes all of the guesswork out of it. I would recommend it for anyone who's in the business.

Before, we'd take our level and a ruler and square the paver up. The GSI takes that out. It will show you when you start how you'll want to run the front of the pan and where to run to get the best ride. It just takes all of the guesswork out. We knew what we needed to get for ride on this project and the GSI helped us get it.



Concrete Slump–
When we'd see a deviation on the GSI screen, 90 percent of the time there wouldn't be any adjustment to the equipment. Once we got the equipment set to what the GSI wanted and got the profile in the pan that we wanted, it was usually the slump of the concrete that created deviations. You have to keep a good, consistent slump, because we could see plain as day when the slump started changing in the concrete and it most definitely changed behind the machine.



Clean Equipment–
It is my job to see that the equipment is in good shape and kept in good shape. Tom and Henry Hinkle want their equipment to look good and not see it dirty and covered in concrete. They'll spend the extra time and labor to keep it clean. I am a firm believer in a clean machine. If it's not clean, you're not going to get a good job.


-- Select Any Photo To Enlarge --

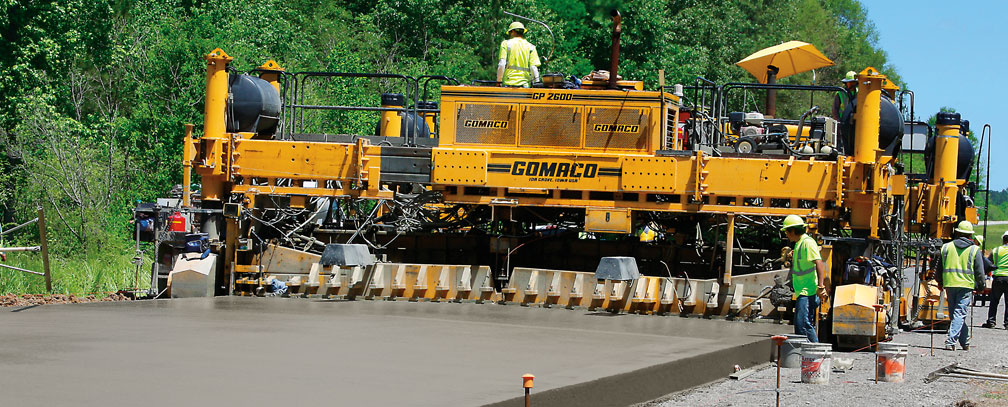

Hinkle Contracting is slipforming a concrete overlay on Interstate 59 in Etowah County with their GOMACO paving train. The project features the zero-blanking band for measuring smoothness, and Hinkle's overall average has been under a 20.



Project specifications require a one eighth of an inch (3 mm) edge form tolerance be met.

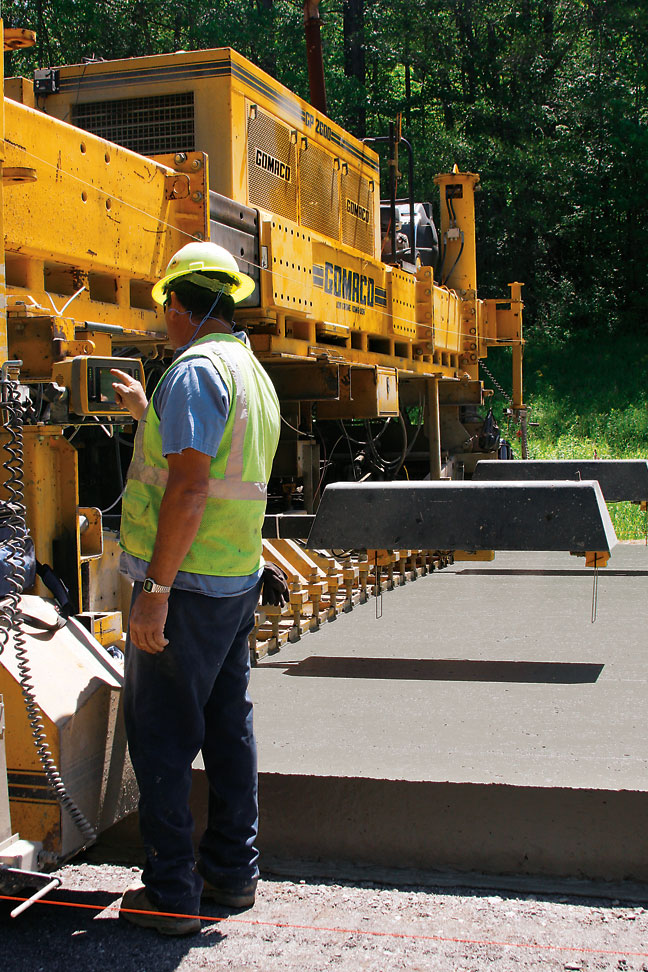

Two paver-mounted GSI units were instrumental in helping Hinkle Contracting fine tune their paving operation. The GSI provided on-the-go feedback of pavement smoothness as Hinkle tweaked various aspects of their paving operation.

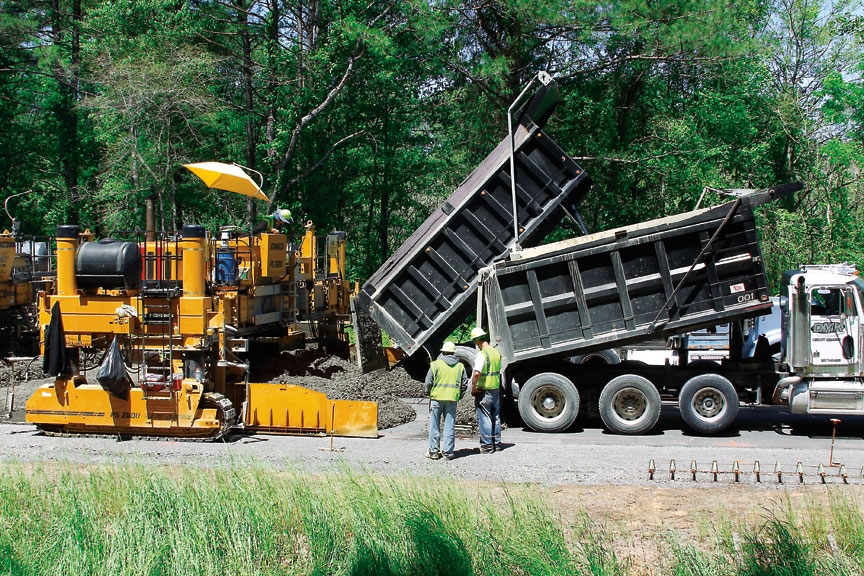

The project has no room for haul roads so concrete is dumped directly on grade in front of the GOMACO PS-2600 placer/spreader.

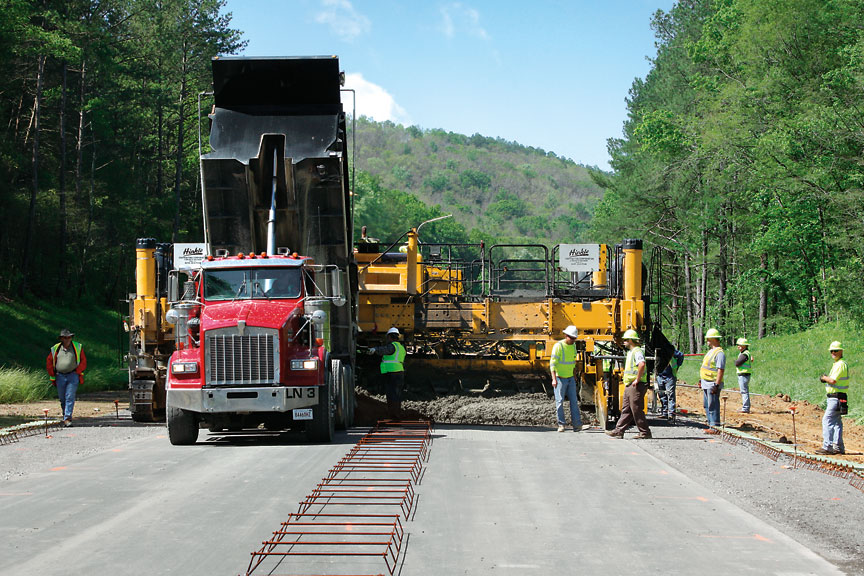

Federal highway regulations limit concrete loads to 6.75 cubic yards (5.2 m3). Up to 18 trucks haul concrete to help keep the paving train moving at a slow, steady paving speed.



Hinkle Contracting is achieving excellent rideability numbers on Alabama's zero-blanking band smoothness specification.
