Spanit® Work Bridge

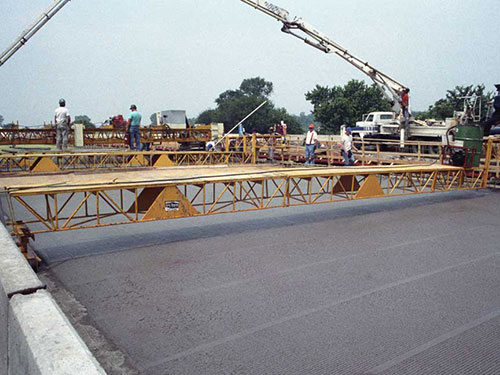

PHOTO: SPANIT® WORK BRIDGEEspecially For Bridge Decks, Flat Slabs, Canals and Slopes!

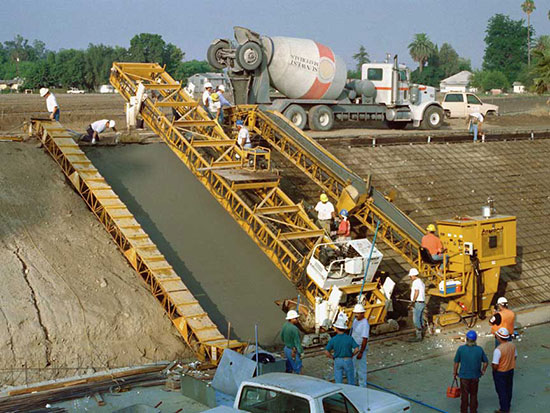

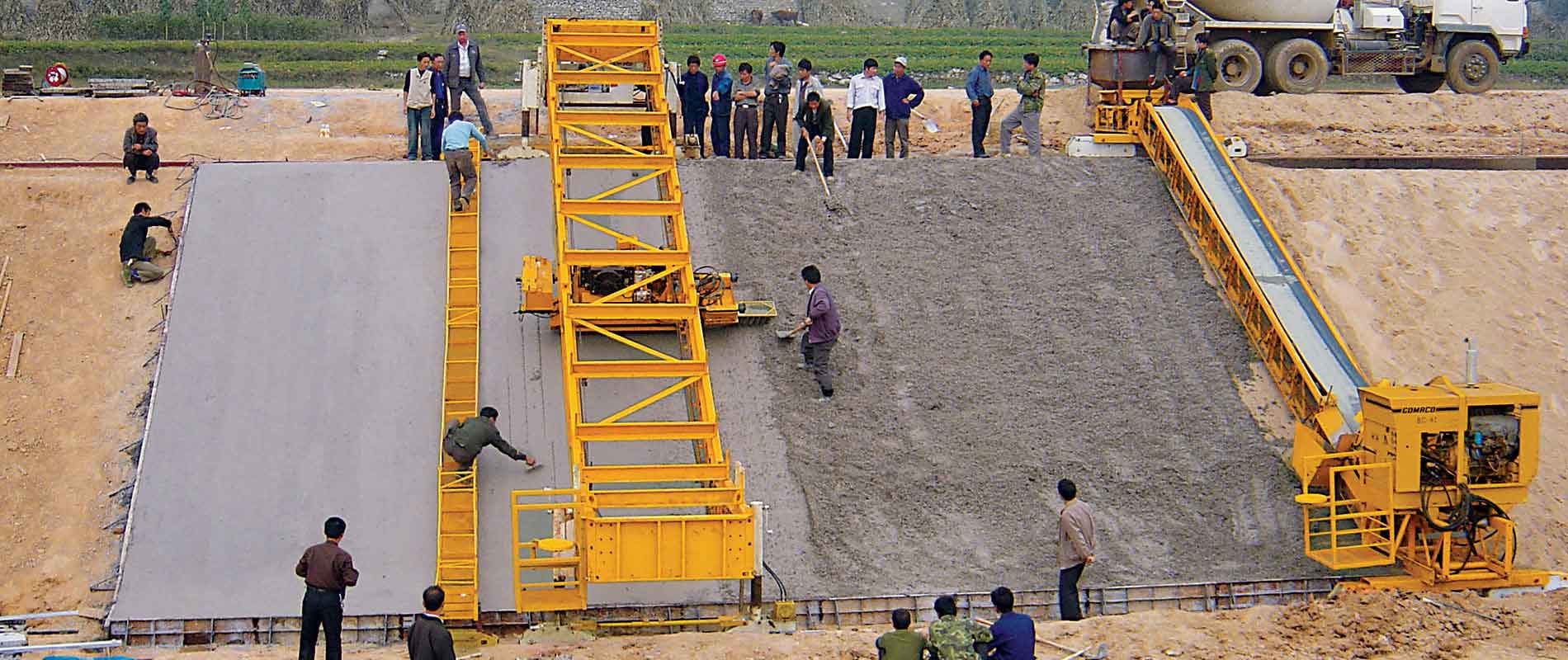

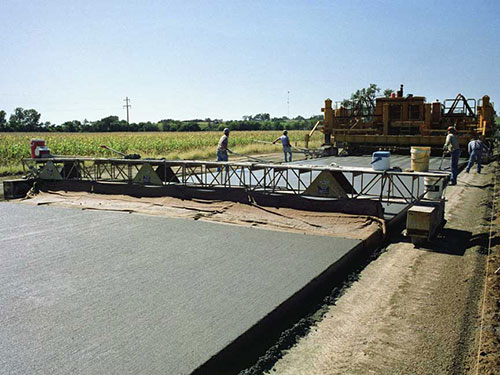

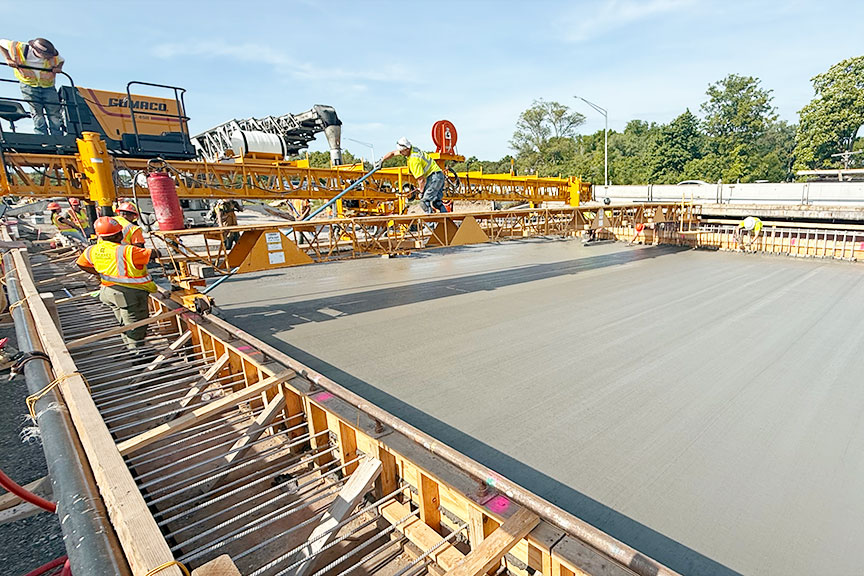

GOMACO Spanit® Work Bridge is ideal for use whenever you need bridging on the job site, including bridges, street projects, highways, flat slabs, canals, slope and numerous other applications. The Spanit Work Bridge is available in the 1000, 2000, 4000 and 6000 series. All GOMACO Spanit insert sections within the same series are interchangeable. Quick assembly is assured through the use of pin-connected sections. Spanit insert sections range in length from 2 ft. to 12 ft. (.61 to 3.66 m). Spanit can be self-powered and is available with self-widening ends or a telescopic insert. A variety of Spanit trolley options are available.

Spanit is not recommended for use as scaffolding.





Spanit Specifications

1000 Series Spanit
Durable lattice type construction of tubular steel with plywood or expanded steel decking, available in 3 ft. (.91 m) @ 32 lbs. (14.5 kg), 6 ft. (1.83 m) @ 65 lbs. (29.5 kg) and 12 ft. (3.66 m) @ 120 lbs. (54.4 kg) sections.

2000 Series Spanit
Durable lattice type construction of tubular steel with plywood or expanded steel decking, available in 3 ft. (.91 m) @ 60 lbs. (27.2 kg), 6 ft. (1.83 m) @ 100 lbs. (45.4 kg) and 12 ft. (3.66 m) @ 195 lbs. (88.5 kg) sections. Telescoping insert from 12 to 18 ft. (3.66 to 5.49 m) @ 565 lbs. (256.3 kg) available.

4000 Series Spanit
Durable lattice type construction of tubular steel with expanded steel decking, available in 4 ft. (1.22 m) @ 151 lbs. (68.5 kg), 6 ft. (1.83 m) @ 192 lbs. (87.1 kg), 8 ft. (2.44 m) @ 249 lbs. (112.9 kg) and 12 ft. (3.66 m) @ 347 lbs. (157.4 kg) sections.

6000 Series Spanit
Durable lattice type construction of square and rectangular tubular steel, with expanded steel decking, available in 2 ft. (.61 m) @ 191 lbs. (86.6 kg), 4 ft. (1.22 m) @ 280 lbs. (127 kg), 8 ft. (2.44 m) @ 484 lbs. (219.5 kg) and 12 ft. (3.66 m) @ 577 lbs. (261.7 kg) sections.

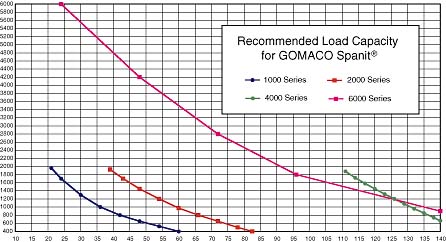

Maximum Widths with Live Loads
1000 Series Spanit® 60 ft. (18.29 m) @ 400 lbs. (181.4 kg)
2000 Series Spanit® 82.5 ft. (25.15 m) @ 400 lbs. (181.4 kg)
4000 Series Spanit®140 ft. (42.67 m) @ 660 lbs. (299.4 kg)
6000 Series Spanit®140 ft. (42.67 m) @ 900 lbs. (408.2 kg)





MANUFACTURED UNDER ONE OR MORE OF THE FOLLOWING U.S. OR FOREIGN PATENTS: 3,299,786; 3,450,011; 3,541,931; 3,779,661; 3,959,977; 4,073,592; 4,136,993; 4,226,917; 4,343,513; 4,360,293; D-266,850; 853,607; 861,819; 954,773; 406,787; 1,147,187; 133,220; D-512,249; 4,717,282; 4,457,645; C-1,110,893; C-1,191,044; 12,890-1-0010; 5,061,115; 7,509,187; 7,509,615; 5,102,267; 5,101,360; 4,954,019; 4,984,639; 5,190,397; 5,209,602; 0,518,535; 2,067,126; 494,257; 69,031,836.7-08; 2,069,516; 5,924,817; 2,833,084; 7,517,171 B2 AND PATENTS PENDING.

GOMACO Corporation reserves the right to make improvements in design, material, and/or changes in specifications at any time without notice and without incurring any obligation related to such changes.

Performance data is based on averages and may vary from machine to machine.
