GOMACO World 35.1 - February 2007

The Power of Choice – GT-3600 with Auger

WMC Contracting Company in Trenton, Tennessee, has been in the construction business since 1950, and has specialized in all kinds of slipform concrete projects. If they think the project can be slipformed, they’ll figure out a way to do it with their GOMACO machines, using either one of their Commander IIIs or GT-3600.

Dennis Garcia, president of WMC Contracting, has just as much experience in the concrete industry as the company he’s currently operating. He’s worked as a laborer, equipment salesman and in management. He’s seen it all, worked with it all, sold it all, and now that he has the power to make his own buying decisions, he chooses GOMACO.

WMC has two Commander IIIs that slipform all of their barrier or parapet projects. Curb and gutter work is completed with their GT-3600. They complete projects all over the state of Tennessee and their equipment has to be easily transportable, a requirement that is easily achieved by both the Commander III and GT-3600.

One of their first projects with the new GT-3600 was slipforming 11,000 feet (3353 m) of roll-over style curb and gutter in Medina, Tennessee. Their work was part of the second phase of the Southern Hills Subdivision by Clark Family Homes.

“This is the third GT-3600 our company has owned and it’s the best one by far,” Garcia said. “We like the new design, and the G21 controller, which makes controlling it so smooth. Everything is smoother on this machine. We put our new machine together, took it out and went to work with it. We didn’t require a serviceman or any extra training for the new computer controls.”

Their new machine is equipped with the Commander III style legs with “smart” cylinders. They have the two-speed track motors that makes moving the GT-3600 around the job site very fast. They also have the optional auger-style conveyor.

“We think the auger is better for the kind of work that we do,” Garcia explained. “When we’re in a tight situation going around a radius, we can load up the hopper, load up the auger, and then load up the hopper on the auger to make almost a complete radius before we have to stage a truck. I also like the way it just seems to move a lot of concrete.”

They also chose to go with the optional trimmerhead. It’s a direct-drive, radial piston motor that has more torque and more power for tough trimming conditions. It’s a feature that WMC is happy to have. On most projects, they’re trimming through compacted gravel with a 95 percent compaction requirement.

“We’re always trimming and pouring at the same time on our projects,” Garcia explained. “We went with the new optional trimmer and it has made a huge difference. It’s just a very powerful trimmer that does an excellent job for us.”

Their concrete mix design is a state-approved Class-A slipform concrete with a required 20 percent fly ash content. They like to keep their sand to rock percentage at 58 percent rock and 42 percent sand for a durable product that finishes smoothly. Slump averages 1.5 inch (38 mm) for their curb and gutter projects.

Production is often times dependent on concrete delivery. It’s one of the few problems WMC Contracting has experienced with their new GT-3600... it’s too fast.

“Our only limiting production factor now is how much concrete we can get to the machine,” Garcia said. “The suppliers that we work with all the time know and understand that we need ready-mix trucks 15 minutes apart and that timing works well for us. We run into trouble when we go someplace new. They just have trouble keeping up with us.”

WMC does some radius work on their projects and they usually average around five feet (1.5 m). A size that, according to Garcia, is no big deal.

“All we do is switch to our second set of sensors and go around the corner,” he said. “We don’t do anything special, just go around the radius and keep on going down the line.”

On a typical curb and gutter project, they like to average 200 cubic yards (153 m3) of production per day. Finishing work is kept to a minimum with a light broom finish. It’s a state of Tennessee specification that all joints are saw cut into the curb and gutter the day following the pour. Joints are saw cut every 10 feet (3 m).

Overall, Garcia and WMC are very happy with their GT-3600, but the slipforming equipment is just part of the reason why they keep coming back to GOMACO.

“The equipment is great and very user-friendly,” Garcia said. “Truthfully though, I like the people and I like their parts response. Their service is top notch and we enjoy being able to send our guys to their GOMACO University for training. Those are some of the biggest reasons why we choose GOMACO.”



-- Select Any Photo For A Close-Up --

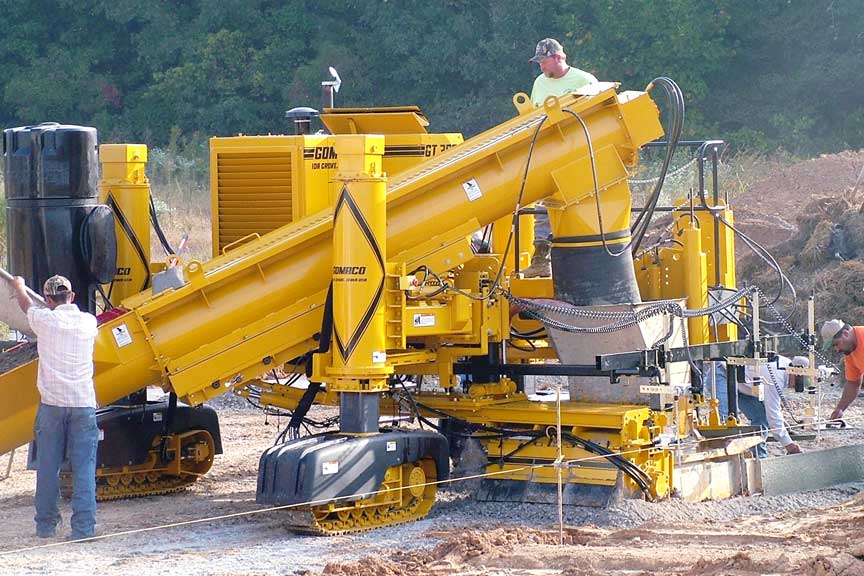

WMC Contracting equips their GT-3600 with the optional auger-style conveyor.

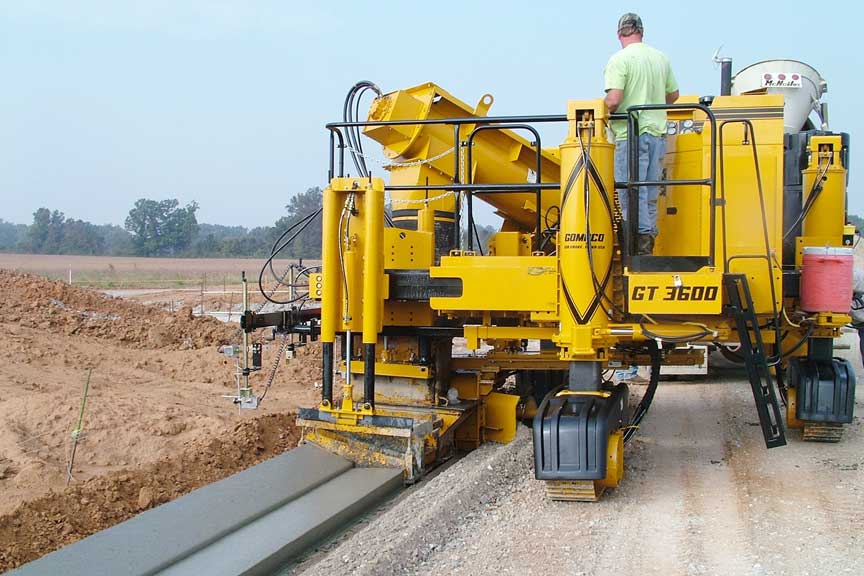

The company slipformed 11,000 feet (3353 m) of rollover curb on a new subdivision project.

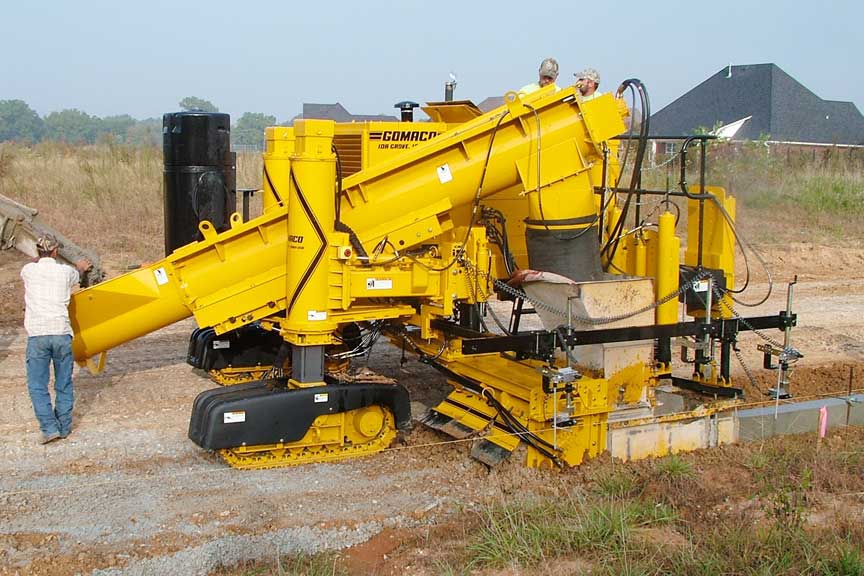

Their GT-3600 easily trims through grade with a 95 percent compaction requirement.

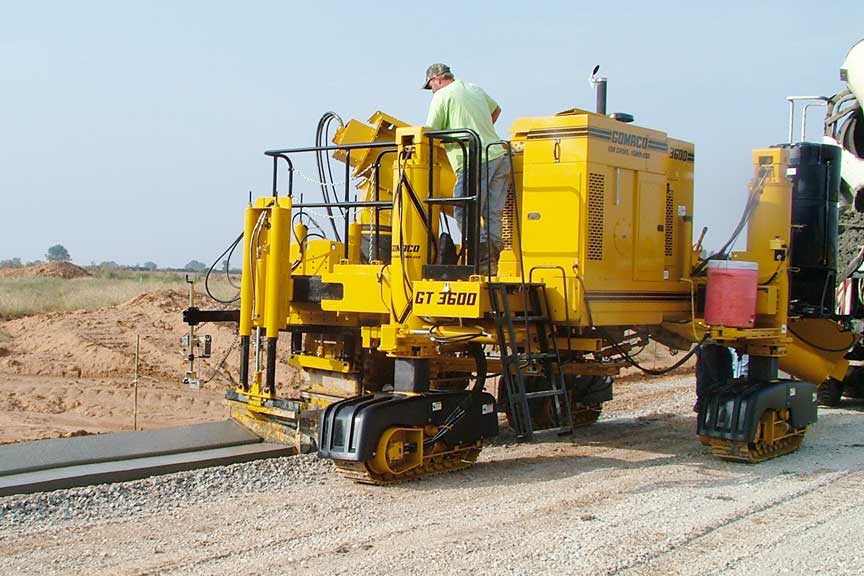

This is the third new GT-3600 that WMC Contracting has purchased from GOMACO and they say it’s the best one yet with all the new features it offers.

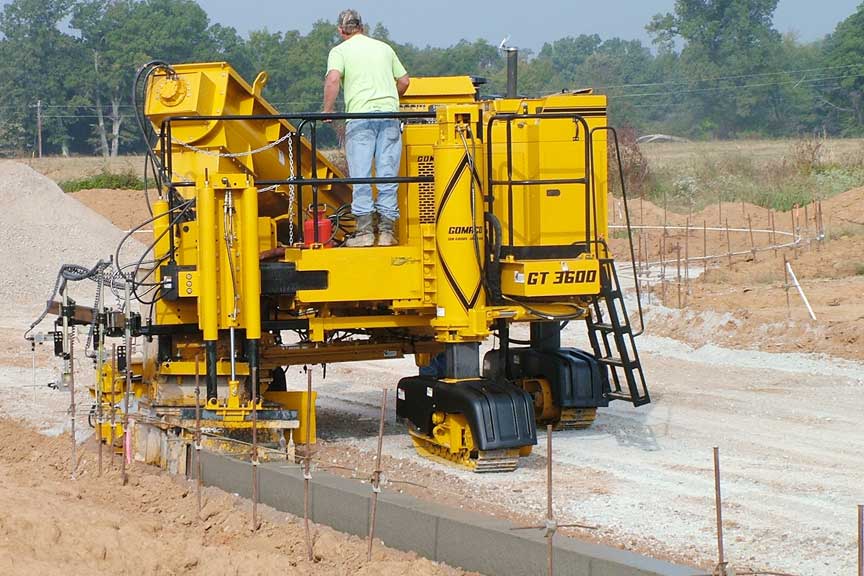

Production on a typical curb and gutter project averages 200 cubic yards (153 m3) per day.
