GOMACO Corporation: Commander III

Three-Track and Four-Track

When you choose the GOMACO Commander III, you know you have the latest technology available today to achieve your goals in concrete paving. This technology improves paving accuracy and provides easier setup, troubleshooting and operation.

GOMACO has built its reputation on the single factor of customer satisfaction. Our products are designed for maximum versatility and quality to get you the most return on your investment.

GOMACO has a tradition of quality, innovation and service, and will continue to meet the global challenges of today and the future.

-- Select Any Graphic Or Photo For A Close-Up --

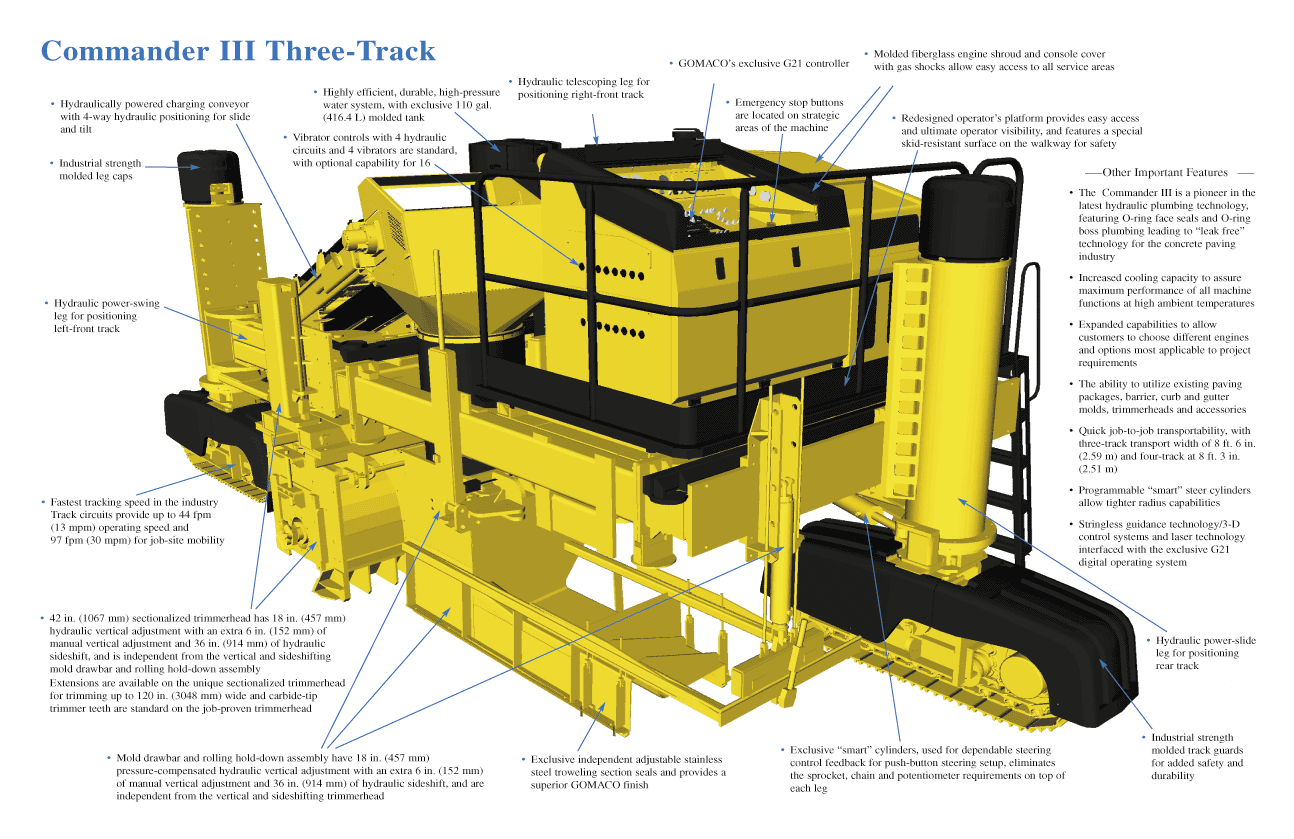

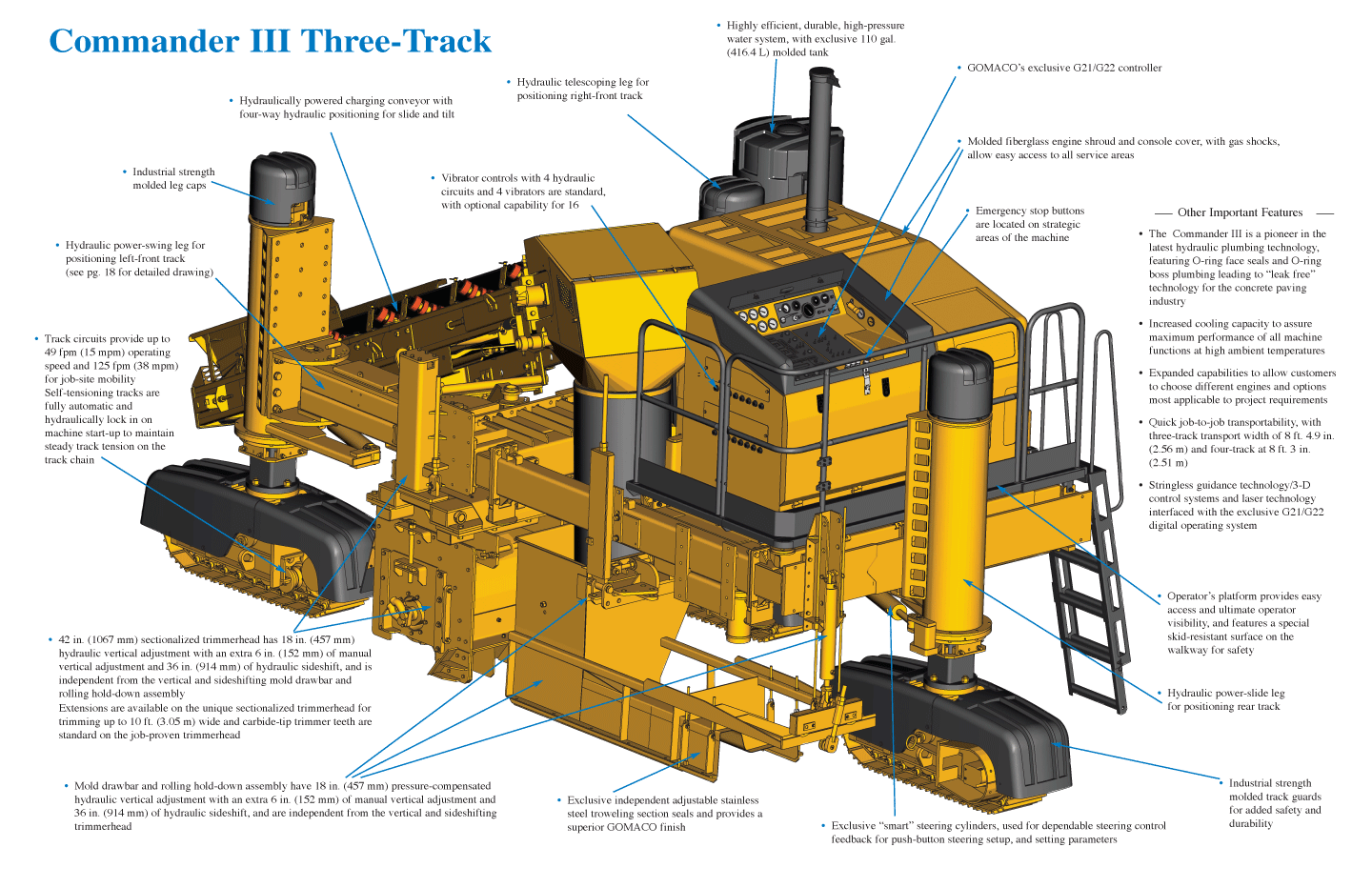

Commander III Brings A New Dimension To Paving

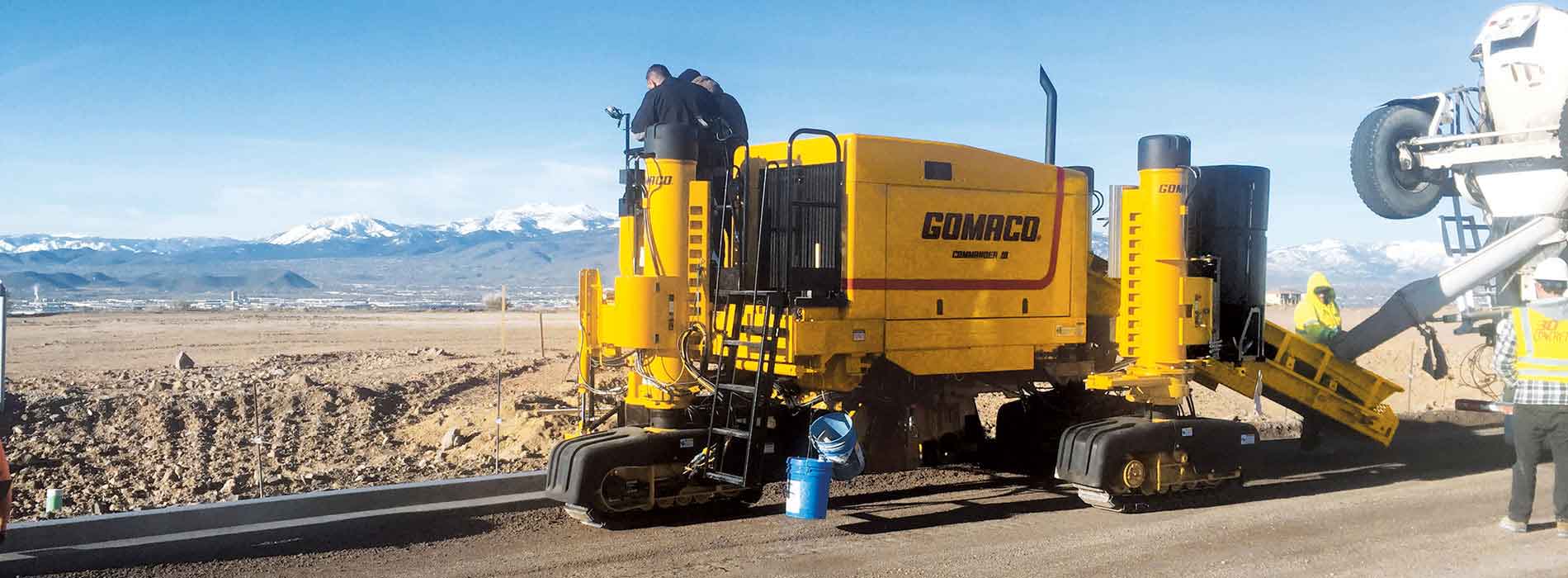

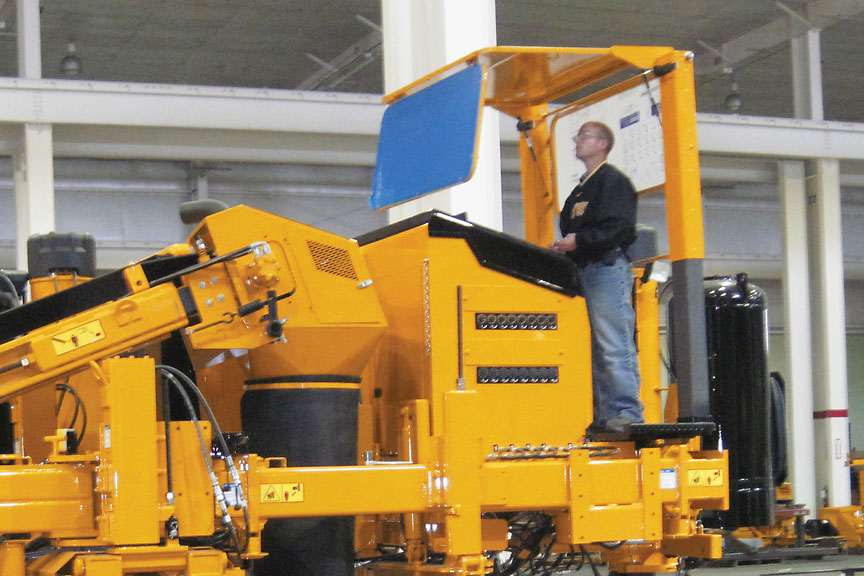

The GOMACO Commander III is recognized around the world as the elite multi-application slipform paver in the concrete construction industry.

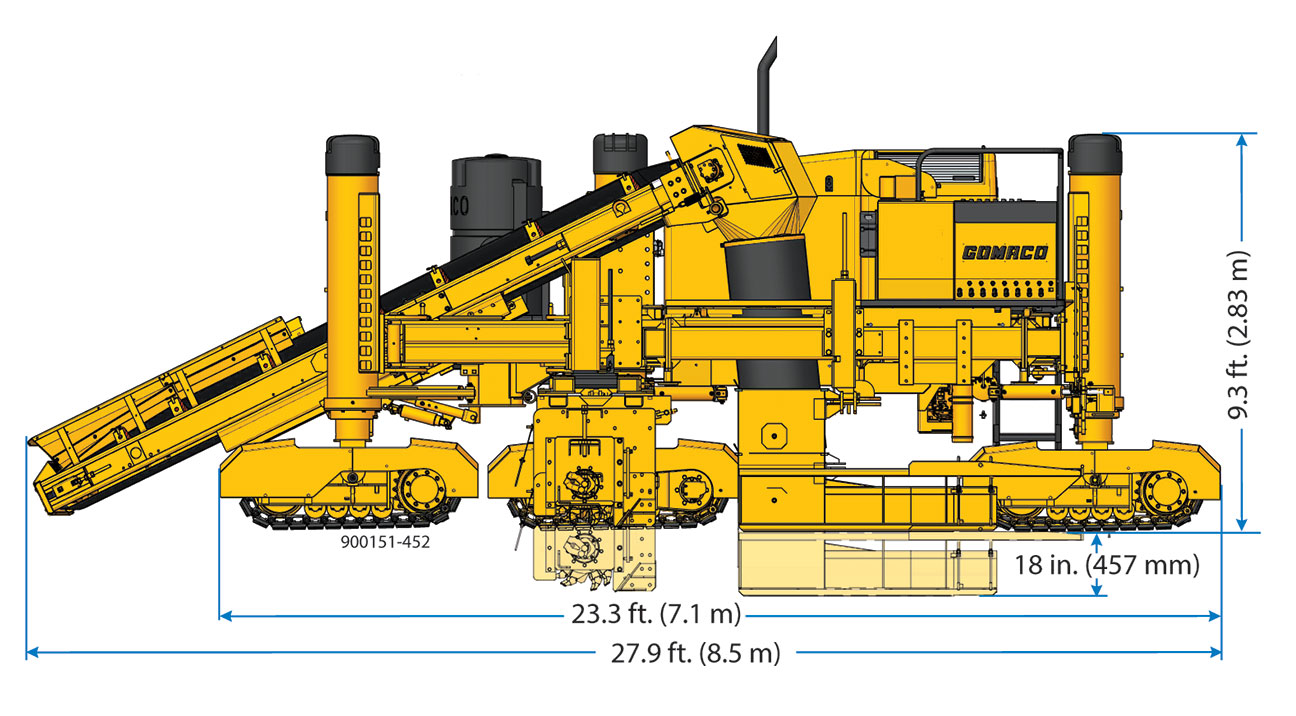

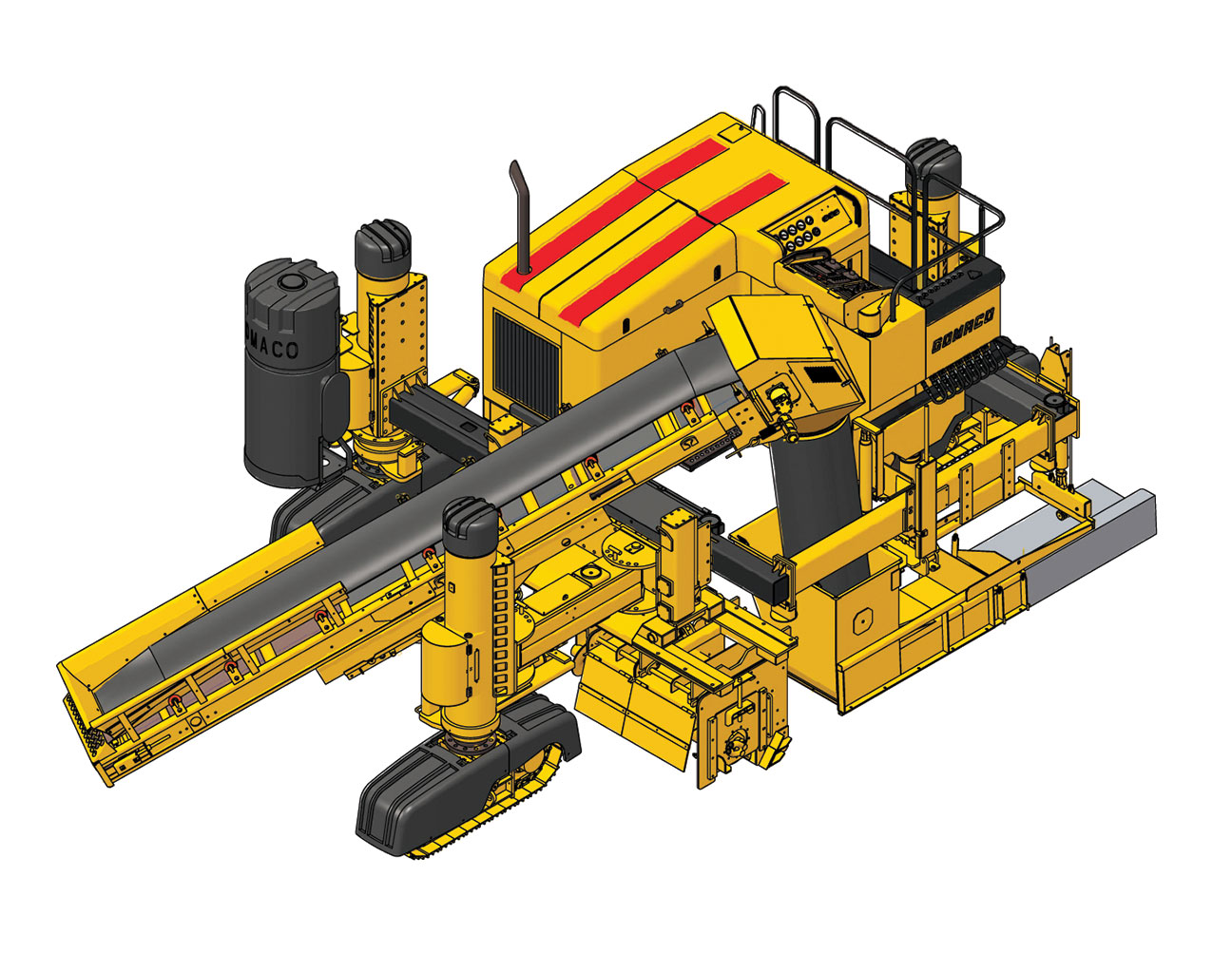

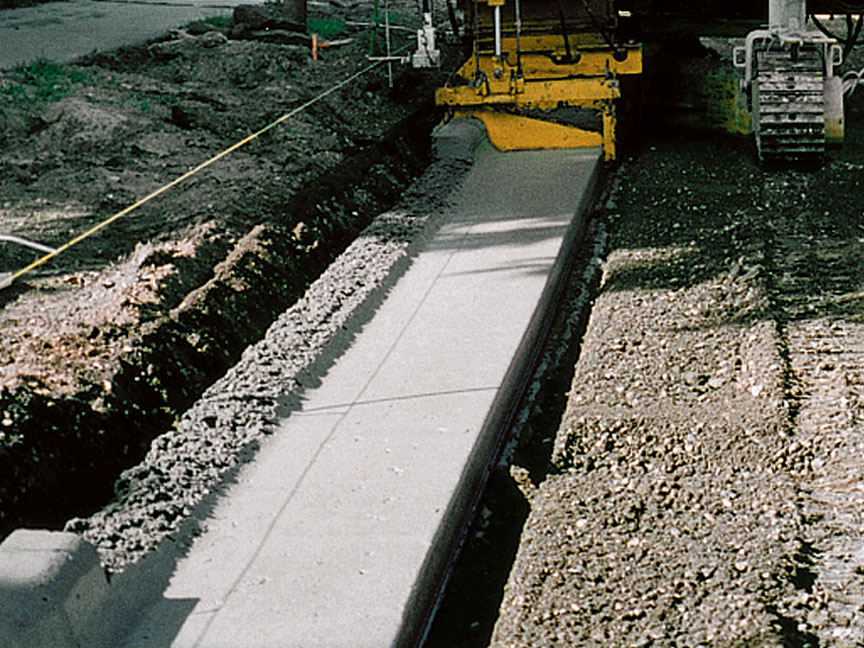

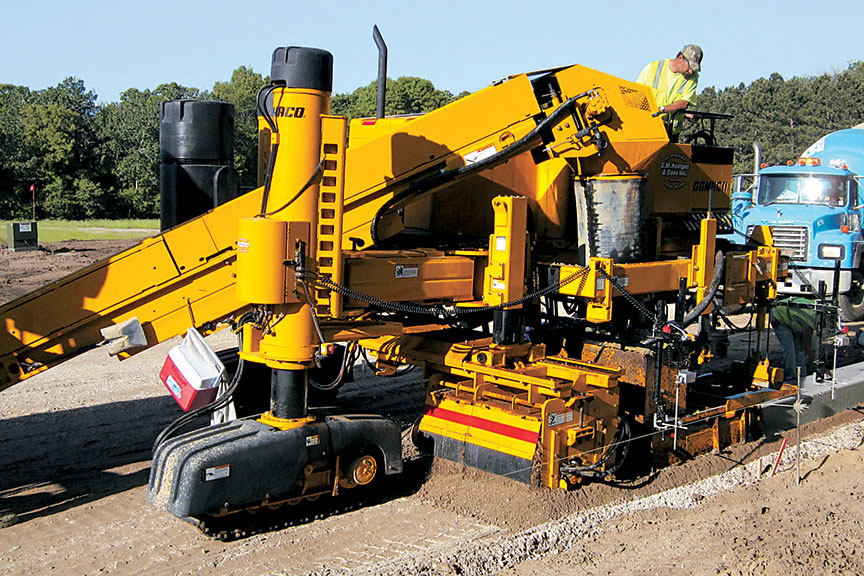

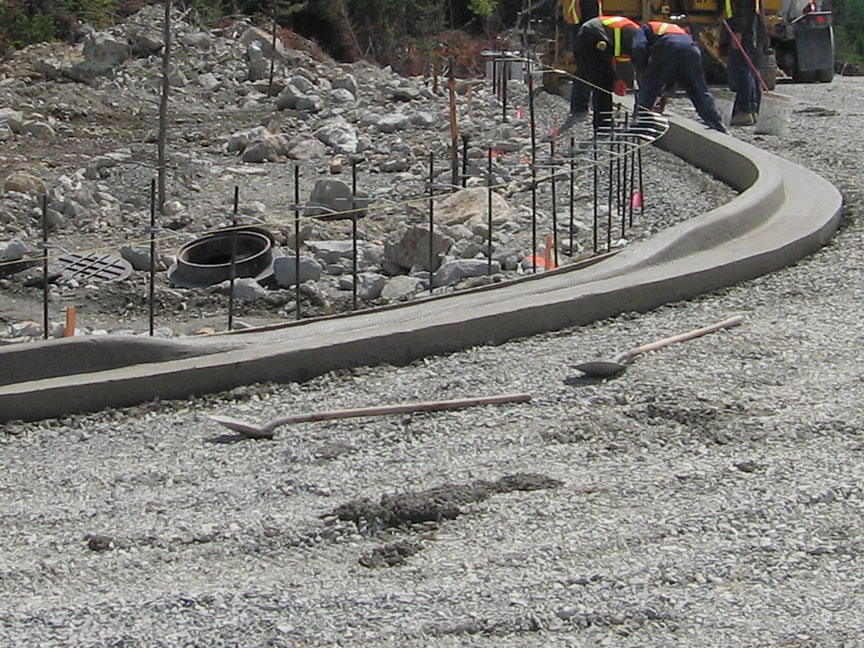

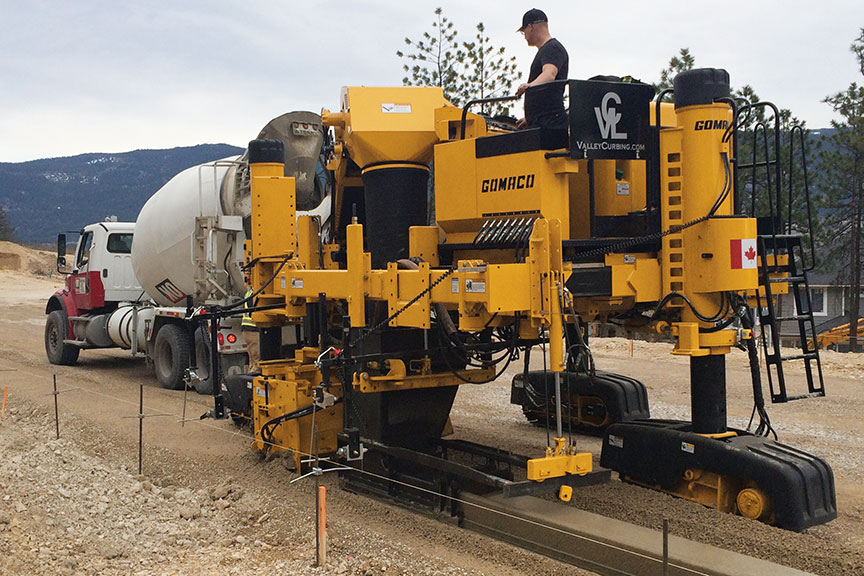

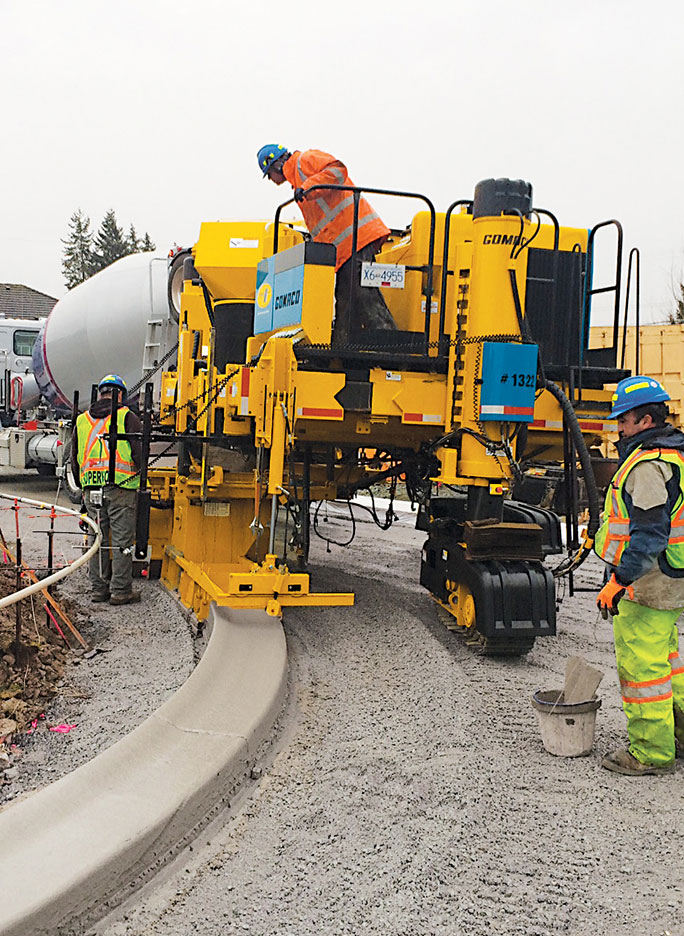

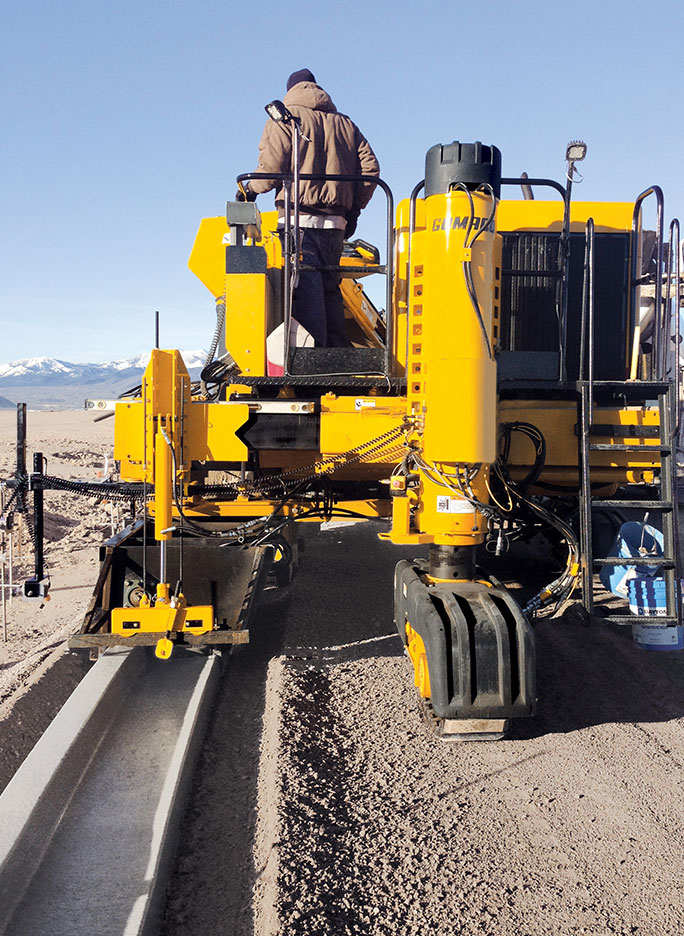

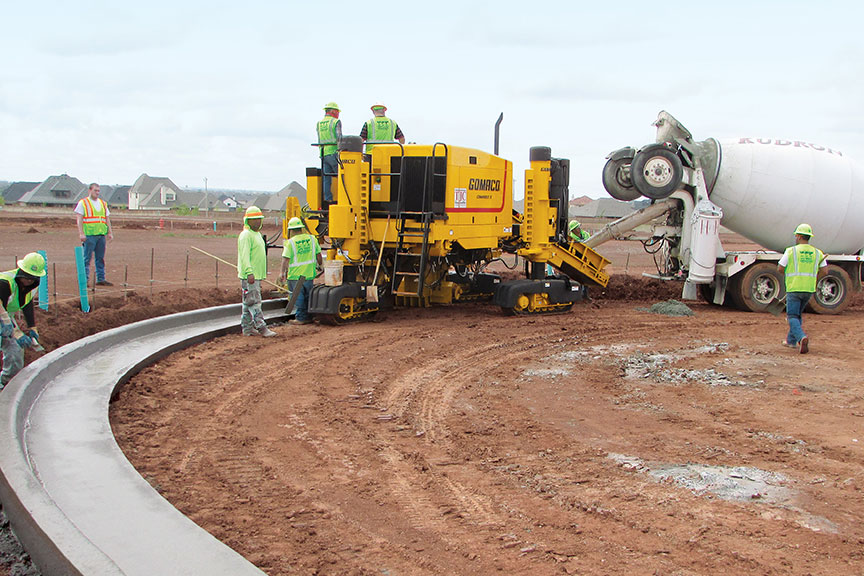

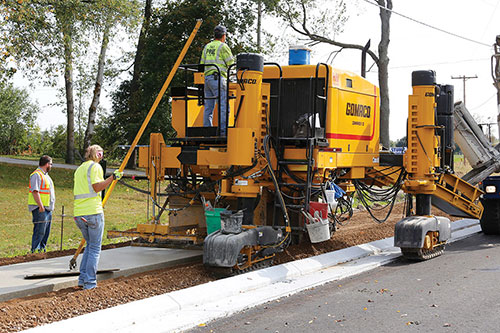

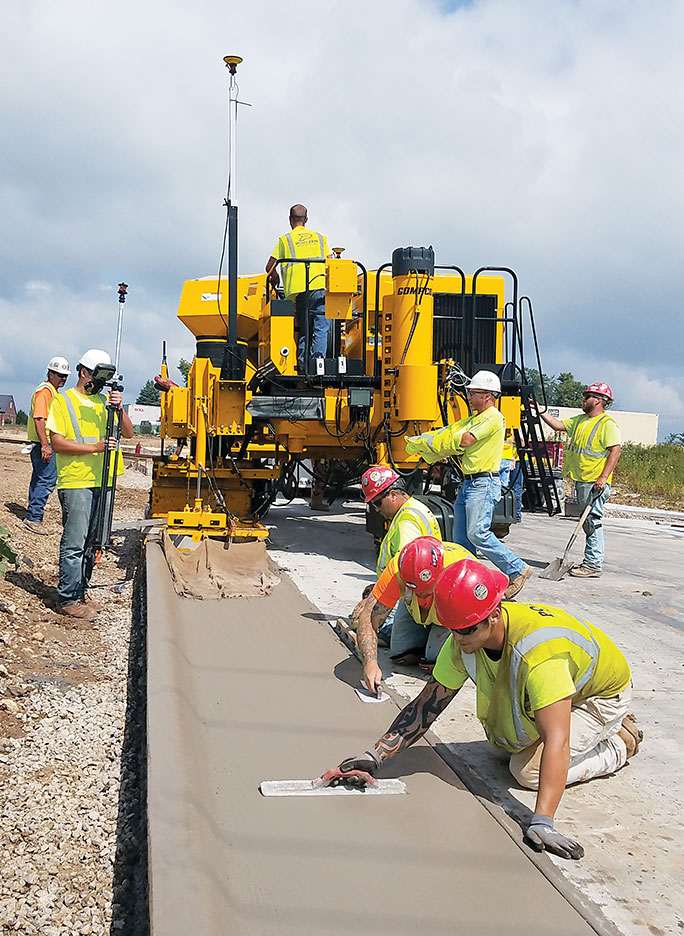

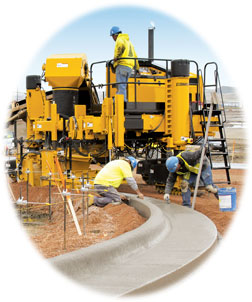

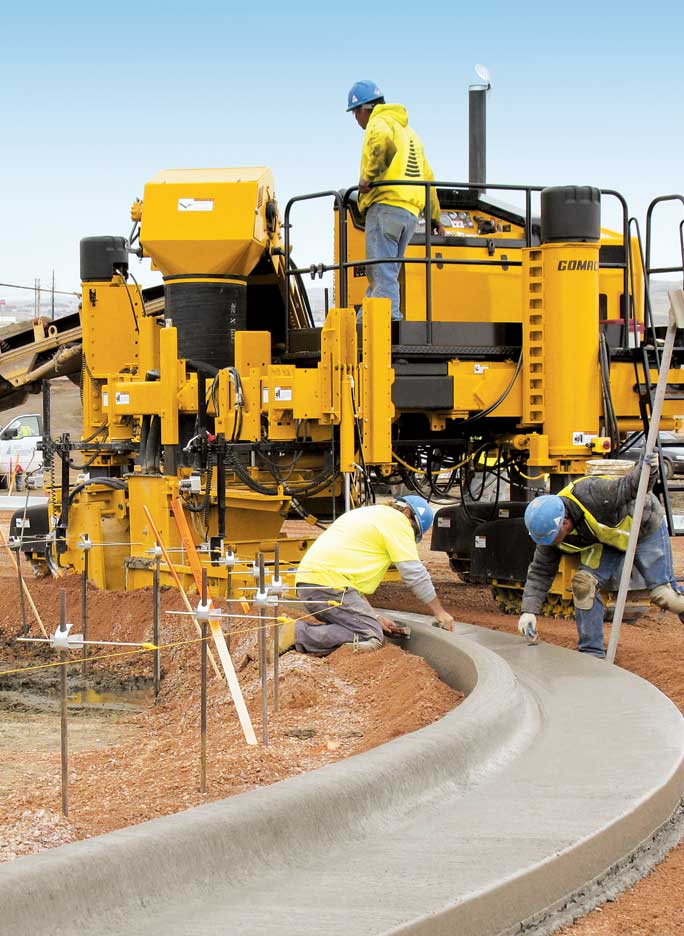

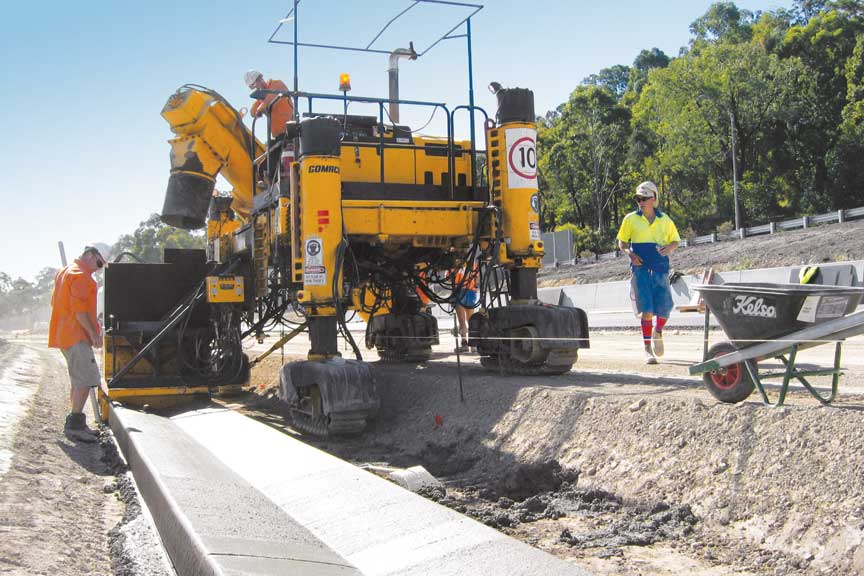

Whether the job calls for curb and gutter, monolithic sidewalk and curb and gutter, recreational trail, barrier wall, bridge safety parapet, up to 20 ft. (6 m) wide paving or irrigation canal, no other paving machine in history has been capable of tackling more types of projects and satisfying more customers.

The list of applications continues to grow as contractors and GOMACO work in partnership on new innovations and attachments. The Commander III is the most job-proven slipform paver in the world with over 40 years of technology built in.

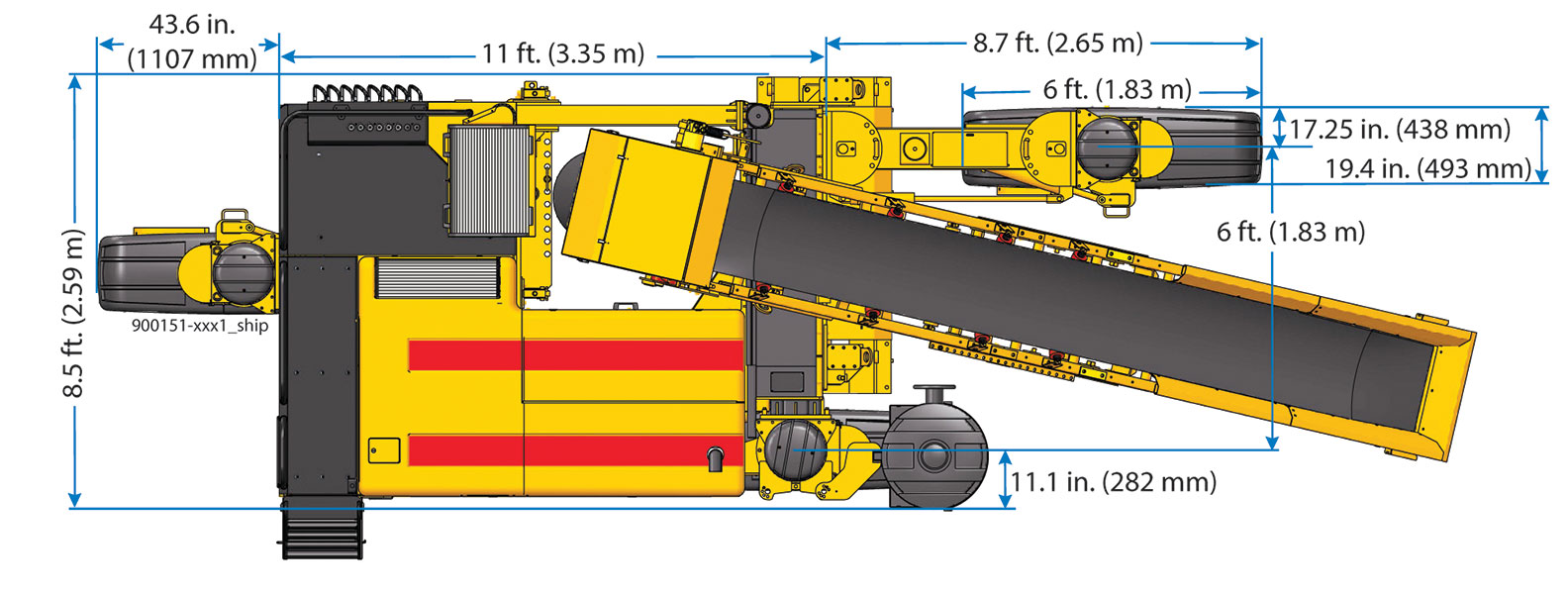

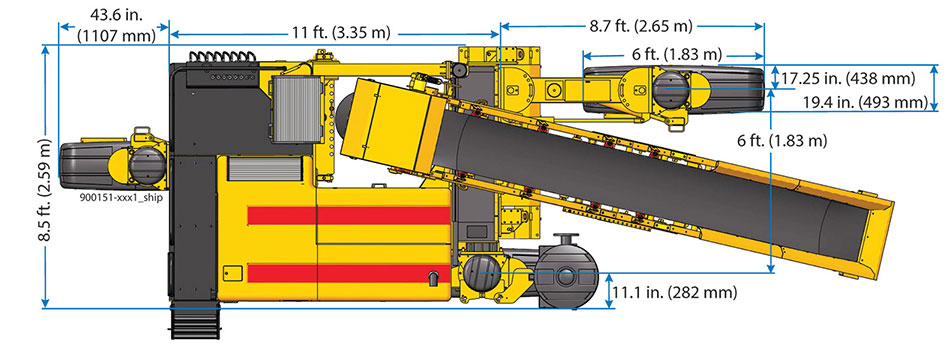

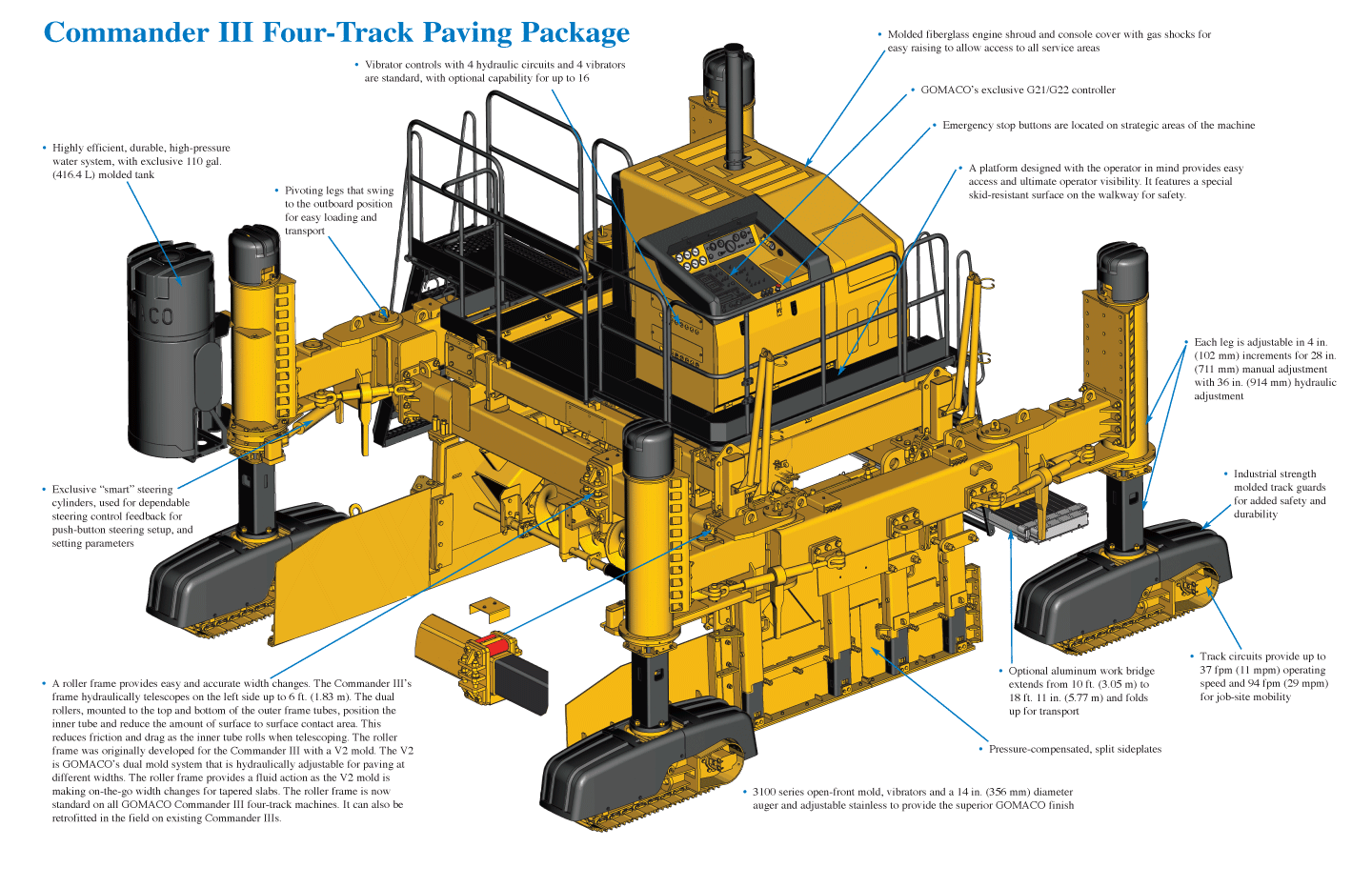

Multi-Application Four-Track Paver

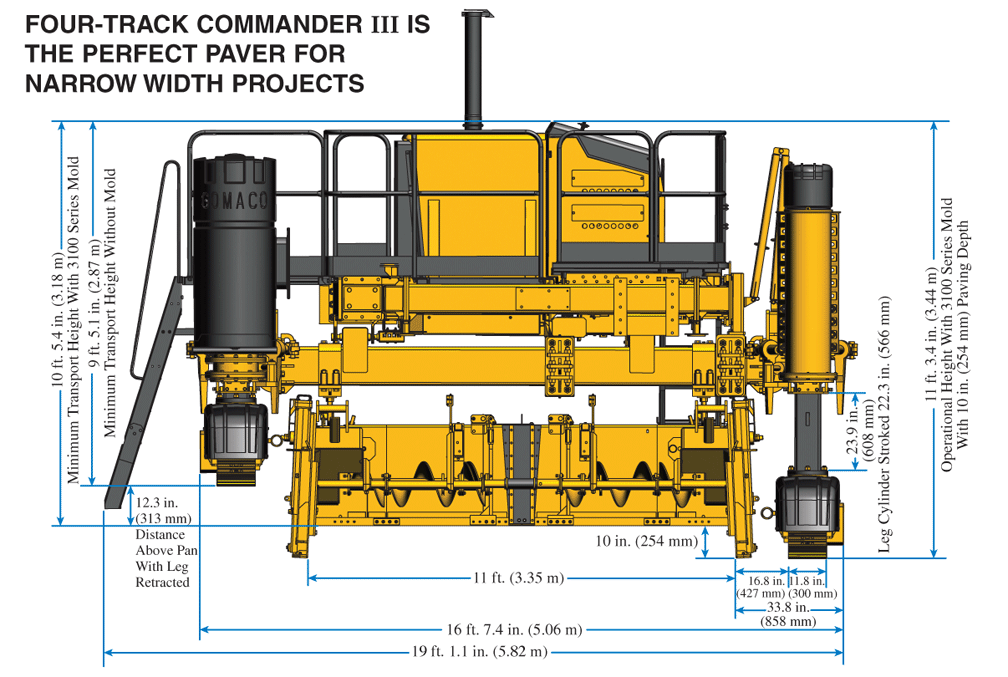

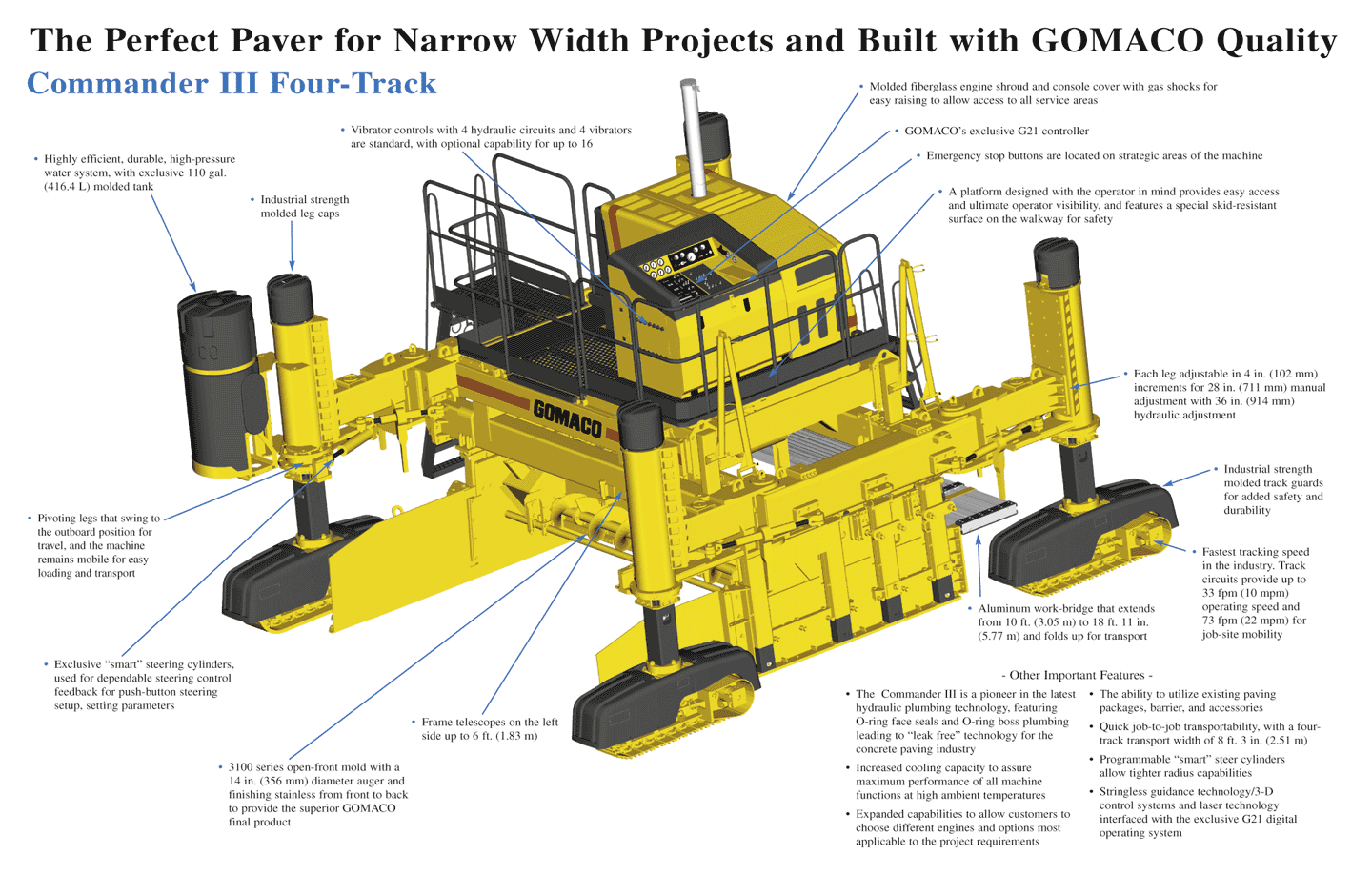

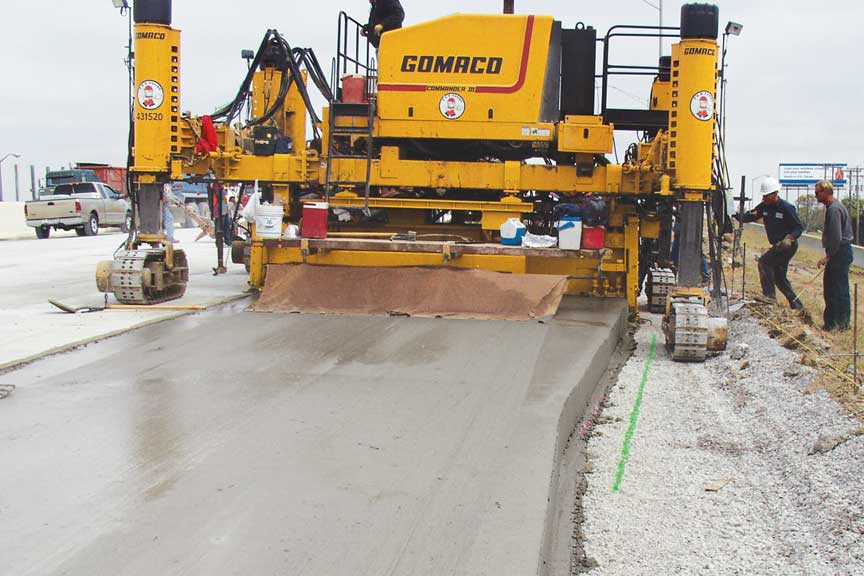

• The Commander III four-track is a revolutionary concrete paver for slipforming up to 20 ft. (6 m) wide, and the four-track framework is designed with built-in versatility.

• The four-track is chosen for its job-proven results throughout the world. Multi-application capabilities include primary and secondary roads, highways, city streets, ramps and approaches, parking lots, alleys, shoulders, golf cart paths, recreational trails, and more.

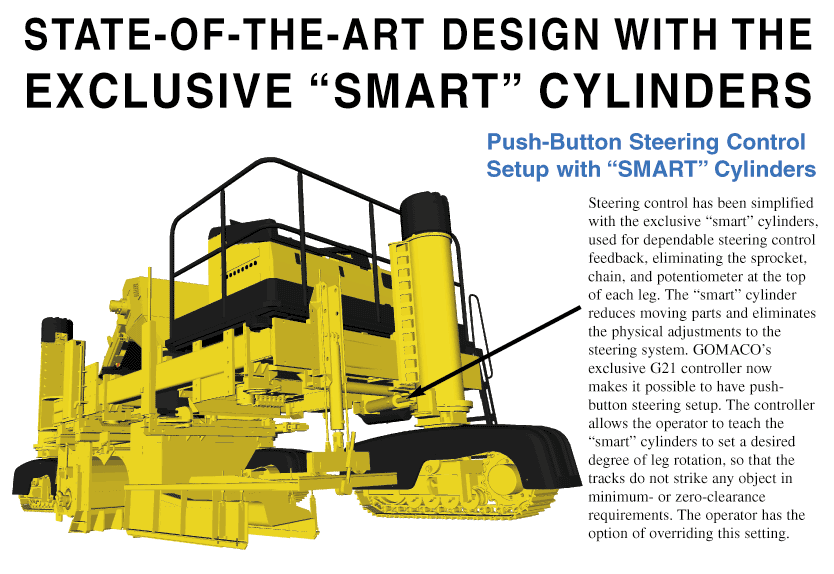

• The four-track features the exclusive G21/G22 digital operating system that is simple to operate and understand. The system features self-diagnostics for grade and steering, cross-slope, and push-button steering setup.

• Minimum-clearance paving is achieved by using the high-drive track(s) or by removing one rear track for zero-clearance projects.

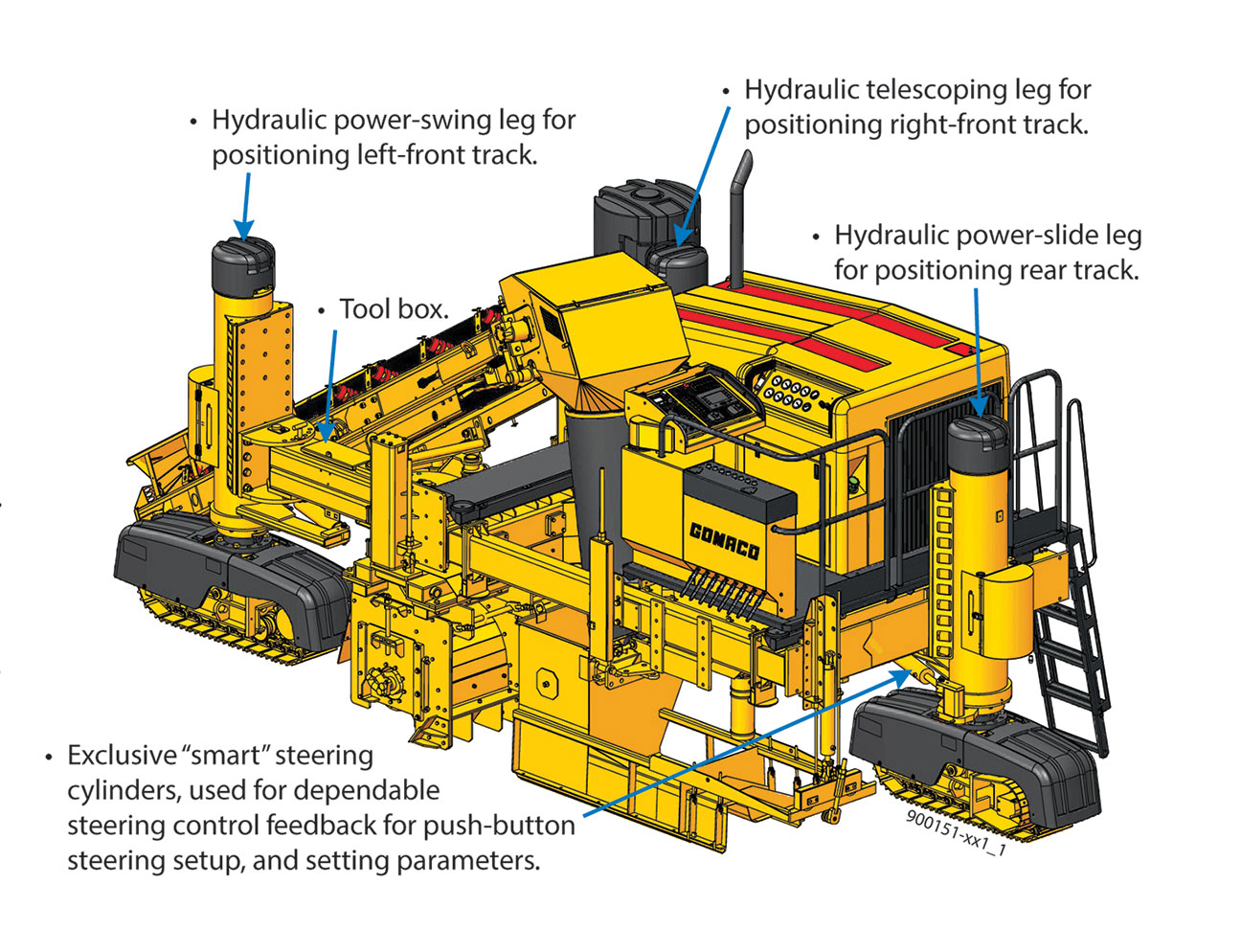

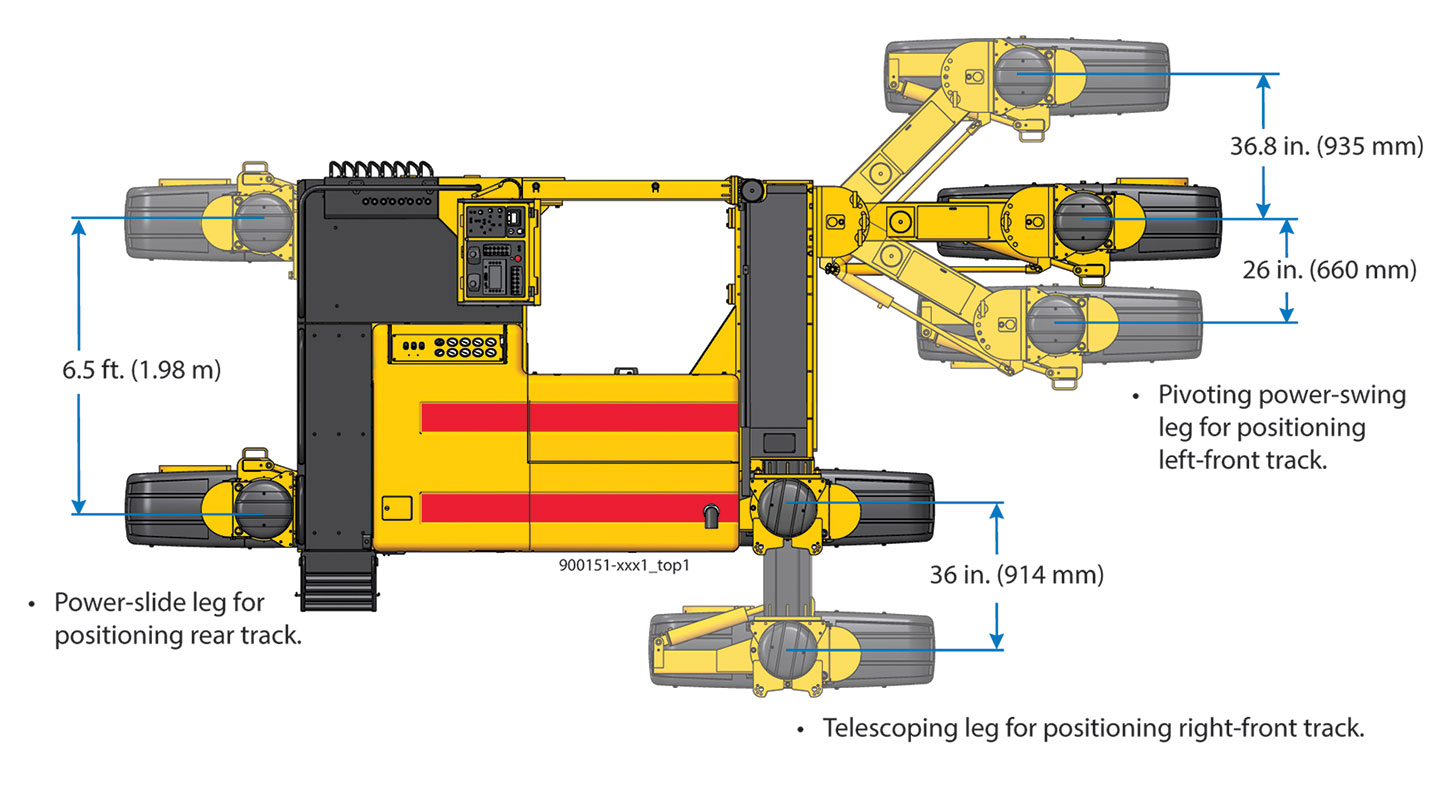

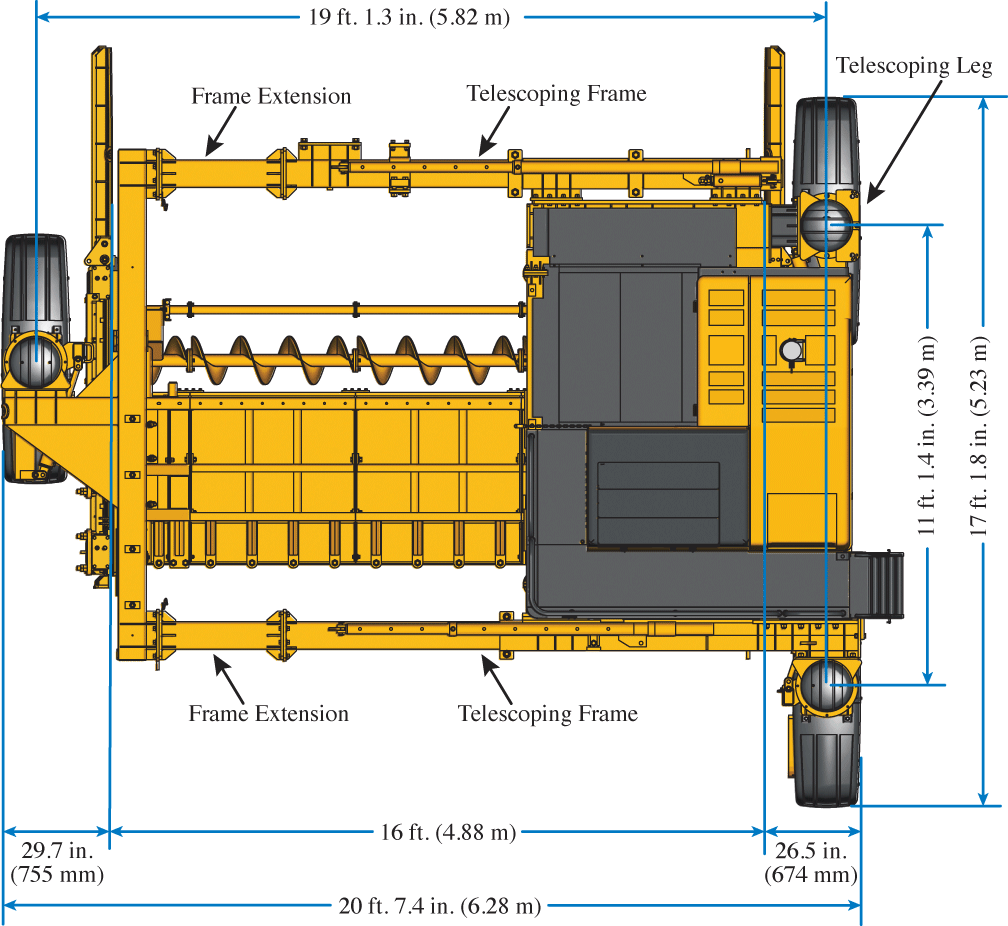

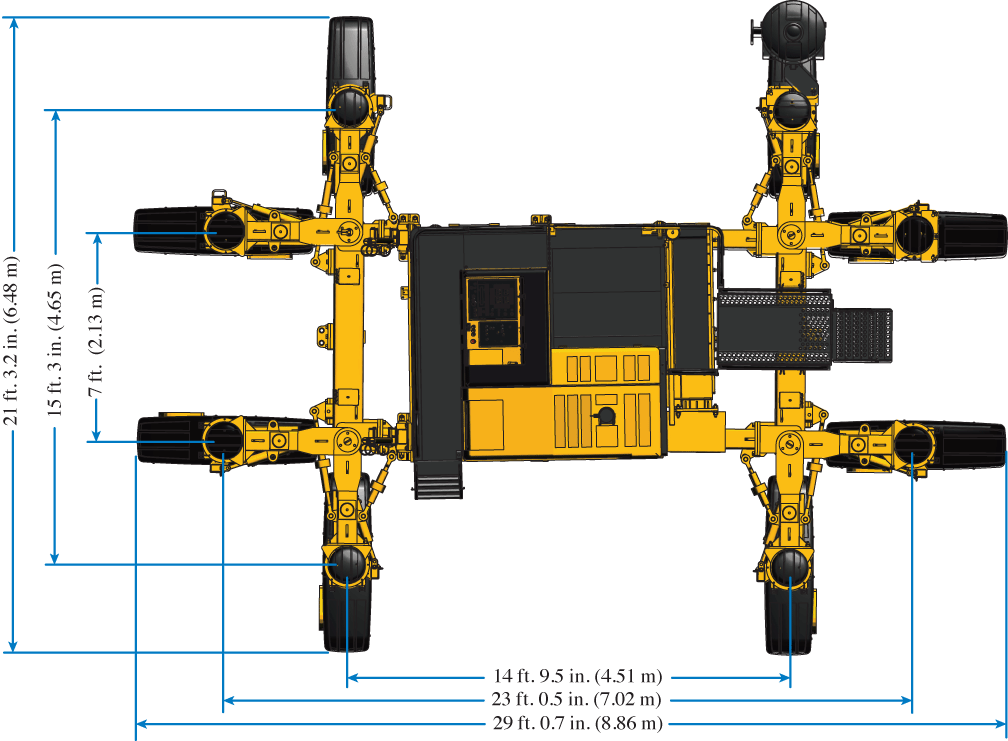

• The four-track machine features a frame that hydraulically telescopes on the left side up to 6 ft. (1.83 m). All four legs pivot so they can be positioned in different locations.

• Choosing the four-track design adds versatility with job-to-job mobility. Swinging the pivoting legs to the outboard position for travel, the machine remains mobile and easy loading is achieved with a minimum transport width of only 8 ft. 3 in. (2.51 m) and length of 29 ft. 0.7 in. (8.86 m).

The New GOMACO IDBI Attachment For The Commander III

	Video Clip: Commander III With IDBI (4.4 MB, 4 minutes long)
Windows Media Video (.wmv), requires Windows Media Player

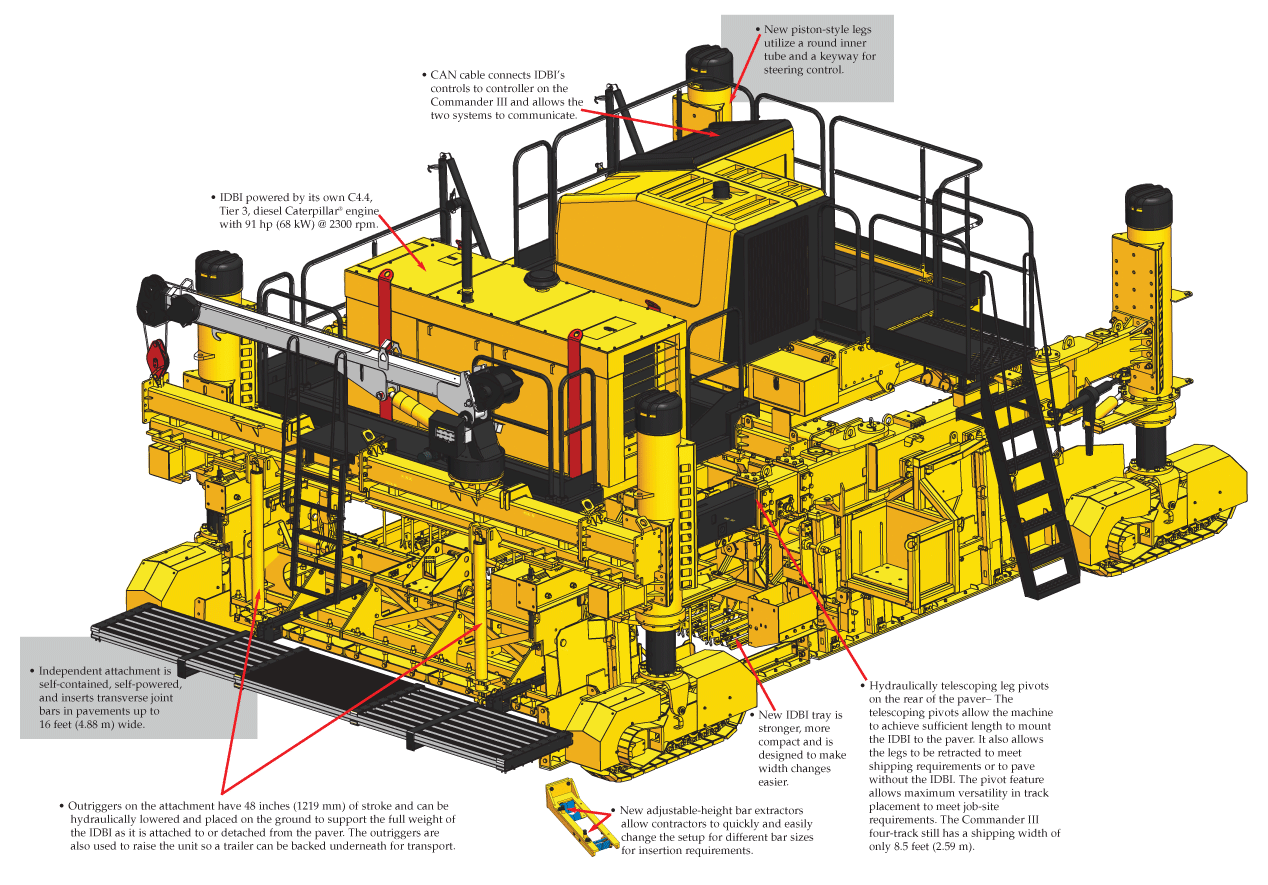

Introducing the new GOMACO IDBI attachment... an independent unit providing dowel bar insertion behind the paver –

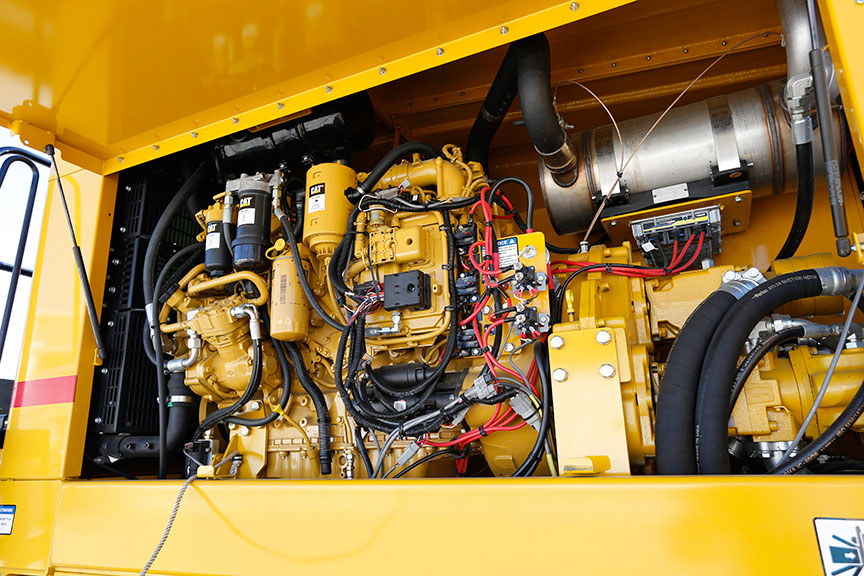

• IDBI powered by its own C4.4, Tier 3, diesel Caterpillar® engine with 91 hp (68 kW) @ 2300 rpm.

• Independent attachment is self-contained, self-powered, and inserts transverse joint bars in pavements up to 16 feet (4.88 m) wide.

• Outriggers on the attachment have 48 inches (1219 mm) of stroke and can be hydraulically lowered and placed on the ground to support the full weight of the IDBI as it is attached to or detached from the paver. The outriggers are also used to raise the unit so a trailer can be backed underneath for transport.

• CAN cable connects IDBI’s controls to controller on the Commander III and allows the two systems to communicate.

• New adjustable-height bar extractors allow contractors to quickly and easily change the setup for different bar sizes for insertion requirements.

• New IDBI tray is stronger, more compact and is designed to make width changes easier.

• Hydraulically telescoping leg pivots on the rear of the paver– The telescoping pivots allow the machine to achieve sufficient length to mount the IDBI to the paver. It also allows the legs to be retracted to meet shipping requirements or to pave without the IDBI. The pivot feature allows maximum versatility in track placement to meet job-site requirements. The Commander III four-track still has a shipping width of only 8.5 feet (2.59 m).

• New piston-style legs utilize a round inner tube and a keyway for steering control.

-- Click Here For More Information On The IDBI For Commander III --

GOMACO’s V2 Dual Mold System Provides Quick Width Changes

The versatile GOMACO V2 is an optional dual mold system that is hydraulically adjustable for paving at different widths. The V2 makes width changes fast and simple and will even make on-the-go width changes for tapered slabs.

The configuration of the front and rear molds dictates the minimum and maximum paving widths and the amount of total width variation. It features separate mold control for the left and right side.

It is also available with a curb profile on one or both sides for municipal paving.

The V2 sectionalized mold system includes a spreader-plow with hydraulic vertical movement to control the head of concrete in front of the mold. The plow telescopes with the machine framework to accommodate the width change.

The GOMACO V2 paving mold was developed to adapt to virtually any paver operating in the field today.

A Commander With Two Molds Attached For Super Quick Changes

This contractor saves time on the project by side-mounting a 14 ft. (4.3 m) mold to their Commander III for minimum-clearance paving, while keeping their 16 ft. (4.9 m) paving mold and kit underneath the paver. When they’re ready for wider width work again, the side-mounted package is removed and the contractor slipforms in the conventional paving mode.

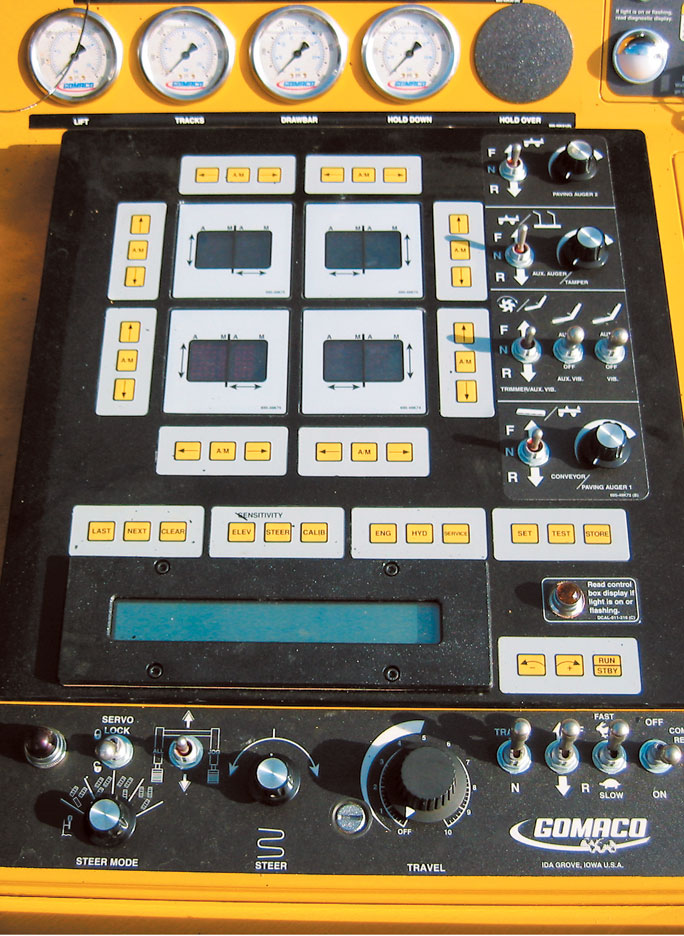

GOMACO’s Proprietary Digital Operating Systems

The Digital Power of GOMACO’s Exclusive G21 Operating System

G21 is GOMACO’s award-winning, proprietary software and control system. GOMACO was recognized for its commitment of resources to the development of this revolutionary software and operating system that combines intelligence with simplicity for GOMACO construction equipment. It is one of the few operating systems awarded a Top 100 Award from Construction Equipment magazine and a Top Innovations Award from Equipment World magazine. The G21 operating system is exclusive to GOMACO.

G22 – The World’s First Full Color, Full Text, Dual Language Paver Control

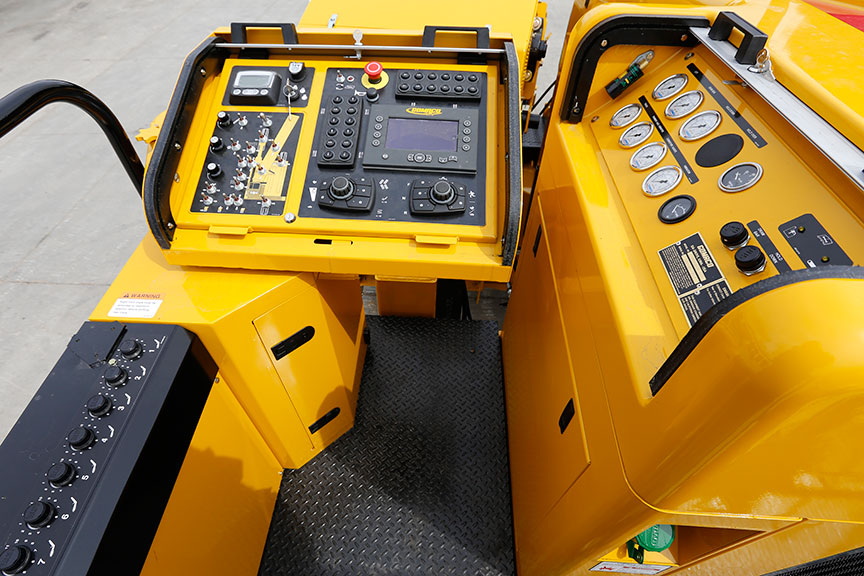

The G22 is a digital control system and graphical display that provides easy to understand icons and dual language commands. The GOMACO G22 is a revolutionary proprietary software and operating system that combines intelligence with simplicity for GOMACO construction equipment. The information is presented in full color, commands are presented in full text and this system can contain two languages for operation.

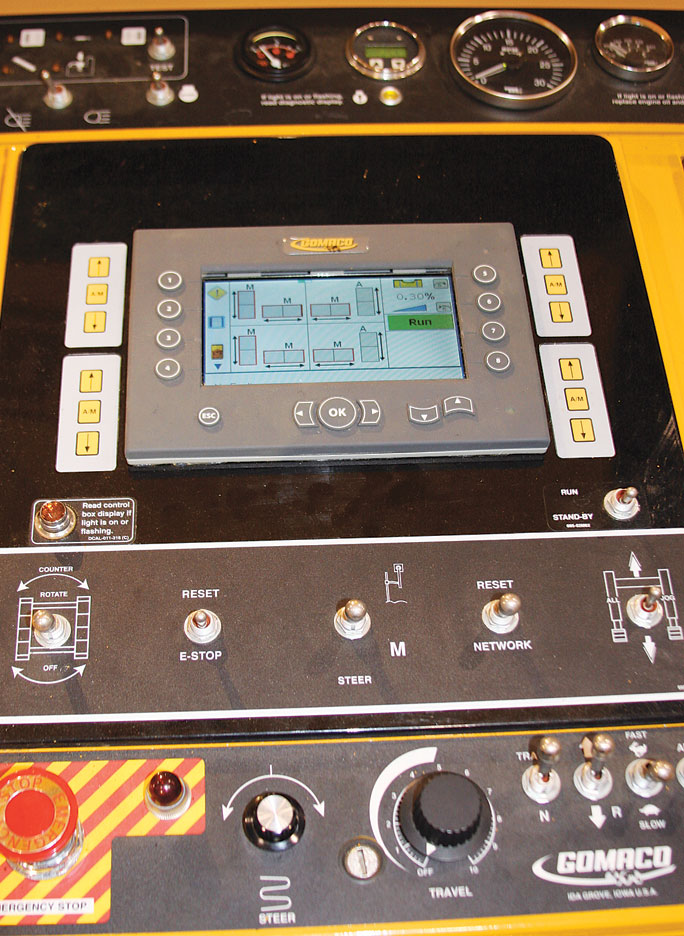

The G22 features a 6.5 inch (165 mm) anti-glare display screen with sensor-controlled backlight levels. It provides superior visibility under all operating conditions. Its rugged, shock resistant construction protects it against dust, moisture and other outdoor elements. The high-brightness, color graphics and 14 function buttons provide the ultimate user-friendly operator experience.

Fast Tracking Speed - Saves Time and Money

Fast Job-Site Mobility

High-Production Slipforming

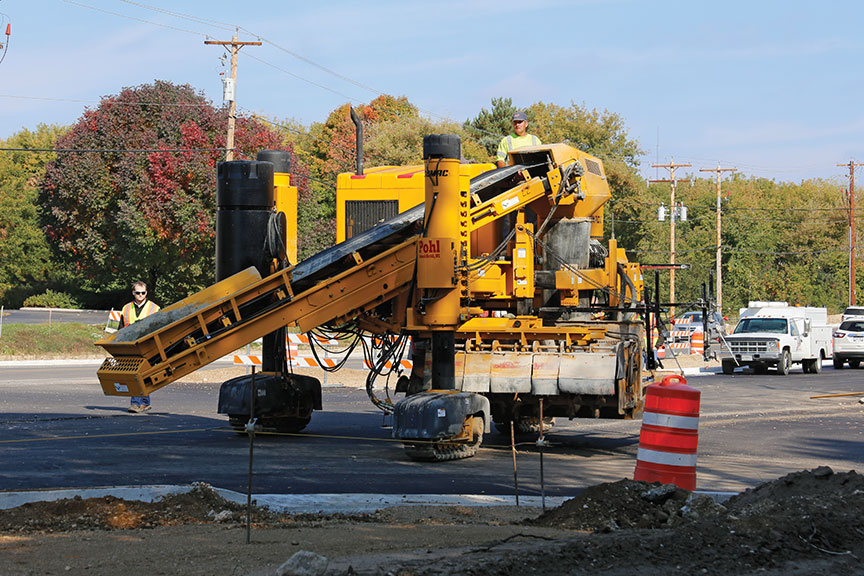

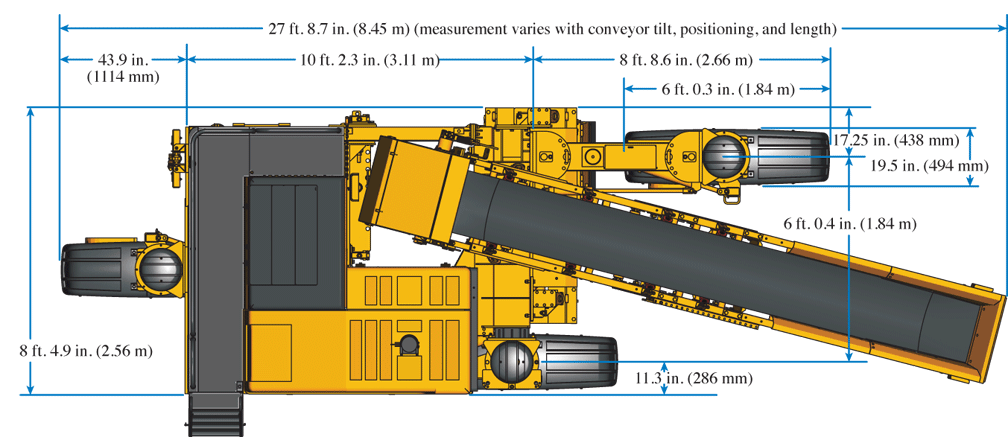

The track circuits on the three-track machine provide up to 49 fpm (15 mpm) operating speed for high-production paving and 125 fpm (38 mpm) travel speed, allowing quick and easy job-site mobility. The four-track Commander III has an operating speed of 37 fpm (11 mpm) and auxiliary up to 94 fpm (29 mpm).

GOMACO’s Simultaneous Trimming and Pouring Design

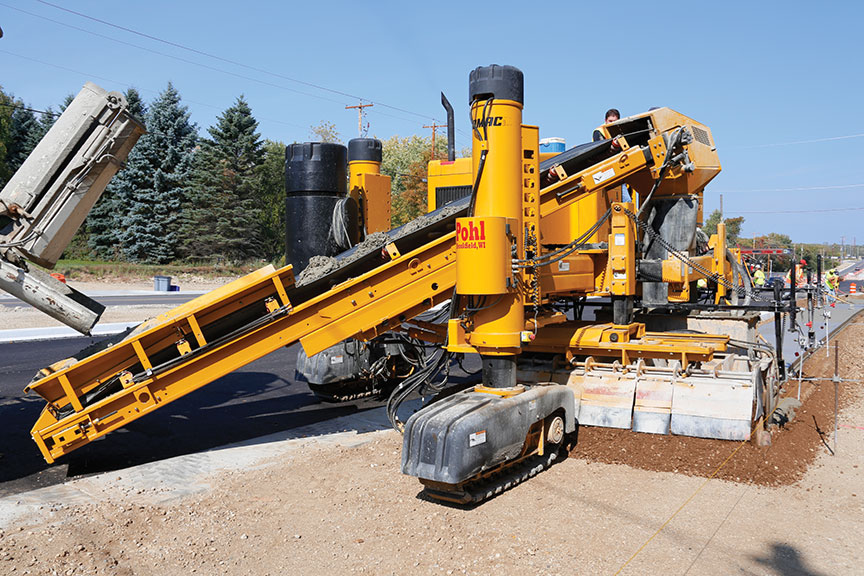

GOMACO’s trim/pour design assures maximum concrete yield. The Commander III is equipped with a 42 in. (1067 mm) wide sectionalized trimmerhead. Extensions are available on the unique sectionalized trimmerhead for trimming up to 10 ft. (3.05 m) wide. This means more production because the trimmer cuts only as wide as necessary and eliminates unnecessary backfill behind the pour. The trimmerhead has 36 in. (914 mm) hydraulic sideshift, 18 in. (457 mm) of hydraulic vertical adjustment and an extra 6 in. (152 mm) of manual vertical adjustment.

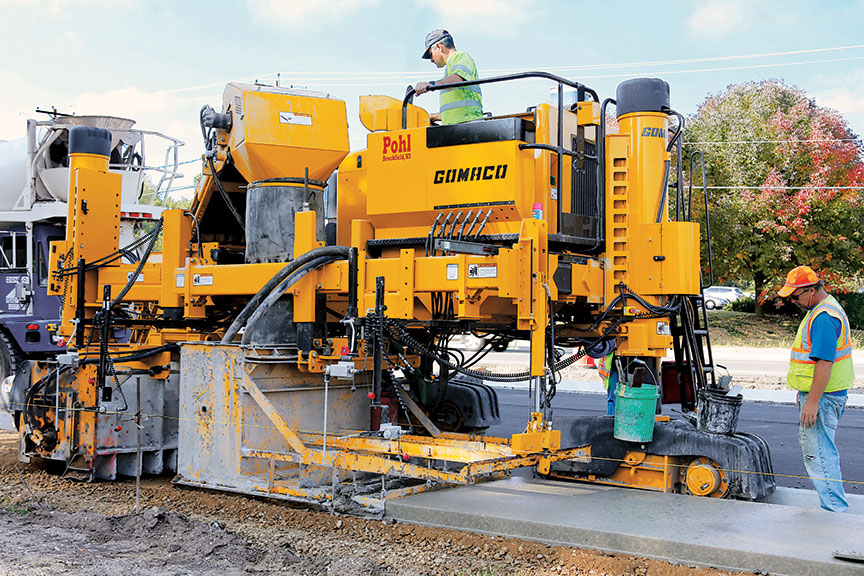

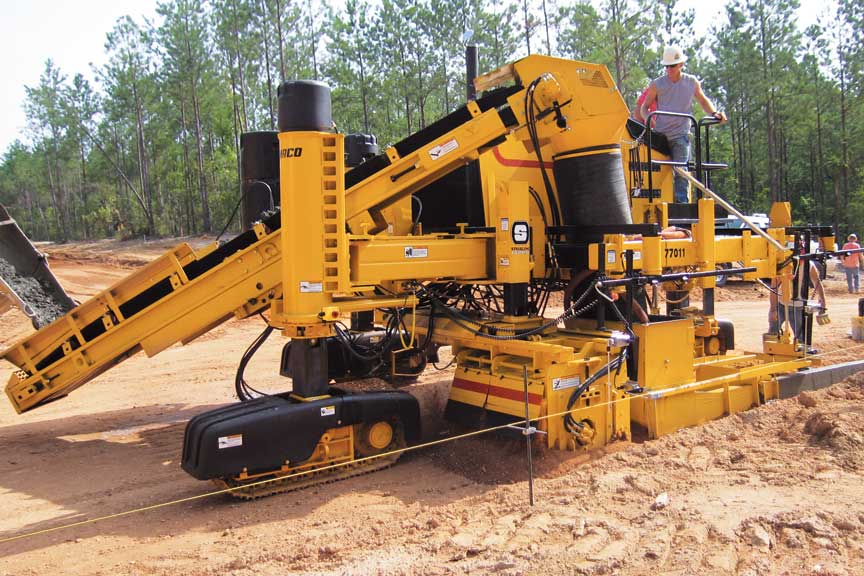

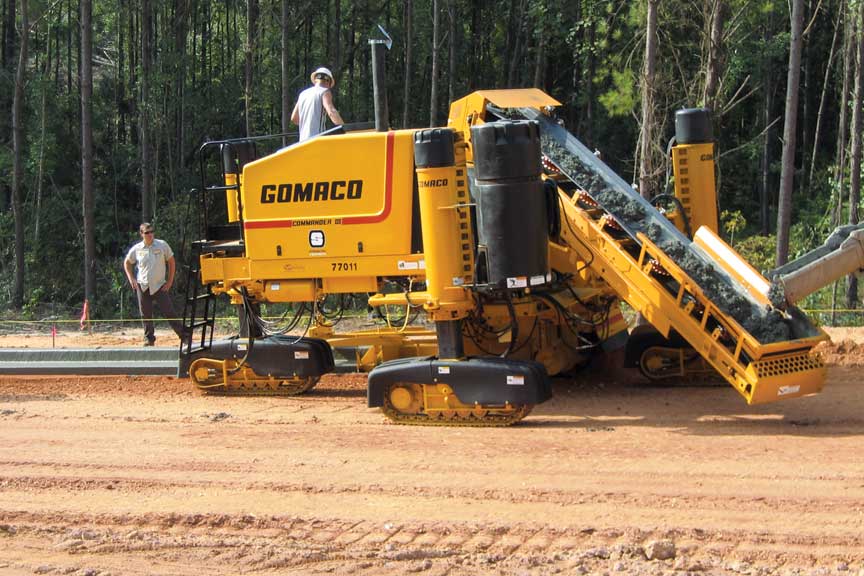

Fast Concrete Loading Provides Increased Production

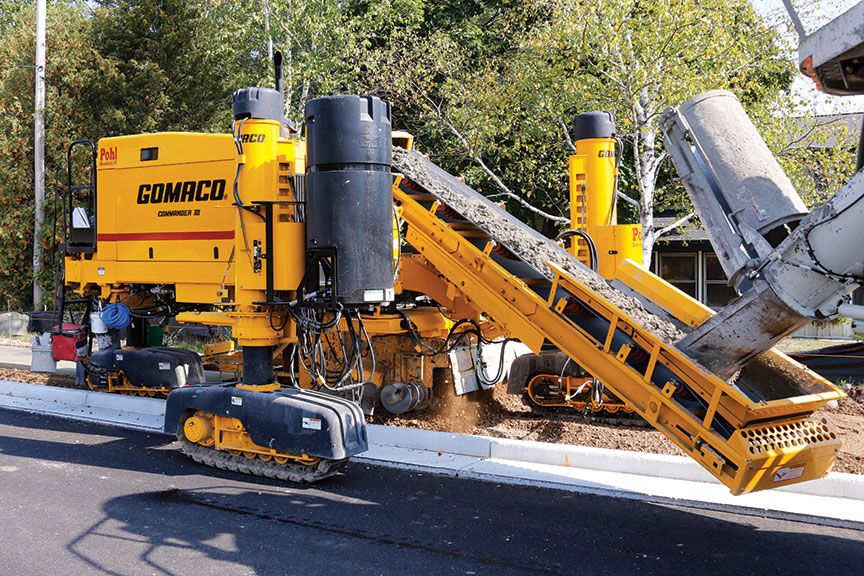

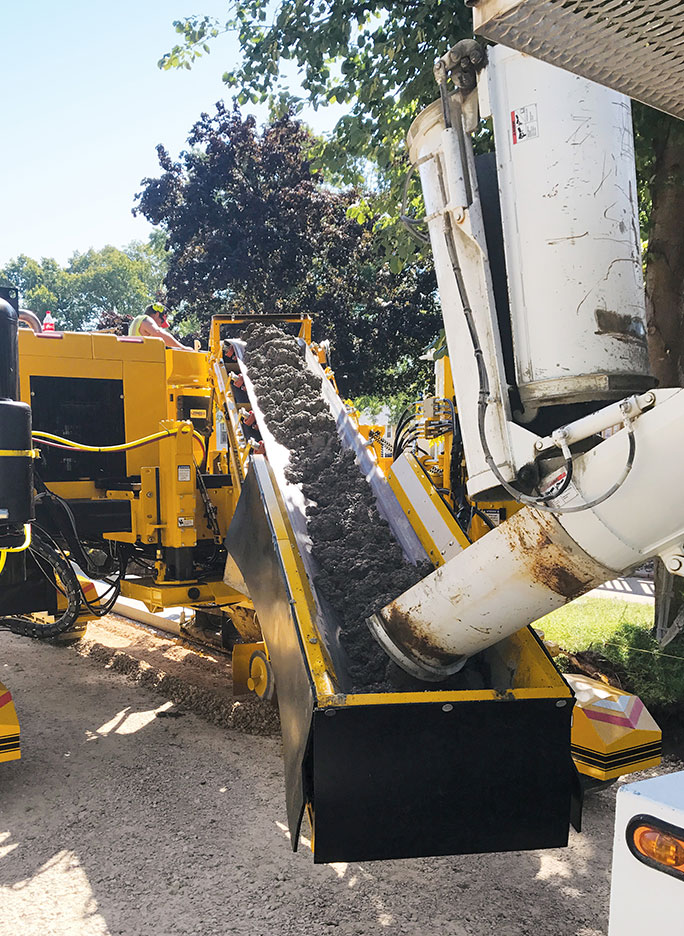

The charging conveyor on the Commander III provides fast concrete loading, which increases production. The conveyor is hydraulically powered and reversible. The charging conveyor is 24 in. (610 mm) wide and 17 ft. 1 in. (5.21 m) long between pulley centers. The belt speed is variable up to 320 fpm (97.54 mpm). The four-way pivoting conveyor mount provides hydraulic positioning (slide and tilt) for negotiating discharge from the ready-mix trucks and grade variations. The belt wiper features segmented blades mounted on individual cushions. This allows the cleaning tips to conform to the center of the belt for continuous contact without the need for constant adjustment.

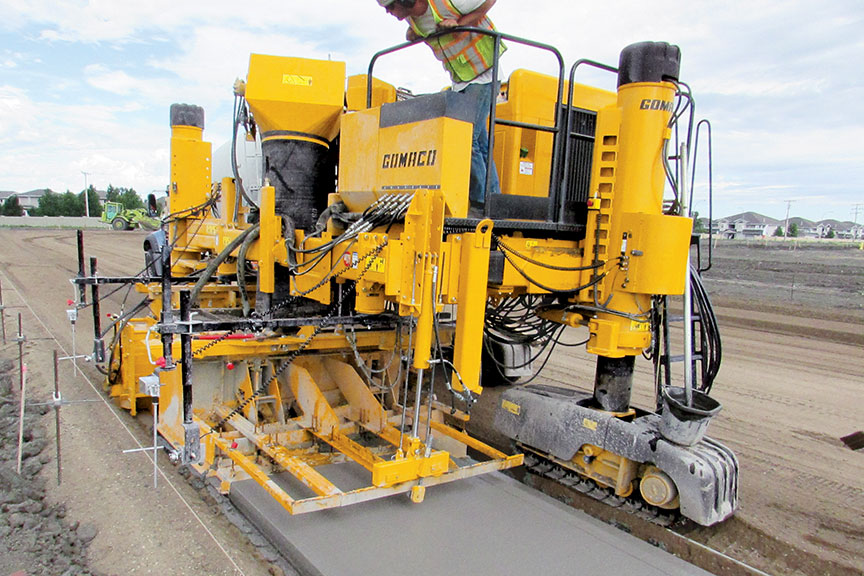

Wide Variety of Stringline, Clamps, Rods and Sensor Line Accessories Available

GOMACO has a wide variety of stringline, clamps, rods, and sensor line accessories.

GOMACO sensor line is designed specifically for electronically controlled equipment. Sensor line and sensors provide the grade and steering information linked to the GOMACO operating system, located on the operator panel. The GOMACO electronic-over-hydraulic sensor system provides intelligent control of grade and steering for paving accuracy, and ease of operation.

Stringline stakes are made of high carbon steel, designed for a long life. Stakes are available in various lengths, ranging from 18 in. (457 mm) to 5 ft. (1.52 m). The stringline stakes range in diameter from 0.75 in. (19 mm) to 0.875 in. (22 mm).

One-piece and quick-set spring-action zinc-plated clamps are available.

The stringline zinc-plated, slotted rods are 18 in. (457 mm) in length and will accommodate a 0.125 in. (3 mm) diameter stringline.

GOMACO has many other sensor line accessories to choose from.

Sideshifting and Vertical-Lifting Trimmerhead, Mold and Hold-Down

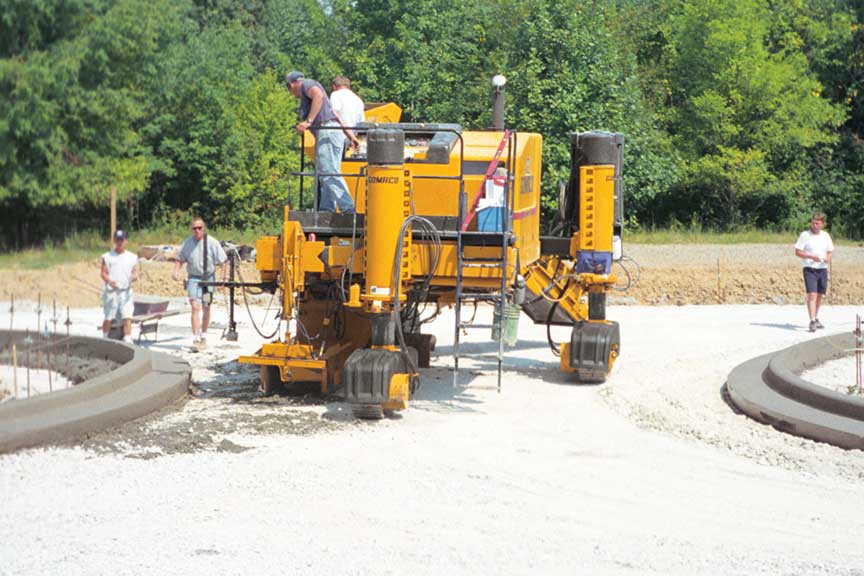

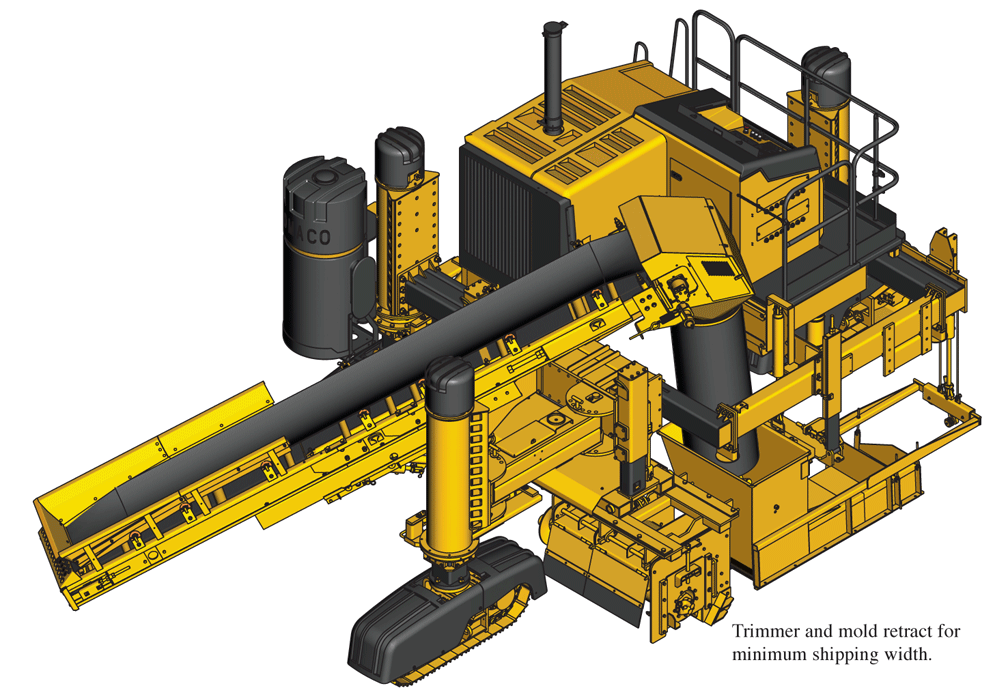

The Commander III features the sideshifting and vertical-lifting trimmerhead, mold drawbar and hold-down assembly. The mounts on the Commander III provide up to 36 in. (914 mm) hydraulic sideshift, 18 in. (457 mm) of hydraulic vertical adjustment and 6 in. (152 mm) of manual vertical adjustment. This enables the trimmerhead and mold to be raised or shifted to clear obstacles. The versatility of the trimmer, mold, and the rolling hydraulic hold-down allows slope to be applied to the curb and gutter while the machine remains level, thereby retaining stability. The hold-down assembly, with limiting rods, allows compensated pressure to be applied to the rear of the mold to control uplifting. The mold is designed to allow for side-to-side movement for radius work.

Guillotine-Style and California-Style Curb Depressors Available for Driveways

Another feature on the Commander III is the optional hydraulically powered driveway blockouts, available for curb and gutter molds. This feature allows the Commander III to eliminate wasted material while slipforming through driveways.


Guillotine-style curb depressor	California-style curb depressor

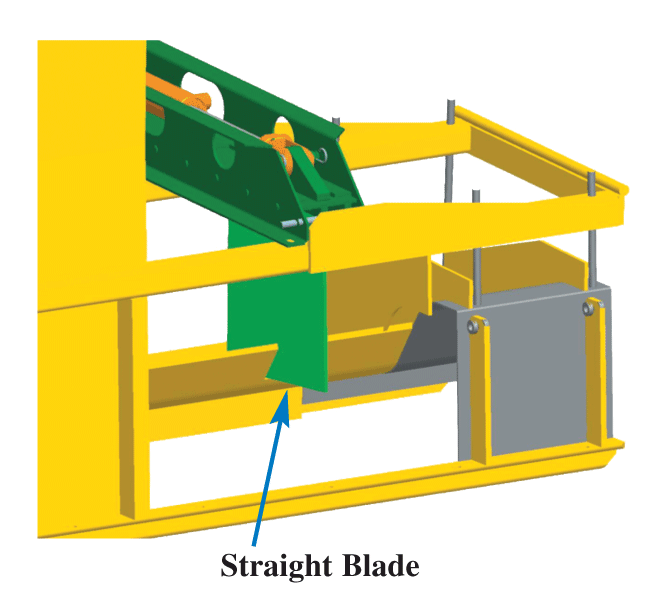

The Guillotine-style curb depressor is hydraulically powered. It has a straight blade that enters the face of the curb while slipforming through driveways. The depressor can be changed to other molds if molds are slotted and clamped to accept the driveway cutout.

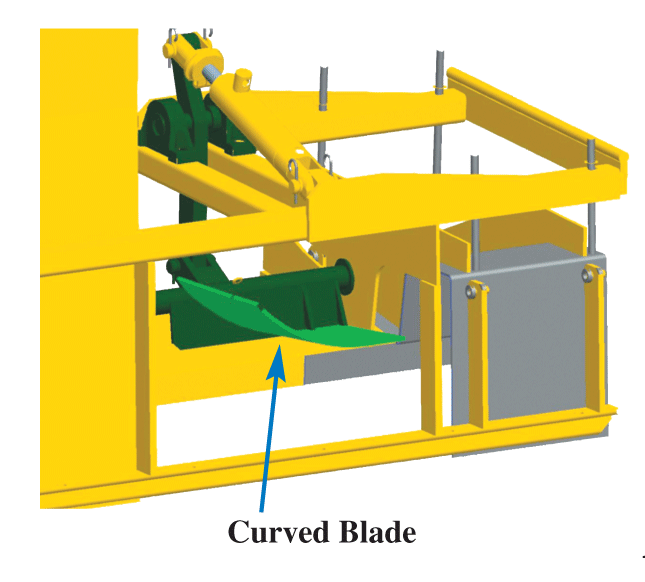

The California-style curb depressor is hydraulically powered. It has a curved blade that enters the face for use on curb and gutter molds while slipforming through driveways. The depressor graduates the curb in and out for the driveway, providing a smoother finish.

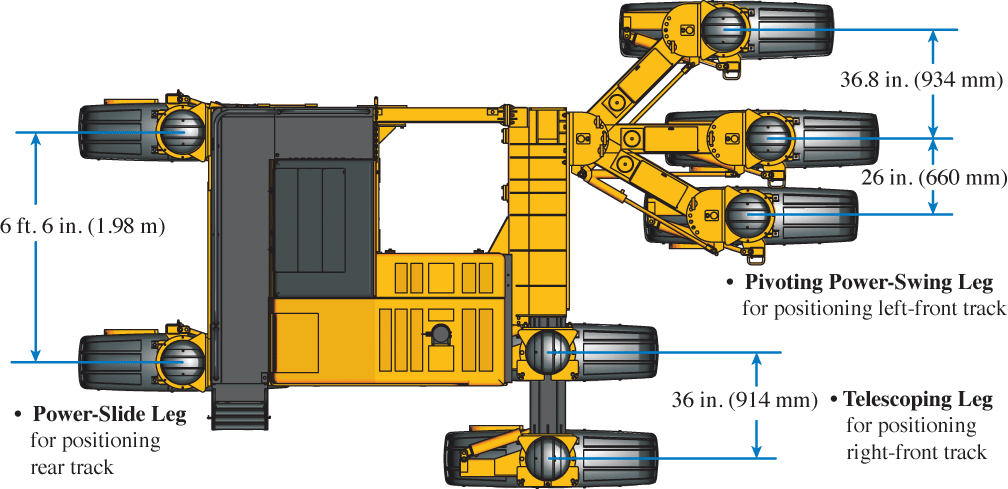

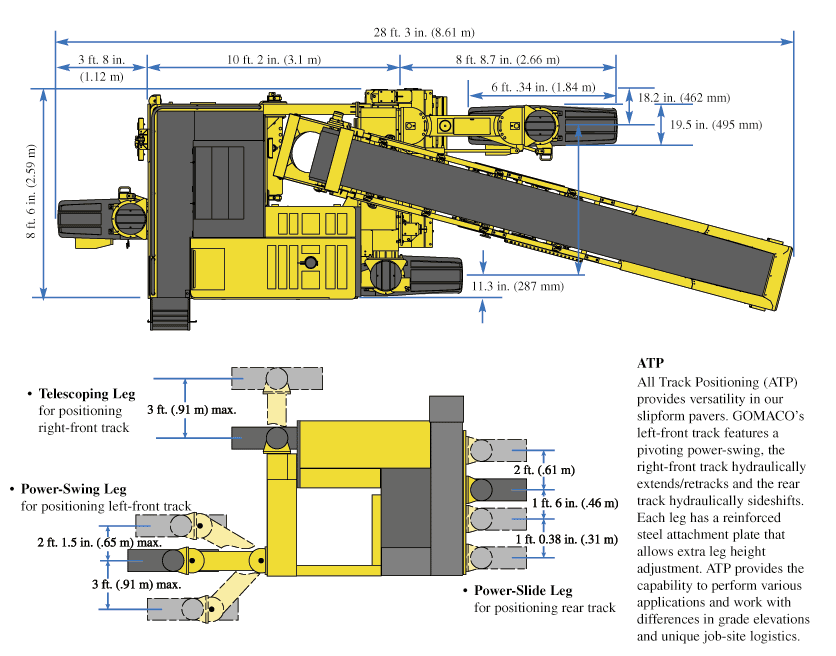

Advantages of All-Track Steering (ATS) and All-Track Positioning (ATP)

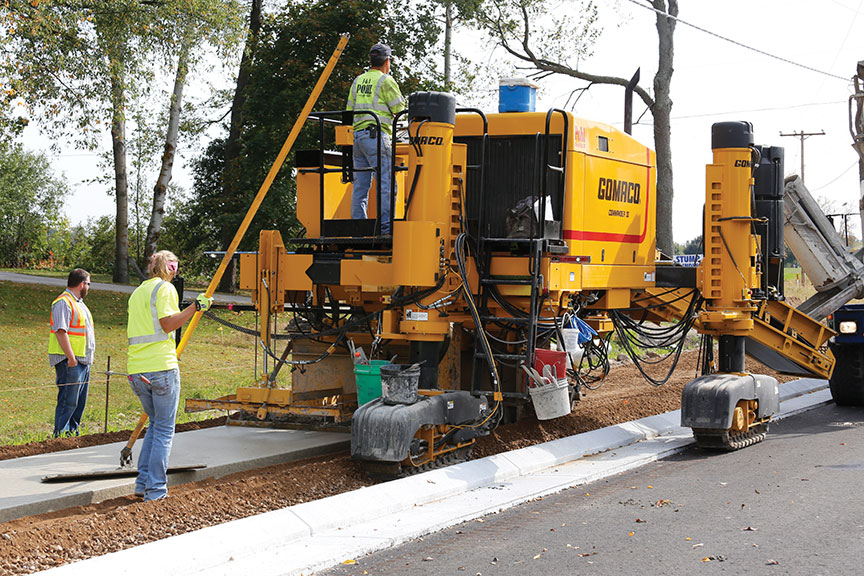

GOMACO Corporation sells more curb and gutter machines than anyone else in the world and we offer machines with all-track steer and machines with single-track steer. Your concrete paver is a machine that is making you money every minute you have concrete coming out of the mold and All-Track Steering and All-Track Positioning have definite advantages that you will want to consider in your purchasing selection process.

Click here to read more about All-Track Steering (ATS) and All-Track Positioning (ATP).

Three-Track and Four-Track Barrier and Parapet Provide Versatility

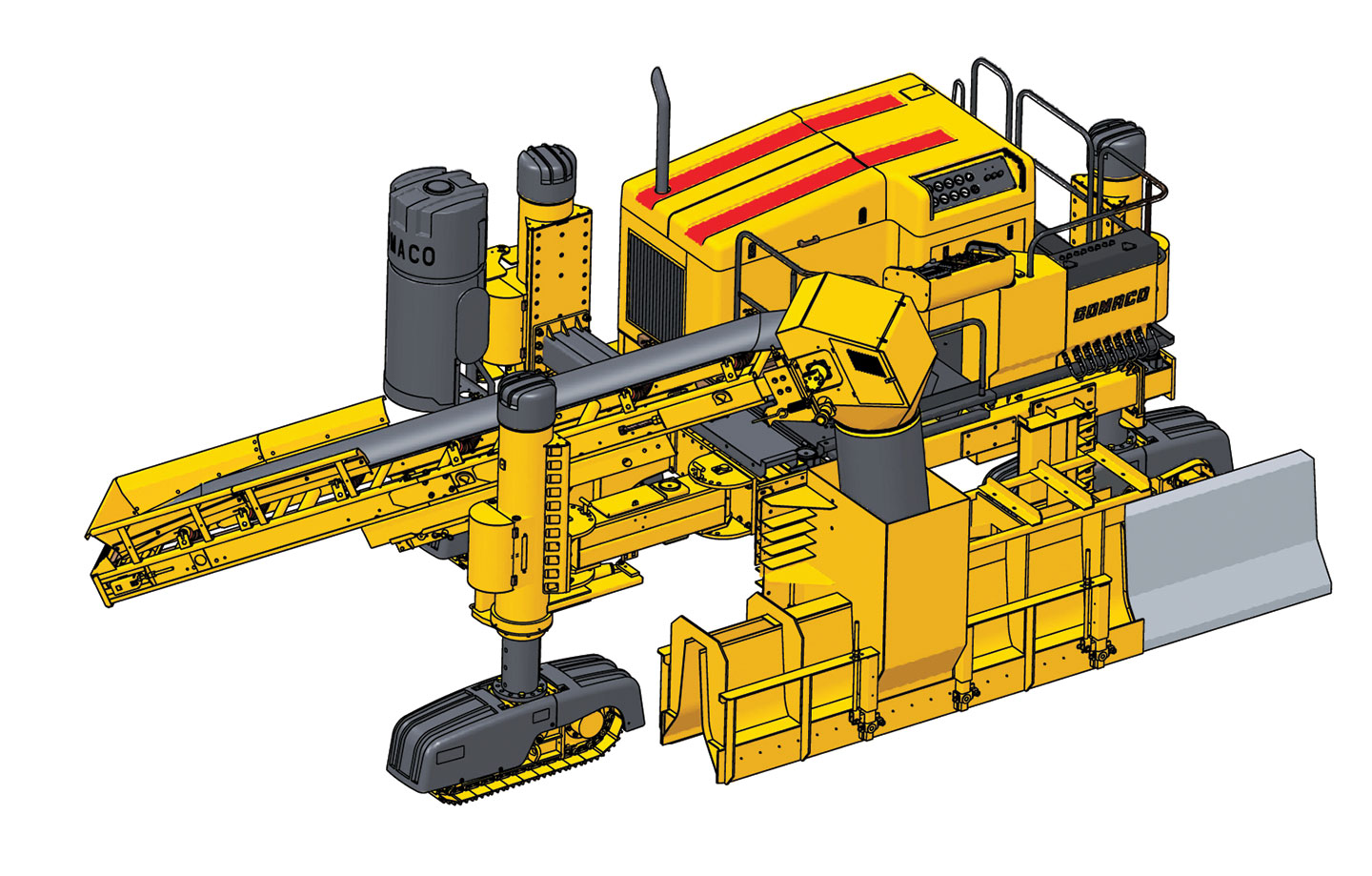

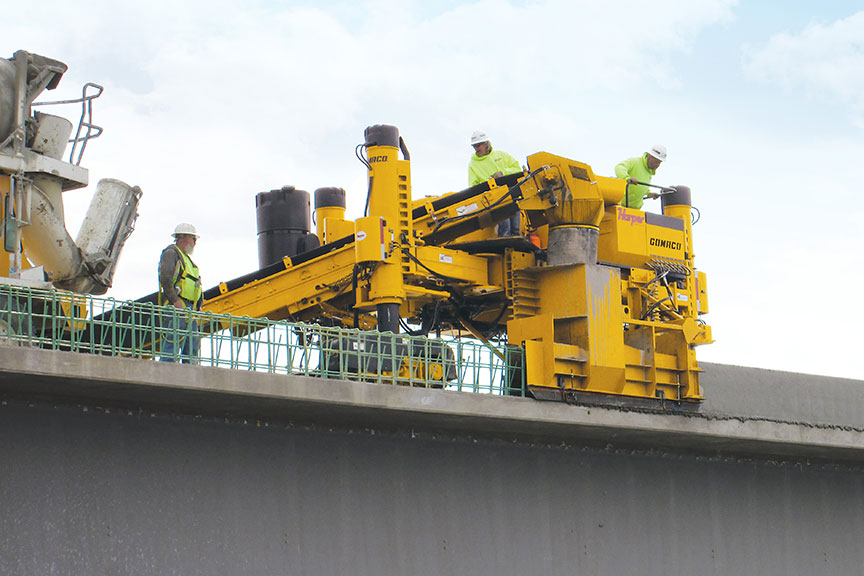

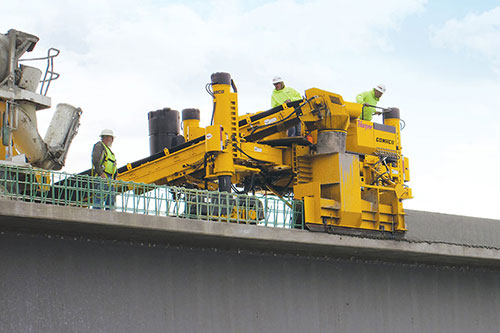

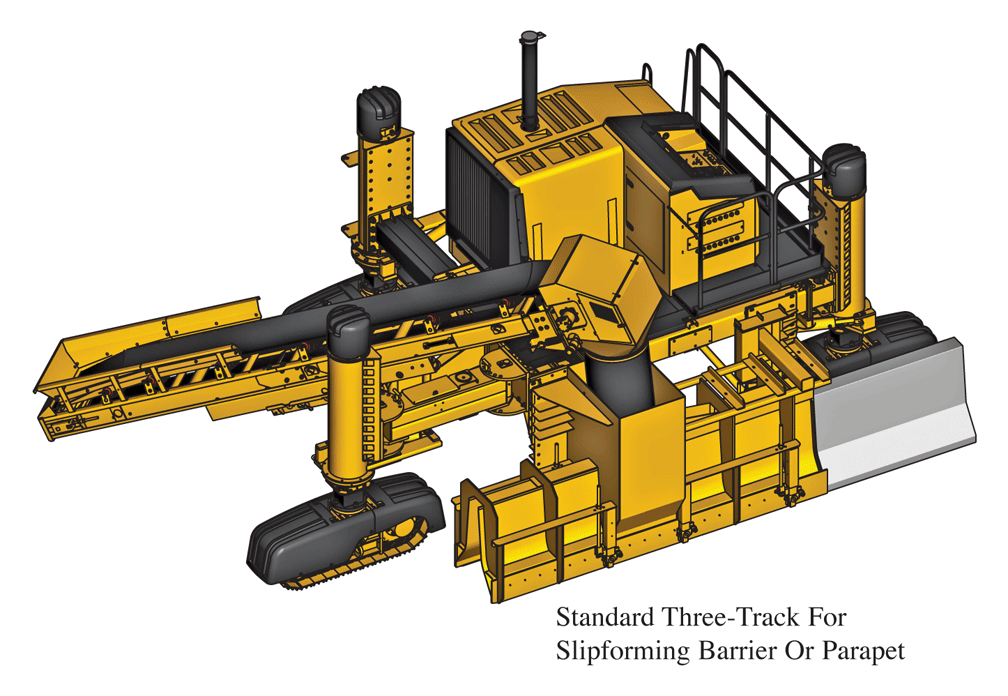

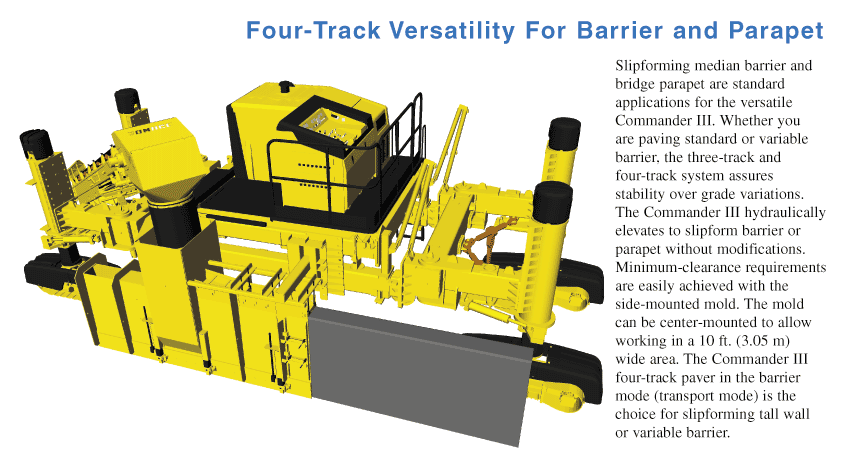

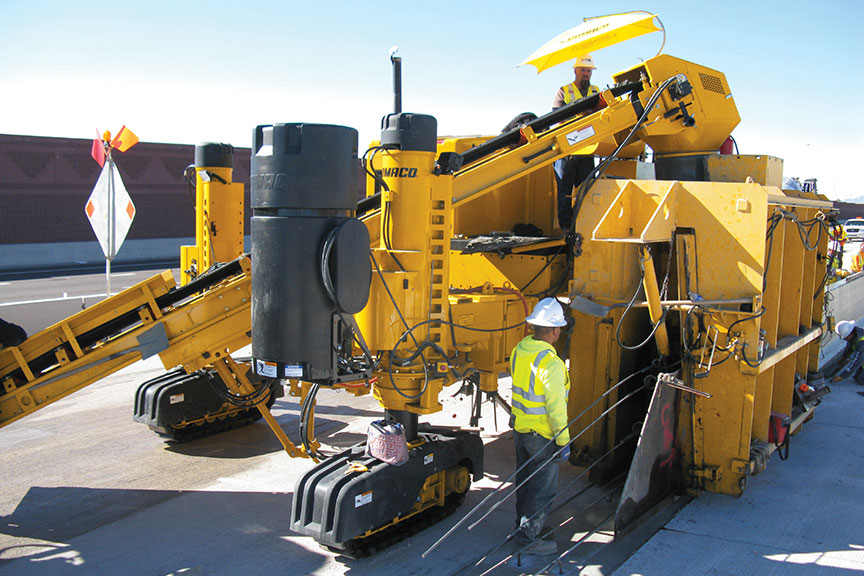

Slipforming median barrier and bridge parapet are standard applications for the versatile GOMACO Commander III. Whether you are paving standard or variable barrier, the three-track and four-track system assures stability over grade variations. The Commander III will slipform barrier or parapet without modifications. Minimum-clearance requirements are easily achieved with the side-mounted mold. The mold can be center-mounted to allow working in a 10 ft. (3.05 m) wide area. The Commander III four-track paver in the barrier mode (transport mode) is the choice for slipforming tall wall or variable barrier.

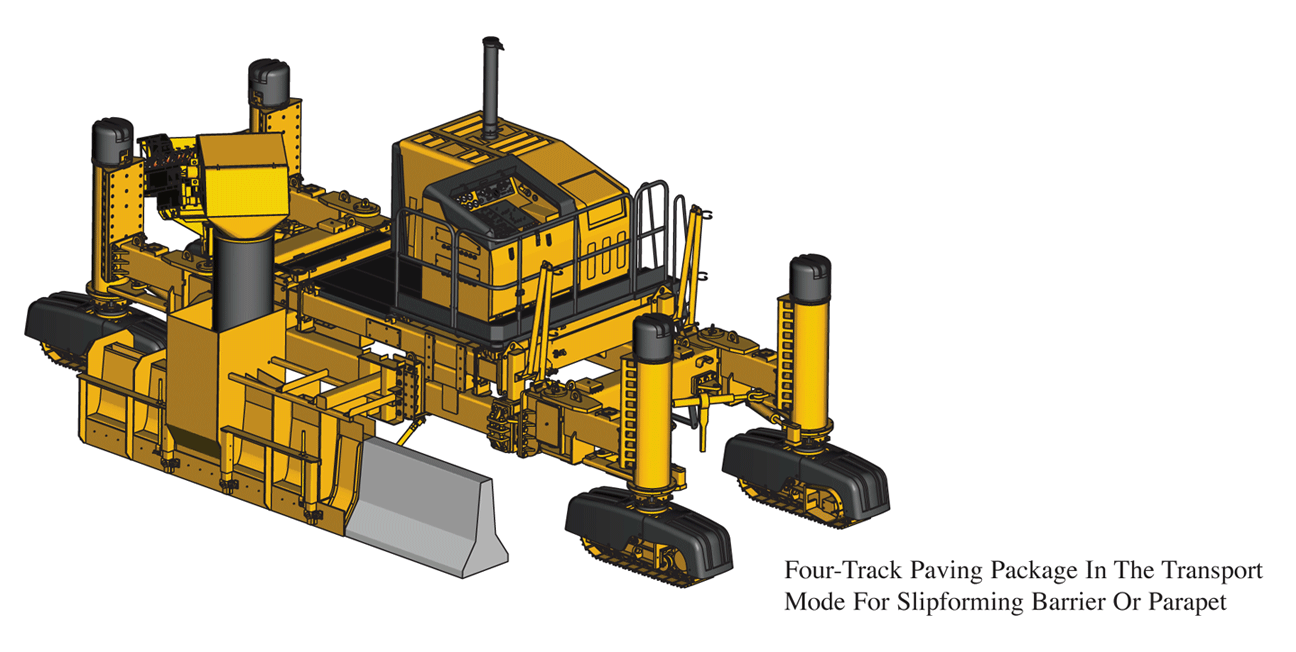

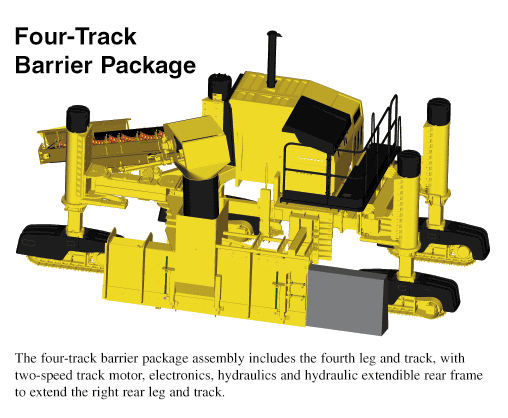

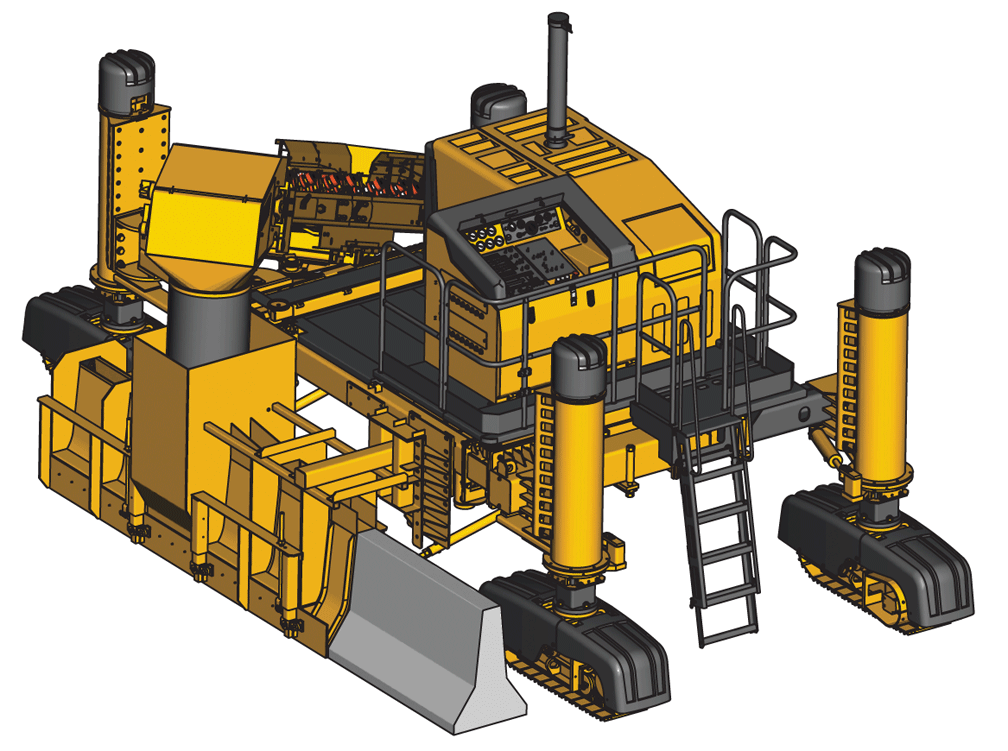

Four-Track Barrier Package

The four-track barrier package assembly includes the fourth leg and track and a hydraulically extendible rear frame to extend the right rear leg and track.

Stringless Barrier

A total station tracks the progress of a Commander III on a barrier wall project in Belgium. The project was slipformed with the Leica 3-D stringless guidance system.

Concrete Can Be Imprinted...

A unique, four-track, under-mounted barrier package is available for most types of barrier applications. The Commander III four-track with the under-mounted barrier is imprinting a stone pattern on the extruded wall.

A roller mounted to the back of the four-track Commander III imprints a cobblestone pattern on the flat surface of the concrete on this project in Florida.

Paving Packages Add Versatility To Three-Track Commander

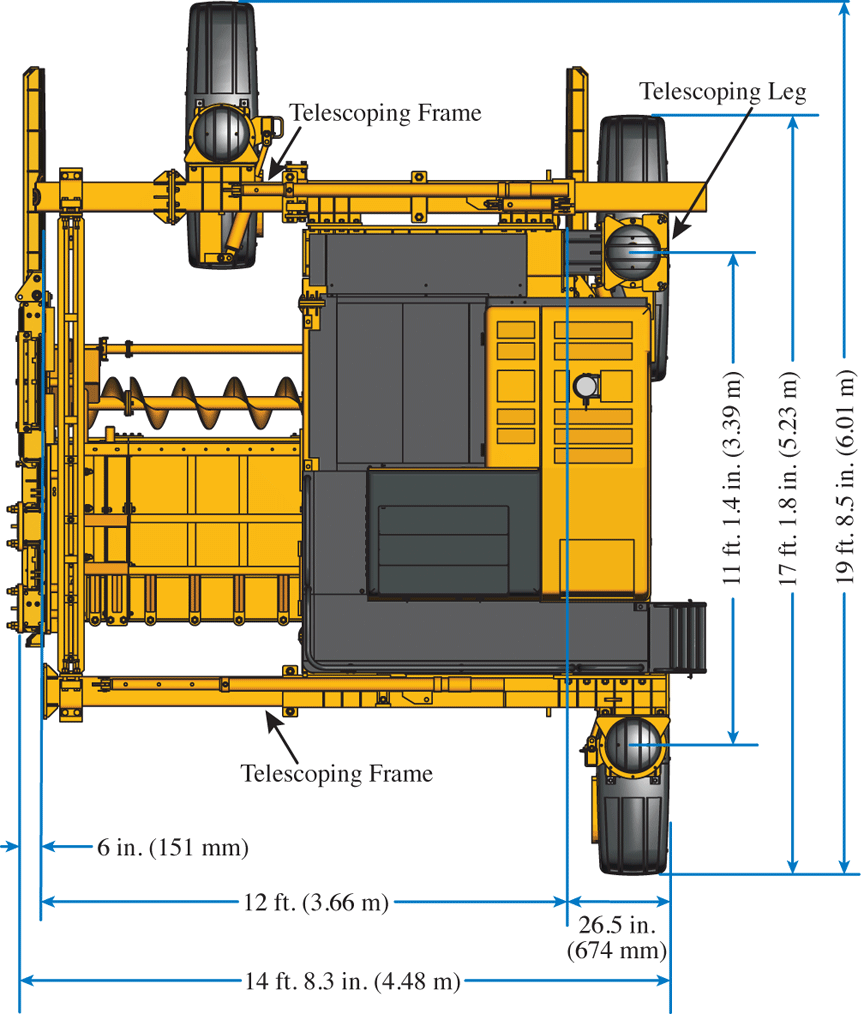

The Commander III, in the three-track mode, equipped with the versatile 12 ft. (3.66 m) paving package, will handle paving widths from 7 ft. to 12 ft. (2 m to 3.66 m) with minimum side clearance. The 16 ft. (5 m) paving package can accommodate widths from 7 ft. to 16 ft. (2 m to 5 m). The 16 ft. (5 m) paving assembly includes frame extensions for 12 ft. (3.66 m), 14 ft. (4.27 m) and 16 ft. (5 m) wide pours, and a left leg mount. GOMACO paving packages are an easy bolt-on attachment without major structural modifications required. The paving package kit also includes additional vibrator circuits, valves, switches and hydraulics to change from the standard machine to paving package set-up. Whether you choose the 12 ft. (3.66 m) or 16 ft. (5 m) paving package option, you can be assured it will fit all of your wider width slipform paving applications.

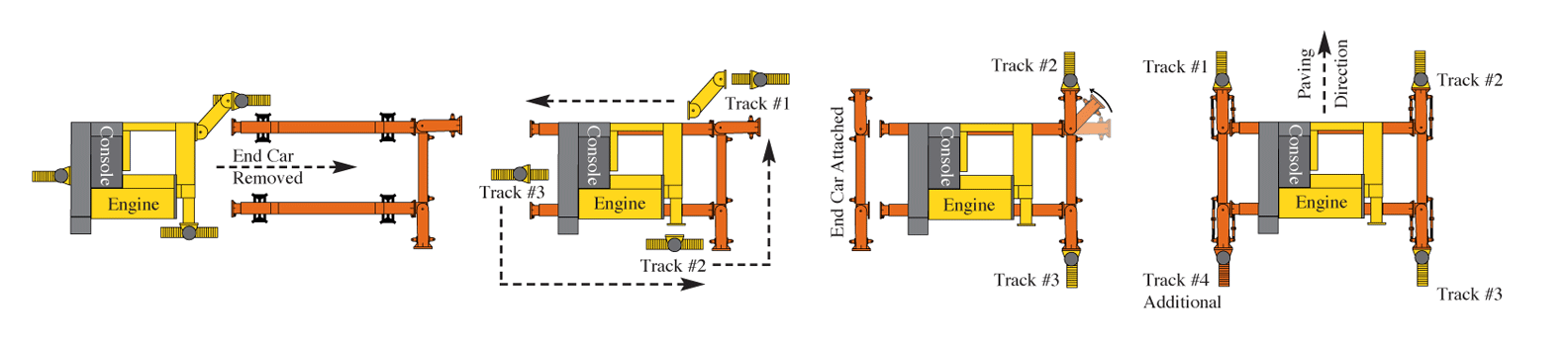

Three-Track Commander Transforms to a Four-Track Paver

The three-track Commander prime mover drives over the supported four-track frame. The left end car has been removed from the frame to allow the rear leg of the Commander to move through the framework.

The Commander is attached to the four-track frame. The pivoting left front mount is removed. The three-track assemblies (leg and track) are utilized for the four-track paving mode. The left front track assembly (Track #1) on the Commander is positioned as the left front on the four-track frame. The right front track assembly (Track #2) on the Commander is positioned as the right front on the four-track frame. The rear track assembly (Track #3) on the Commander is positioned as the right rear on the four-track frame. Location of the steering cylinder on each track assembly dictates its positioning in the transformation.

The end car on the four-track frame is attached, and the left front track assembly from the Commander is attached. The additional fourth track assembly is attached to the left rear of the frame. The four-track paver drives over the paving mold for quick attachment.

High-Drive Tracks For Tight-Clearance Paving

GOMACO’s optional high-drive tracks are ideal for minimum-clearance situations that sometimes exist when adding lanes to ramps and highways or replacing streets in residential areas. The 11 in. (279 mm) wide track has a clearance height of 21.85 in. (555 mm) to the bottom of the track motor. The height of the motor allows clearance on the slab side of the track.

GOMACO Auto-Float®

The GOMACO Auto-Float is available as an attachment for the four-track Commander III and all GOMACO slipform pavers. It is designed to automatically seal the concrete surface during the paving operation.

Click the graphic to the right for additional information.

GOMACO’S Selective Steer Controls

featuring steering choices for job-site mobility and transportability

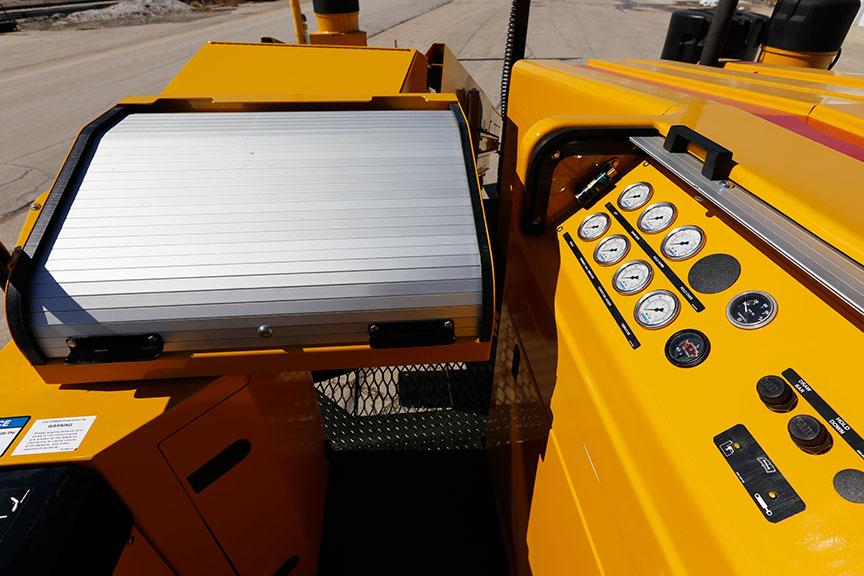

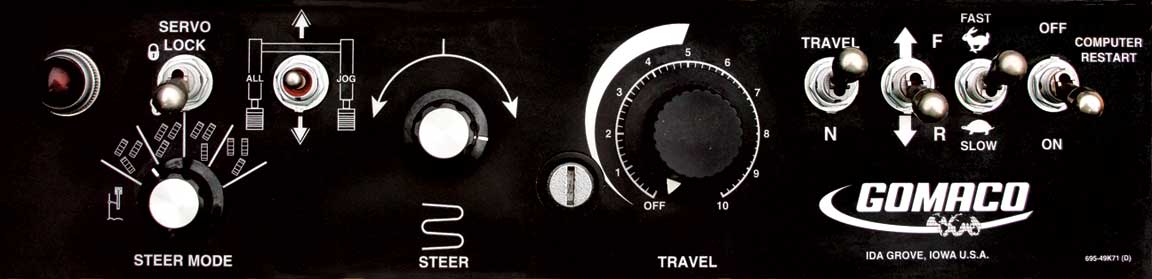

GOMACO’s Selective Steer Controls for both the three-track and the four-track Commander III feature a forward/reverse steer switch and a position switch used to select the stringline steer mode or one of the other choices for manual track steering with the steering control dial.

		Stringline Steer Mode ... This mode is selected when steering is to be controlled by the steering sensors. The controller automatically recognizes where the sensors are plugged in and assigns steering, slope, or dual stringline to the appropriate tracks and display meters. With the machine on line and in automatic steer, the operator walks the machine in reverse to the existing curb and gutter, utilizing the Reverse Steer feature. Then, flips the switch to forward steer to start slipforming.

		Coordinated Steer ... For minimum turning radius. When the steer select switch is in the “coordinated steer” position, the steering control dial will control the turning of the tracks. When the dial is in the center position, the tracks will be straight ahead. If the dial is turned left or right from the center position, the leading tracks will turn in the corresponding direction and the trailing tracks will turn in the opposite direction.

		Crab Steer ... Walk sideways for ease in putting the machine on line. When the steer select switch is in the “crab steer” position, the steering control dial will control the turning of the tracks. If the dial is turned left or right from the center position, all tracks will turn in the corresponding direction to walk the machine to the side.

		Front Steer ... When the steer select switch is in the “front steer” position and the steering control dial is turned left or right from the center position, the front tracks will turn in the corresponding direction and the rear tracks will remain straight.

		Rear Steer ... When the steer select switch is in the “rear steer” position and the steering control dial is turned left or right from the center position, the rear tracks will turn in the corresponding direction and the front tracks will remain straight.

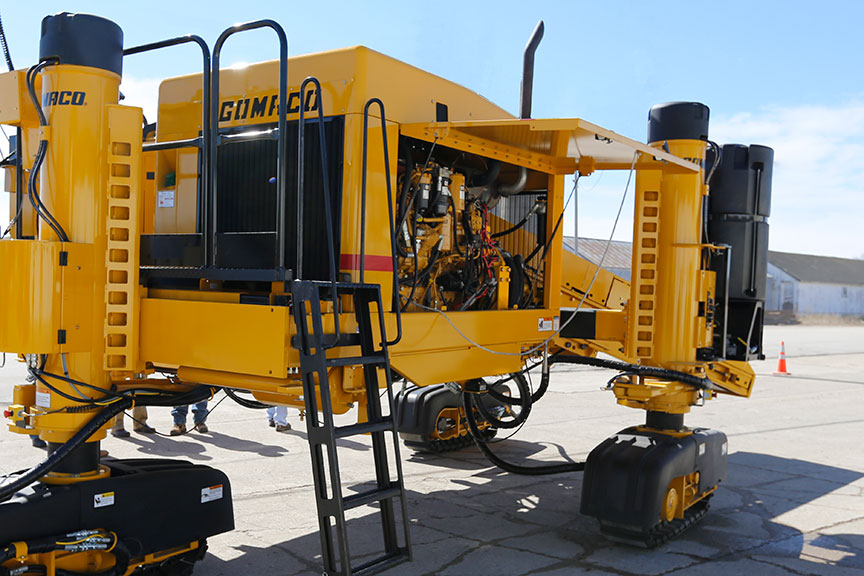

Designed For Safety

The Commander III is carefully designed to give years of dependable and safe service. Emergency stop buttons are located on strategic areas of the machine. The E-Stops are on the operator’s console and on corners of the machine, or can be positioned at various points on the machine providing optimal use for specific applications. Other safety features include track guards, warning decals, an operator’s manual, and a safety manual. GOMACO machines are also designed to provide the operator maximum visibility over the entire paving operation.

GOMACO Corporation Recommnds The Implementation Of All Safety Procedures.
