• GOMACO’s Commander II is back, and better than ever! It features the simplicity of a two-track paver with GOMACO’s exclusive and operator-friendly G+® control system.

• GOMACO’s Commander II is now equipped with G+ controls for independent track drive and steering.

• The Commander II features a six foot (1.83 m) long conveyor that feeds the mold. The conveyor has a belt speed of 350 feet per minute (106.7 mpm) to load the hopper quickly and efficiently.

• The GOMACO Commander II has a maximum paving speed of 54 feet per minute (16.46 mpm), and a travel speed of up to 82 feet per minute (25 mpm) to quickly traverse any job site.

• GOMACO’s Commander II features an isolated operator’s platform for comfort during paving.

• The Commander II’s pivoting operator’s console is about visibility and hands-on control. Operators can position the console for the best visibility during different applications.

• GOMACO’s Commander II is equipped with a 60 inch (1524 mm) wide sectional direct-drive trimmerhead for exacting grade preparation.

• GOMACO Remote Diagnostics (GRD) will transmit G+ settings, machine configuration, engine performance, and fault history for an immediate and complete diagnosis. It also allows software updates, fleet management, service indicators, and so much more.

• The Commander II will slipform a variety of applications and is designed to simultaneously trim and pour. It can easily convert from project to project with applications such as curb and gutter, safety barrier, irrigation canal, recreational path, shoulders and more.







G+ Controls – Designed For Concrete Paving

It is now the technology that pulls everything together… G+ is the center that Connects all of the resources.

Commander II G+ Controls

Once you experience G+ controls, you won’t be satisfied with anything else. It’s a control system that is both easy to learn and easy to operate. G+ expresses itself in easy to understand international icons and full script explanations. It operates in all the major languages of the world and in imperial or the metric system. It has a lightning-fast processing speed and features two-way communications between the accessories and G+. Its instant digital feedback combined with the tight closed-loop electronic and hydraulic control creates a G+ experience that is smooth, efficient, and accurate. There is nothing on the market that can compare, because G+ is a proprietary system that was designed by our in-house control experts incorporating what we have learned from decades of experience in the field, and from what we have learned from you, our customer.

- Machine operation is simple.
- Machine response is fast.
- Troubleshooting is pinpointed, quick, and easy.
- Fault history available.
- Control from stringline, 2D, or 3D guidance.

A flat-panel 6.5 inch (165 mm) anti-glare display screen is provided with sensor-controlled backlight levels for superior visibility in all operating conditions. The screen is rugged and shock resistant in its construction to protect against dust, moisture, and rain. G+ provides a full color display on the control panel to illustrate the current functions of the paver for set up and operation. A “run” screen on the control panel illustrates the various aspects of the paver. It includes paving speed and percentage of drive, steering, travel information, grade information, deviation meters, and more. Newly designed icons and color graphics make it easy to understand and easy to identify the targeted functions. G+ receives a track speed reading from pulse pickups in the track motors to give you real time feet (meters) per minute and total linear footage (meters). G+ controls feature a detailed fault history with the time stamp, date, and information to track when each fault occurred. GOMACO’s G+ control system has been proven around the world.





Commander II

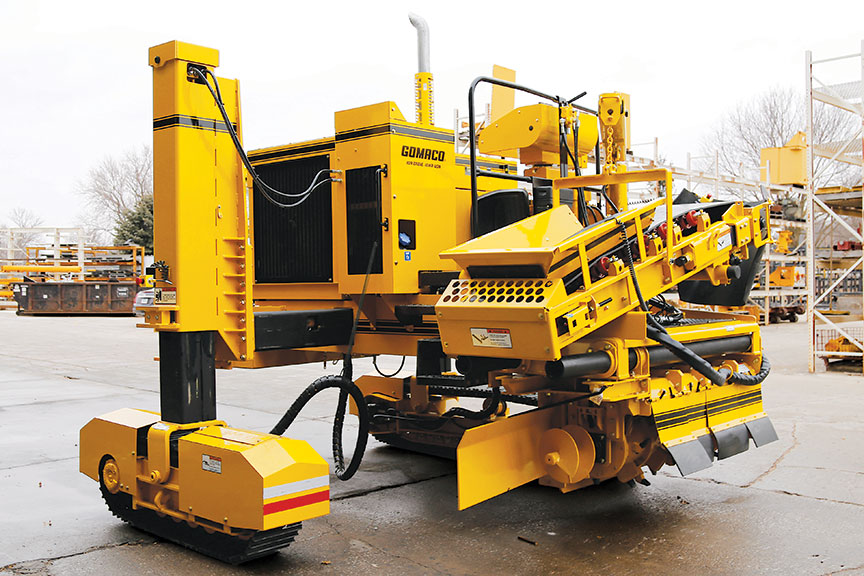

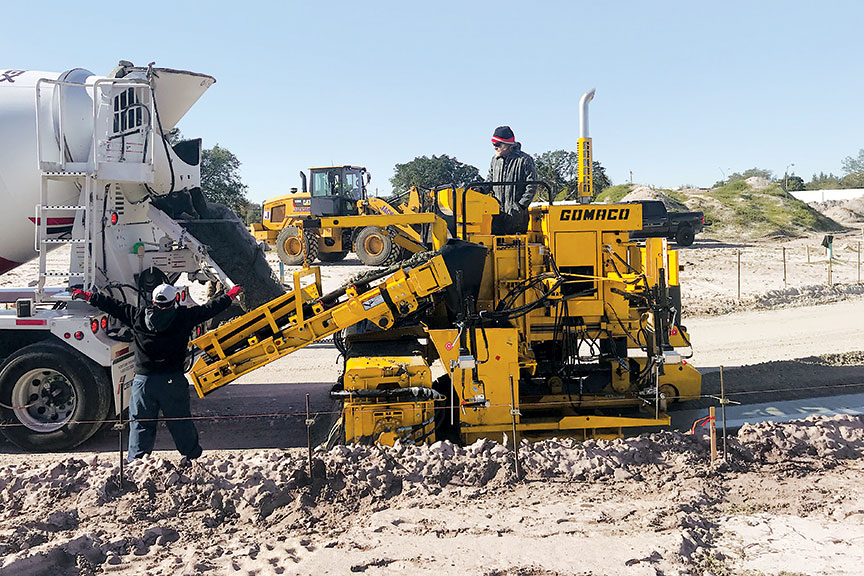

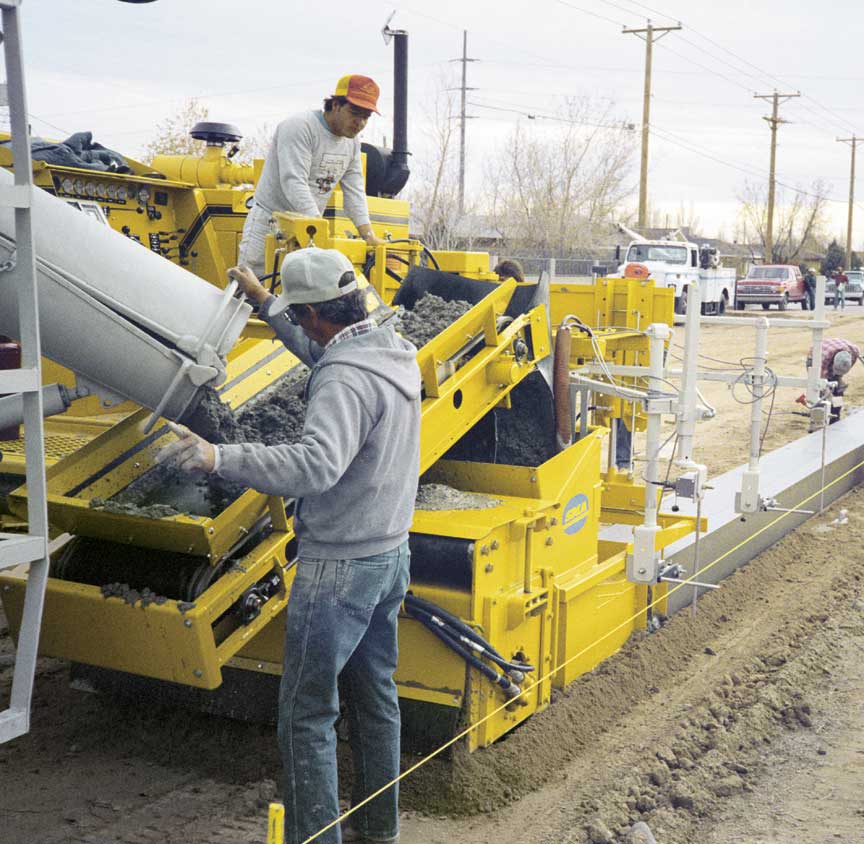

Concrete is fed into the hopper by a 20 inch (508 mm) wide, six foot (1.83 m) long conveyor belt. The Commander II features a belt speed of 350 feet per minute (106.68 mpm) to quickly move the concrete into the hopper.







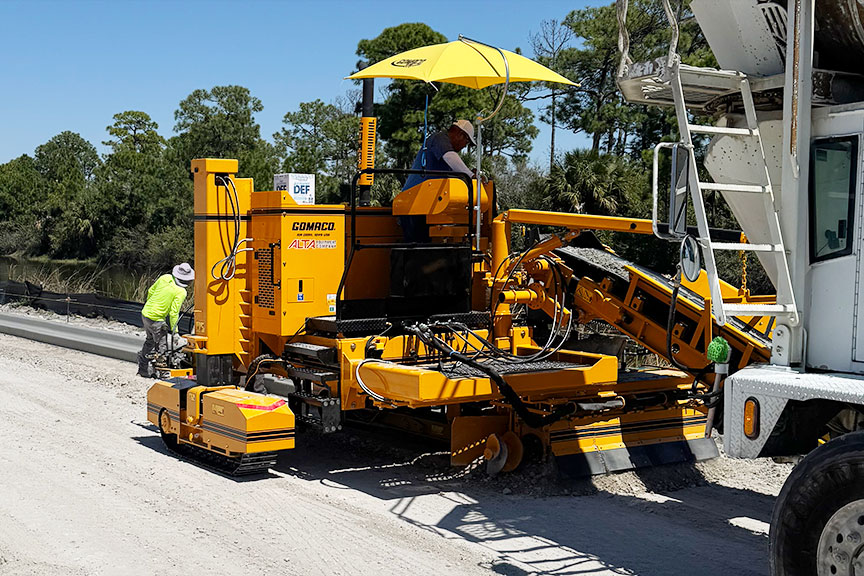

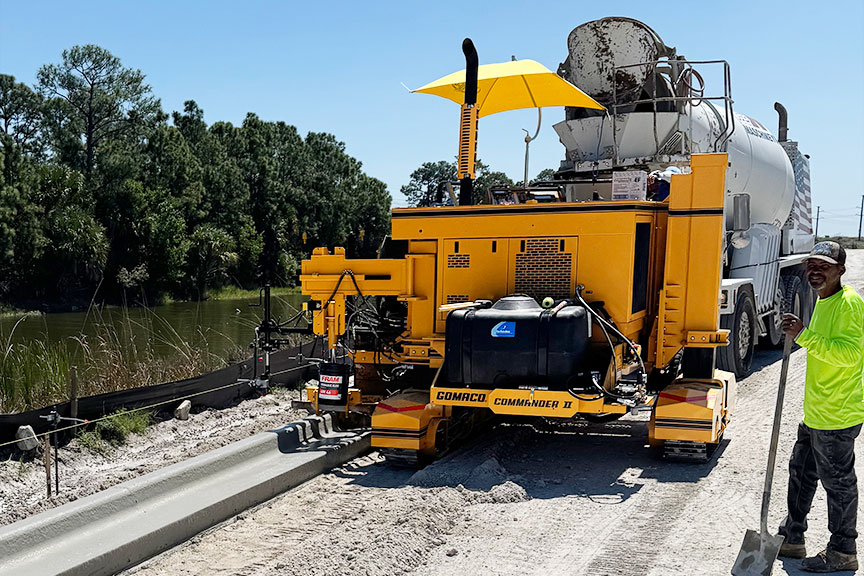

Commander II curb and gutter

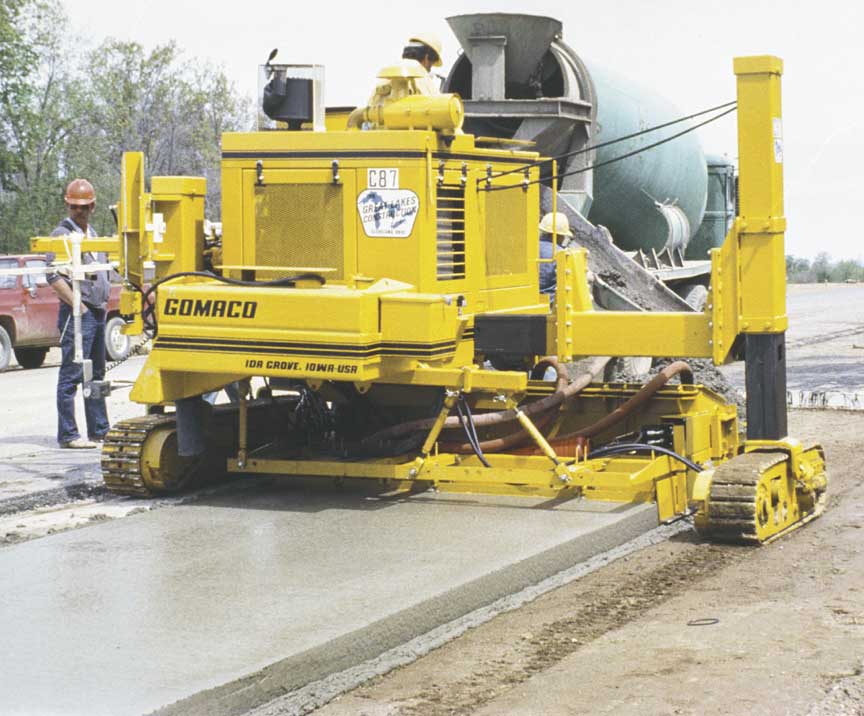

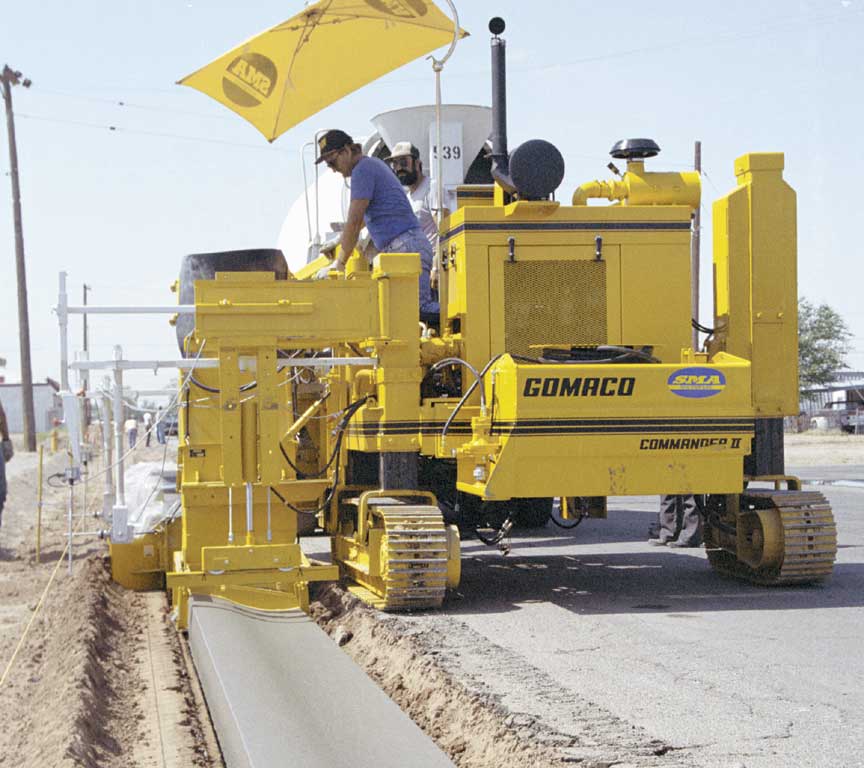

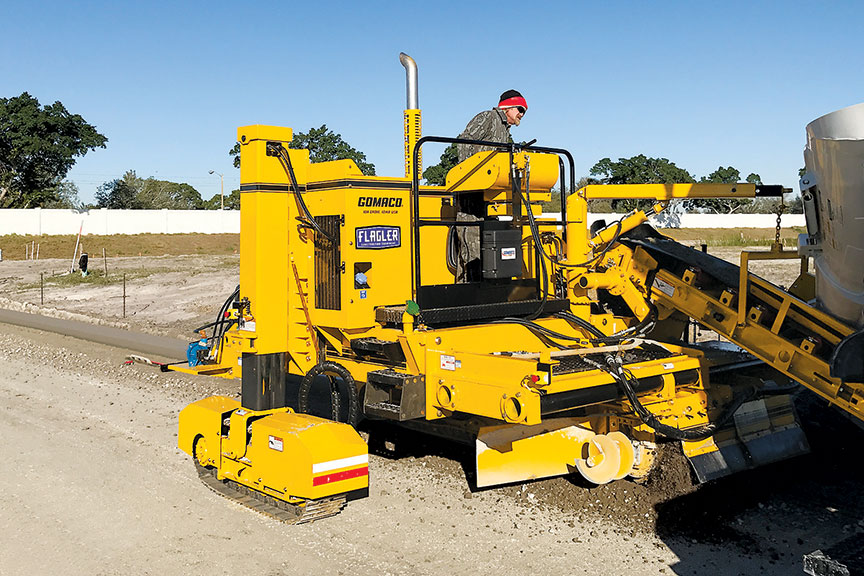

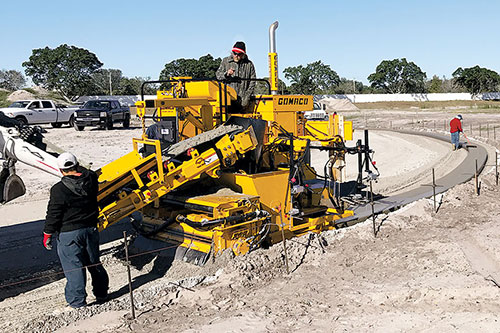

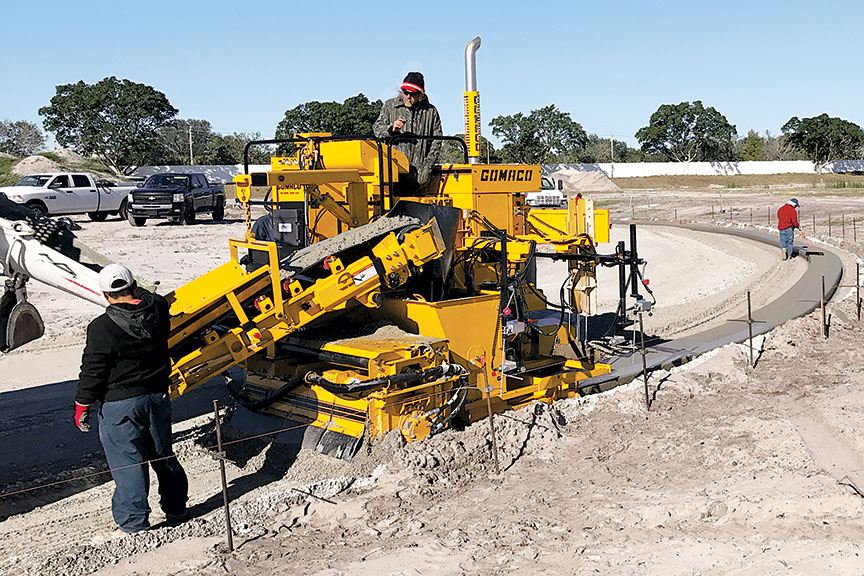

The GOMACO Commander II is able to slipform curb and gutter utilizing the smooth travel speeds of the G+ control software.







Commander II

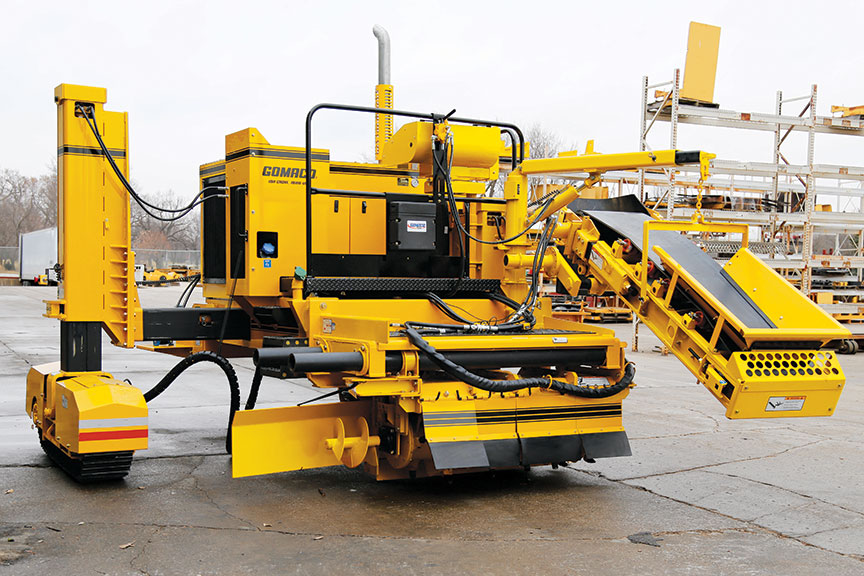

Operator comfort and visibility has been designed into the new Commander II. The operator’s platform is isolated to eliminate vibration for operator comfort during paving.

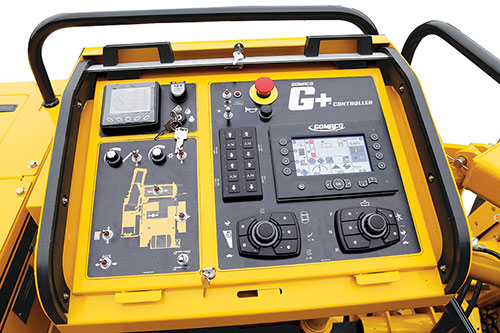

Commander II operator's console

The Commander II’s pivoting operator’s console is about visibility and hands-on control. The operator can position the console for the best visibility during different applications by pivoting it to the left or having it forward facing. The operator’s seat can be flipped out or stored up against the left side when not in use.







Commander II

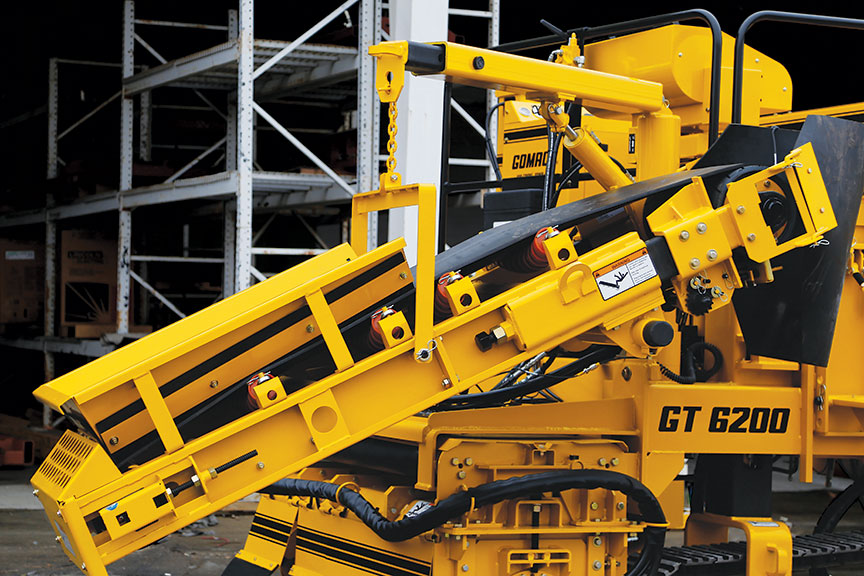

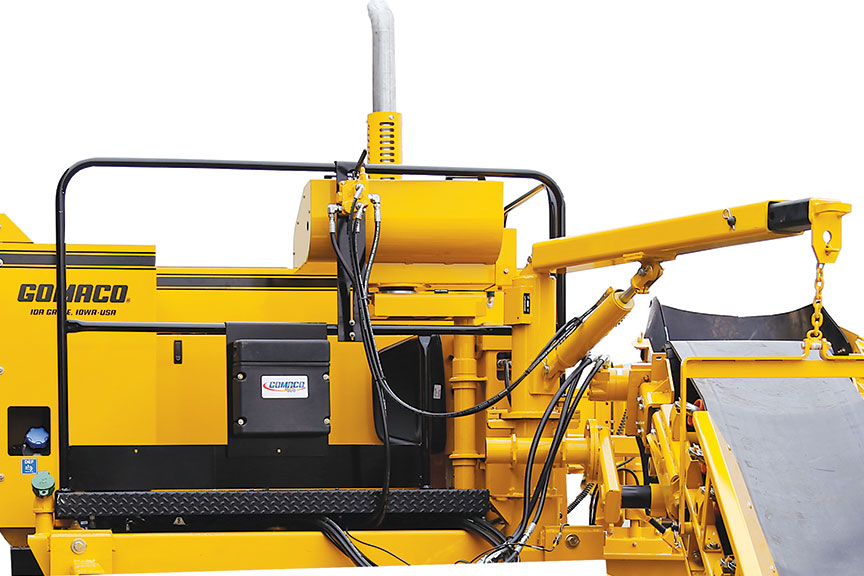

The six foot (1.83 m) long conveyor on the Commander II can be pivoted for side adjustments with the help of a hydraulic boom. The boom’s lever control is next to the operator’s console.







Commander II

GOMACO Remote Diagnostics (GRD) allows GOMACO personnel or your own personnel to remotely connect to the GOMACO machine via the computer or phone for troubleshooting, diagnostics review, or software updates.







Commander II

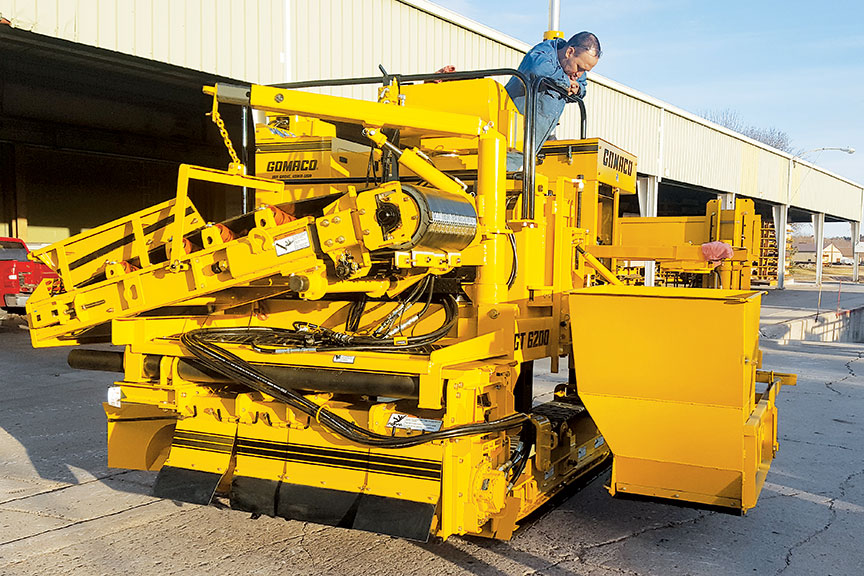

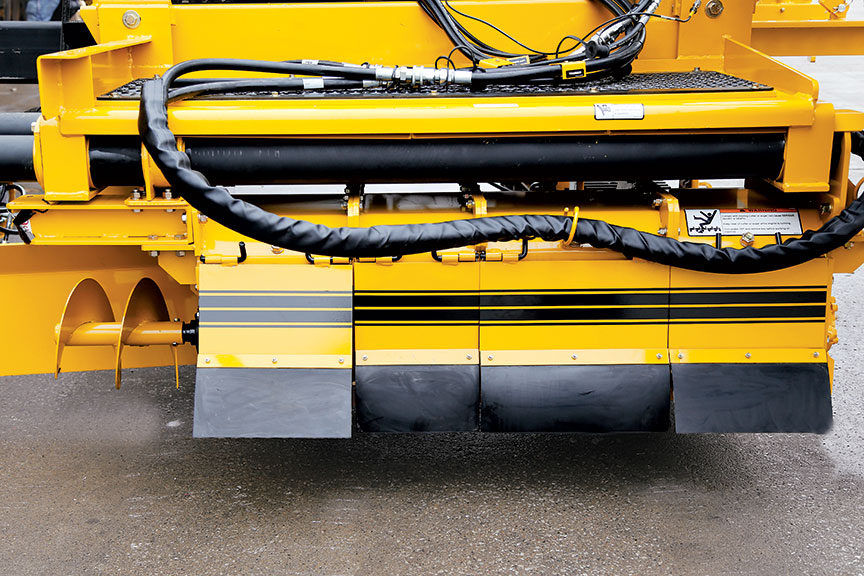

The Commander II is equipped with a 60 inch (1524 mm) wide sectional direct-drive trimmerhead for exacting grade preparation.







Commander II

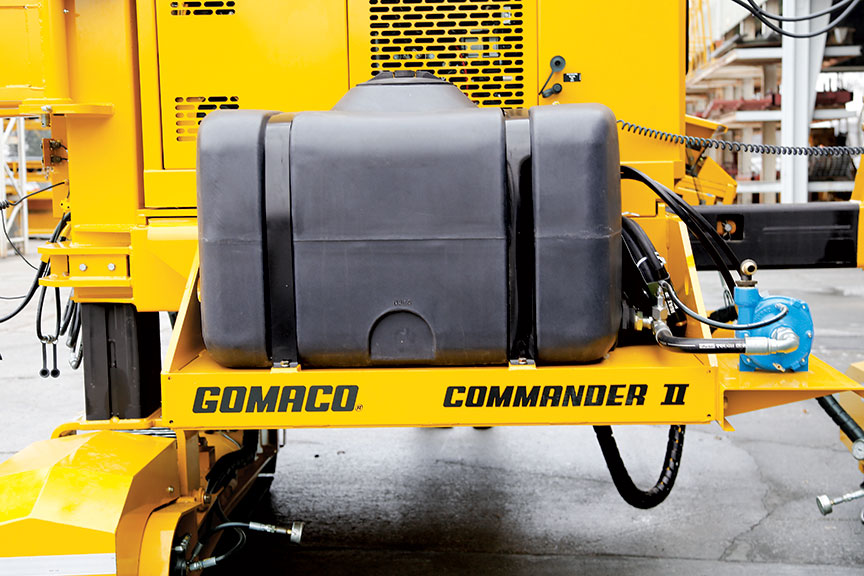

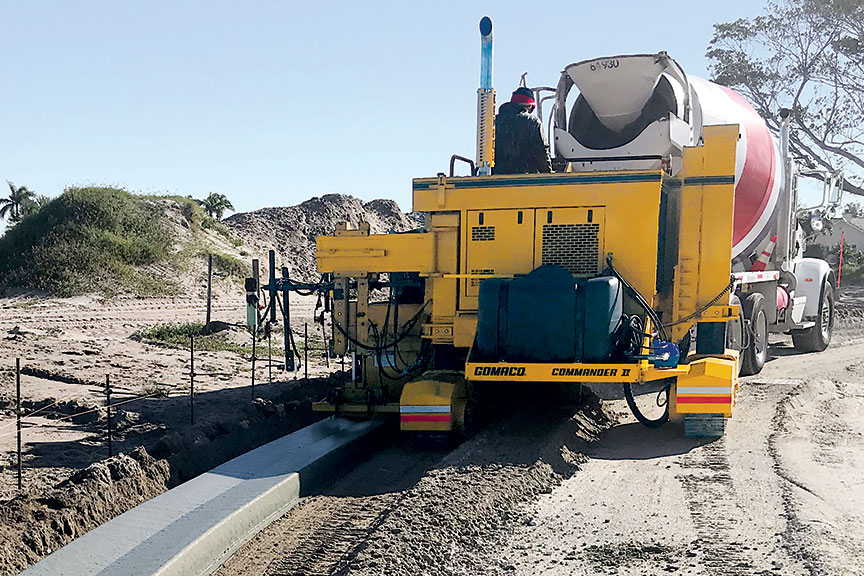

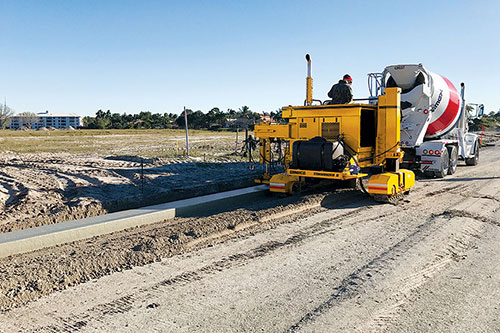

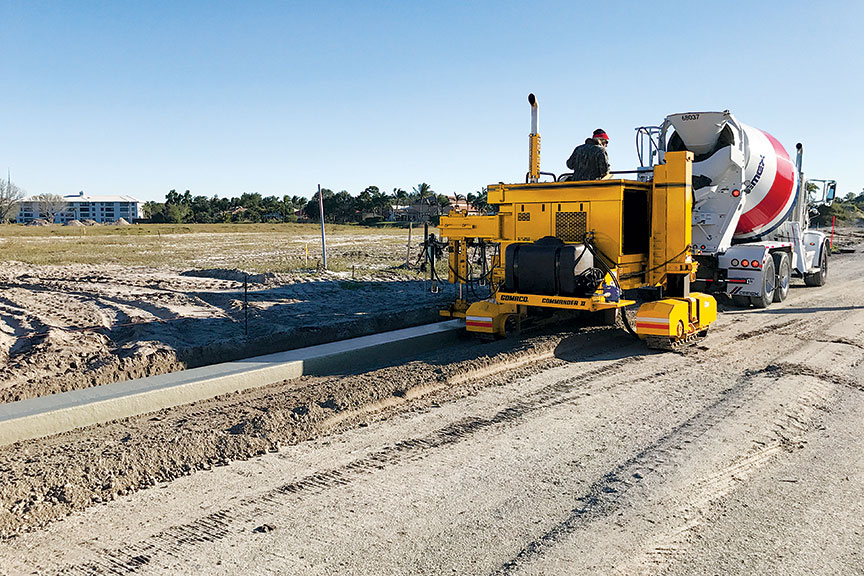

The water tank is positioned on the back of the Commander II for quick access when needed.







Commander II

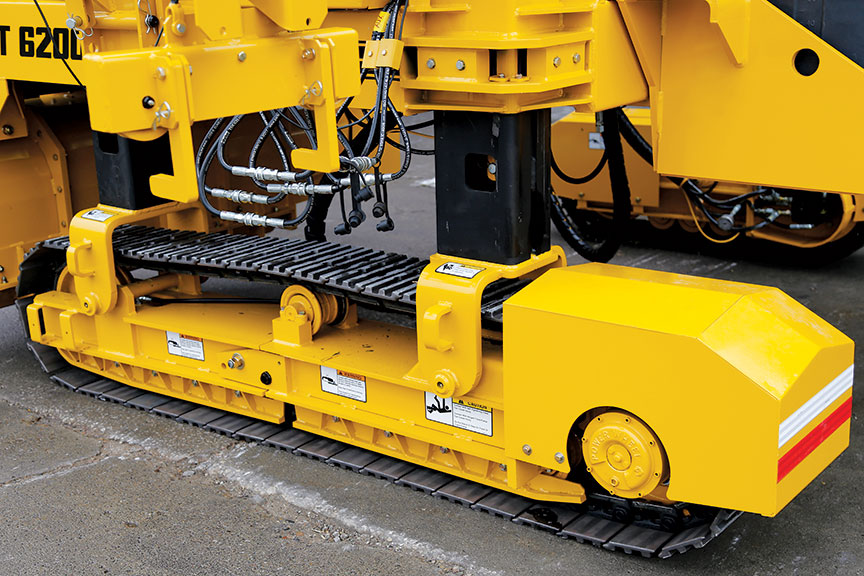

The Commander II operates with two different track lengths to accommodate the paver. The right track is six feet (1.83 m) long.







Commander II

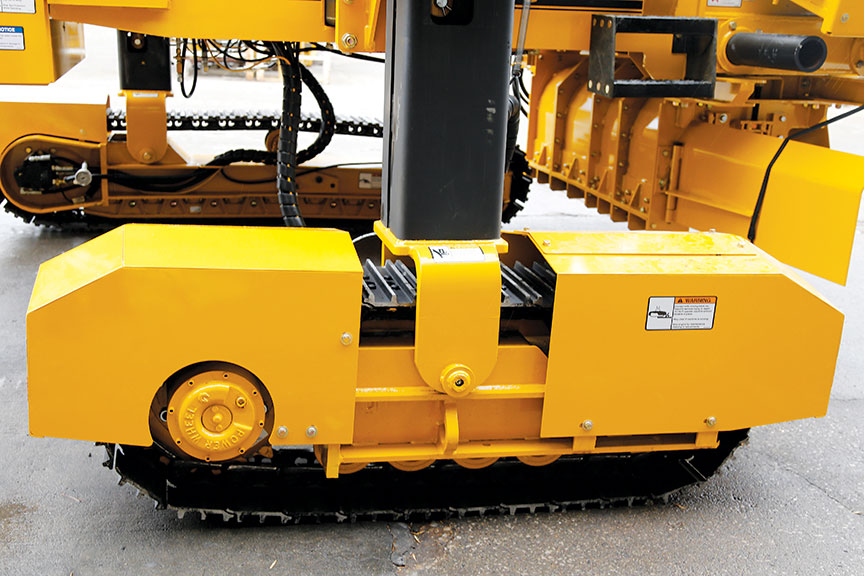

The longer, left side track is 8.4 feet (2.6 m) long. The track is hinged to allow the machine to make fewer adjustments if an obstacle is in the track’s path.







Commander II

Commander II’s right track has a hydraulic height adjustment of 30 inches (762 mm) and a manual height adjustment of 16 inches (406 mm). The left track has a hydraulic height adjustment of 20 inches (508 mm).







Commander II

GOMACO’s Commander II is equipped with a 60 inch (1524 mm) trimmerhead with sideshifting capabilities up to 48 inches (1219 mm).







Commander II

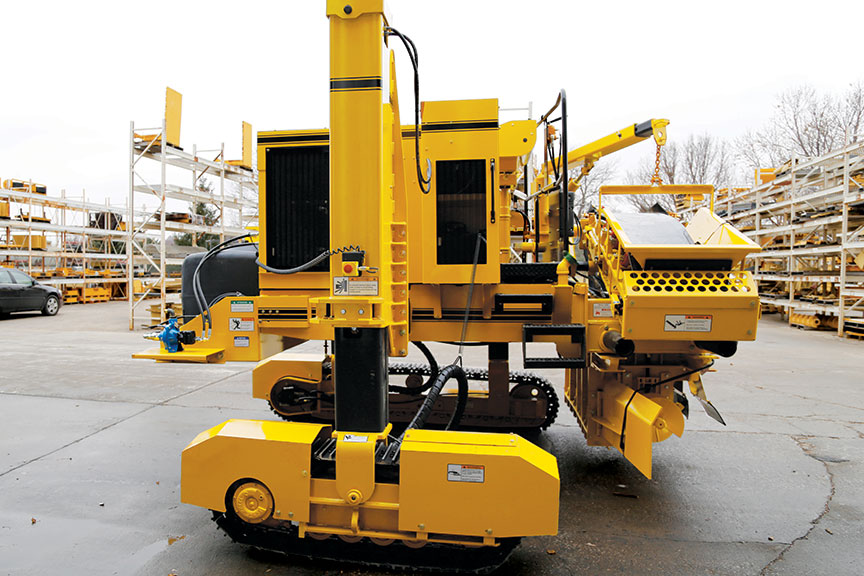

The right telescoping leg has a hydraulic side adjustment of up to 30 inches (762 mm).







Commander II

The Commander II has a minimum height of 7.4 feet (2.26 m) with the leg retracted, and a maximum height of 9.9 feet (3.02 m) with the leg extended.







COMMANDER II

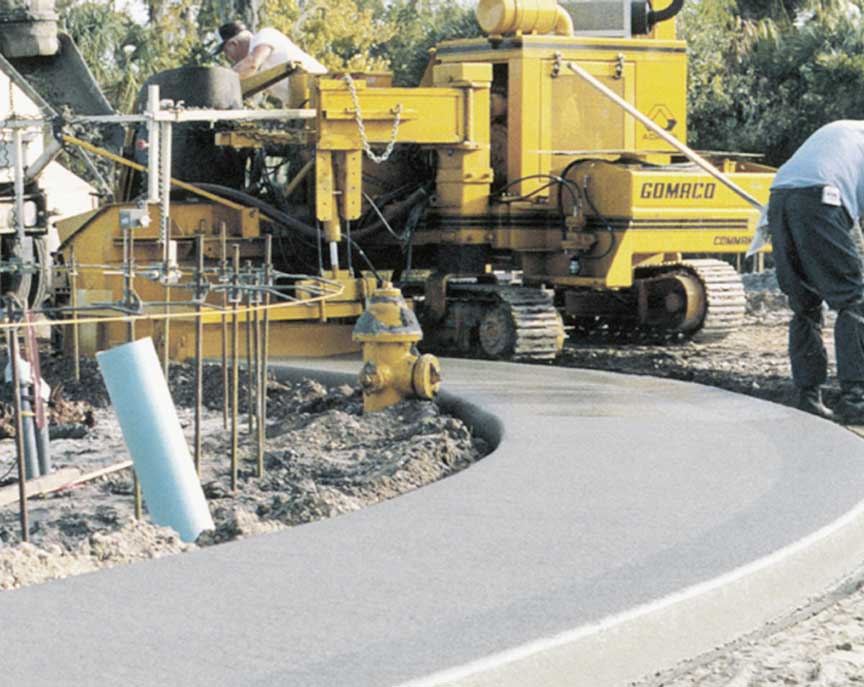

Another application for the Commander II is slipforming monolithic sidewalk. On this project, the Commander II is slipforming a 4 ft. (1.22 m) wide monolithic sidewalk and valley gutter through a radius and minimum clearance with obstacles like the fire hydrant pictured above.







Commander II

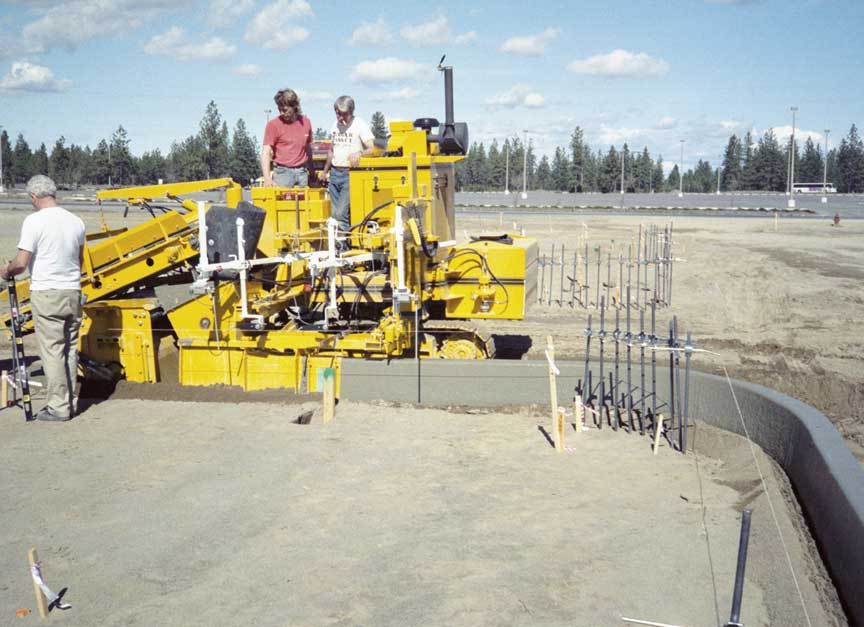

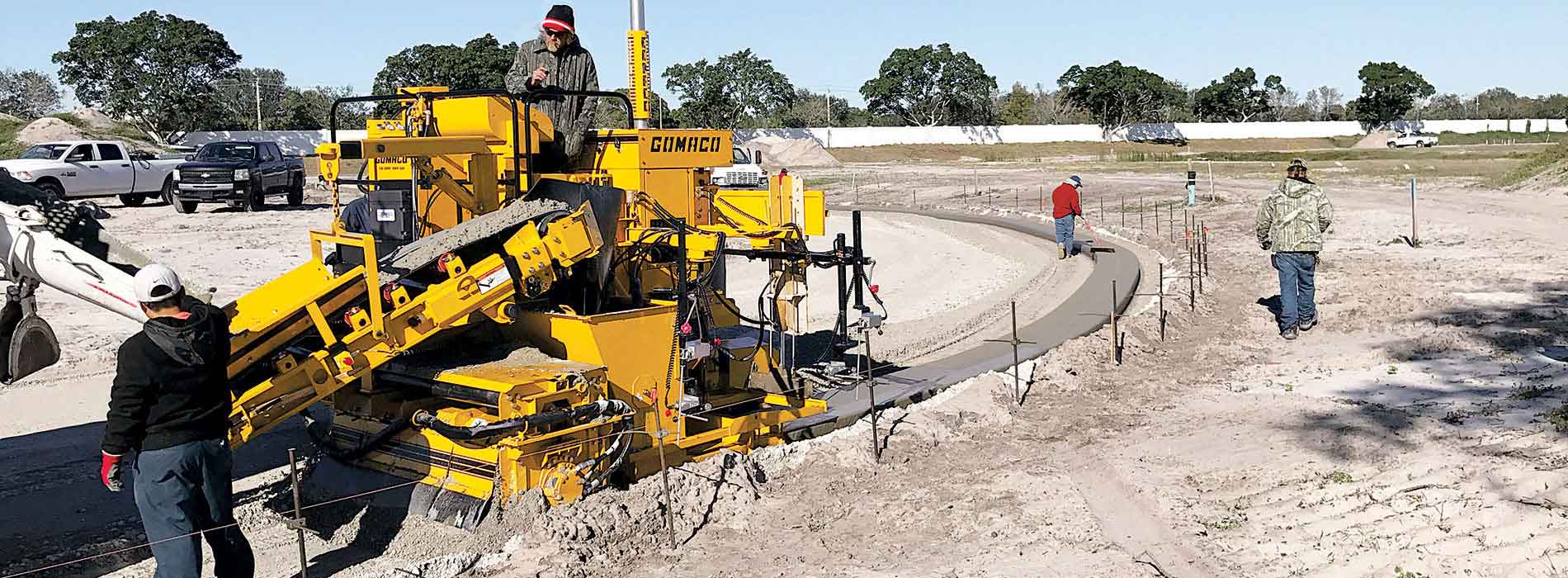

The Commander II handles a 5 ft. (1.52 m) radius slipforming curb. The side-mounted design provides minimum side clearance. The Commander II utilizes the patented simultaneous trim/pour concept which maximizes efficiency and assured nearly 100 percent concrete yield.







COMMANDER II

The Commander II has versatility with the mold centermounted between the two tracks while slipforming a 7 ft. (2.13 m) wide shoulder on this project. The 2.5 ft. (.76 m) hydraulic side adjustment for the right side provides stability and clearance for the centermounted mold when slipforming wider widths.







Commander II

Median barrier and bridge parapet are two of the many applications where the Commander II provides a quality product. Maximum barrier and parapet heights of 32 in. (813 mm) can be achieved.







Commander II

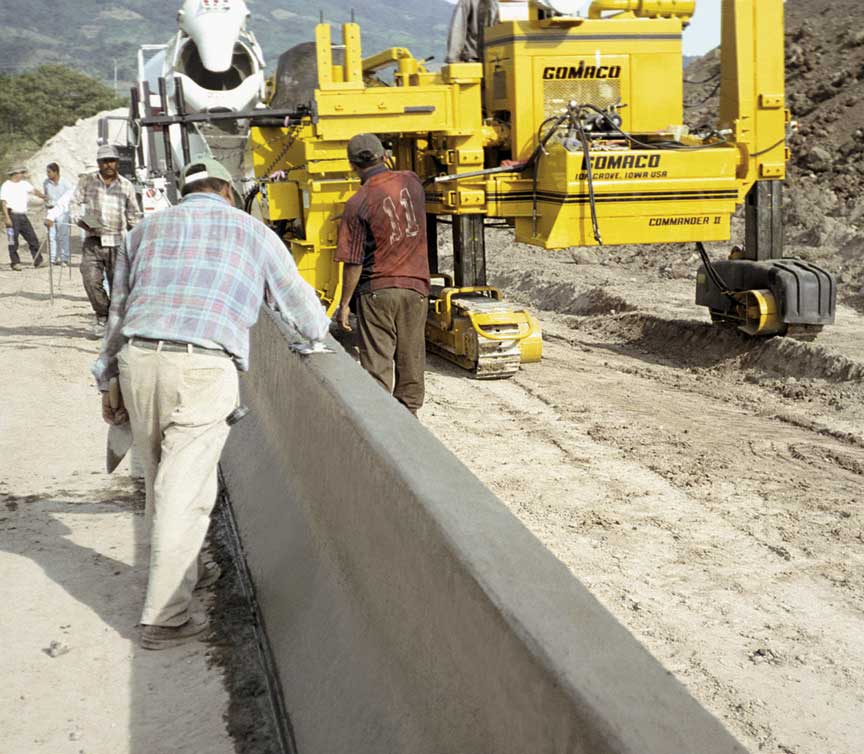

The two-track design on the Commander II has built-in versatility for handling multi-application slipform paving projects. The Commander II will easily convert from project to project with applications such as curb and gutter, barrier, bridge parapet, irrigation canal, sidewalk, bicycle path, shoulders and more.







COMMANDER II

The optional hydraulic trimmerhead and drawbar adjustments allow the trimmerhead and mold to be lowered for trimming and pouring next to an existing slab with both tracks on the slab. Independent controls on the operator's station provide vertical adjustment for the trimmerhead and drawbar.







Commander II

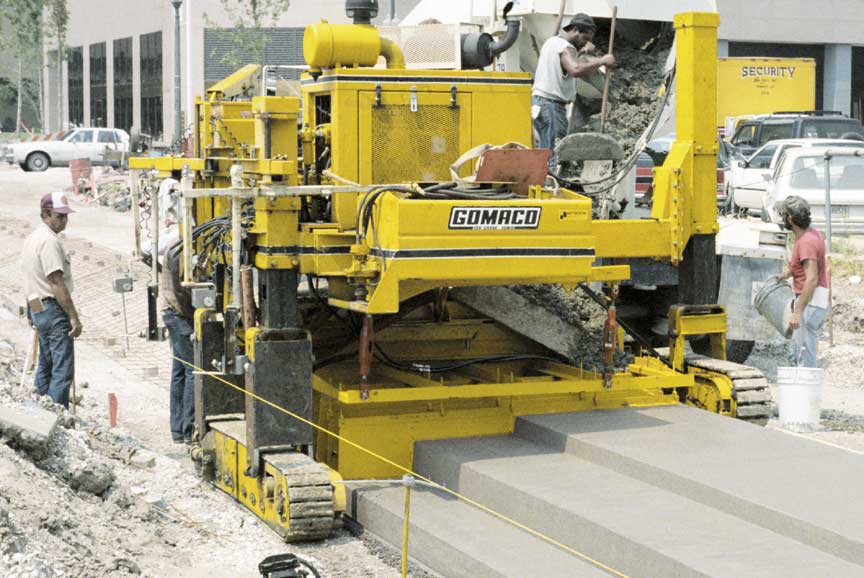

This Louisiana contractor used his versatile Commander II, equipped with a unique 7 ft. 9 in. (2.36 m) wide stair-step mold, for this specialized slipforming application at the Lafayette Mall in New Orleans. The Commander II slipformed each side of the new street in a single pass, eliminating the need to set seven lineal feet of forms for each lineal foot of stone.

















Commander II graphic







Commander II graphic

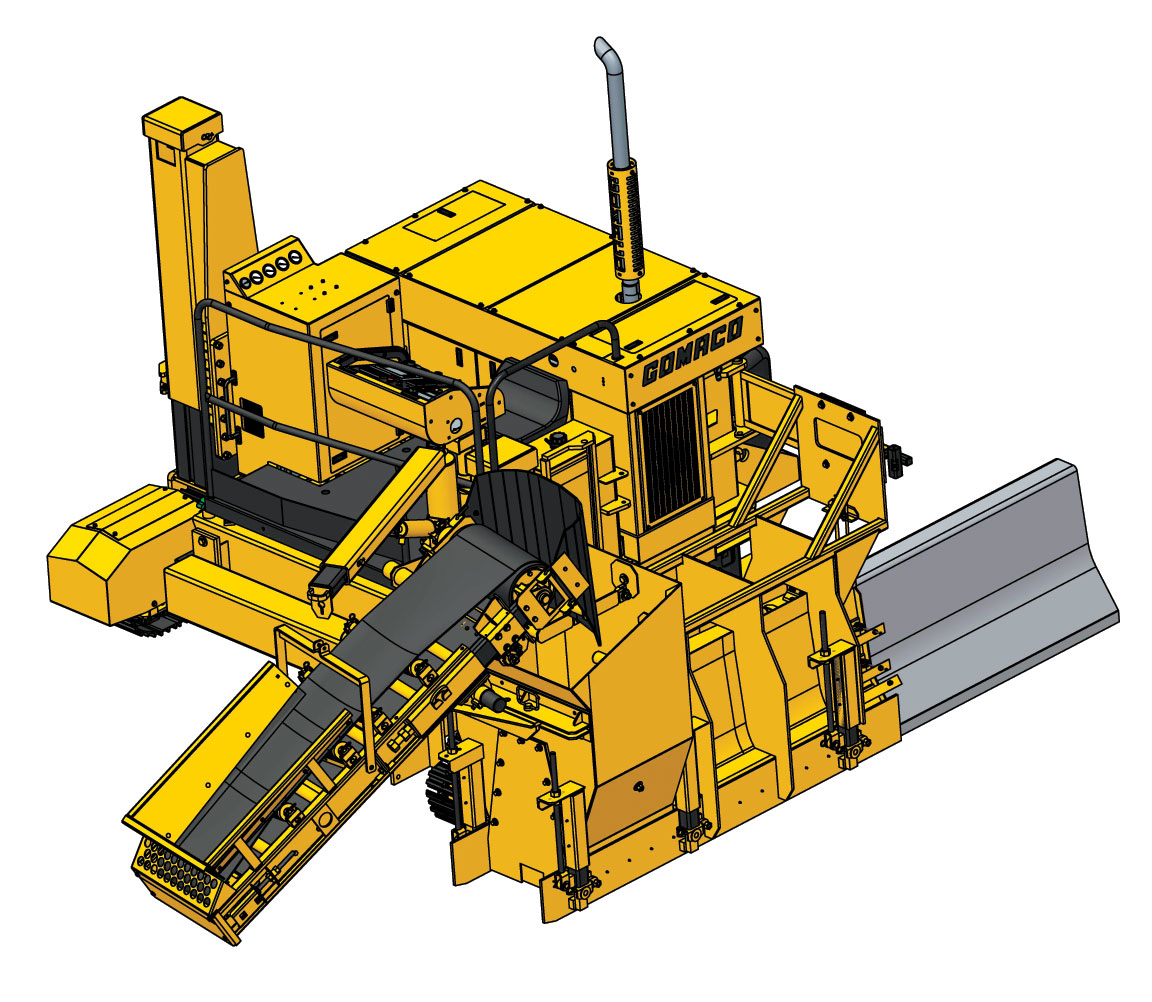

Commander II can slipform safety barrier.







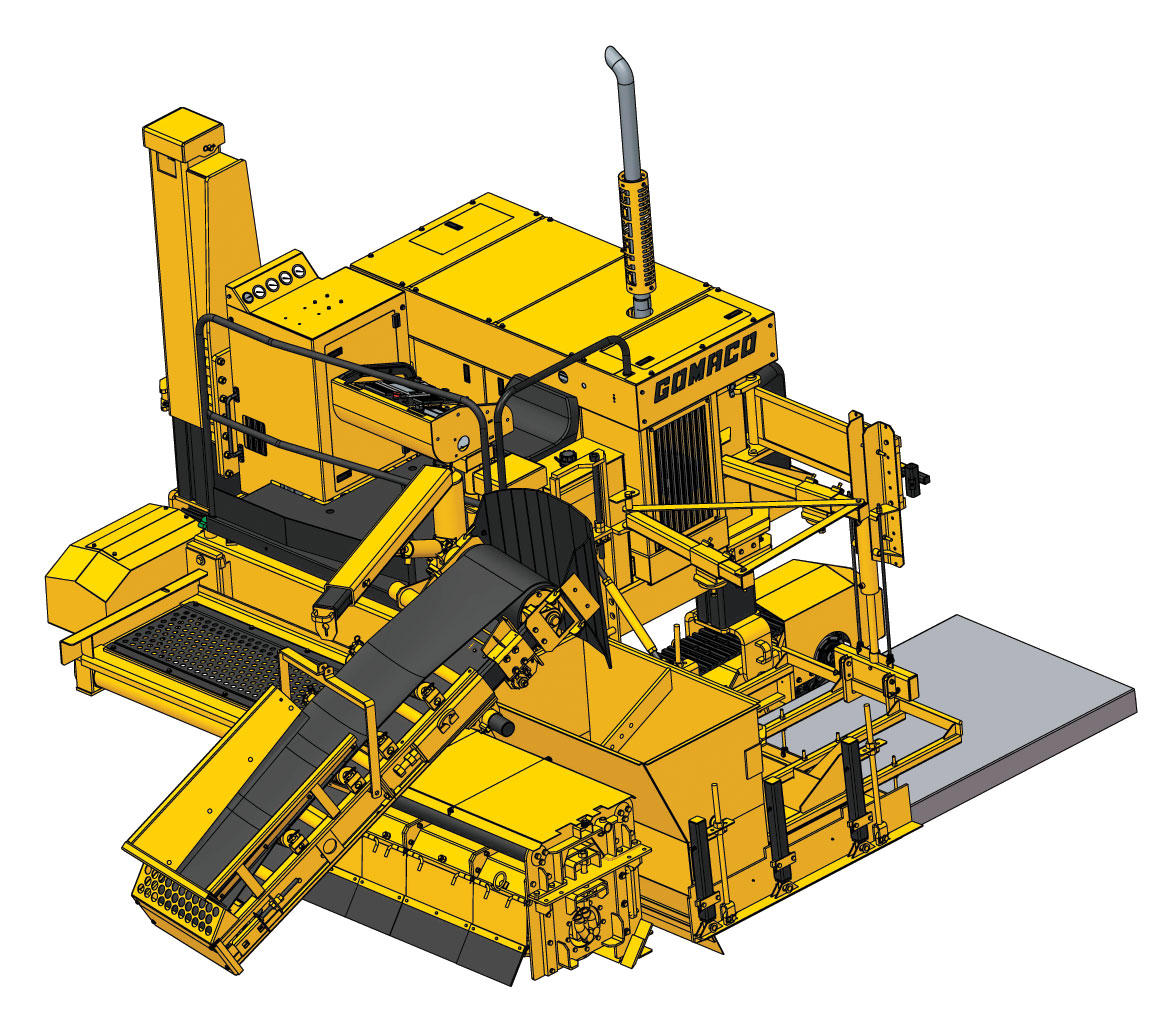

Commander II graphic

Commander II can be equipped for offset sidewalk slipform paving.







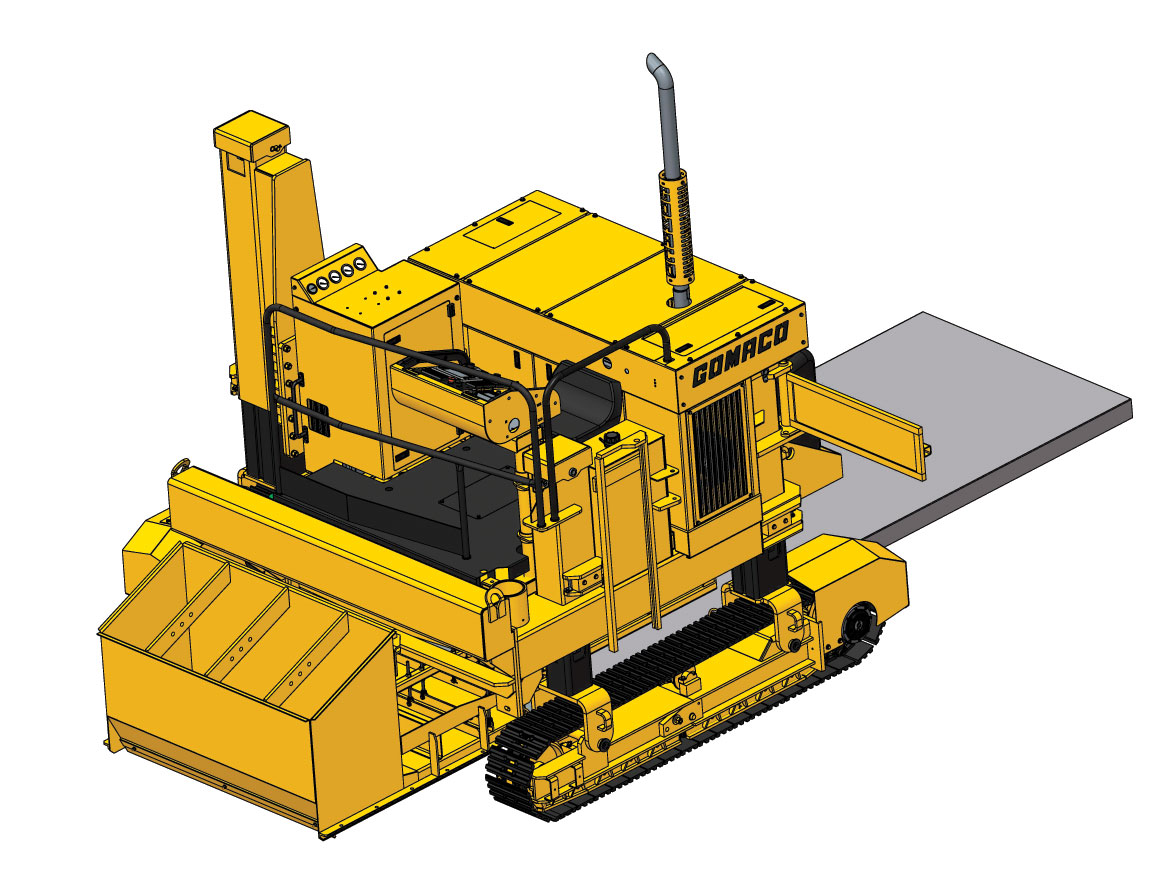

Commander II graphic

Commander II can be equipped with an undermounted sidewalk slipform paving mold.









Commander II Specifications



ENGINE
Consult for options available.



SERVICE CAPACITIES
Fuel reservoir: 40 gal. (151.4 L), locking cap.
Hydraulic oil reservoir: 85 gal. (321.7 L).



AUTOMATIC CONTROL SYSTEM
Type: Electronic-over-hydraulic.
Controls: GOMACO’s exclusive G+ control system features self-diagnostics for grade and steering. It features multi-language, metric or imperial settings, and a 6.5 in. (165 mm) anti-glare display screen.
Control indicators: Color graphical performance indicators allow operator to monitor control signals for machine guidance on stringline or 3D.



WATER SYSTEM
Type: Hydraulic motor driving centrifugal pump.
Capacity: 100 gal. (378.5 L).
Water pressure: 60 psi.



SLIPFORM MOLD
Curb and gutter mold: One curb and gutter mold. Optional molds available for curb and gutter, barrier, parapet and sidewalk.



VIBRATORS
Type: Hydraulically powered, motor-in-head, variable speed, independently controlled.
Quantity: Four hydraulic circuits and two hydraulic vibrators with mounts included with each machine.



SUBGRADE TRIMMER
Direct-drive trimmerhead: Trimmerhead is driven with a radial piston hydraulic motor for high performance. 24 in. (610 mm) diameter trimming wheel.
Width: 60 in. (1524 mm) sectionalized trimmerhead.
Sideshift distance: Up to a maximum of 48 in. (1219 mm) sideshift.



CHARGING CONVEYOR
Type: Hydraulically powered, reversible with charging hopper.
Length: 6 ft. (1.83 m) between pulley centers.
Width: 20 in. (508 mm).
Belt speed: Variable up to 350 fpm (106.68 mpm).
Conveyor mount: Pivot mounting for side adjustments. Hydraulic powered height adjustment.
Boom: Hydraulically powered, for loading and unloading mold for quick transport.
Belt wiper: Features special blades on adjustable spring steel rods for superior cleaning results. The unique, no-maintenance troughing rollers are greaseless and self-cleaning.



TRACK SYSTEM
Type: Two hydraulically powered gear-driven crawler tracks.
Overall track length: Left track (hinged), 8.4 ft. (2.6 m); right track, 6 ft. (1.83 m).
Track pad width: 11.8 in. (300 mm).
Track speed: Variable up to 54 fpm (16.46 mpm) paving; variable up to 82 fpm (25 mpm) auxiliary.
Track height adjustment: 20 in. (508 mm) hydraulic adjustment on left track, 30 in. (762 mm) hydraulic adjustment on right track with 16 in. (406 mm) manual adjustment on right track.
Telescoping leg for positioning right track: Hydraulically controlled allowing 30 in. (762 mm) of lateral track movement.



DIMENSIONS
Overall length: 12.5 ft. (3.81 m).
Overall height: 7.4 ft. (2.26 m) minimum with leg retracted. 9.9 ft. (3.02 m) maximum with the leg extended.

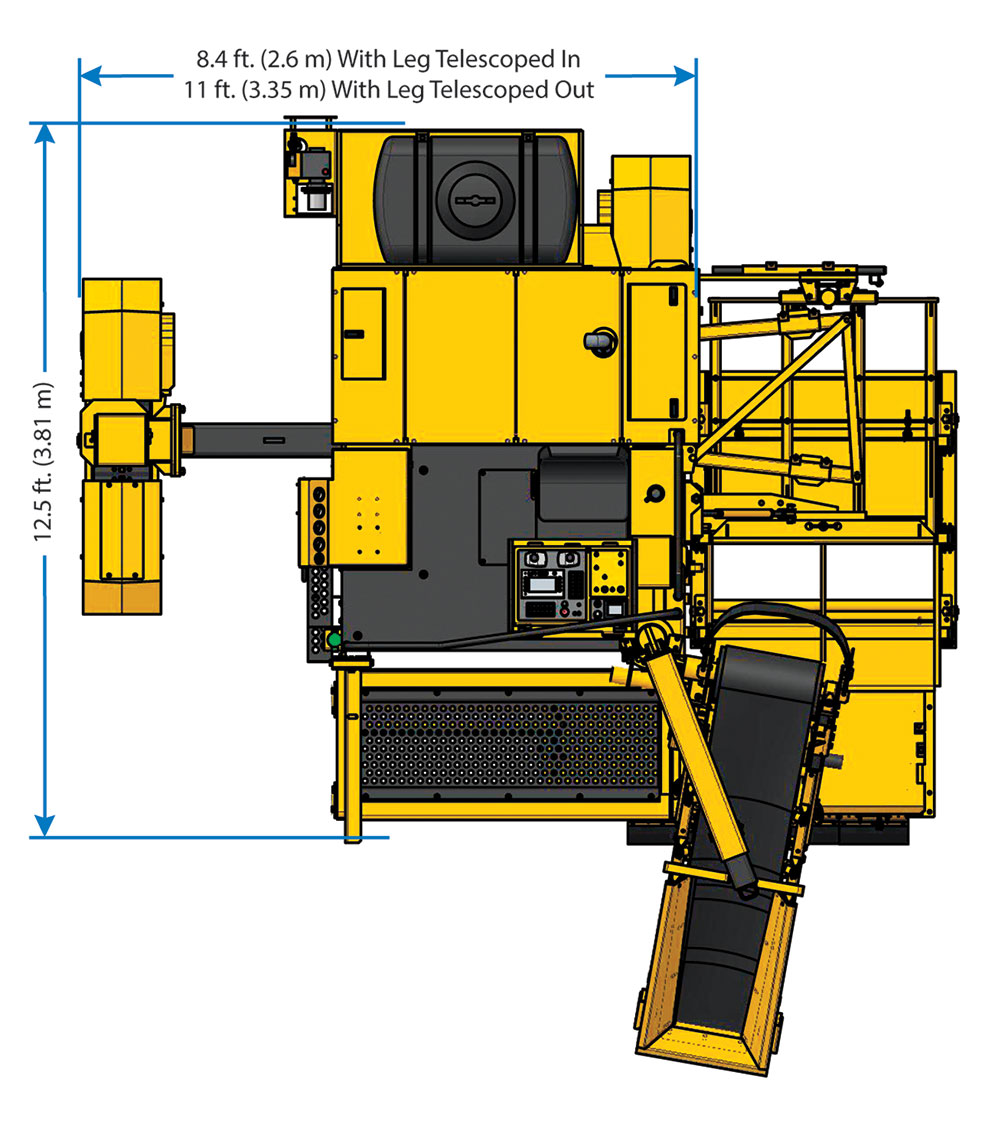

Overall width: 8.4 ft. (2.6 m) with the leg telescoped in. 11 ft. (3.35 m) with the leg telescoped out.



WEIGHTS (Approximate)
20,000 lbs. (9,072 kg). Weight can vary depending on size of mold and options.
Note: Transport and operational weights and dimensions are variable, depending on machine options.



OPTIONS

Additional vibrator and mount.

High-pressure water system.

2 ft. (.61 m) concrete charging conveyor extension.

Barrier side mount kit, includes barrier drawbar mount and 2 ft. (.61 m) conveyor extension.

Standard drawbar extension for 5 ft. (1.52 m) wide sidewalk.

Offset drawbar extension for sidewalk scab-on work.

Hold over assembly, hydraulically powered, required when paving adjacent to existing concrete.

Hydraulic lower/lift of trimmerhead for trimming below track line.

Form steering system.

Slipform molds, consult factory.

Other options are available to customize machine to accommodate applications and customer needs.
