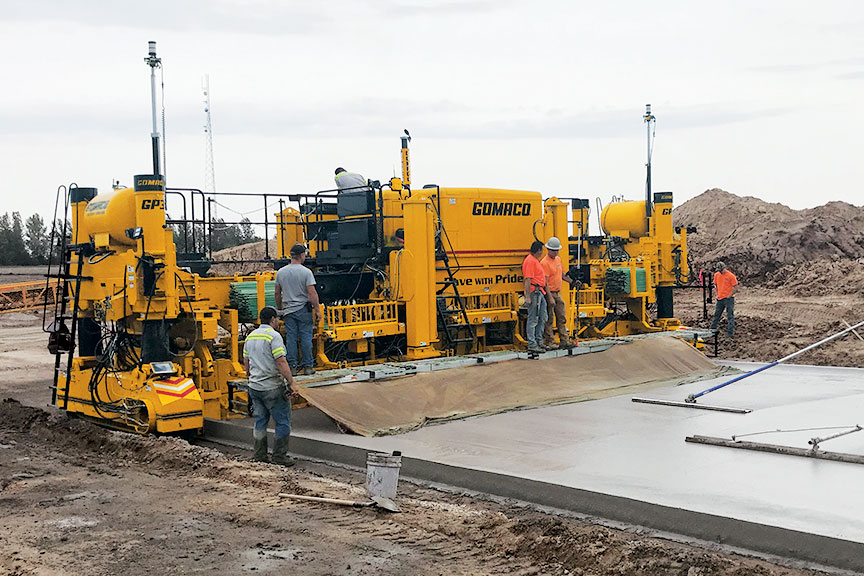

GOMACO equipment is the contractor's choice for concrete paving on road building projects throughout the world, utilizing concrete slipform pavers, placer/spreaders, trimmers/placers, texture/cure machines, curb and gutter machines, Spanit® work bridges, and more.
GOMACO's paving line includes concrete slipform paving equipment that has the latest technology and versatility to pave widths up to 50 ft. (15.2 m) and paving depths up to 19 in. (483 mm), covering a wide range of paving projects. GOMACO slipform pavers will meet the strictest specifications and provide rideability requirements that are needed today.
Contact us today to learn how GOMACO equipment can be used to help make a profit on your road building project.
Gretna, Nebraska
This GOMACO GP3 is equipped with G+® controls and is slipforming a 25 foot (7.62 m) wide road with integral curb on one side. The GP3 is equipped with a 5400 series mold, 5400 series tie bar inserter (TBI), and telescoping end sections for width changes.
Read more about this project in GOMACO World 44.1.
Odon, Indiana

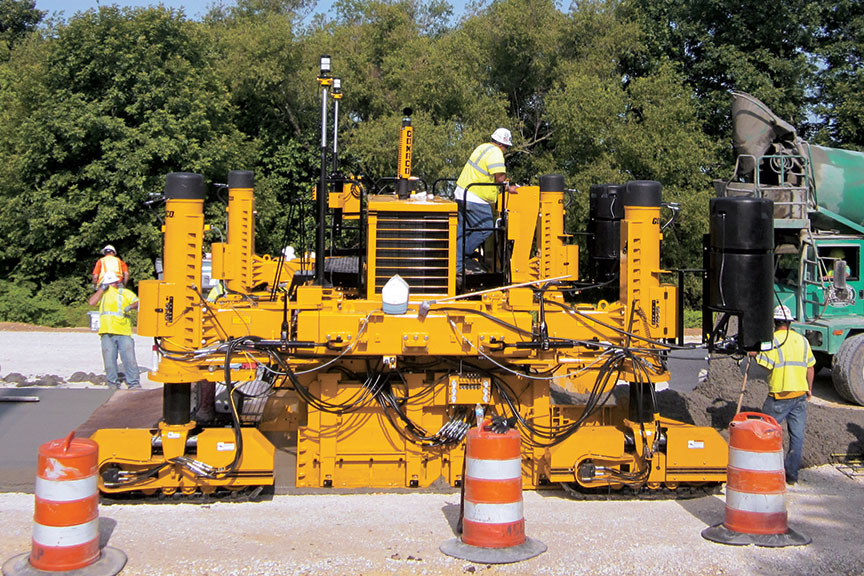

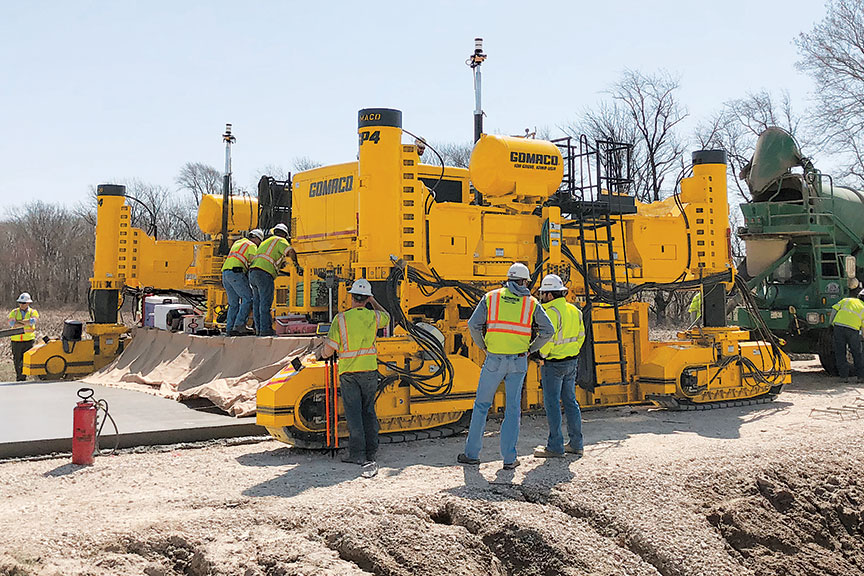

This GOMACO GP4 four-track paver with Trimble 3D guidance slipforms a 26 foot (7.92 m) wide country road, and is equipped with a 5400 series mold and 5400 series tie bar inserter (TBI).
Switzerland

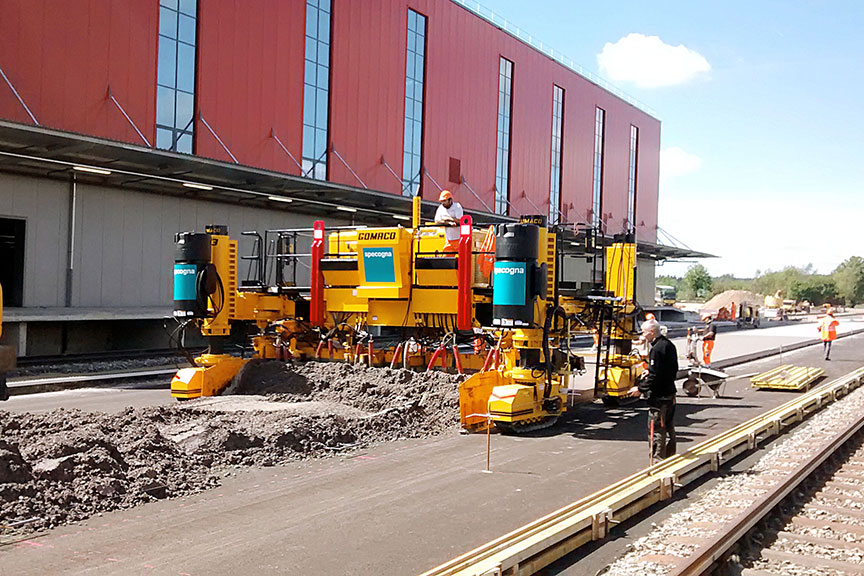

This GP3 is equipped with an auger to evenly spread the placed concrete 16.4 feet (5 m) wide to slipform a flat slab in Switzerland. The paver is equipped with GRD (GOMACO Remote Diagnostics), which is capable of updating the software without GOMACO personnel ever leaving Ida Grove, Iowa.
Boardman, Oregon

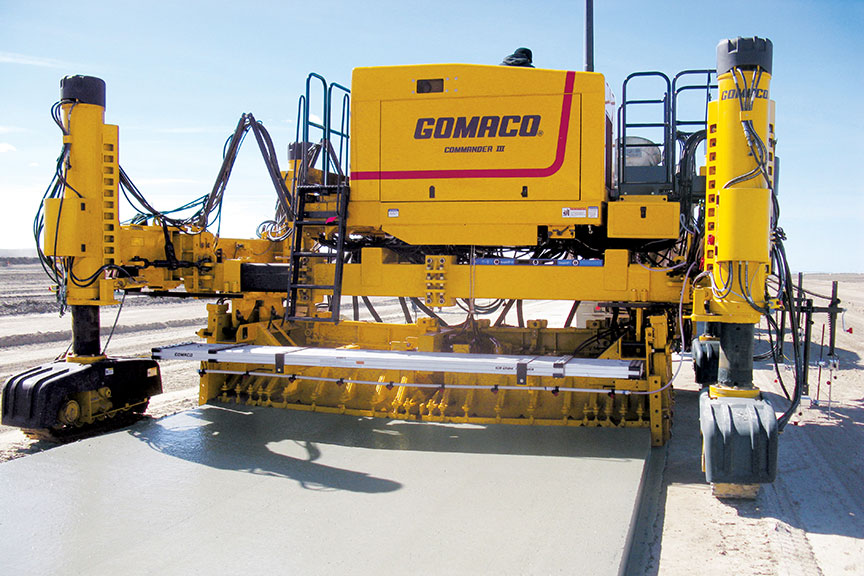

Equipped with a two inch (50.8 mm) inverted mold, this Commander III four-track slipforms a 14 foot (4.27 m) wide slab on a dairy farm.
Montgomery, Indiana
A four-track GP-2400 slipforms a county highway in Montgomery, Indiana, utilizing Trimble 3D guidance.

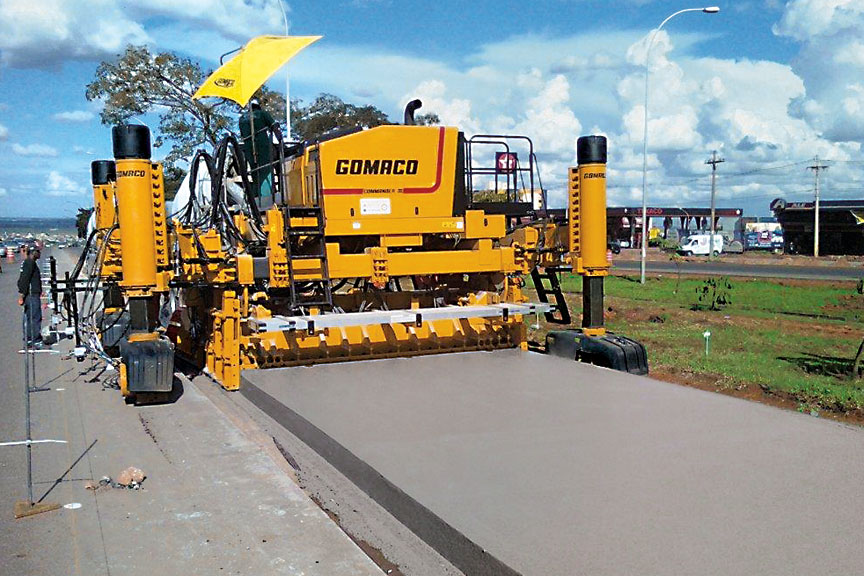

Brazil
This contractor slipforms a new bus route with their four-track Commander III paver in Brasília, Brazil.
Provo, Utah

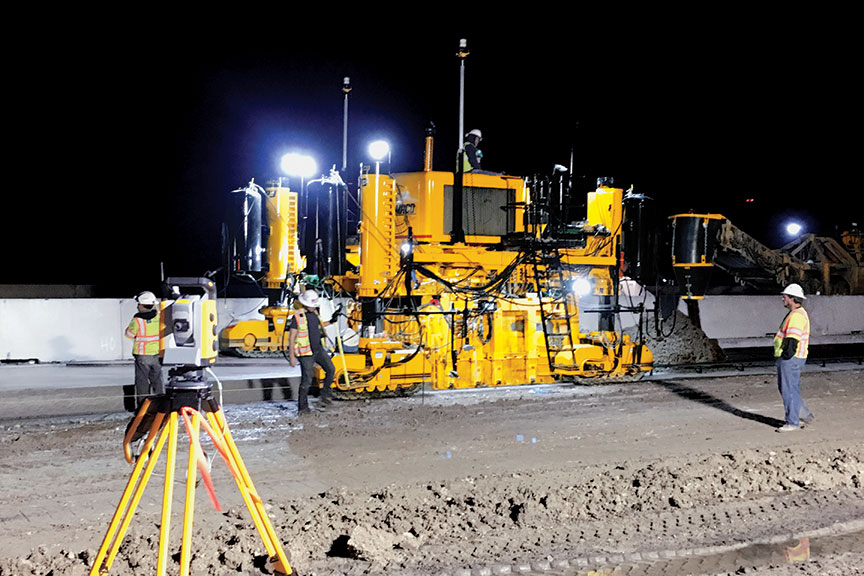

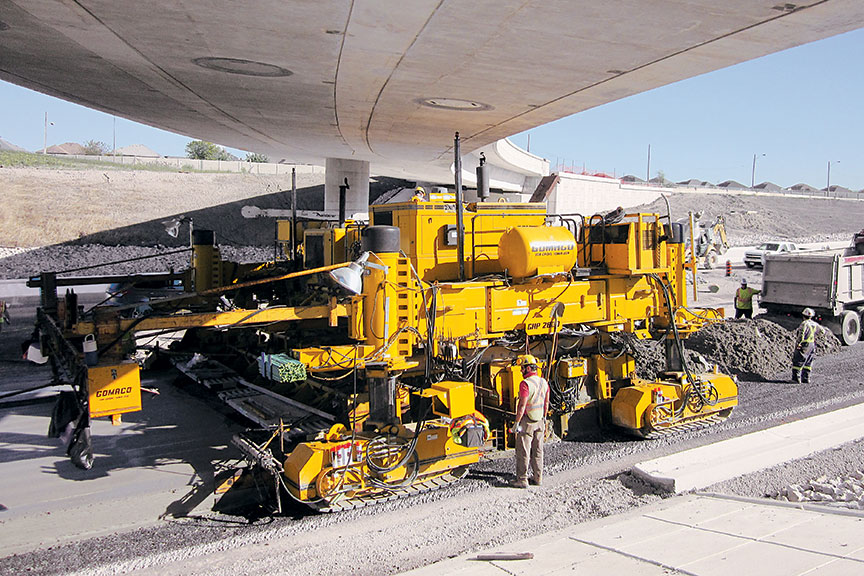

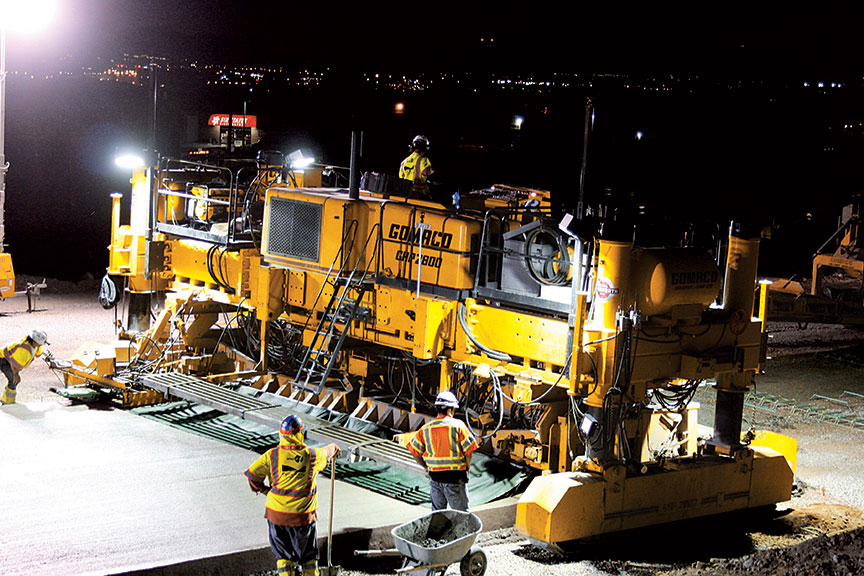

The two-track GOMACO paver is equipped with Leica Geosystems 3D guidance to slipform a new ramp underneath an interchange during a night pour.
Read more about this project in GOMACO World 40.2.

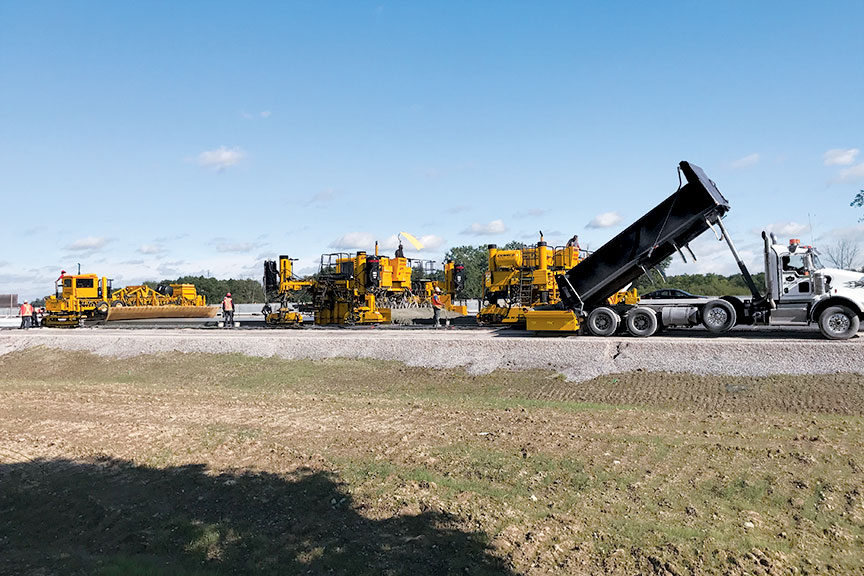

London, Ontario, Canada
A GOMACO paving train consisting of a PS-2600 placer/spreader, GP3 four-track slipform paver, and T/C-600 texture/cure work to complete a highway project quickly and efficiently.
Pittsburgh, Pennsylvania

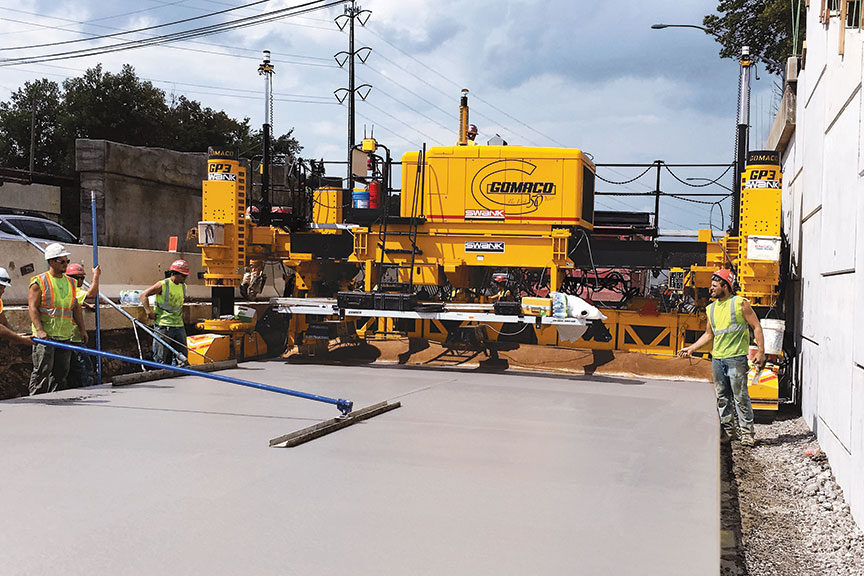

This four-track GOMACO GP3 is equipped with a 5400 series paving mold and is slipforming a 22 foot (6.7 m) wide section of an interstate project. Minimum clearance is facilitated using Trimble 3D guidance.
Tucson, Arizona

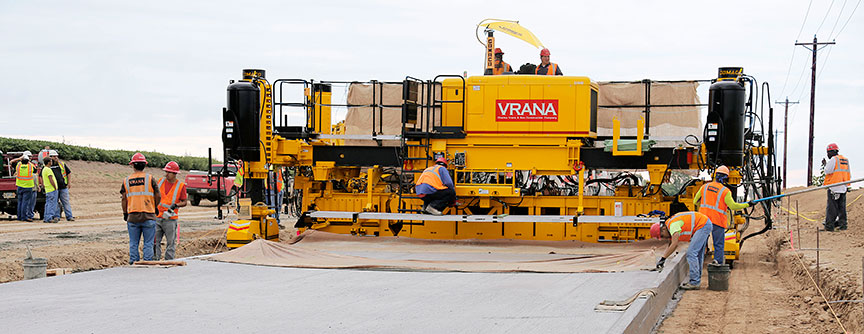

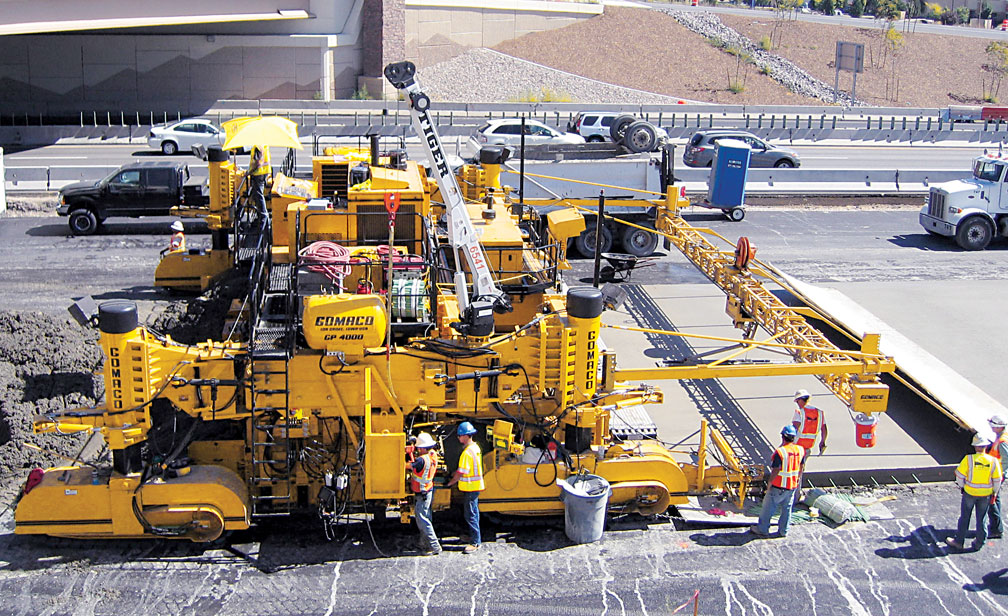

GOMACO’s two-track GP-4000 is paving passes 24 feet (7.3 m) wide and 15 inches (381 mm) thick on an interstate in Arizona. The GP-4000 is equipped with the 5400 series mold and three different bar insertion systems, including a front-mounted center bar inserter, two rear-mounted side bar inserters, and an IDBI that inserts the dowel bars for the transverse joint. The paver is also equipped with an Auto-Float attachment and burlap drag. There are two paver-mounted GSI® (GOMACO Smoothness Indicator) units to measure the smoothness right behind the paver.

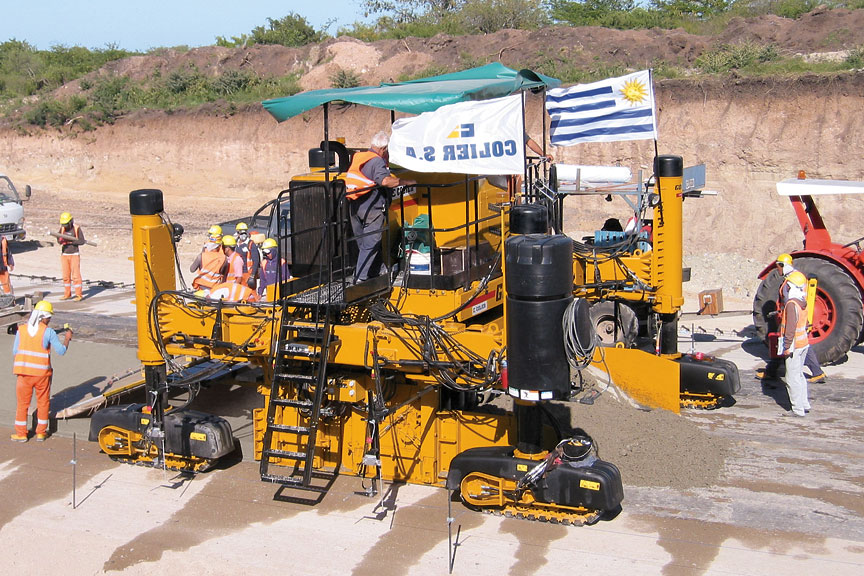

Uruguay
A four-track Commander III is slipforming a concrete road in two paving passes, each 12 feet (3.65 m) wide.
Read more about this project in GOMACO World 40.1.
Bentonville, Arkansas
This two-track GOMACO paver is equipped with G+ controls, a 5400 series mold, and Topcon 3D guidance, all working together to pave a highway. The paver has a burlap drag behind the mold, and is followed by a GOMACO T/C-600 texture/cure machine putting the finishing touches on the highway.

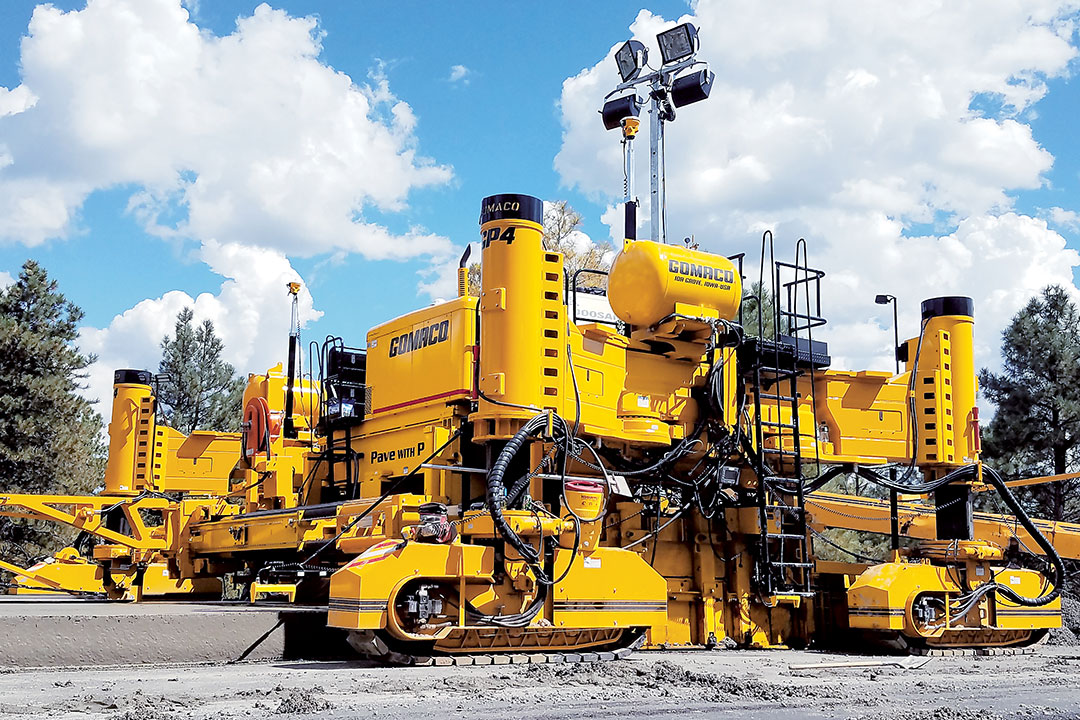

Williams, Arizona

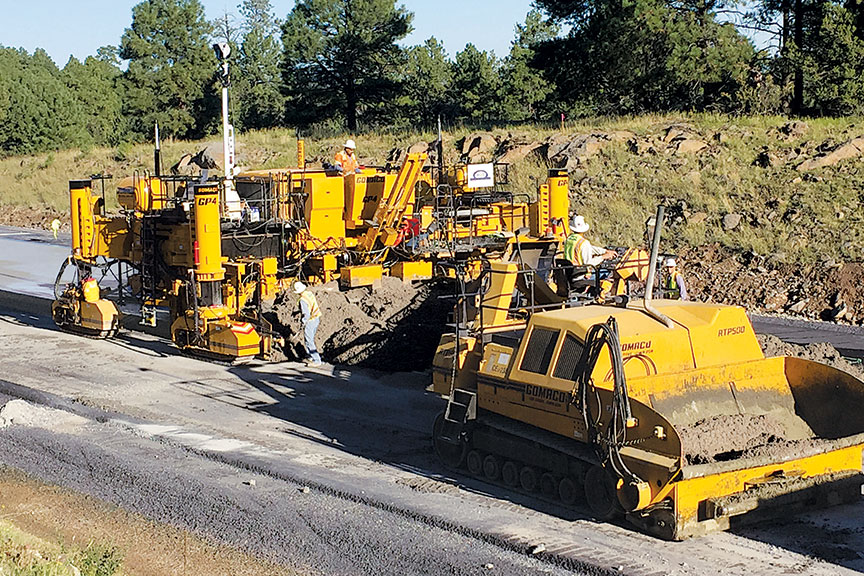

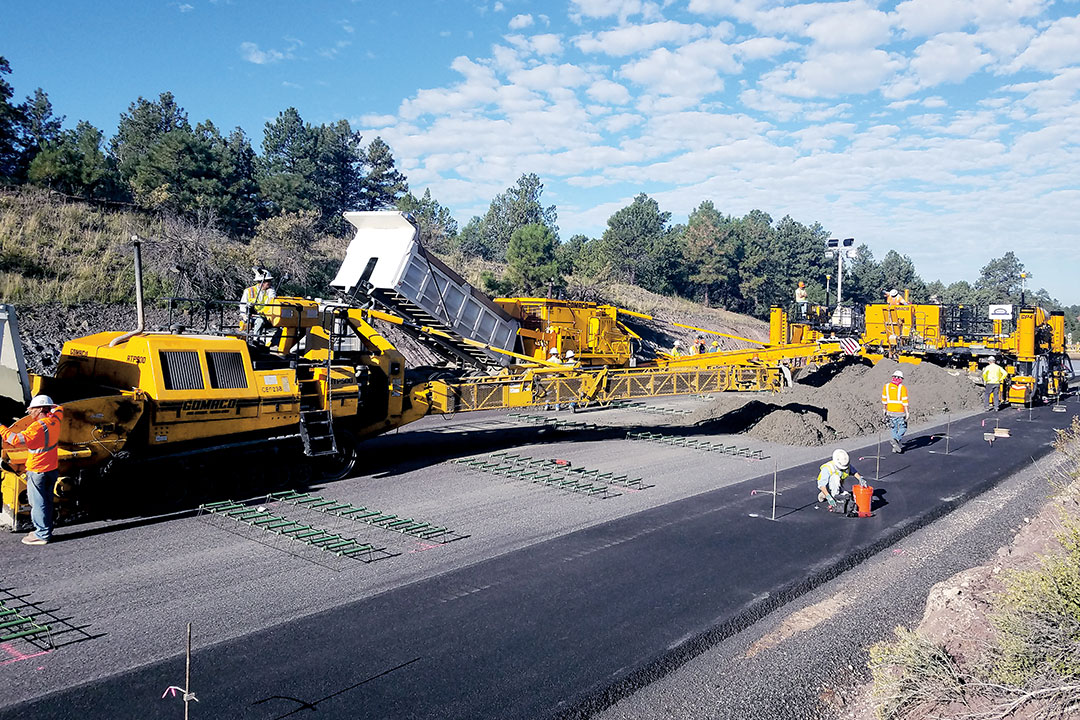

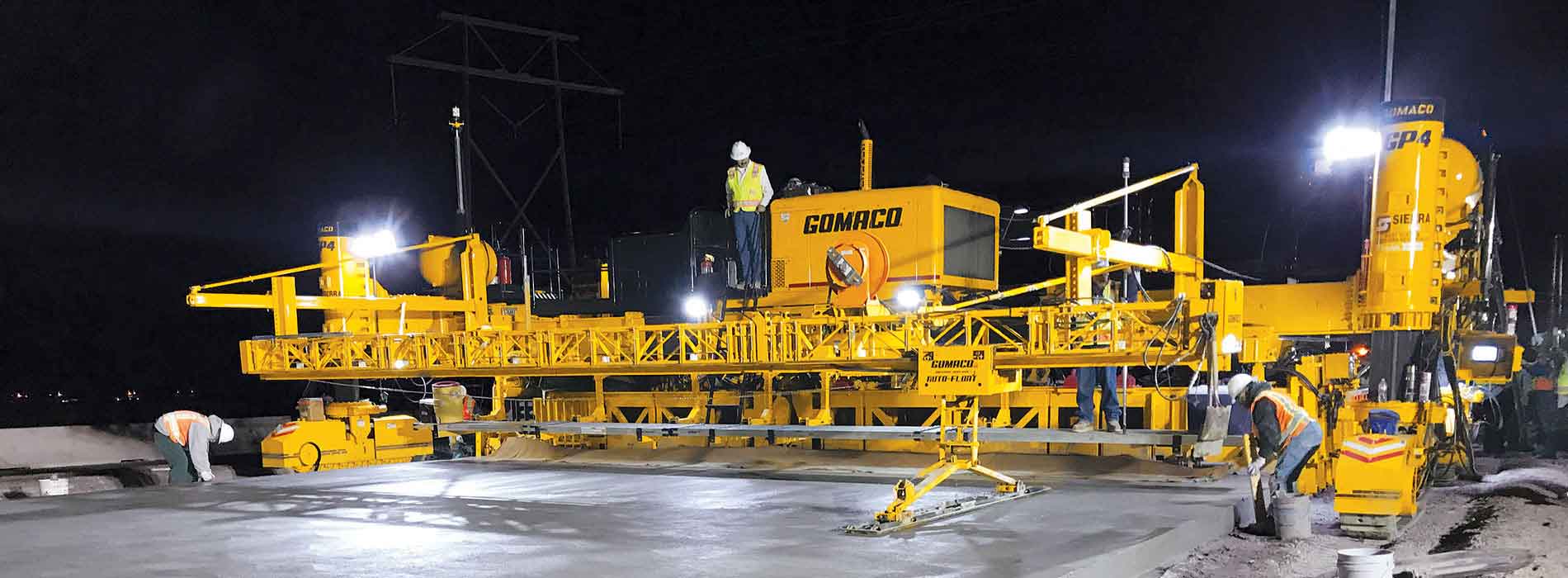

A GOMACO RTP-500 and 9500 concrete placer work in front of a four-track GP4 paving 22 feet (6.7 m) wide on the I-40 Devil Dog project, replacing five miles (8 km) of the interstate’s eastbound lanes.
Windom, Minnesota
This GOMACO GP-2600 slipform paver is equipped with a 5000 series open front, auger forward mold and three 5400 series bar inserters. It was used to pour 28 blocks of city street with integral curb.
Read more about this project in GOMACO World 42.1.
Australia

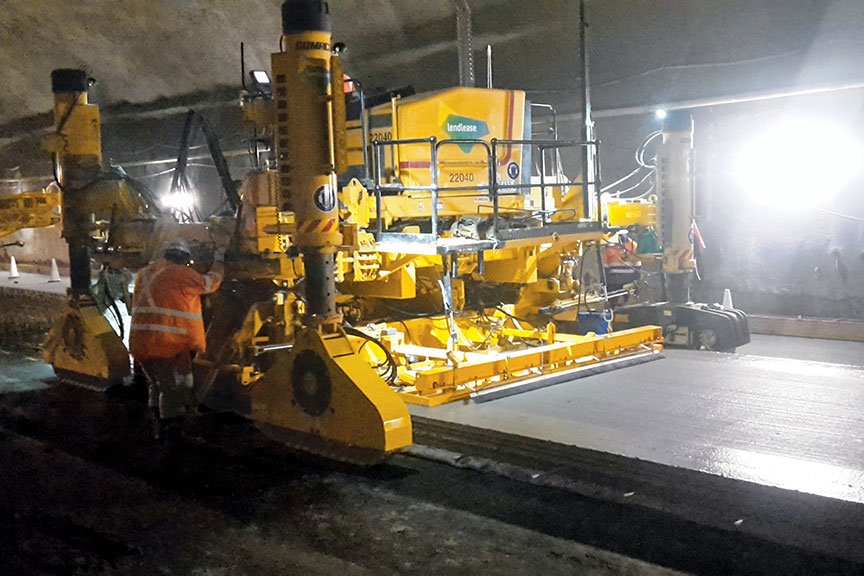

The GOMACO four-track Commander III with 3D machine guidance slipforms the floor of a tunnel at 14.7 feet (4.5 m) wide over continuous reinforced steel ahead of the paver. This Commander III is using high-rise tracks that are six inches (150 mm) wide, for minimum clearance.

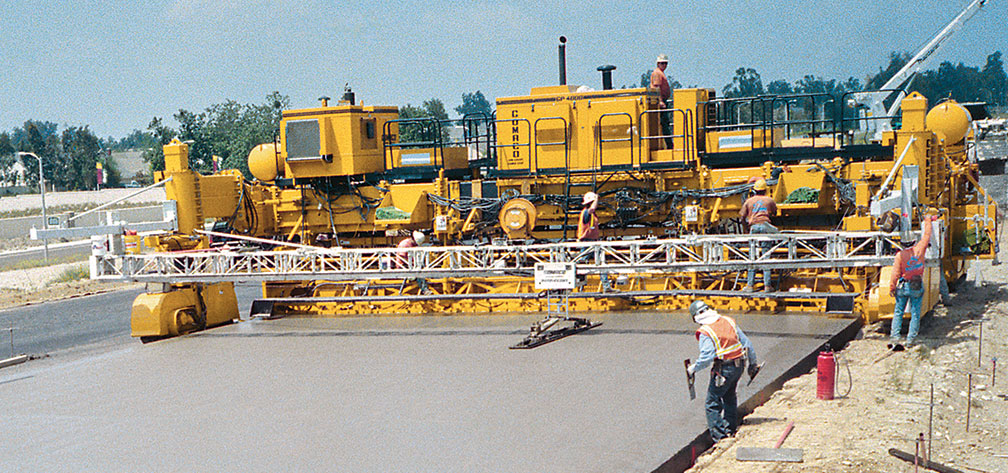

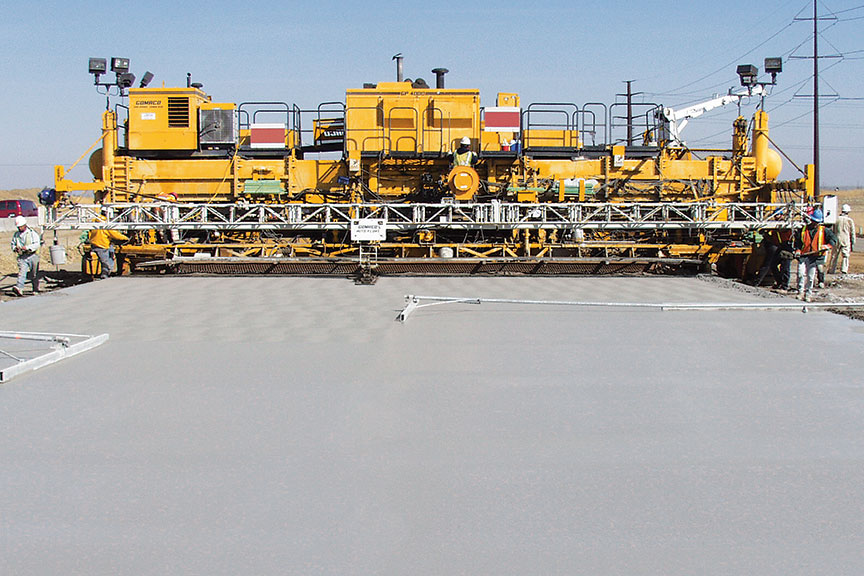

Fontana, California

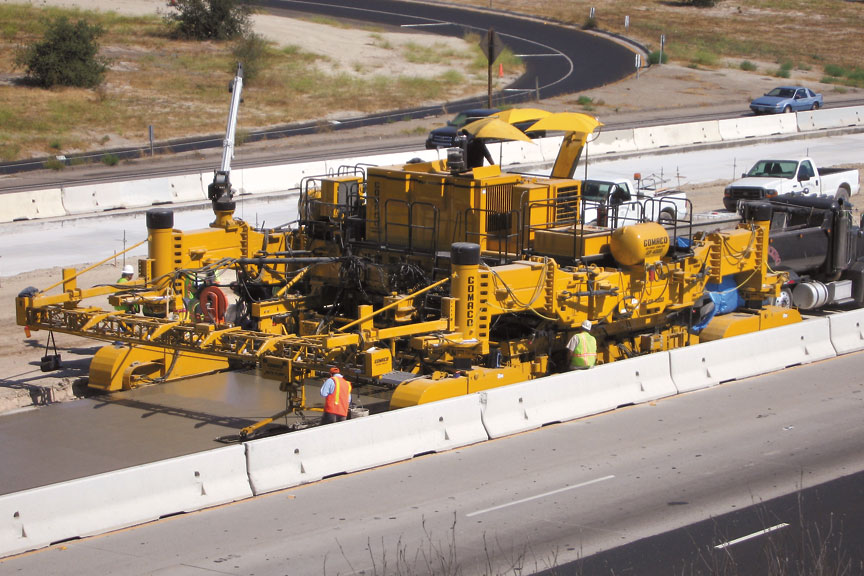

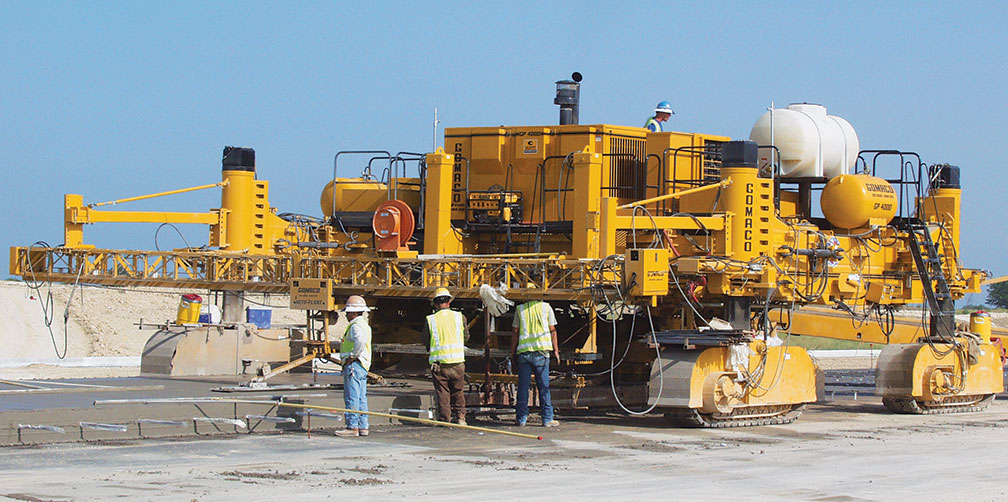

A four-track GP-4000 slipforms four miles (6.4 km) of concrete on Route 30 in Fontana, California. The project was paved in three continuous sections to provide a new east/west artery into Los Angeles, California. The GP-4000 was set up to slipform 38.5 foot (11.7 m) wide passes, 11 inches (279 mm) thick, with over 123,000 cubic yards (94,041 m3) of concrete. The machine was equipped with GOMACO’s patented IDBI system for the placement of bars, and the GOMACO Auto-Float to automatically seal the concrete surface during the paving operation.

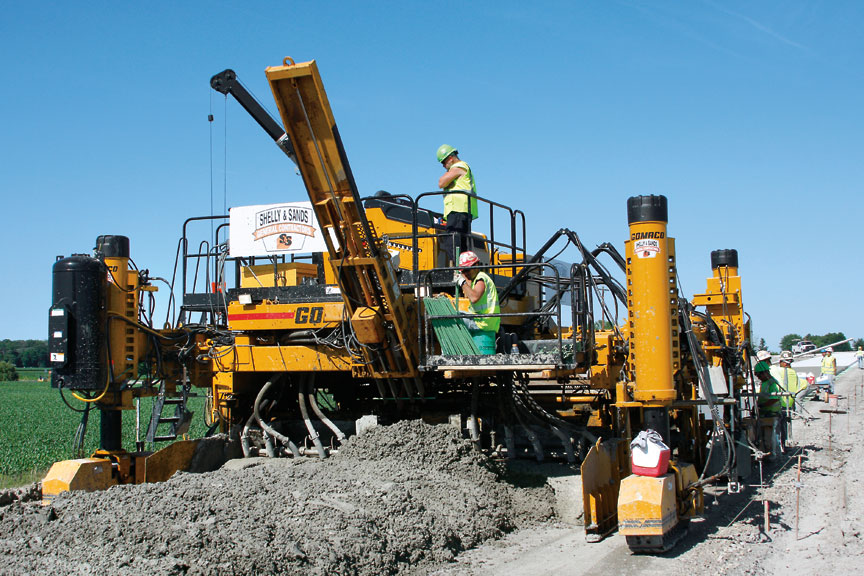

Waterville, Ohio

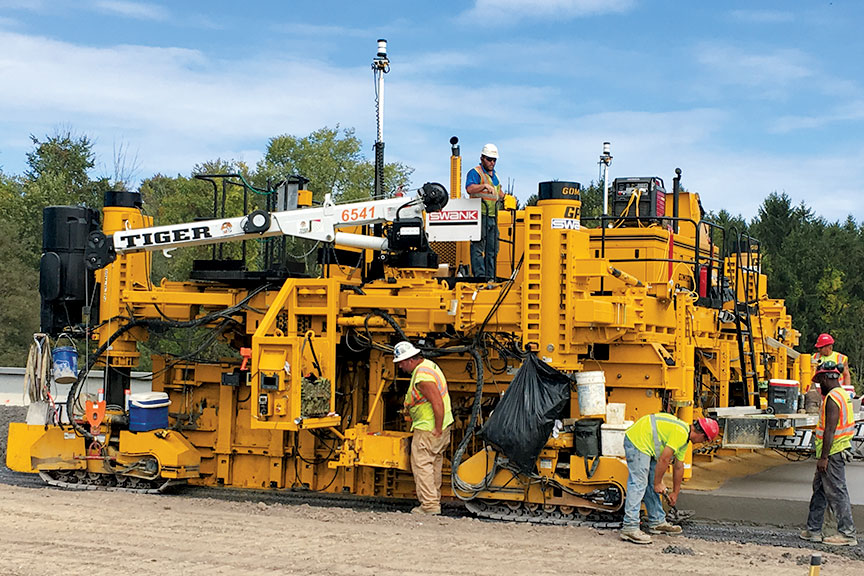

Eight entrance/exit ramps on the U.S. 24 expansion project in northwest Ohio are being slipformed 16 feet (4.9 m) wide, 11.5 inches (292 mm) thick with a four-track Commander III and an independent IDBI attachment.
Read more about this project in GOMACO World 39.2.
Simi Valley, California

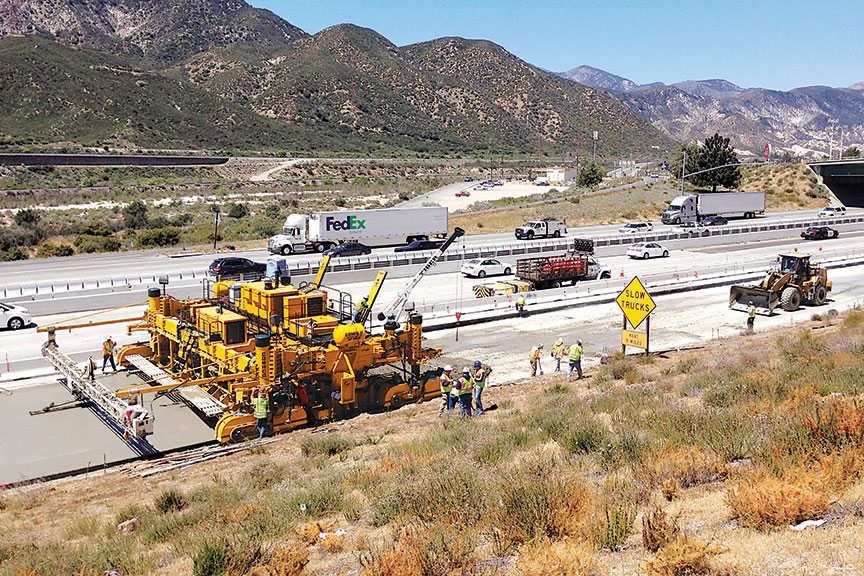

This contractor slipformed 18 miles (29 km) of concrete roadway on the Highway 23 project in California. They used a GOMACO GP-4000 four-track paver with an IDBI dowel bar inserter to pave the new roadway.
Read more about this project in GOMACO World 36.3.
Waxahachie, Texas

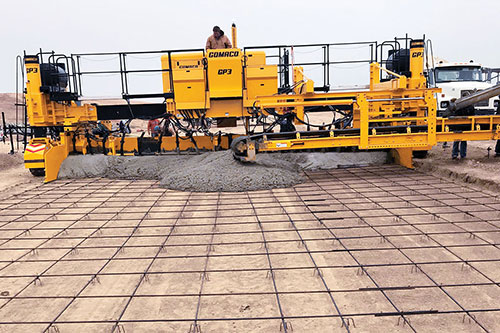

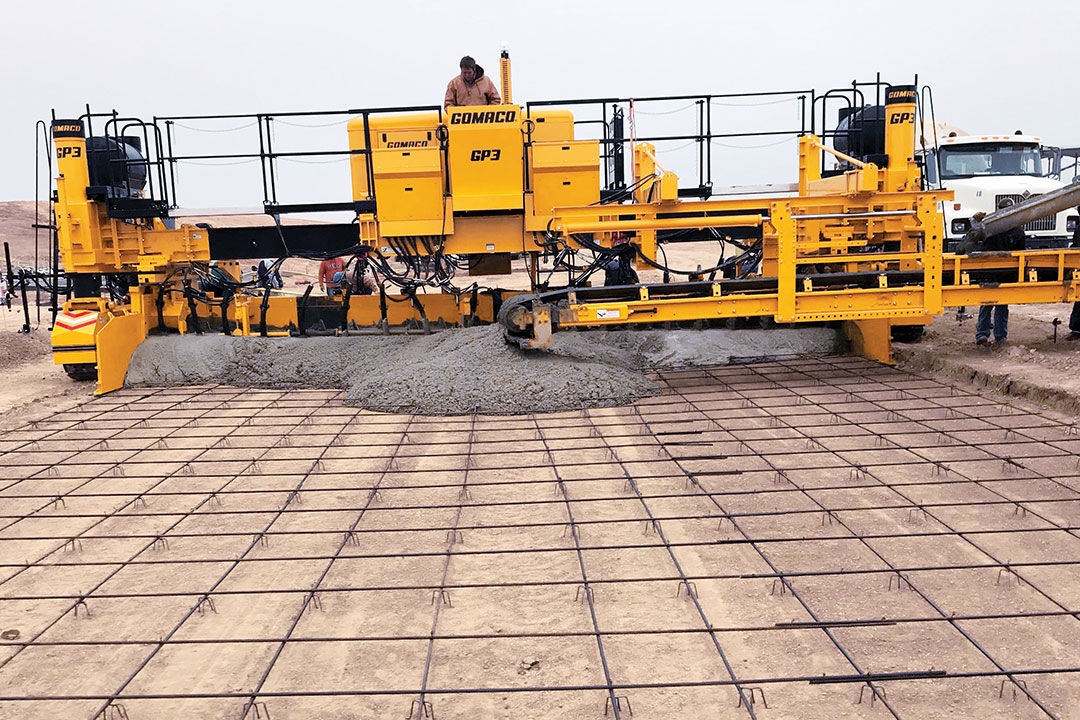

The four-track GP3 with 3D machine guidance slipforms ten feet (3.05 m) wide over continuous steel reinforcing, while the paver’s left side tracks run within inches (millimeters) of the barrier wall.

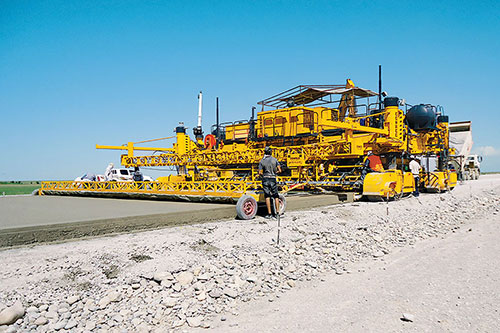

Kazakhstan

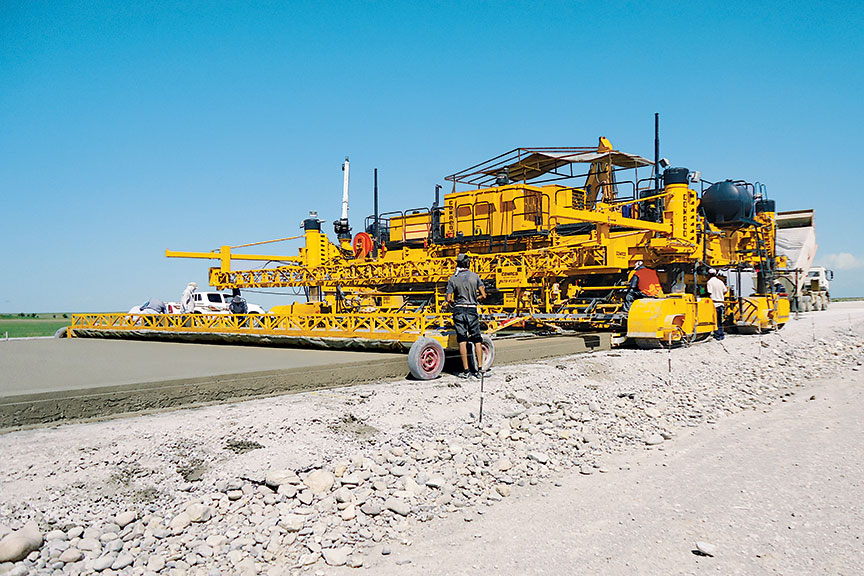

GOMACO’s four-track GP-4000 is equipped with an IDBI for accurate dowel bar placement while slipforming the “New Silk Road” in Kazakhstan.
Wayne, Nebraska

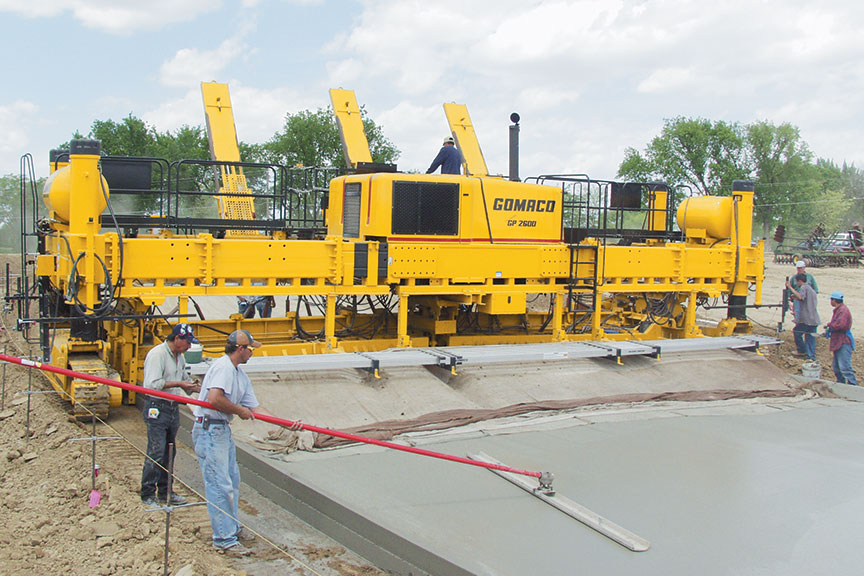

This two-track GOMACO GP-2600 paver is slipforming a cul-de-sac with a 95 foot (29 m) inside radius. This machine is equipped with three frame-mounted bar inserters. The street in Wayne, Nebraska, is being slipformed full width with integral curb on both sides.
Spencer, Iowa
A four-track GOMACO paver slipforms a 34 foot (10.36 m) wide overlay and flying shoulders. In a single paving pass, it is slipforming two 12 foot (3.66 m) wide traffic lanes, a four foot (1.22 m) wide shoulder, and a six foot (1.83 m) wide shoulder. This paver is equipped with G+ controls, Leica Geosystems 3D guidance, a 5400 series mold with three power transition adjusters (PTAs), two GSI (GOMACO Smoothness Indicator) units, and a burlap drag to complete the finish on the highway.
Sacramento, California

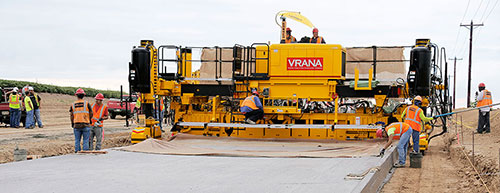

This Commander III is equipped with a 5000 series mold with pan vibrators mounted inside the mold to vibrate the polymer concrete mix on I-5 in Sacramento, California.
Read more about this project in GOMACO World 37.2.
Ames, Iowa
Outriggers can be added to the two-track GP3 for transport loading and frame widening. With the addition of the outriggers, the GP3 can be raised and a truck trailer can be backed underneath the machine.
Cash and Walnut Ridge, Arkansas
A GOMACO four-track paver with an IDBI and two paver-mounted GSI (GOMACO Smoothness Indicator) units slipforms Highway 67 with Topcon 3D guidance between Cash and Walnut Ridge, Arkansas.
Mexico
A two-track GP-4000 is mainline paving near the city of Acayucan in Veracruz, Mexico. The paver features two front-mounted bar inserters, an IDBI, and Leica Geosystems 3D guidance.

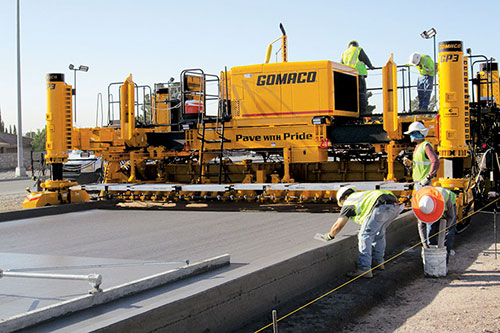

El Paso, Texas

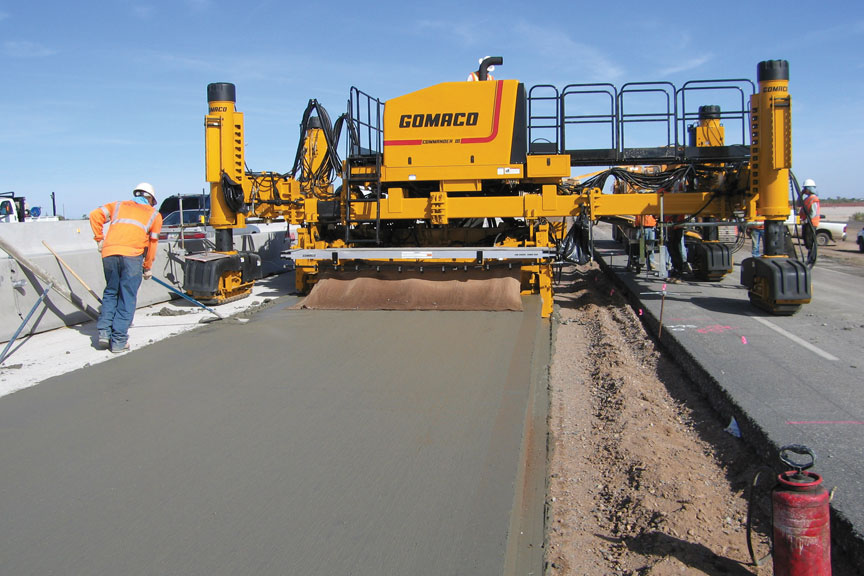

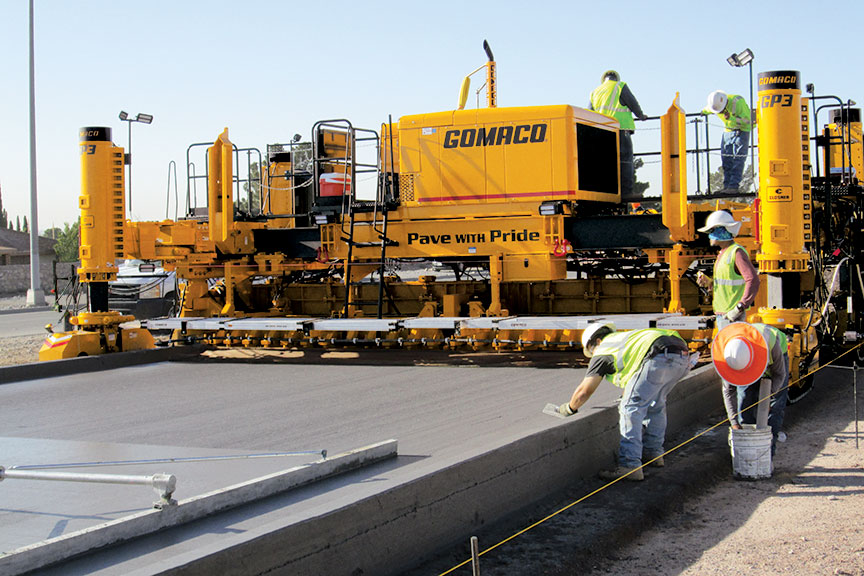

Equipped with a 5000 series paving mold, this GP3 four-track slipforms 26 feet (7.92 m) wide with integral curb on both sides of the slab.

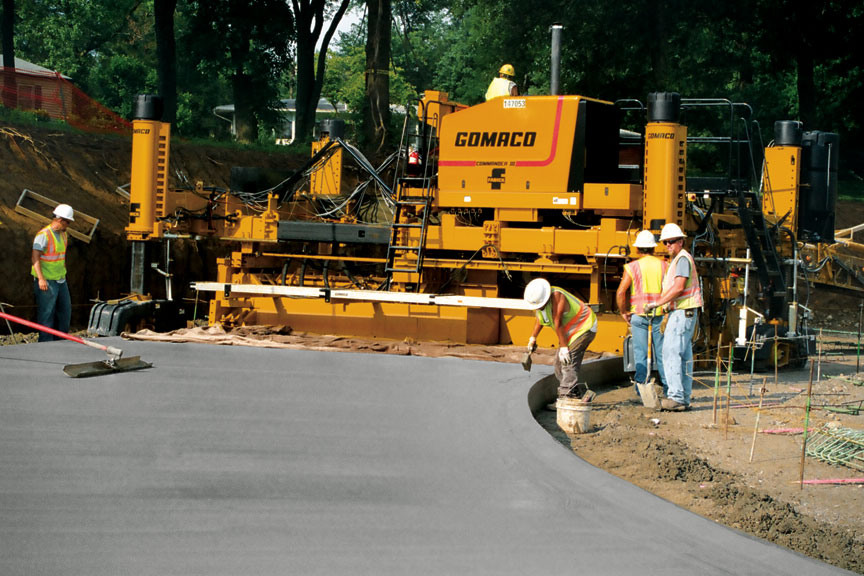

St. Louis, Missouri

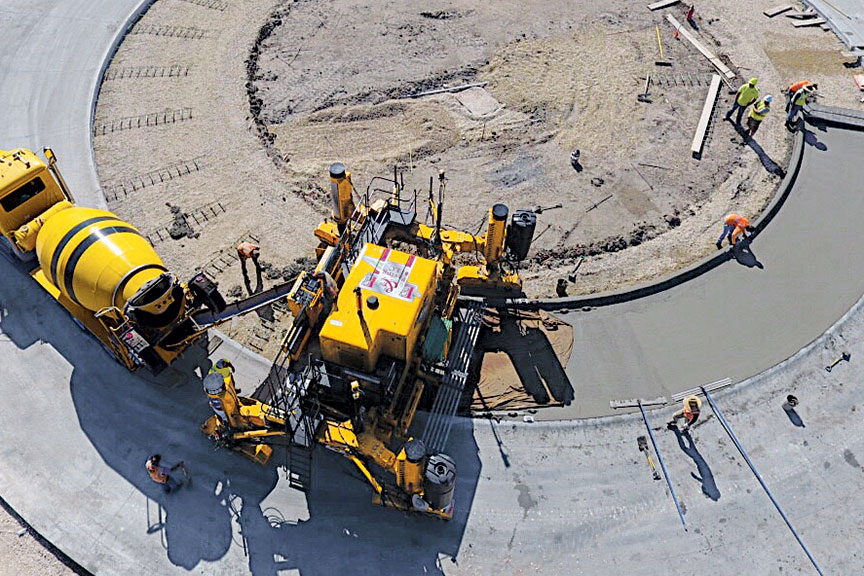

A four-track Commander III slipformed a roundabout 20 feet (6.1 m) wide with integral curb around a 45 foot (13.7 m) radius.
Read more about this project in GOMACO World 37.1.
Czech Republic
This four-track GP-4000, with an IDBI, two-lift paving system, and Leica Geosystems 3D guidance, slipforms on Highway D1 near Vyskov, Czech Republic.
Read more about this project in GOMACO World 35.2.

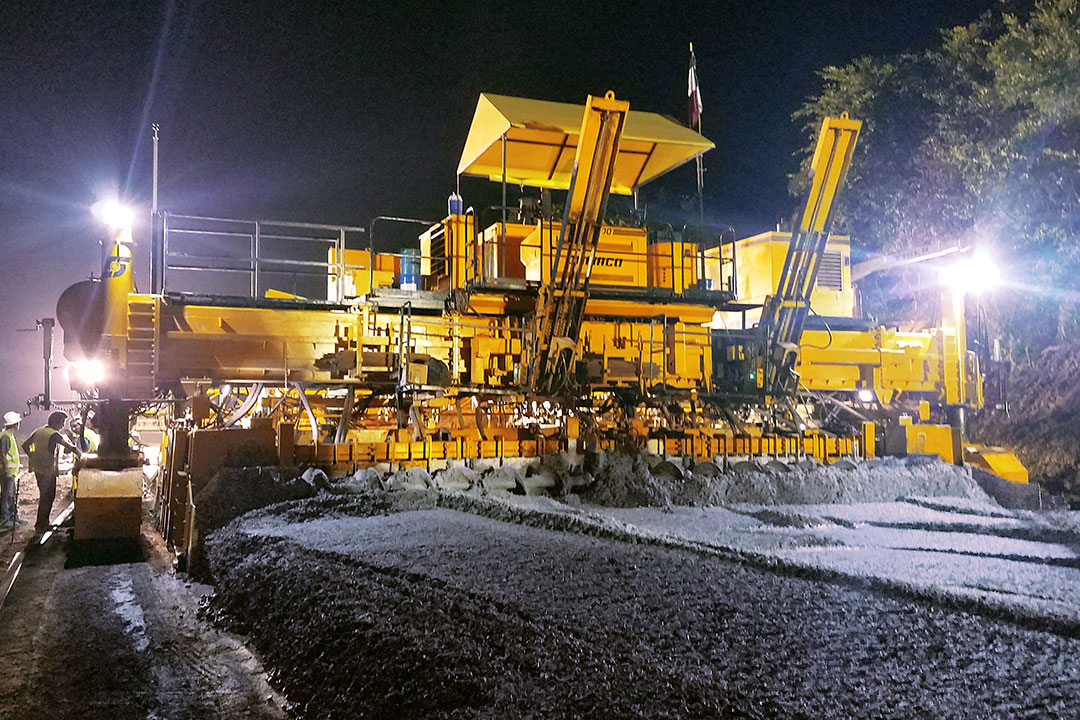

Waxahachie, Texas

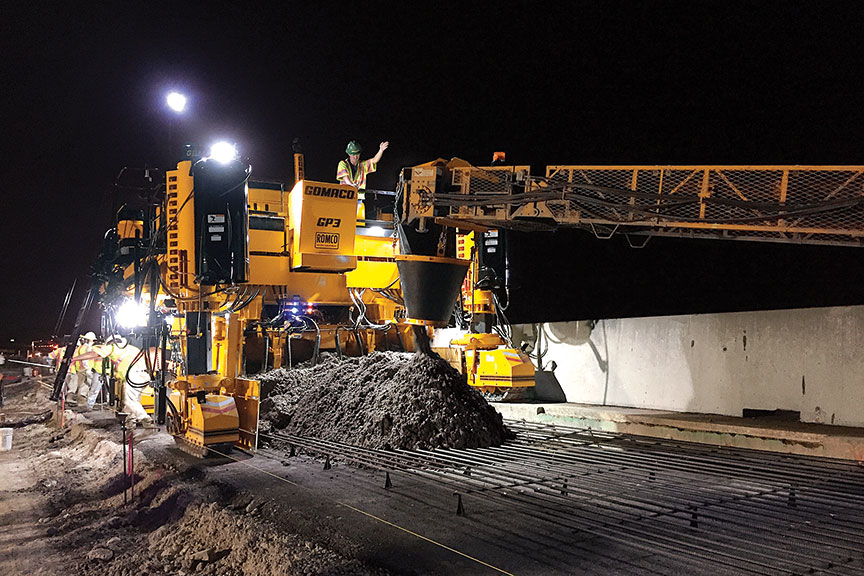

The four-track GOMACO GP3 slipforms a scab-on lane over continuous steel during a night pour on an interstate project. A GOMACO RTP-500 places the concrete in front of the GP3.
Provo, Utah

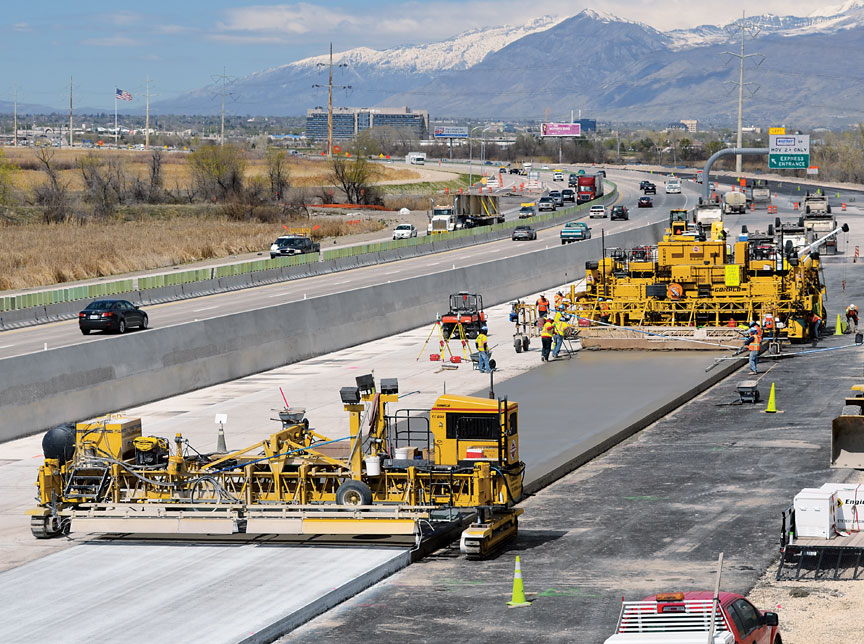

The GOMACO GP-4000 with an IDBI attachment slipforms 39 feet (11.9 m) wide on the northern portion of the I-15 CORE project.

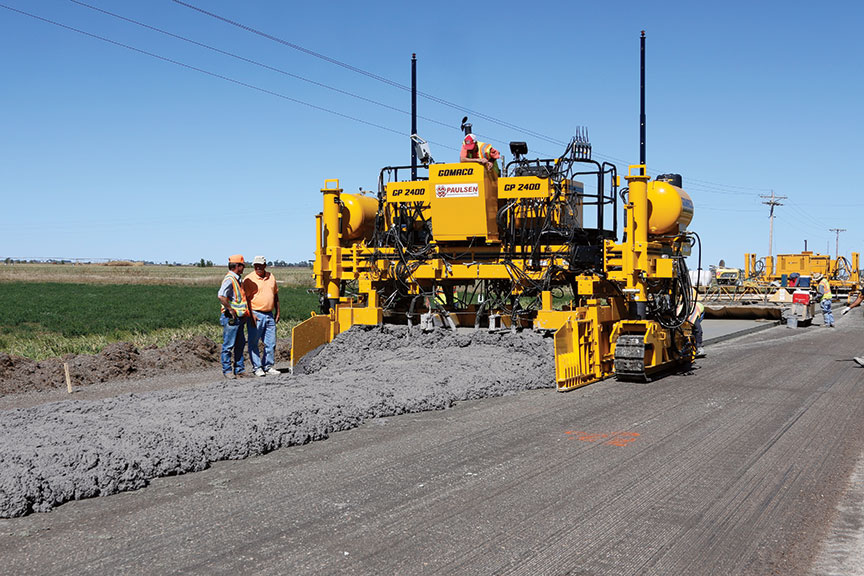

Cozad, Nebraska
A contractor is slipforming a half-width concrete overlay with a two-track GOMACO GP-2400 with Leica Geosystems 3D guidance on the Darr Link near Cozad, Nebraska.
Read more about this project in GOMACO World 42.1.
Urbandale, Iowa

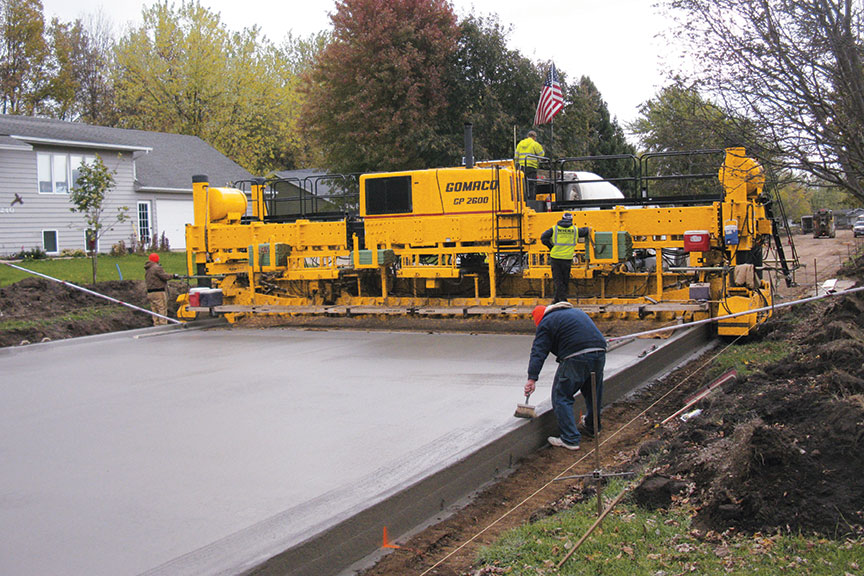

This GOMACO GP-2600 paver slipforms a street 26 feet (7.92 m) wide with six inch (152 mm) integral curb on both sides.
Austin, Texas
The four-track GOMACO GP-4000 is slipforming a toll road near Austin, Texas. The project was nearly 100 miles (161 km) of concrete paving with the roadway ranging from 40 feet (12.2 m) up to 64 feet (19.5 m) wide, and the majority of the concrete was 13 inches (330 mm) thick and paved over continuous steel reinforcing. The GP-4000 was set up to pave at three different paving widths, 18 feet (5.5 m), 22 feet (6.7 m), and 24 feet (7.3 m).

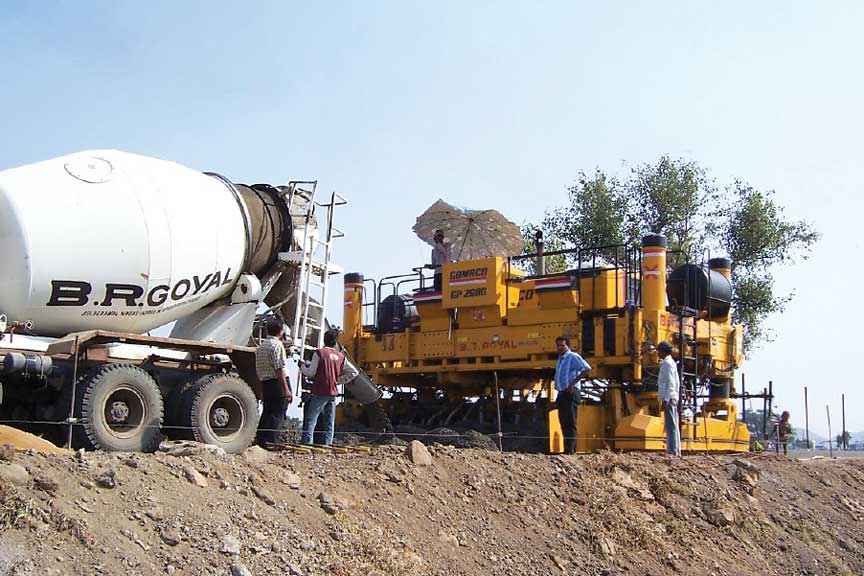

India
A two-track GOMACO GP-2600 paver slipforms a new roadway for a housing colony in Indore, India.
Read more about this project in GOMACO World 36.1.
Czech Republic

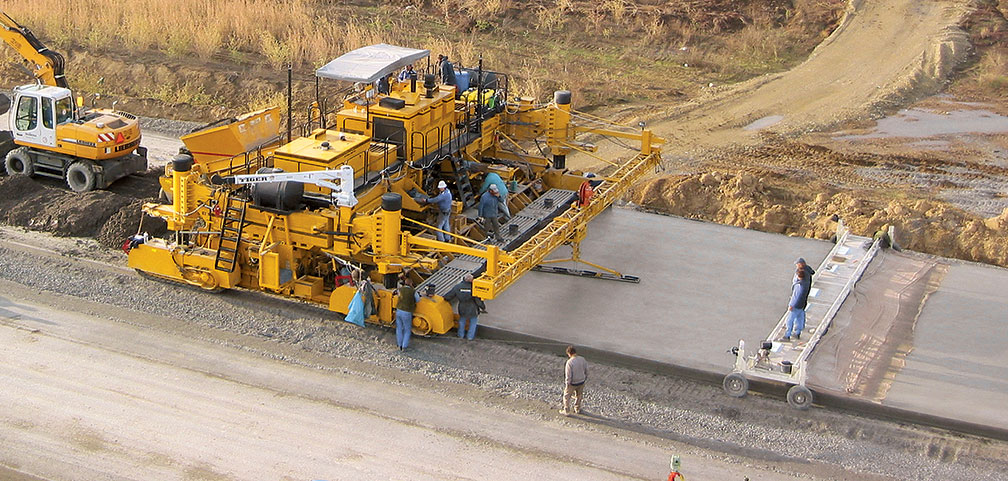

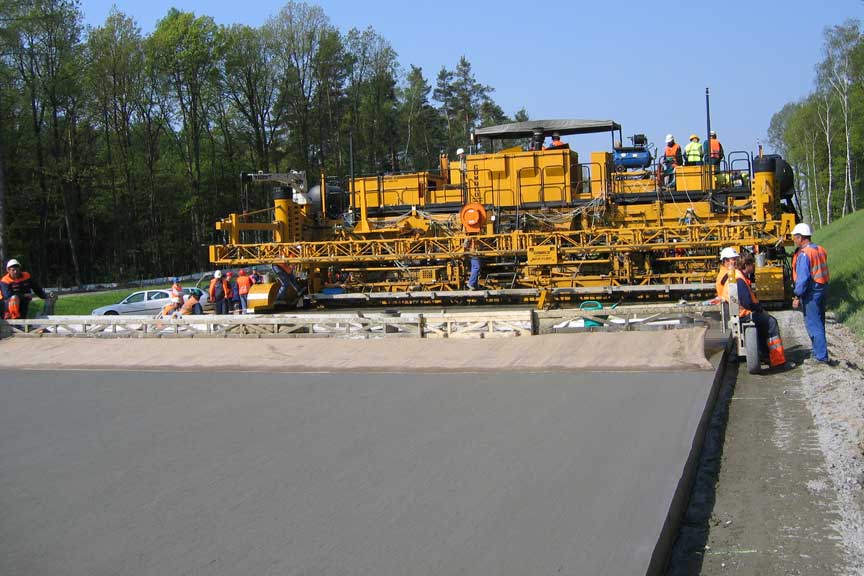

This four-track GP-4000 is equipped with the IDBI system and Leica Geosystems 3D guidance. This is a two-layer mainline paving project in the Czech Republic. Paving widths on this project range from 35 feet (10.7 m) to 40 feet (12.2 m). The total thickness of the two-layer slab is 12 inches (305 mm). GOMACO’s patented two-layer paving mold incorporates two-layer paving into a “single-mold design.”

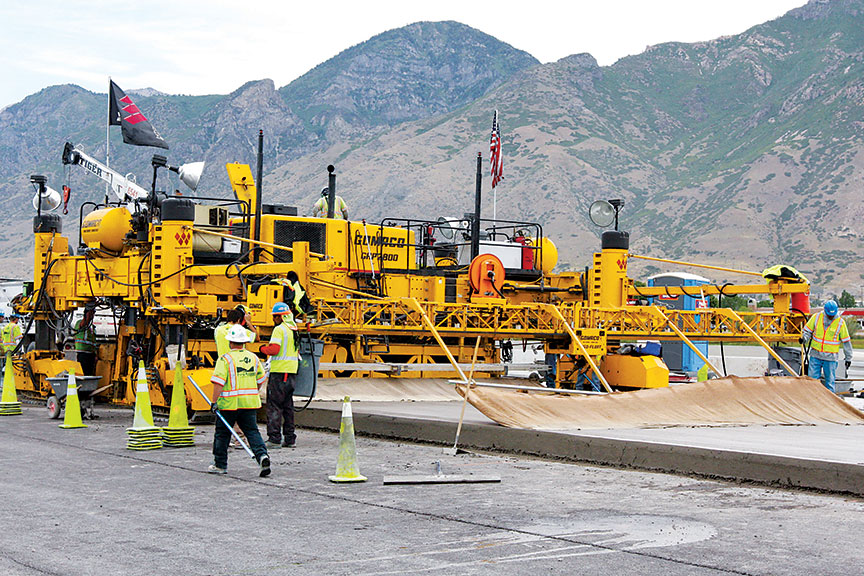

Salt Lake City, Utah

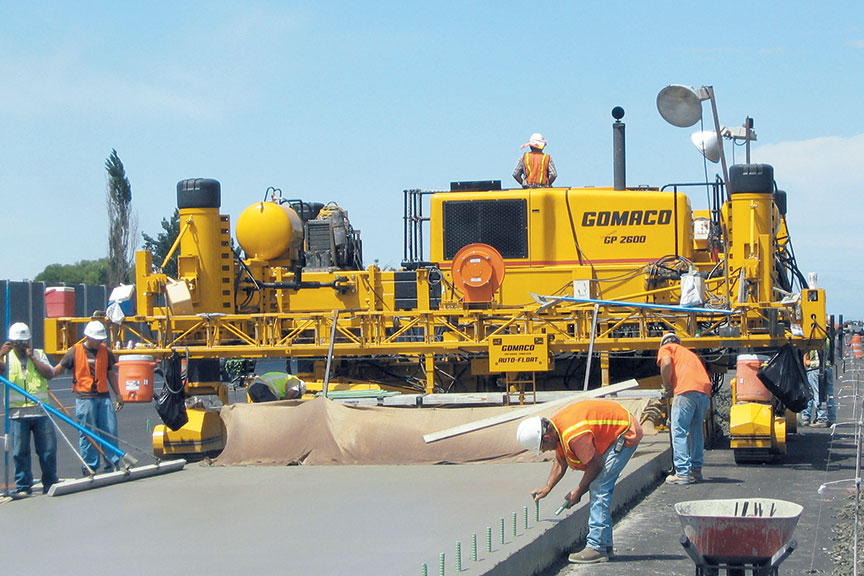

This four-track GOMACO GP-2600 paver, equipped with a GOMACO Auto-Float, is mainline paving in Salt Lake City, Utah.
El Paso, Texas
This four-track GOMACO GP4 slipforms a highway expansion at 38 feet (11.58 m) wide. The GP4 is equipped with the 5400 series paving mold, an Auto-Float, and Trimble 3D guidance.
Bolivia

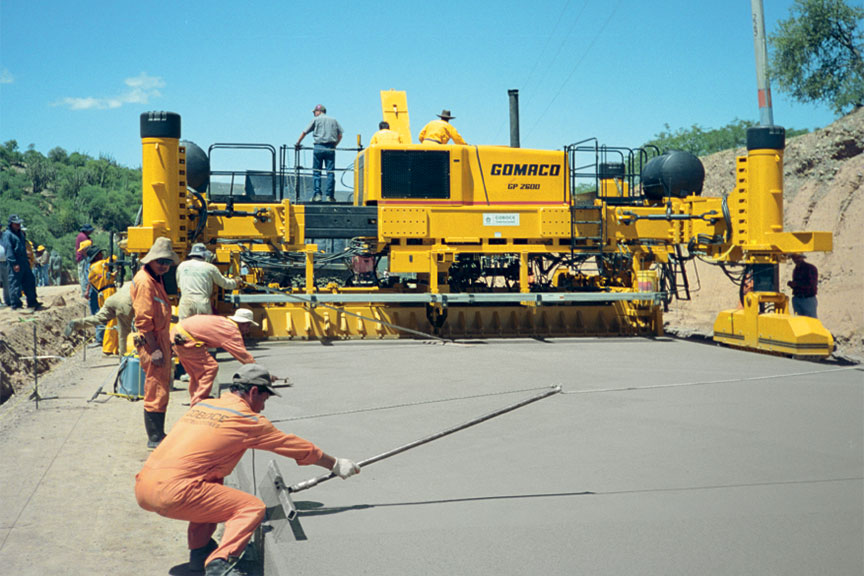

This four-track GOMACO GP-2600 paver slipforms a 24 foot (7.32 m) wide concrete roadway near Cochabamba, Bolivia.
Ft. Riley, Kansas
This contractor slipformed a roadway complete with a roundabout, six percent grade, and a tank crossing through Ft. Riley with a GOMACO GP-2600 paver.
Read more about this project in GOMACO World 36.3.
Georgia
This contractor slipformed a new portion of the E60 East-West Highway in the country of Georgia with their four-track GOMACO GP-4000 paver.
Read more about this project in GOMACO World 38.1.
