Versatility Is Provided With GOMACO’s Texturing/Curing Machines



The T/C-600 accomplishes tasks quickly because of its optional high travel speed. The 176 fpm (53.6 mpm) is the fastest in the industry.

Both the T/C-600 and T/C-400 frames permit width adjustment from 12 ft. 10 in. (3.91 m) up to 56 ft. 10 in. (17.32 m).

The T/C-600 is equipped with two hydraulically powered, gear-driven crawler tracks and the T/C-400 is equipped with two end cars, each having two hydraulically powered, foam-filled rubber flotation tires.





















Versatility With One Machine

• Versatility with one machine...texturing, curing, poly-roll, burlap/astroturf drag.

• T/C-600 accomplishes the tasks quickly because of its optional high travel speed. The 176 fpm (53.6 mpm) is the fastest in the industry. This can allow your operator to keep up with the paving operation and time to tend to other responsibilities.

• The low-range power on the T/C-600 provides tractive effort around and over job-site obstacles and ease in negotiating inclines during loading. The low-range speed provides up to 66 fpm (20.1 mpm).

• The T/C-600 and T/C-400 frames permit width adjustment from 12 ft. 10 in. (3.91 m) to 56 ft. 10 in. (17.32 m). This GOMACO machine provides increased efficiency on any project where the surface of the concrete requires texturing and/or application of curing compound.

Central operator station and power supply provides hydraulic control from one location. Job-proven, 60 hp (44.8 kW), four-cylinder, water-cooled CAT diesel engine, provides ample power for any project.

• Electronic-over-hydraulic forward and reverse steering and grade control is sensored off the same stringline as the paver. This provides ease of operation and accuracy in texturing and curing of the slab.

• Optional power transition adjuster (PTA) hydraulically adjusts for crown height and permits on-the-go crown adjustments.

• Curing assembly includes a reservoir with hydraulic motor, pump, and controls. The spray bar has nozzles spaced 12 in. (305 mm) apart and adjustable height above the surface of the concrete for even coverage. Transverse curing system is available. The transverse curing system allows you to simultaneously texture and cure, saving you time and money.

• Texturing assembly travels transversely across the width of the concrete slab. Carriage speed is variable up to 186 fpm (56.7 mpm). Texturing wire tine members are automatically pivoted to trail at the end of each pass. Adjustable pressure on surface contact between texturing member and concrete controls depth and angle of wire tines. Longitudinal texturing is available when required by project specifications.

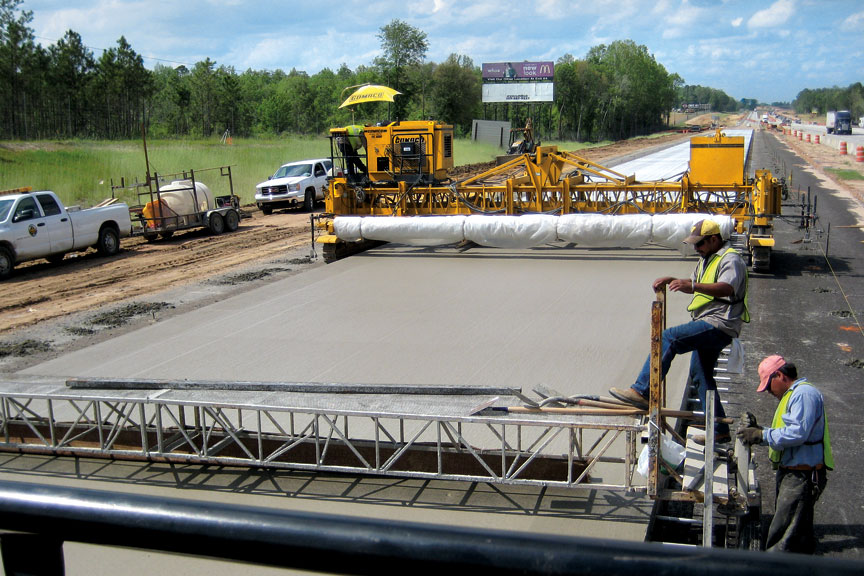

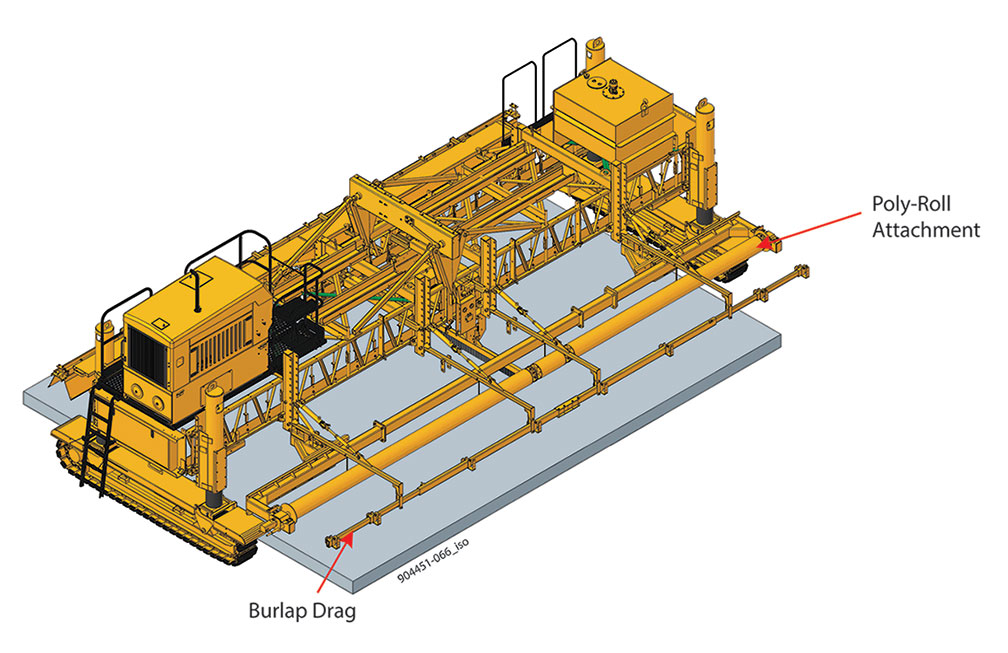

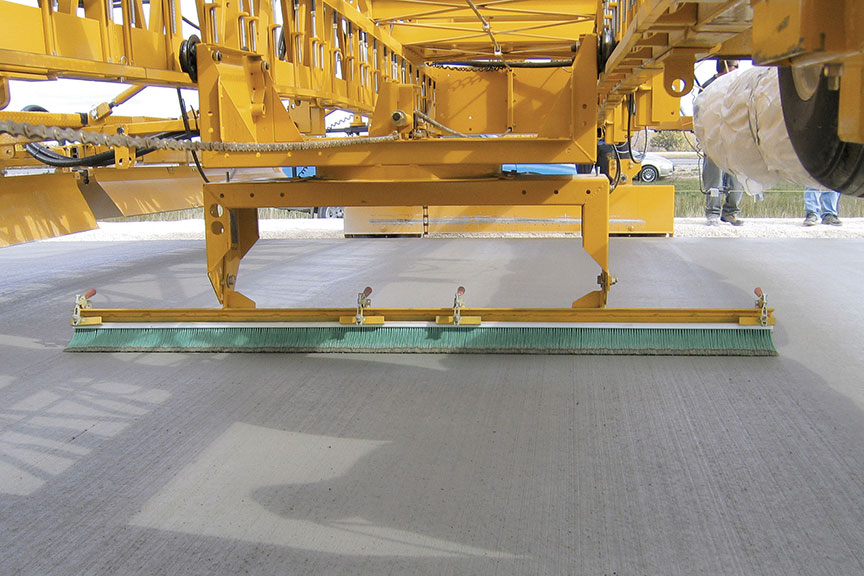

• Versatility is provided as the optional burlap/astroturf drag or poly-roll hydraulically lowers for the texturing process and raises off the slab for the curing operation.

• GOMACO’s T/C-400 and T/C-600 texture/cure machines are now available with a skewed tining option. It allows the travel of the tining bars to run a skewed path, while the frame of the machine is square to the slab. It simplifies the ability to transverse tine on newly paved streets and highways requiring a skew texture.





T/C-600 Texture/Cure MachineSkewed Tining Option

GOMACO’s T/C-400 and T/C-600 texture/cure machines are available with a skewed tining option. It allows the travel of the tining bars to run a skewed path, while the frame of the machine is square to the slab. It simplifies the ability to transverse tine on newly paved streets and highways requiring a skew texture.

In the past, the frame of the texture/cure machine had to be skewed and incorporated the use of a secondary crawler track mount with a center pivot, which added length to the machine. The skewed frame had to be broken down for transport.

With the skewed tining option, the tine rake on the texture/cure is gear driven, and as the rake travels across the slab, it moves longitudinally in a sliding mechanism through the mount. The final tining pattern is accomplished simply by sliding only the rake. No matter where the broom starts or stops, it always has the same skewed pattern, because it is timed off the carriage’s back and forth travel. The sliding movement is controlled by a timing chain that runs from end panel to end panel. The direction of the skew can easily be changed by moving the timing chain either over or under the main drive sprocket on the upper carriage.

The skewed tining option was designed for simplicity. There are no electronic controls with the texture/cure’s skewed tining option. The sprockets, chains and mechanical items are ordinary pieces that are easily replaceable and can be purchased at the local hardware store.









Skewed Concrete Tining For GOMACO Texture/Cure Machine
1 minutes 15 seconds







T/C-600 Texture/Cure Machine

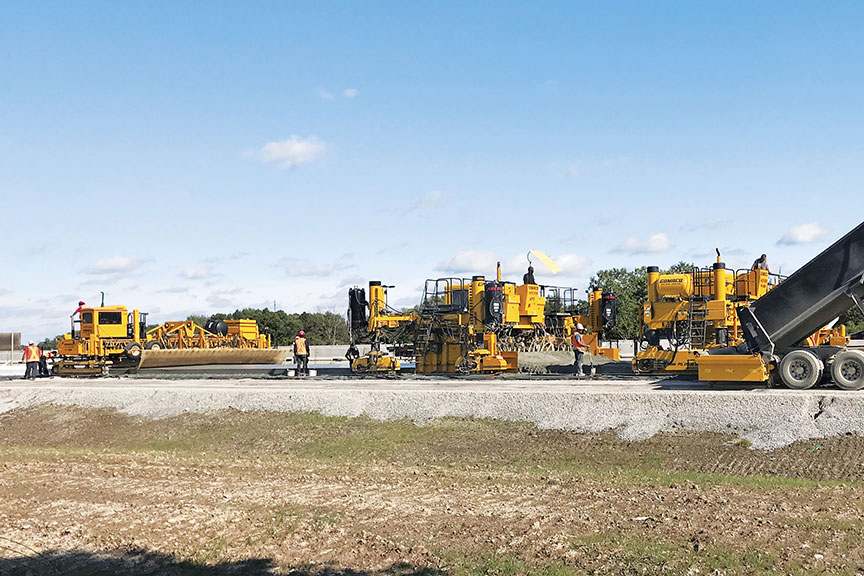

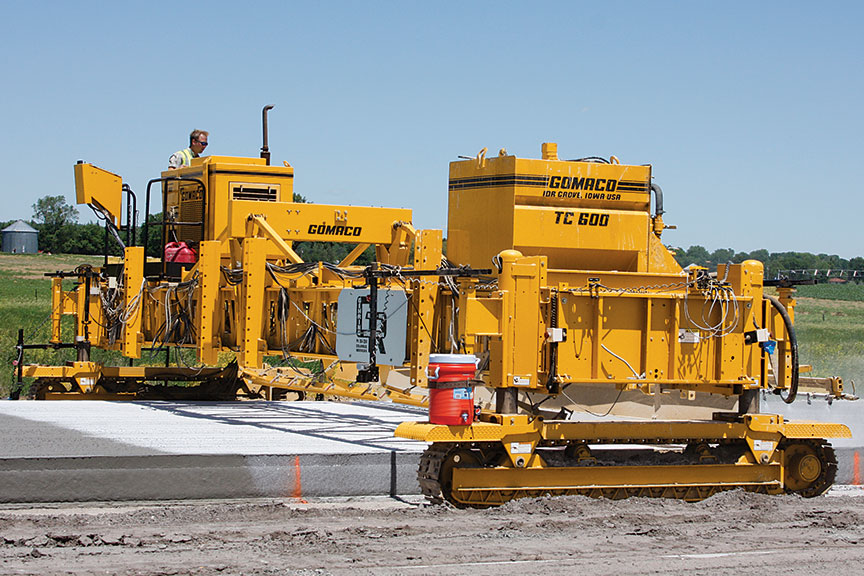

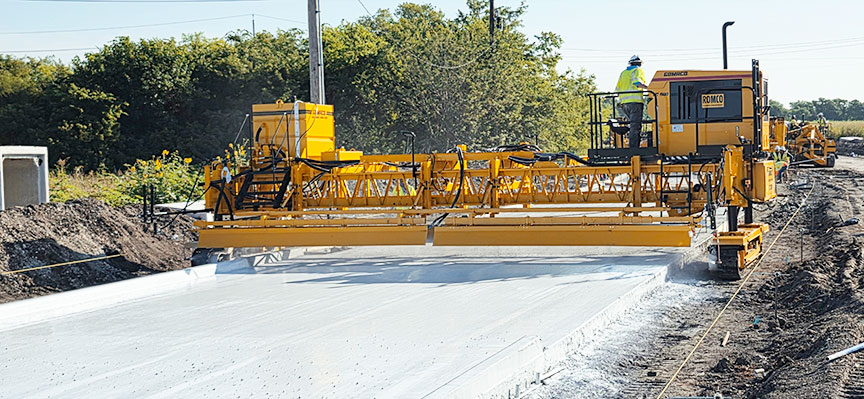

Four GOMACO T/C-600 texture/cure machines follow the pavers applying a longitudinal tine and white spray cure on the I-15 project in Provo, Utah.

Read more about this project in GOMACO World 40.2.







T/C-600 Texture/Cure Machine

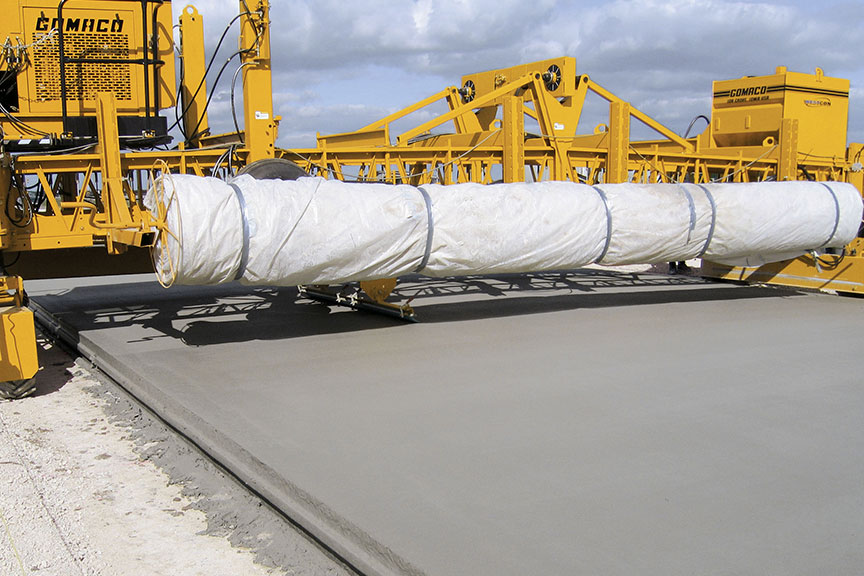

A GOMACO T/C-600 followed the paver applying a burlap drag and white curing compound on the JFK International Airport Bay Runway project.

Read more about this project in GOMACO World 39.1.







T/C-600 Texture/Cure Machine

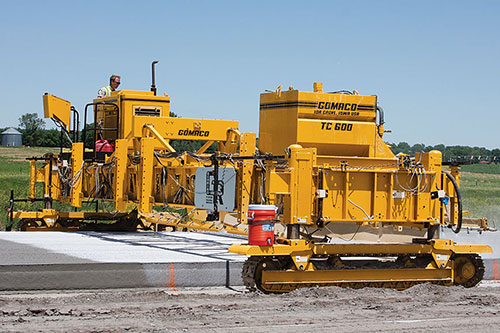

A T/C-600 texture/cure machine applies a longitudinal tining with double white spray cure finish on a new bypass project around the city of Columbus, Nebraska. Sonic sensors are used to guide the texture/cure machine on the 3D stringless project.

Read more about this project in GOMACO World 42.1.







T/C-600 Texture/Cure Machine

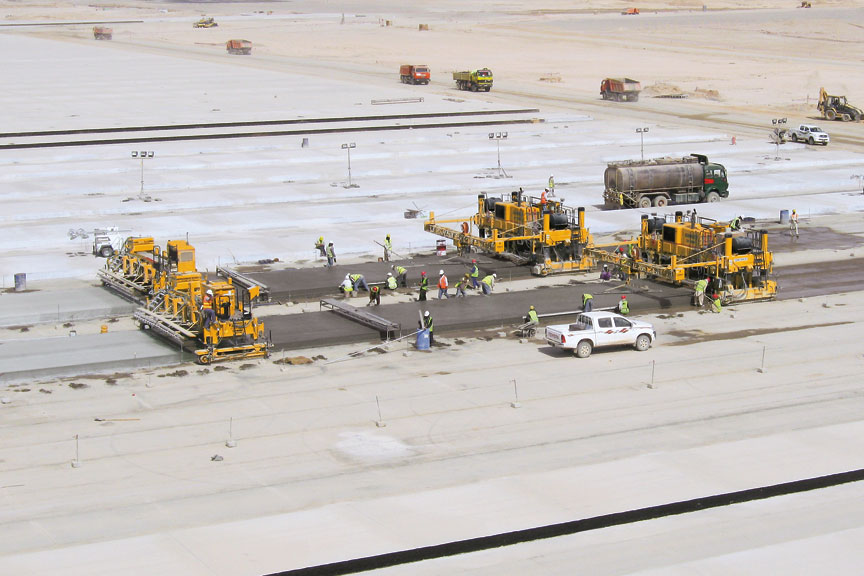

GOMACO GP-2600 two-track pavers slipform side-by-side on an airbase project in Afghanistan. The pavers are followed by two T/C-600 texture/cure machines.







T/C-600 Texture/Cure Machine

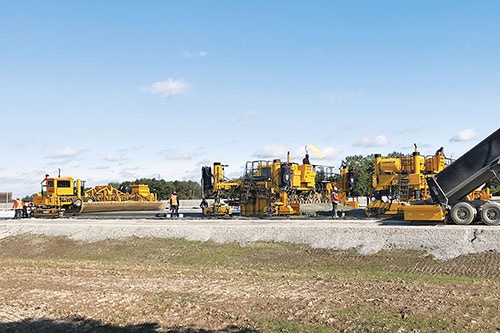

A GOMACO T/C-600 texture/cure machine applies a longitudinal tine finish and white spray cure to the surface of new U.S. Route 24 in Ohio.

Read more about this project in GOMACO World 39.2.







T/C-600 Texture/Cure Machine

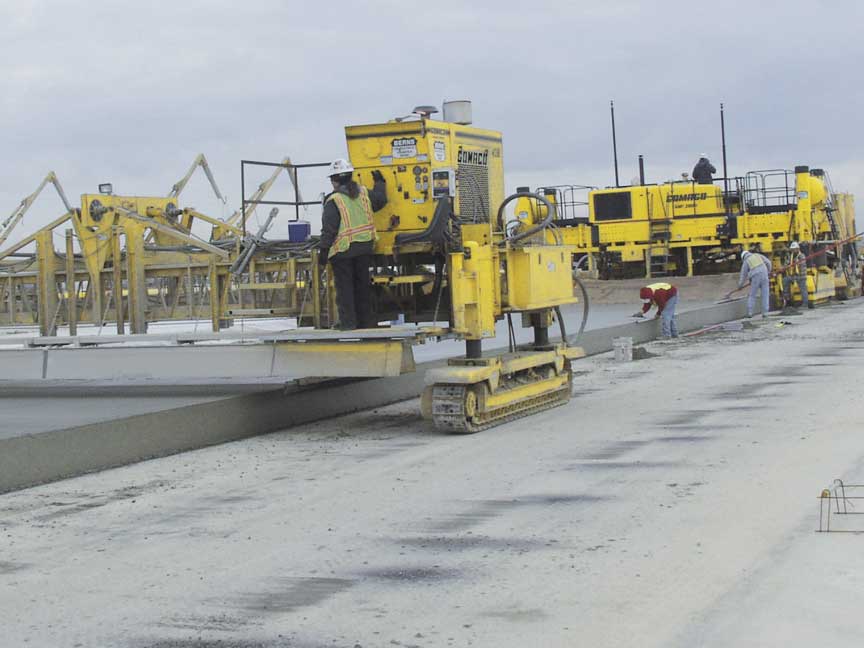

A GOMACO T/C-600 texture/cure machine applied a transverse tine and white spray cure on the I-70 project in Indianapolis, Indiana.

Read more about this project in GOMACO World 36.3.







T/C-600 Texture/Cure Machine

A total of 245,000 cubic yards (187,317 m3) of concrete was slipformed on this highway expansion project in Ohio, which included texturing and curing with a GOMACO T/C-600.

Read more about this project in GOMACO World 39.2.







T/C-600 Texture/Cure Machine

A GOMACO T/C-600 texture/cure machine follows behind the paver applying a 0.375 inch (9 mm) center-to-center horizontal tine and a white spray cure on the I-75 project in Georgia.

Read more about this project in GOMACO World 37.1.







T/C-600 Texture/Cure Machine

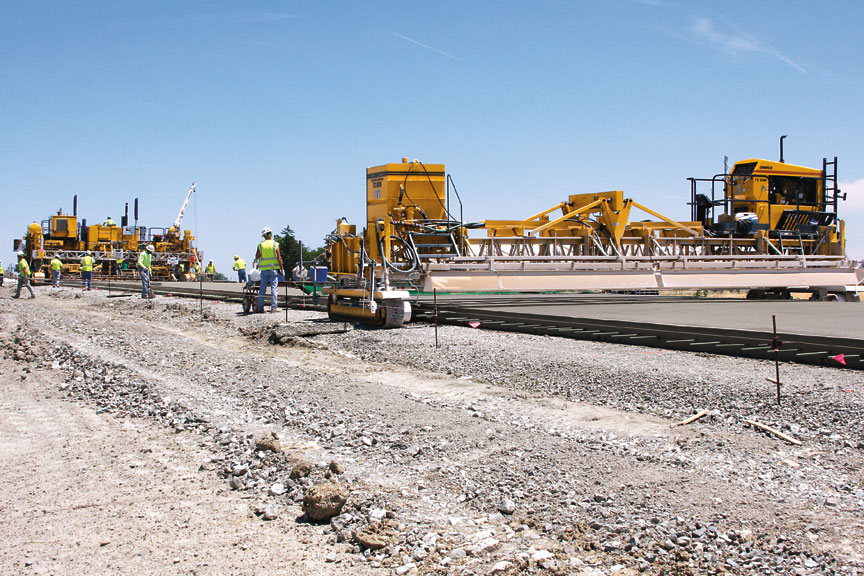

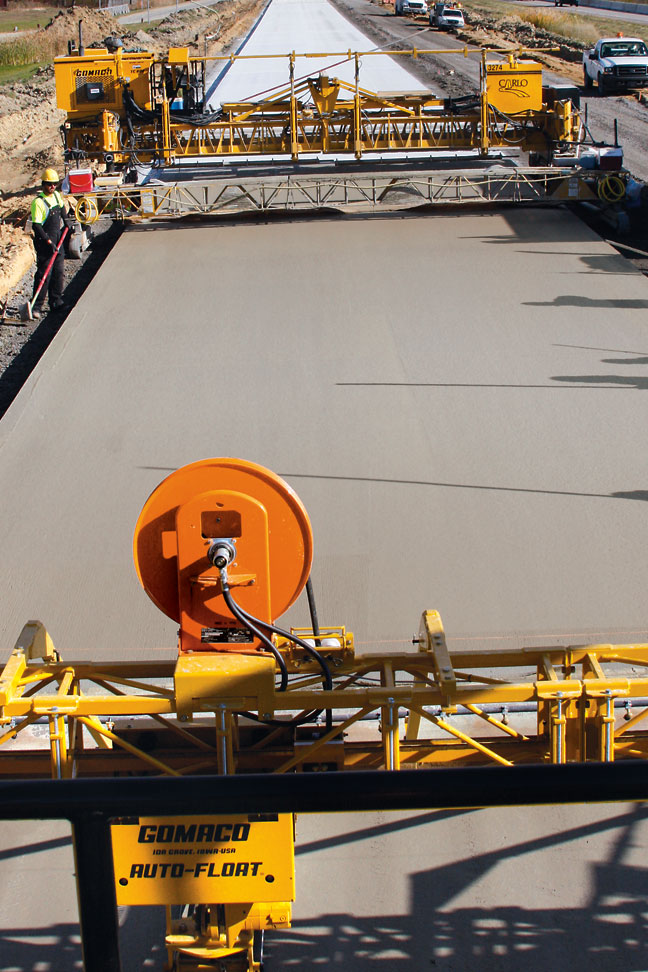

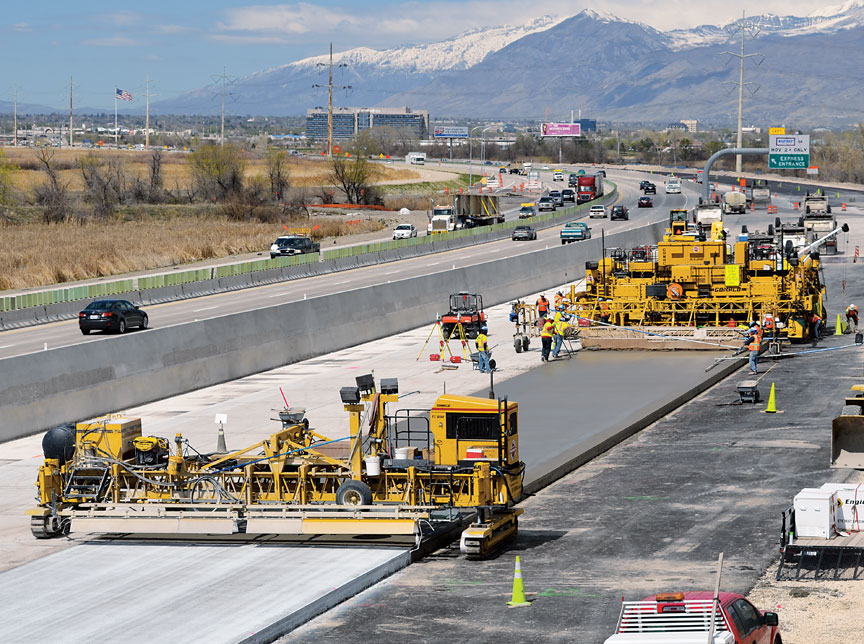

A GOMACO T/C-600 applies an Astroturf drag finish behind a two-track GHP-2800 on I-15 in Utah.

Read more about this project in GOMACO World 40.2.







T/C-600

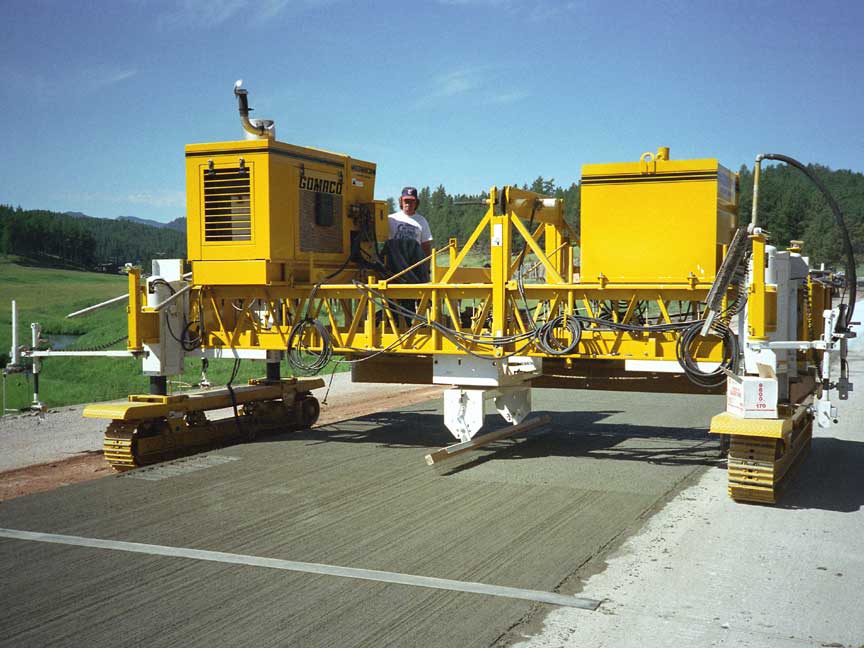

The T/C-600 texturing assembly travels transversely across the width of the concrete slab to provide a consistently textured surface.







T/C-600 Texture/Cure Machine

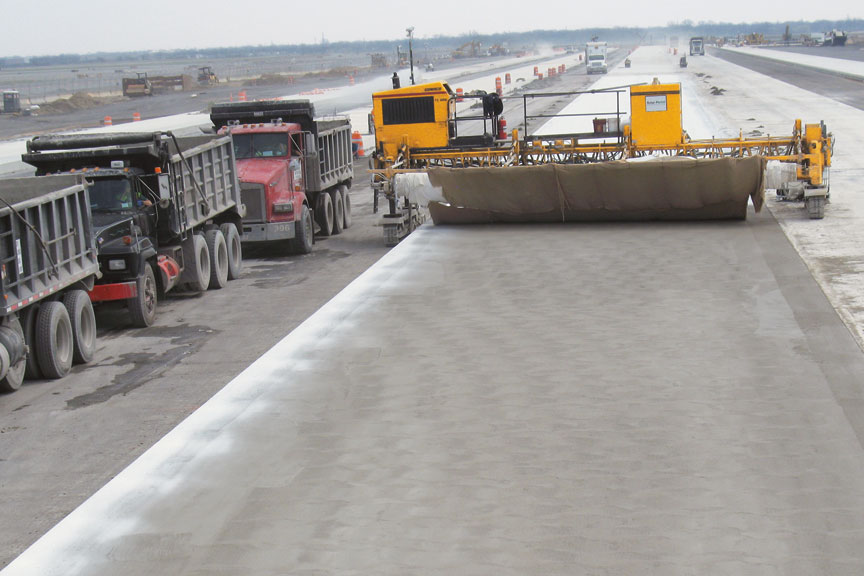

A T/C-600 follows behind a GHP-2800 applying a burlap-drag finish on this project at the Indianapolis Airport in Indiana.

Read more about this project in GOMACO World 34.1.







T/C-600 Texture/Cure Machine

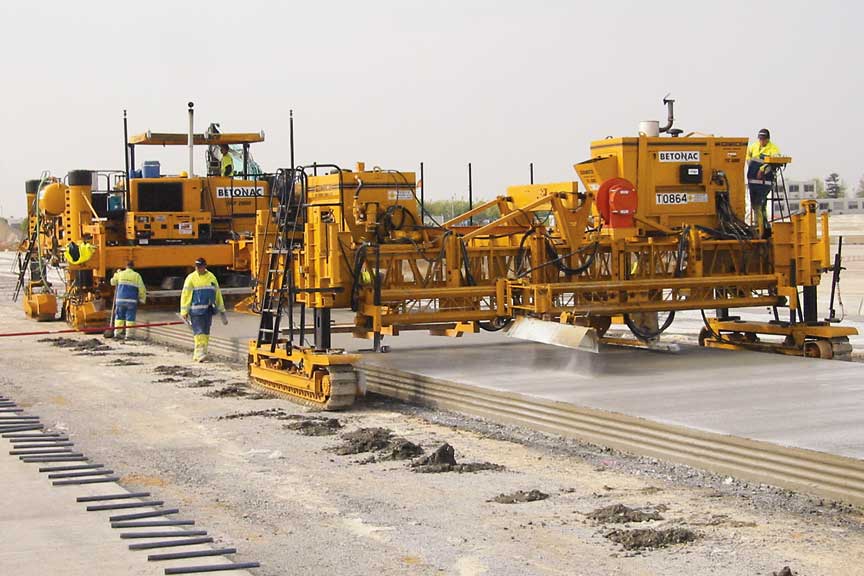

A GOMACO T/C-600, equipped with a transverse curing mechanism, followed a GHP-2800 and applied a transverse tine and a water-based curing compound at the Charles de Gaulle Airport in France.

Read more about this project in GOMACO World 35.2.







T/C-600 Texture/Cure Machine

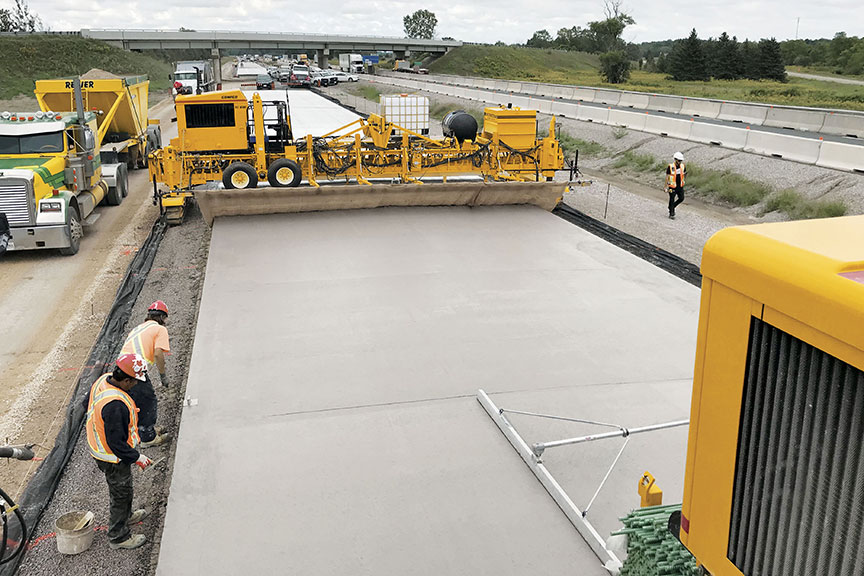

A T/C-600 texture/cure machine applies a white spray cure and longitudinal tine to the new eastbound section of Interstate 94 in Michigan.

Read more about this project in GOMACO World 37.2.







T/C-600 Texture/Cure Machine

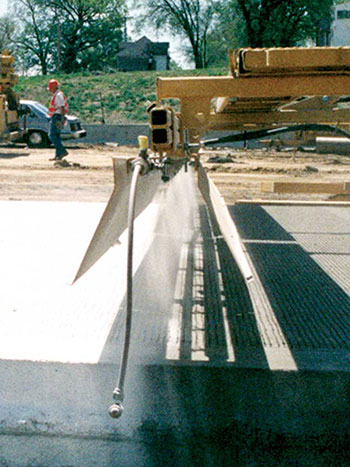

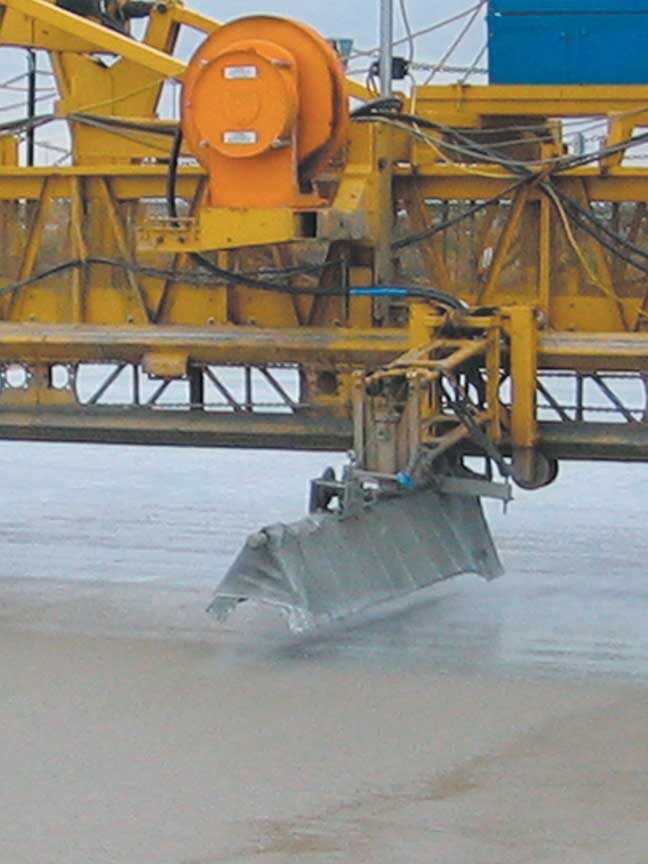

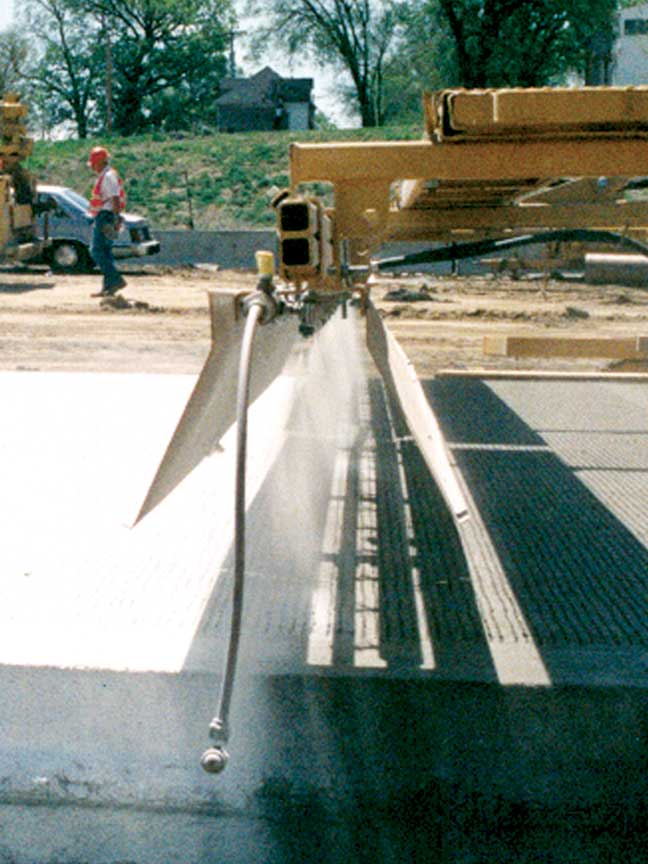

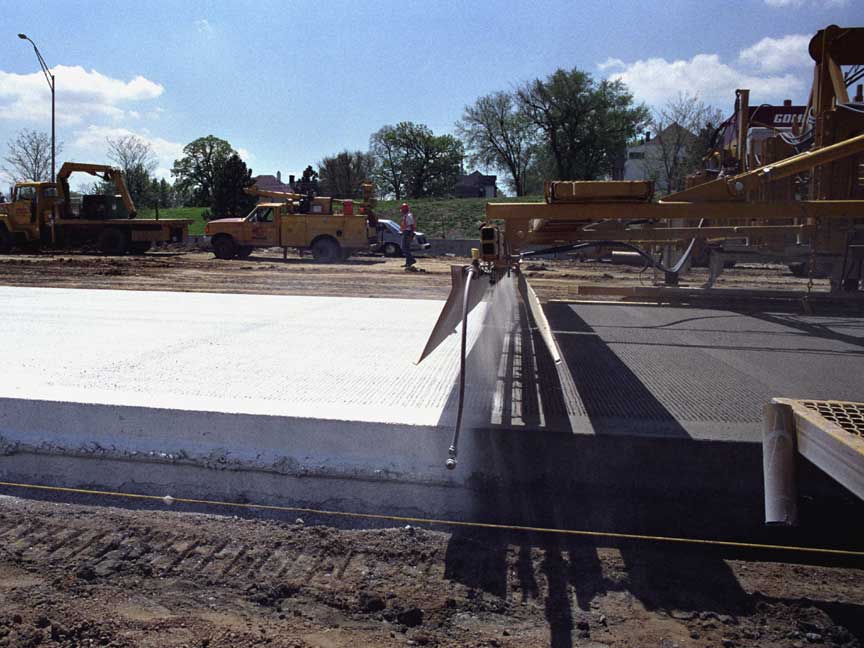

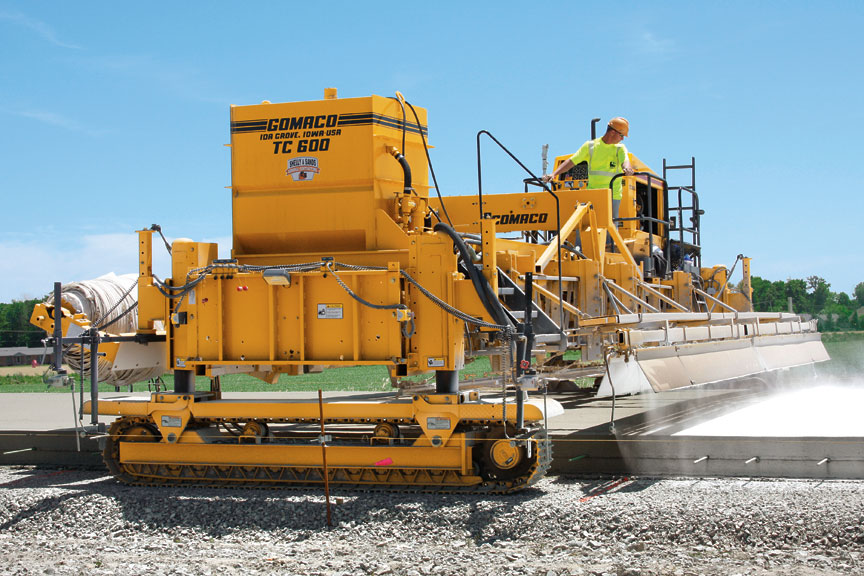

Full-width spray bar for curing has nozzles spaced 12 in. (305 mm) apart and adjustable height above the surface of the concrete for even coverage.







T/C-600 Texture/Cure Machine

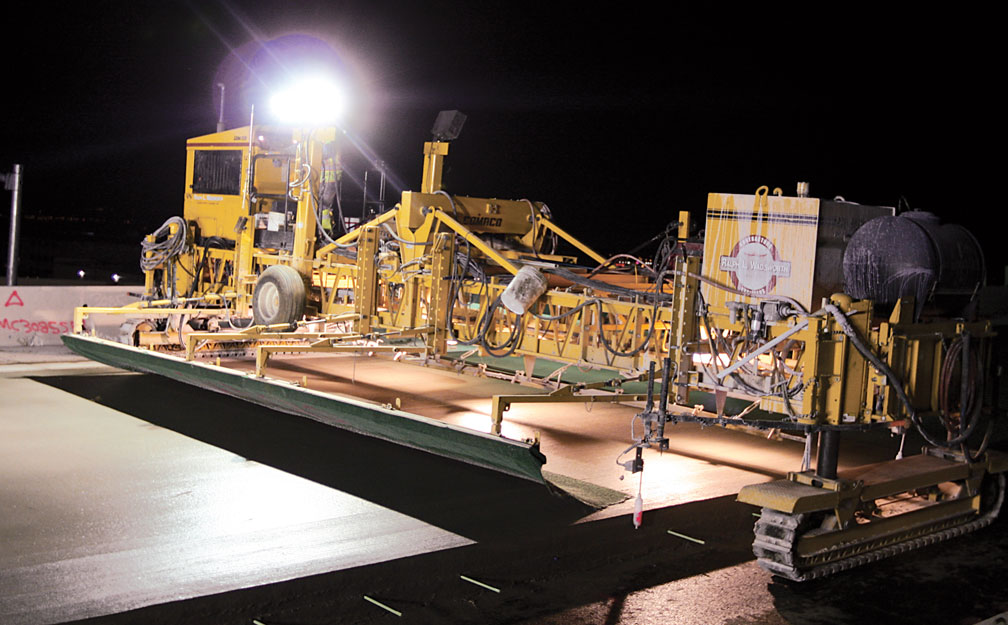

Transverse cure system allows for simultaneous texturing and curing.







T/C-600 Texture/Cure Machine

A T/C-600 texture/cure machine applied a tine finish and curing compound on the Pulkovo Airport near St. Petersburg, Russia.

Read more about this project in GOMACO World 34.2.







T/C-600 Texture/Cure Machine

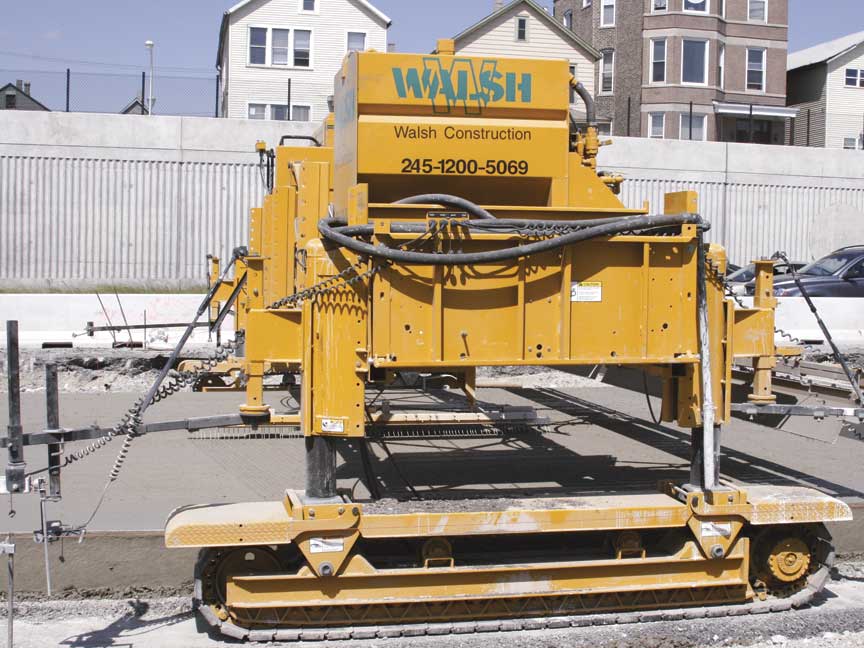

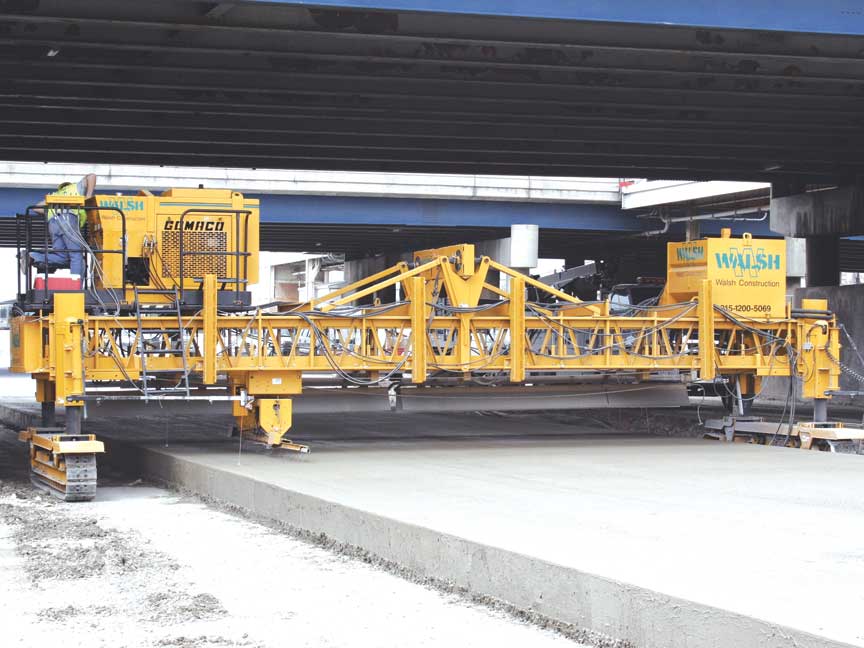

A T/C-600, with the new patented skewed tining option, tines the slab on a 6:1 skew before applying a spray cure finish on the Dan Ryan Expressway project in Chicago, Illinois.

Read more about this project in GOMACO World 34.2.







T/C-600 Texture/Cure Machine

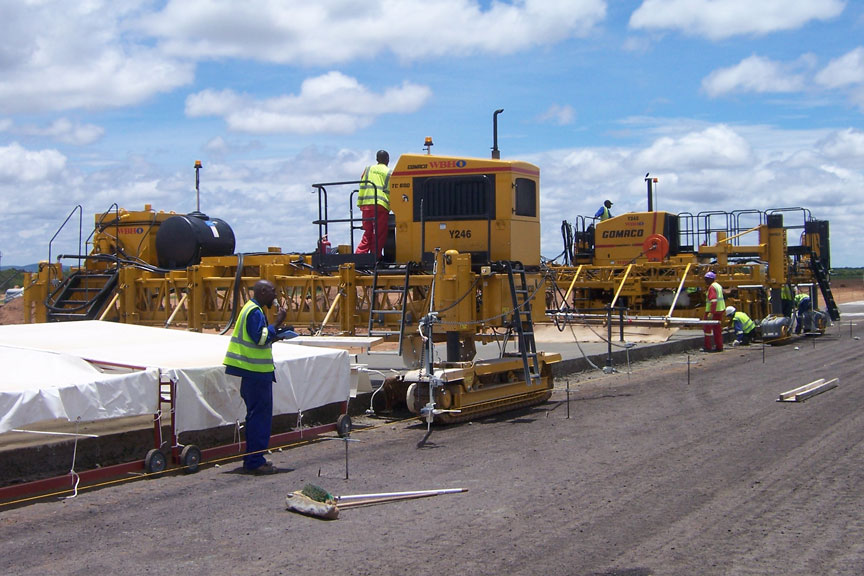

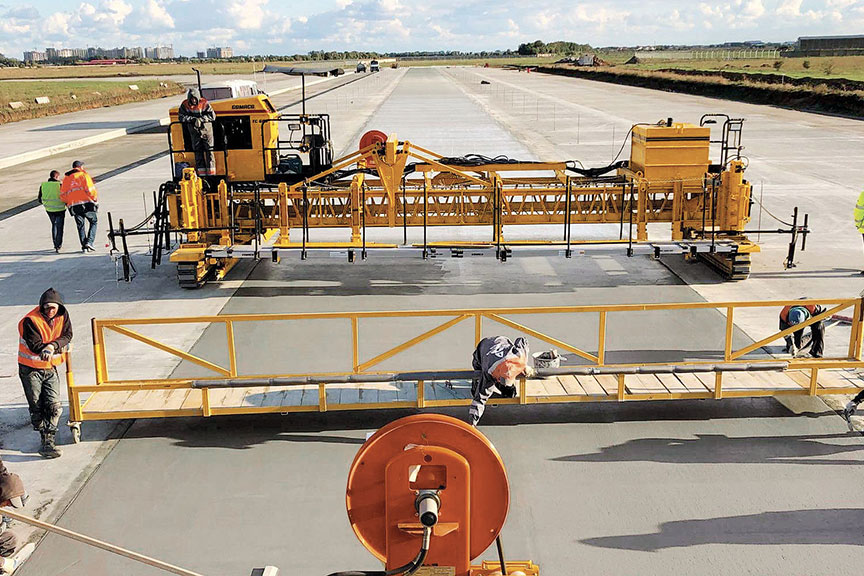

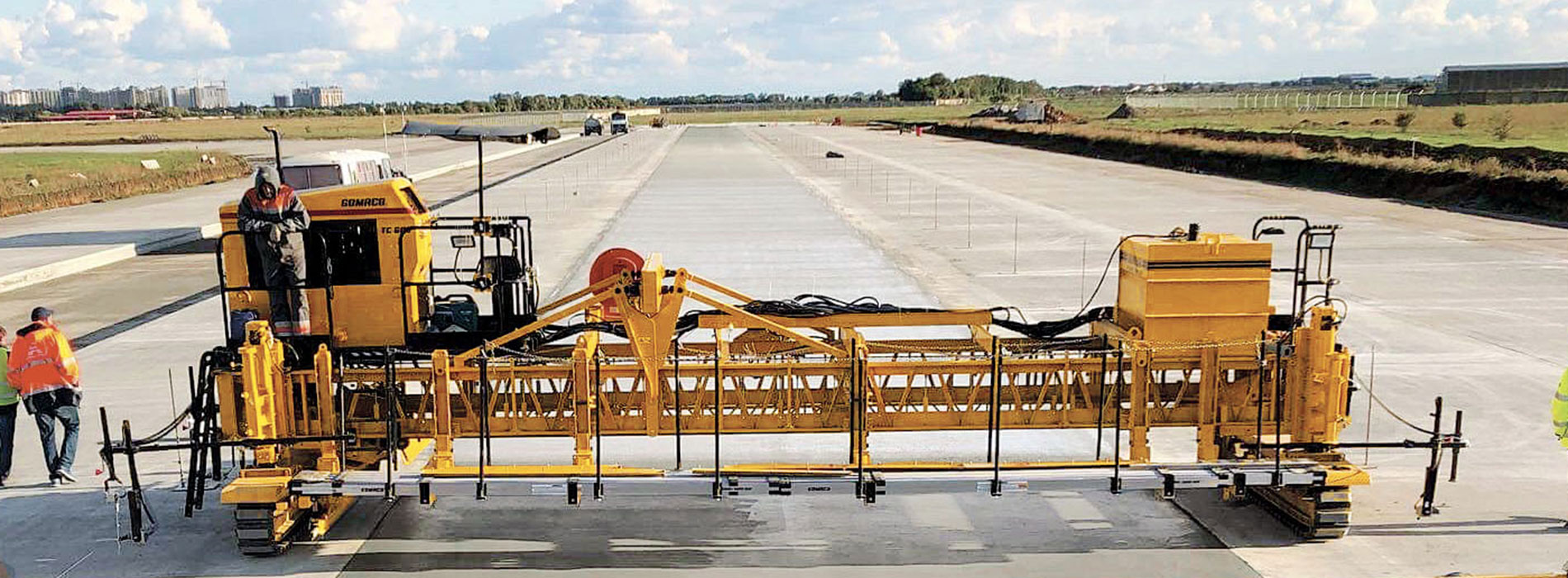

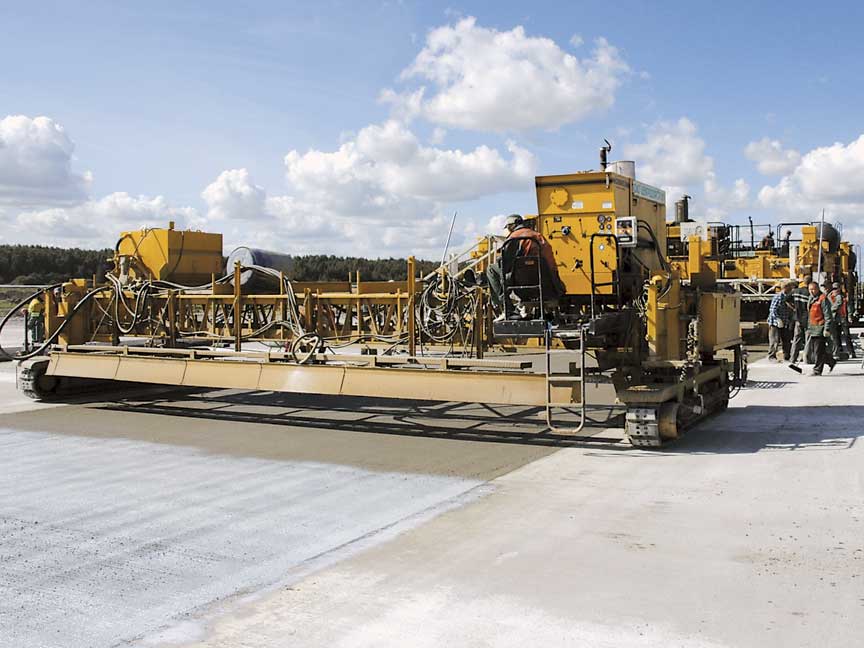

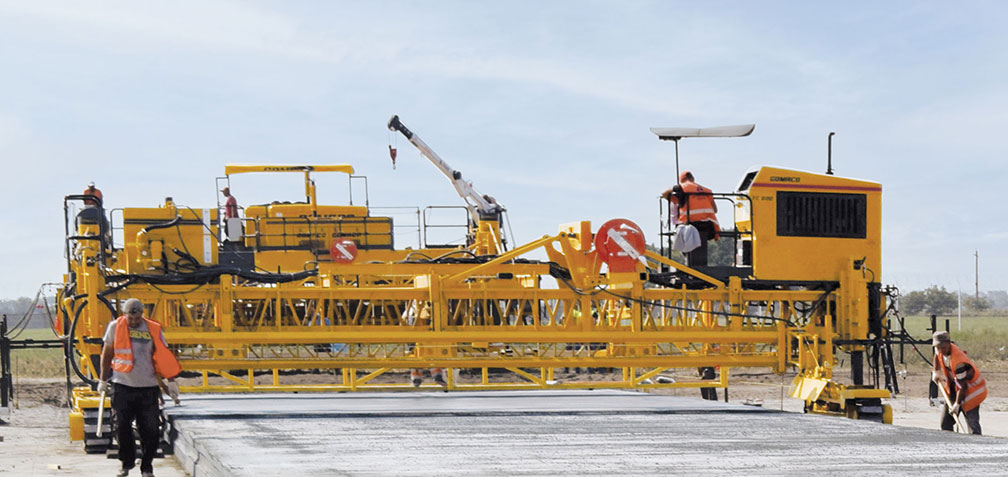

This contractor is paving on the Sir Seretse Khama International Airport near Gaberone, Botswana, with their Commander III four-track slipform paver and T/C-600 texture/cure machine.







T/C-600 Texture/Cure Machine

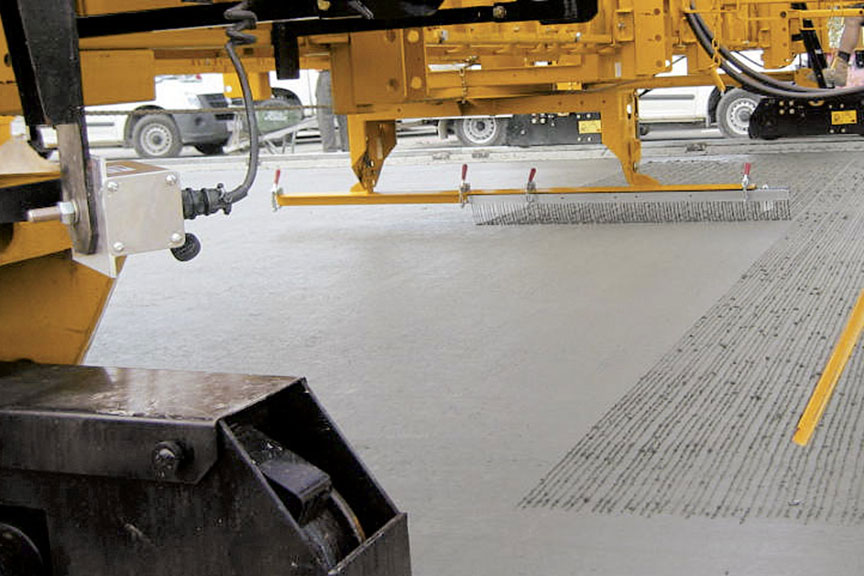

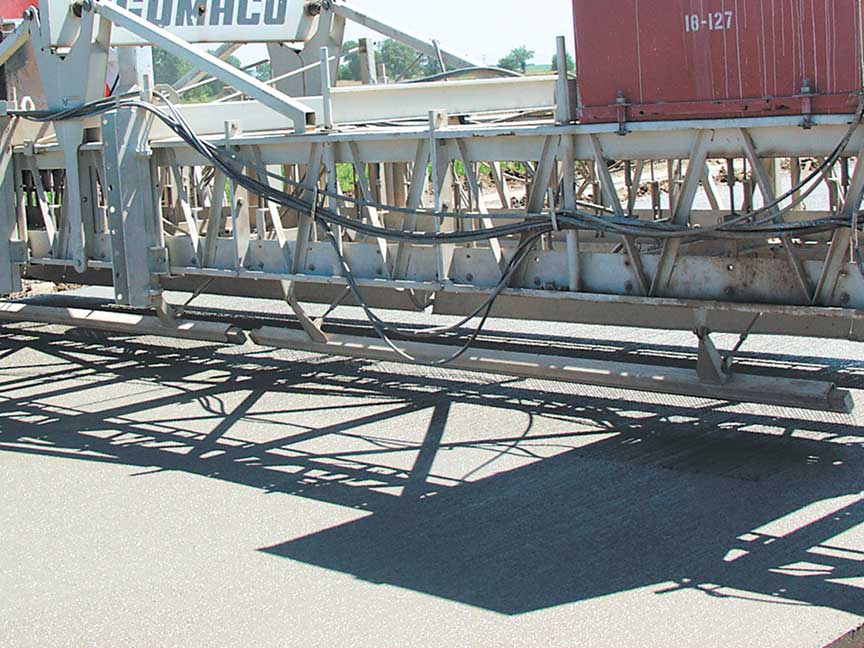

Longitudinal tining is available when required by project specifications.







T/C-600 Texture/Cure Machine

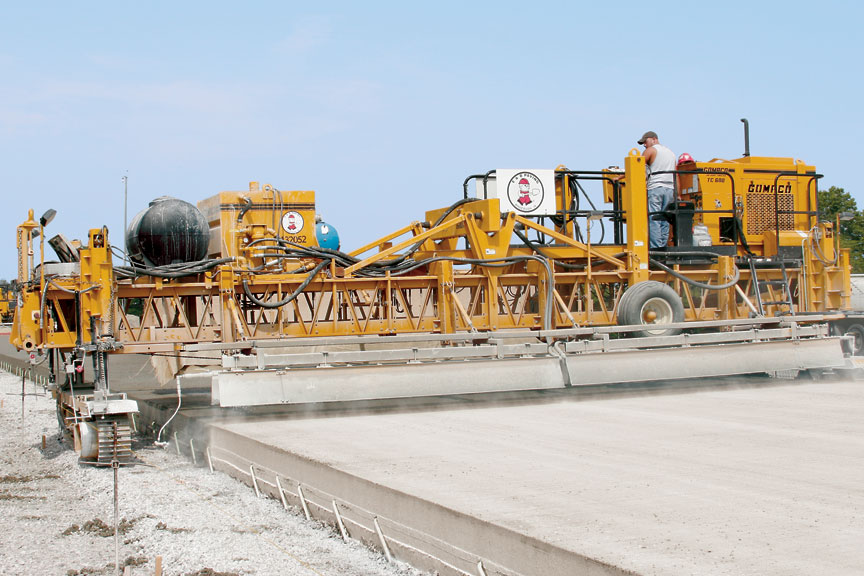

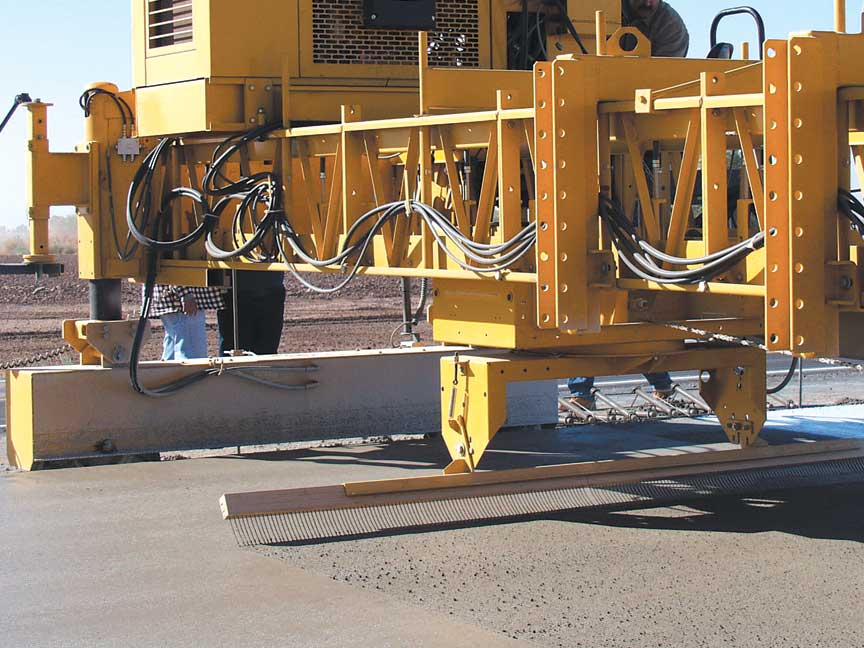

Wire tines for texturing travel across the width of the concrete slab. Adjustable pressure on surface contact between the texturing member and concrete controls depth and angle of wire tines.







T/C-600 Texture/Cure Machine

The skewed tining option on the T/C-600 simplifies the ability to transverse tine on newly paved streets and highways requiring a skew texture.







T/C-600 Texture/Cure Machine

GOMACO's T/C-600 curing assembly includes a 250 gal. (946 L) reservoir with a hydraulically driven cure pump, filter, gauges and controls.







T/C-600 Texture/Cure Machine

The console and operator station provide easy operation and overall visibility.







T/C-600 Texture/Cure Machine

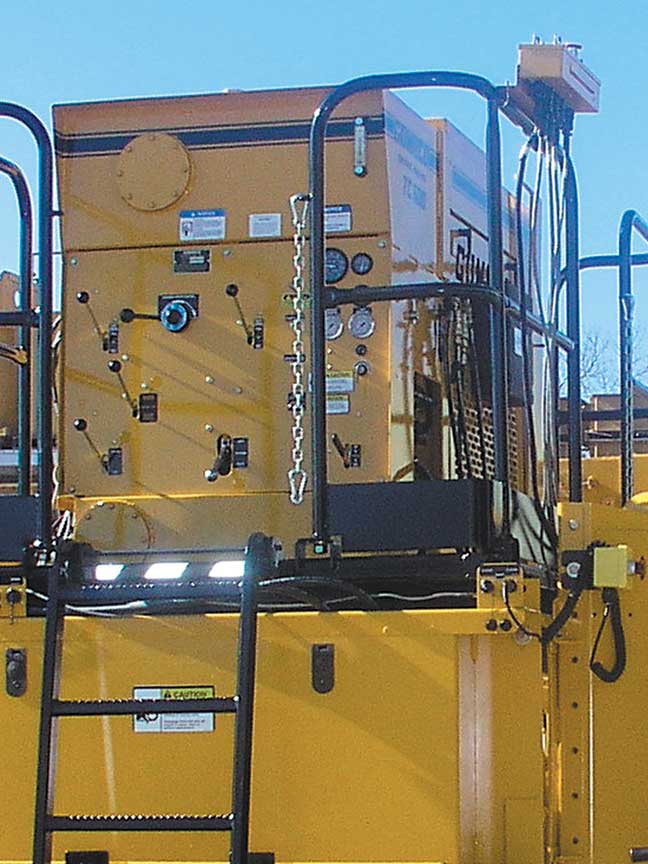

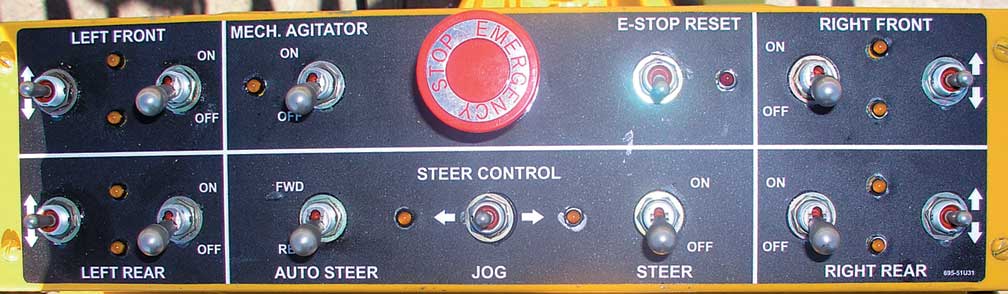

The control box is strategically positioned to provide easy steering control and safety with the emergency stop switch.







T/C-600 Specifications



ENGINE
Type:
CAT diesel.
Power: 60 hp (44.8 kW) @ 2800 rpm.



SERVICE CAPACITIES
Fuel reservoir:
33 gal. (124.9 L).
Hydraulic oil reservoir: 57 gal. (215.8 L).



HYDRAULIC SYSTEM
Pumps:
One double-stage main pump provides 37 gpm (140 Lpm) @ 2150 rpm.
One main lift pump provides 11 gpm (41.6 Lpm) @ 2150 rpm.
Oil cooler: One electric fan forced-air oil cooler mounted on top of engine shroud.
Filtration: One twenty-five micron main filter.



AUTOMATIC CONTROL SYSTEM
Type:
Electronic-over-hydraulic.
Controls: GOMACO’s control system features forward and reverse steering and grade control and is sensored off the same stringline as the paver. This provides ease of operation and accuracy in texturing and curing.



TRACTION SYSTEM
Type:
Two hydraulically powered, gear-driven crawler tracks.
Track length: 11 ft. 7 in. (3.53 m); center-to-center sprocket/idler length, 9 ft. 11 in. (3.02 m).
Track pad width: 11.8 in. (300 mm).
Gearbox reduction: 36.6:1.
Ground pressure: Based on 17,700 lb. (8029 kg) machine with weight evenly distributed, 6.3 psi.
Track speed: Variable up to 97 fpm (29.57 mpm).
Optional two-speed: Low-range track speed of 66 fpm (20.1 mpm) and a high-range track speed of 176 fpm (53.6 mpm) with gearbox reduction at 100:1.
Optional: Poly-track pads.
Optional: Skewable track assembly.



FRAME
Construction:
All-steel welded frame, pin-connected main frame sections.
Width: Adjustable from 12 ft. 10 in. (3.91 m) up to 56 ft. 10 in. (17.32 m). Standard width is 32 ft. 10 in. (10 m).
Optional frame extensions: Available in 2 ft. (.61 m), 4 ft. (1.22 m), 8 ft. (2.44 m) and 12 ft. (3.66 m) lengths.
Optional power transition adjuster: Hydraulically adjusts for crown height and permits on-the-go crown adjustments.
Optional: Offset jack mounts, four to allow 2 ft. (.61 m) more between end cars without extending the main frame.



OPERATOR’S PLATFORM ASSEMBLY
Operator’s platform assembly is standard on both machines.



TEXTURING ASSEMBLY
10 ft. (3.05 m) wide with 5 in. (127 mm) long wire tines spaced to meet specification requirements.
Optional: Wire tine texturing members, fast change and built to specifications.



CURING ASSEMBLY
250 gal. (946.4 L) reservoir, pump with hydraulic motor and controls. Includes spray bar, windshield and work platform.
Optional: 350 gal. (1324.9 L) reservoir.
Optional: Platform assembly for reusable totes provides a quick cure tote exchange.
Optional: Spray bar, windshield and work platform extensions are available in 2 ft. (.61 m), 4 ft. (1.22 m), 8 ft. (2.44 m) and 12 ft. (3.66 m) lengths.



TRANSPORT AXLE (optional)
The transport axle is hydraulically powered with 6.7 in. (170 mm) x 15 in. (381 mm) 12 ply tires and removable towing tongue for job-site use only.



POLY-ROLL ATTACHMENT (optional)
Poly-roll attachment is pin-connected for quick attaching to the front of the T/C-600 texture/cure machine and is sectional to match the machine frame. Hydraulically driven variable speed motor, up to 40 rpm, powers the poly-roller to match ground speed. Motor is reversible or can be disconnected to allow roller to free wheel when unrolling. The poly-roller has a minimum length of 14 ft. 9 in. (4.5 m) and can handle up to 500 ft. (152.4 m) of poly-roll depending on thickness and width of poly. Roller extensions may be ordered for different machine widths. Consult factory for different widths, lengths and allowable weight of poly-roll.



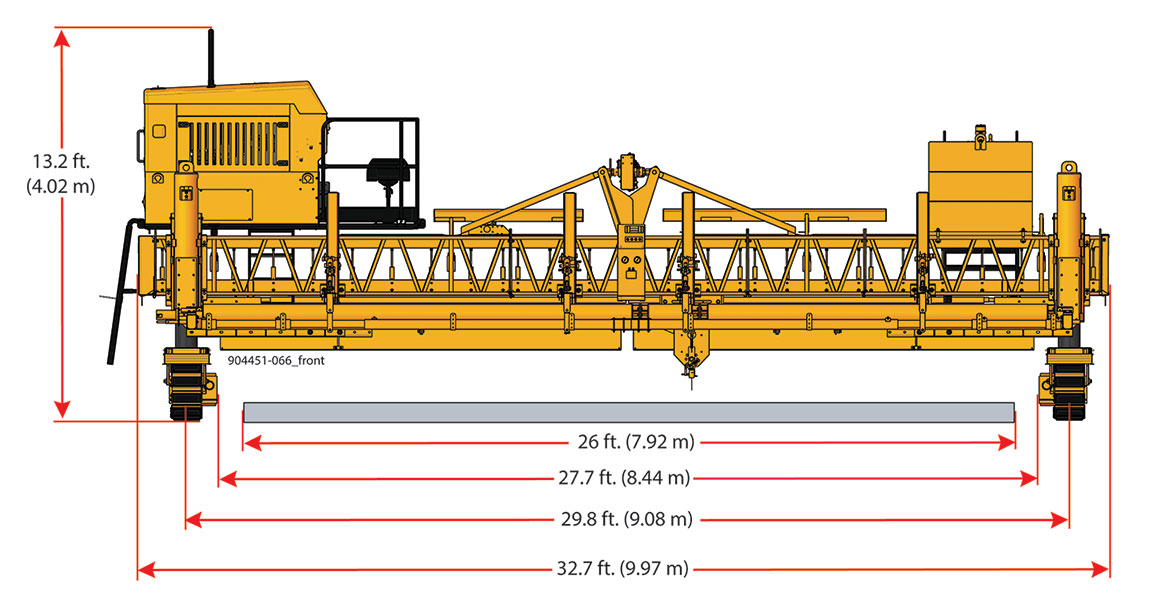

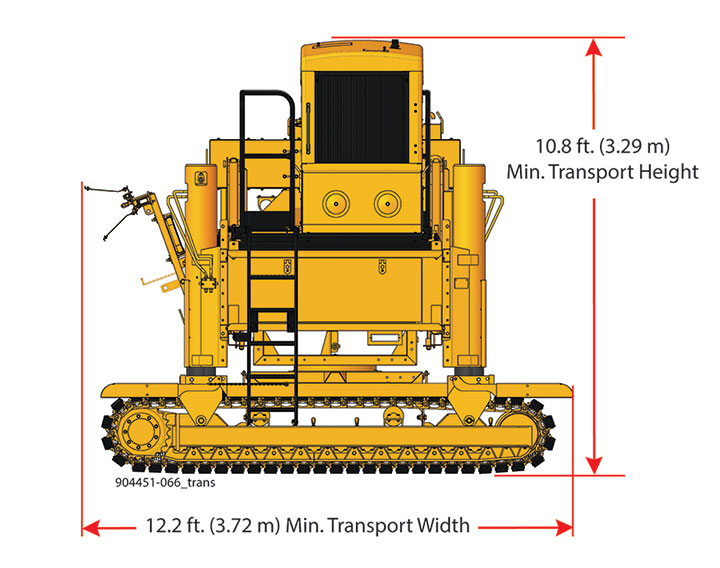

DIMENSIONS
Transport
Minimum width:
11 ft. 10.32 in. (3.61 m).
Minimum height: 9 ft. 10.26 in. (3 m).

Operational
Width:
12 ft. 10 in. (3.91 m) up to 56 ft. 10 in. (17.32 m).
Length: 13 ft. 10.6 in. (4.23 m).
Height: 12 ft. 6.73 in. (3.83 m).

WEIGHT (approximate)
(at 32 ft. 10 in. (10 m) standard width)
Basic unit at 17,700 lbs. (8029 kg).



ADDITIONAL OPTIONS

32 ft. 10 in. (10 m) texturing machine only, equipped same as standard machine, less curing system.

32 ft. 10 in. (10 m) curing machine only, equipped same as standard machine, less wire tine texturing member assembly.

Skewed tining option.

Auto-Float® attachment, consult factory for specifications.

Burlap drag assembly available for both texture/cure machines.

Other options are available to customize machines to accommodate applications and customer needs.
